#Cells decide with chemistry that is sloppy

A cell's molecules move by diffusion and react by chance, and the energy differences it has to work with are small. Yet a leopard's skin has regularly spaced spots, digits and hair follicles form at regular intervals, and a T cell can tell a foreign peptide from a self peptide that binds its receptor only a few times more weakly. Two ideas from theoretical biology explain how precise outcomes can come out of imprecise chemistry, and both are about dynamics rather than equilibrium.

• Turing patterns (Turing 1952): two interacting chemicals that diffuse at different rates can turn a uniform tissue into a periodic pattern whose spacing is set by the reaction and diffusion rates, not by any template. Diffusion, which normally smooths things out, creates the pattern.
• Kinetic proofreading (Hopfield 1974; Ninio 1975): if a decision is only taken after a molecule has stayed bound through several energy-consuming steps, the difference in binding times between a right and a wrong partner is amplified once per step. T-cell receptors are thought to work this way (McKeithan 1995).

Both turn physics into a decision, and both raise the same questions for a Bayesian: what can the data we can actually collect (an image of a pattern, a dose-response curve) tell us about the mechanism, how probable is it that the mechanism works at all given uncertain parameters, and which experiment would tell us more?

#The plan

Part A · Turing patterns

1. Activator, inhibitor and Turing's instability
2. Growing a pattern: a semi-implicit spectral solver
3. What a finished pattern can tell you
4. Watching the pattern grow: an exact likelihood from mode growth

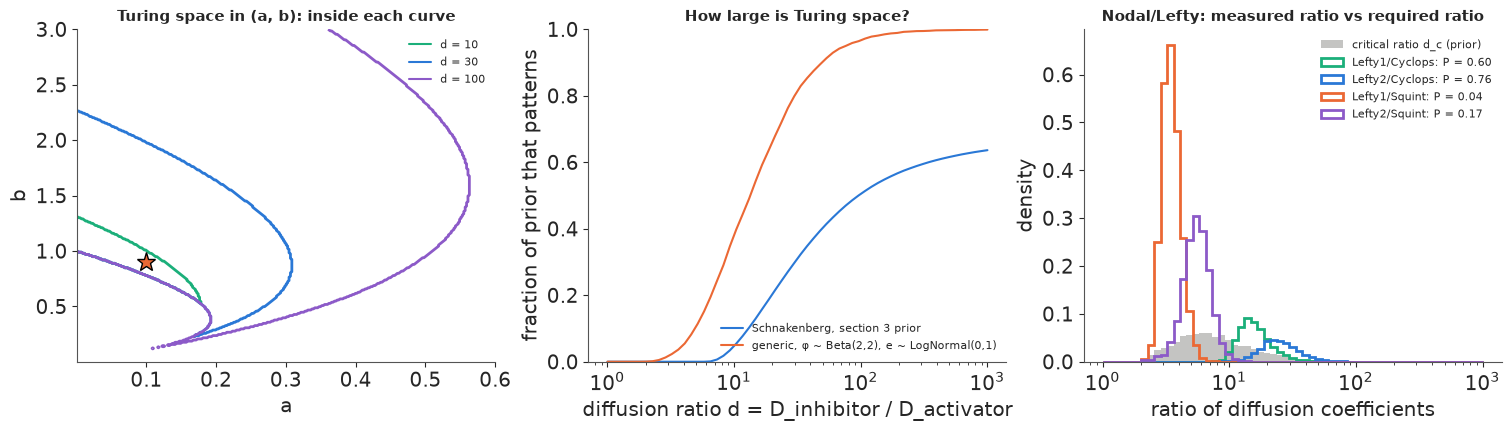

5. Is it Turing? Nodal and Lefty, and the size of Turing space

Part B · Kinetic proofreading

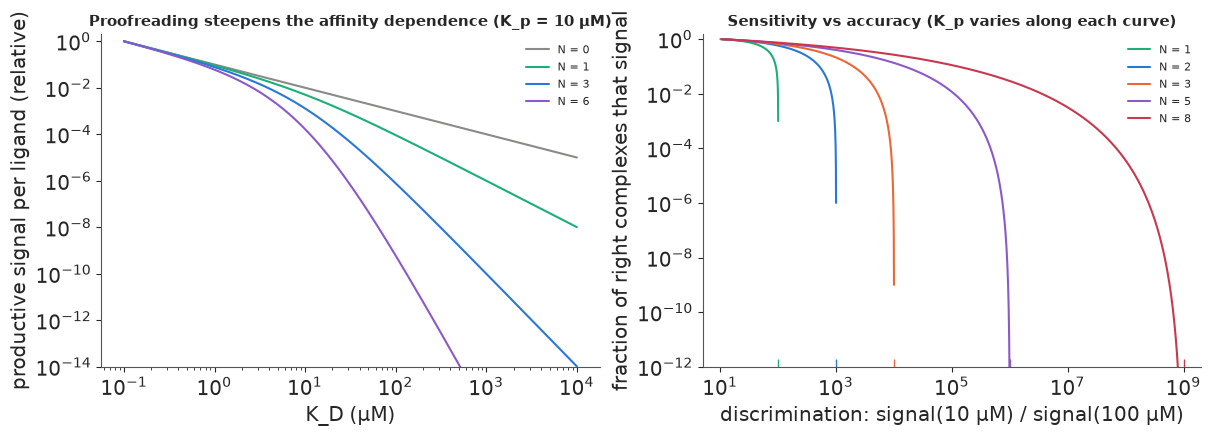

6. Hopfield's trick: accuracy paid for with time

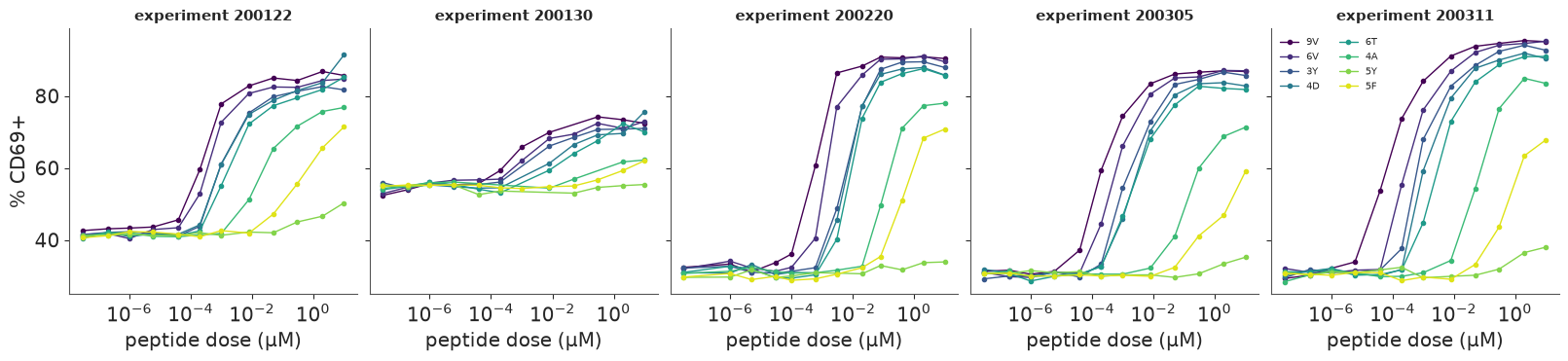

7. Data: how T cells respond to weaker and weaker antigens

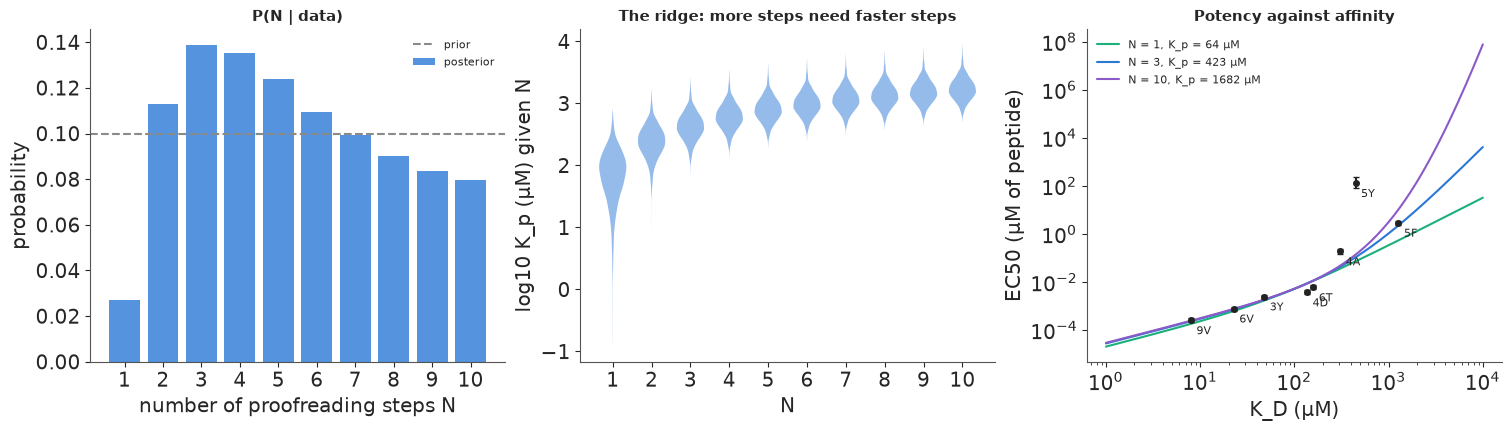

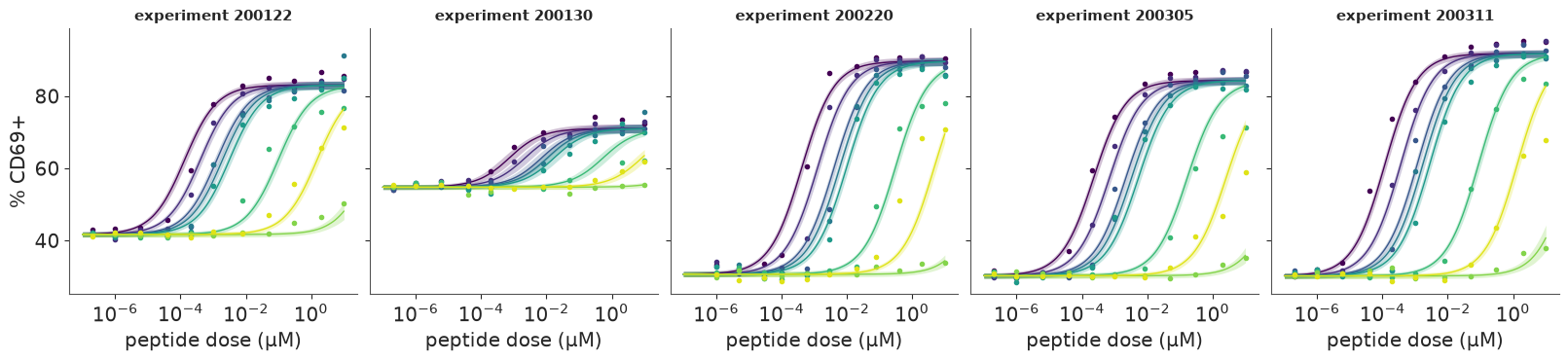

8. A proofreading model of potency, with the number of steps summed out
9. Counting steps: the trade-off between $N$ and the proofreading rate

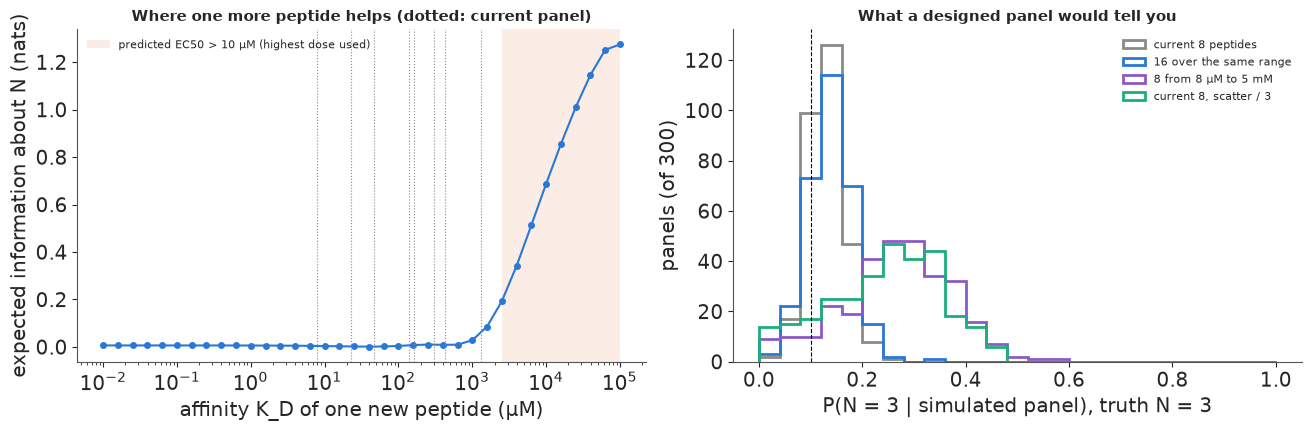

10. Which ligands would count the steps?

import logging
import time
import warnings

import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pymc as pm
import pytensor.tensor as pt
from IPython.display import HTML
from matplotlib import animation

from pymc_challenges import data

RANDOM_SEED = 61
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
plt.rcParams["axes.titlesize"] = 11
logging.getLogger("pymc").setLevel(logging.WARNING)
warnings.filterwarnings("ignore", category=FutureWarning)
warnings.filterwarnings("ignore", category=RuntimeWarning)
warnings.filterwarnings("ignore", message="The effect of Potentials")
BLUE, ORANGE, AQUA, GREY, PURPLE, RED, INK = (
    "#2a78d6", "#eb6834", "#1baf7a", "#8a8a86", "#8c5ac8", "#c8384e", "#222222")
print(f"PyMC {pm.__version__}, ArviZ {az.__version__}")


def report(idata, var_names, label, t_fit=None):
    """Print time, divergences and the worst r_hat / bulk ESS of the named variables."""
    s = az.summary(idata, var_names=var_names, round_to=4)
    div = int(idata.sample_stats["diverging"].sum())
    tt = f"{t_fit:.0f} s, " if t_fit is not None else ""
    print(f"{label}: {tt}{div} divergences, max r_hat {s['r_hat'].max():.3f}, "
          f"min bulk ESS {s['ess_bulk'].min():.0f}, "
          f"warm-up {idata.posterior.attrs.get('tuning_steps', '?')} steps")
    return s

PyMC 6.3.2, ArviZ 1.3.0

Part A · Turing patterns¶

#1 · Activator, inhibitor and Turing's instability

The Schnakenberg model is the simplest reaction-diffusion system that makes Turing patterns. An activator $u$ is produced at a constant rate, promotes its own production by an autocatalytic step $2u + v \to 3u$, and in doing so uses up a substrate $v$, which is supplied at a constant rate and diffuses faster. In dimensionless form (lengths in units of $\sqrt{D_u/k}$ for a reference rate $k$, so that $D_u = 1$),

$$\partial_t u = \gamma\,(a - u + u^2 v) + \nabla^2 u, \qquad \partial_t v = \gamma\,(b - u^2 v) + d\,\nabla^2 v .$$

Here $a, b$ are the supply rates, $\gamma$ scales all reaction rates relative to diffusion (and hence the size of the pattern relative to the dish) and $d = D_v / D_u$ is the ratio of diffusion coefficients. This is "substrate depletion": a local excess of $u$ grows by eating the $v$ around it, and because $v$ diffuses fast, it is depleted over a wide area, which stops other peaks from growing nearby. Fast long-range inhibition plus slow local activation is Turing's recipe; Gierer and Meinhardt (1972) wrote the same logic with an explicit inhibitor.

Linear stability. The uniform steady state is $u^* = a + b$, $v^* = b / (a+b)^2$. Write $s = a + b$ and $\rho = a / (a + b)$ (the share of the supply that goes directly to the activator). The Jacobian of the reactions there is

$$J = \begin{pmatrix} f_u & f_v \\ g_u & g_v \end{pmatrix} = \begin{pmatrix} 1 - 2\rho & s^2 \\ -2(1-\rho) & -s^2 \end{pmatrix}.$$

A small perturbation $\propto e^{i\mathbf{k}\cdot\mathbf{x}}$ with wavenumber $k = |\mathbf{k}|$ evolves as $e^{A(k) t}$ with $A(k) = \gamma J - k^2\,\mathrm{diag}(1, d)$. Its growth rate $\lambda(k)$, the larger real part of the eigenvalues of $A(k)$, is the dispersion relation. A Turing instability means that the uniform state is stable without diffusion ($k = 0$) but unstable for some band of $k > 0$:

1. $\operatorname{tr} J = f_u + g_v < 0$, i.e. $1 - 2\rho < s^2$ (stable without diffusion);
2. $\det J = s^2 > 0$ (always true here);
3. $f_u > 0$ (the activator activates itself: $\rho < 1/2$);
4. $d\,f_u + g_v > 2\sqrt{d \det J}$, which is $d > d_c$ with $d_c = \left[\big(\sqrt{\det J} + \sqrt{\det J - f_u g_v}\big)/f_u\right]^2 = s^2 \left[\big(1 + \sqrt{2 - 2\rho}\big) / (1 - 2\rho)\right]^2 .$

The inhibitor (here the substrate) must diffuse at least $d_c$ times faster than the activator. For $a = 0.1$, $b = 0.9$ ($s = 1$, $\rho = 0.1$) that is $d_c = 8.6$. Above it, $\lambda(k) > 0$ in a band of wavenumbers, and the fastest-growing mode $k_m$ sets the pattern's expected wavelength $2\pi/k_m$. The scale is set by $\gamma$: all wavenumbers scale as $\sqrt{\gamma}$.

def jacobian(s, rho):
    """Schnakenberg Jacobian entries at the uniform steady state (s = a + b, rho = a / s)."""
    return 1 - 2 * rho, s**2, -2 * (1 - rho), -s**2


def growth_rate(q, s, rho, d, g):
    """Largest real part of the eigenvalues of gamma*J - q*diag(1, d); q = k^2 (broadcasts)."""
    fu, fv, gu, gv = jacobian(s, rho)
    a11, a22 = g * fu - q, g * gv - d * q
    tr, det = a11 + a22, a11 * a22 - g**2 * fv * gu
    disc = tr**2 / 4 - det
    return tr / 2 + np.sqrt(np.maximum(disc, 0))


def d_critical(s, rho):
    """Smallest diffusion ratio for a Turing instability (inf if the activator does not self-activate)."""
    fu = 1 - 2 * rho
    with np.errstate(divide="ignore", invalid="ignore"):
        dc = s**2 * ((1 + np.sqrt(2 - 2 * rho)) / fu) ** 2
    return np.where(fu > 0, dc, np.inf)


def is_turing(s, rho, d):
    return (1 - 2 * rho < s**2) & (d > d_critical(s, rho))


Q_GRID = np.linspace(1e-4, 3.0, 600)


def fastest_mode(s, rho, d, g, chunk=5000):
    """Wavenumber k_m of the fastest-growing mode and its growth rate, for arrays of parameters."""
    s, rho, d, g = (np.atleast_1d(np.asarray(x, float)) for x in (s, rho, d, g))
    km, lm = [], []
    for i in range(0, len(s), chunk):
        sl = slice(i, i + chunk)
        lam = growth_rate(Q_GRID[None, :], s[sl, None], rho[sl, None], d[sl, None], g[sl, None])
        j = lam.argmax(axis=1)
        km.append(np.sqrt(Q_GRID[j]))
        lm.append(lam.max(axis=1))
    return np.concatenate(km), np.concatenate(lm)


TRUE = dict(s=1.0, rho=0.1, d=20.0, g=1.0)     # a = 0.1, b = 0.9
print(f"d_c for s = 1, rho = 0.1: {d_critical(1.0, 0.1):.2f}")
km_true, lm_true = fastest_mode(**TRUE)
print(f"truth (d = 20): fastest mode k_m = {km_true[0]:.3f}, wavelength {2 * np.pi / km_true[0]:.1f}, "
      f"growth rate {lm_true[0]:.3f}")

kk = np.linspace(0, 1.4, 400)
fig, axes = plt.subplots(1, 2, figsize=(11, 3.8))
for d_, c in zip([5.0, 8.57, 10.0, 20.0, 40.0], [GREY, INK, AQUA, BLUE, PURPLE]):
    axes[0].plot(kk, growth_rate(kk**2, 1.0, 0.1, d_, 1.0), color=c, label=f"d = {d_:g}")
axes[0].axhline(0, color="k", lw=0.8)
axes[0].set(ylim=(-0.6, 0.45), xlabel="wavenumber k", ylabel="growth rate λ(k)",
            title="Dispersion relation (a = 0.1, b = 0.9, γ = 1)")
axes[0].legend(fontsize=8)
rr = np.linspace(0.005, 0.495, 300)
for s_, c in zip([0.6, 1.0, 1.5], [ORANGE, BLUE, PURPLE]):
    dc = d_critical(s_, rr)
    dc = np.where(1 - 2 * rr < s_**2, dc, np.nan)
    axes[1].plot(rr, dc, color=c, label=f"s = a + b = {s_}")
axes[1].set(yscale="log", ylim=(3, 500), xlabel="ρ = a / (a + b)", ylabel="critical ratio d_c = D_v / D_u",
            title="How much faster the inhibitor must diffuse")
axes[1].legend(fontsize=8);

d_c for s = 1, rho = 0.1: 8.57
truth (d = 20): fastest mode k_m = 0.485, wavelength 12.9, growth rate 0.263

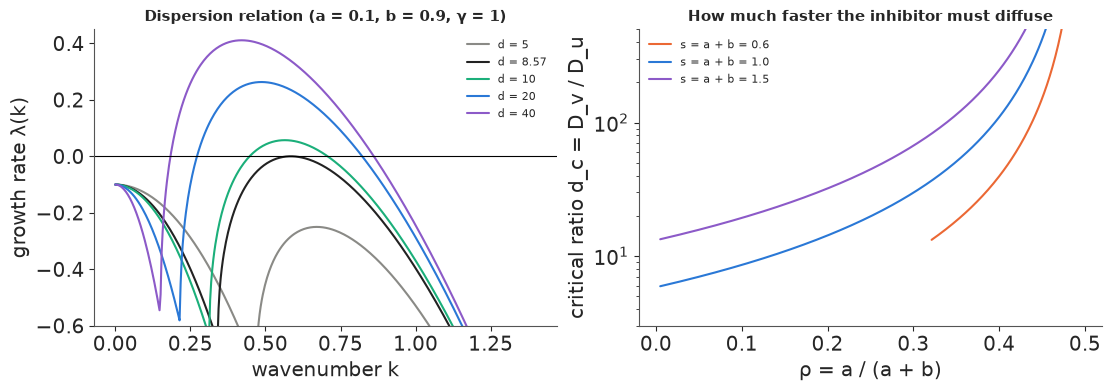

Left: below $d_c = 8.6$ every mode decays ($\lambda < 0$ for all $k$). At $d_c$ one wavenumber becomes marginal, and above it a band of wavenumbers grows. At $d = 20$ the band runs from about $k = 0.25$ to $0.85$ and the fastest mode is $k_m \approx 0.49$, a wavelength of about 13 units. The $k = 0$ mode always decays: without diffusion the chemistry is stable. Right: the critical ratio grows without bound as $\rho \to 1/2$ (the activator's self-enhancement vanishes) and is never below about 5.8 in this model. Diffusion coefficients of similar-sized proteins rarely differ by an order of magnitude, which is the classic objection to Turing mechanisms in development; we return to it in section 5.

#2 · Growing a pattern: a semi-implicit spectral solver

On a periodic square, the Laplacian is diagonal in Fourier space ($\nabla^2 \to -k^2$). Treating diffusion implicitly and the reactions explicitly gives the update

$$\hat u^{\,n+1} = \frac{\widehat{u^n + \Delta t\, f(u^n, v^n)}}{1 + \Delta t\, k^2}, \qquad \hat v^{\,n+1} = \frac{\widehat{v^n + \Delta t\, g(u^n, v^n)}}{1 + \Delta t\, d\, k^2},$$

two real FFTs per field per step. It is unconditionally stable for the (stiff) diffusion part; the step is limited only by the reactions. A 128 × 128 grid on a square of side $L = 100$ runs about 4,000 steps a second. We start from the uniform state plus white noise of standard deviation $10^{-3}$ in both species, which stands in for molecular noise.

N_GRID, L_BOX = 128, 100.0
KX = 2 * np.pi * np.fft.fftfreq(N_GRID, L_BOX / N_GRID)
KY = 2 * np.pi * np.fft.rfftfreq(N_GRID, L_BOX / N_GRID)
K2 = KX[:, None] ** 2 + KY[None, :] ** 2          # rfft2 layout: (128, 65)


def initial_state(s, rho, s0=1e-3, seed=0):
    r = np.random.default_rng(seed)
    a, b = rho * s, (1 - rho) * s
    return (s + s0 * r.standard_normal((N_GRID, N_GRID)),
            b / s**2 + s0 * r.standard_normal((N_GRID, N_GRID)))


def simulate(state, s, rho, d, g, t_end, dt=None, snaps=()):
    """Semi-implicit spectral integration from `state` for t_end; returns (u, v) and {t: u} snapshots."""
    a, b = rho * s, (1 - rho) * s
    dt = dt or min(0.025, 0.1 / (g * (1 + s**2)))
    n = int(round(t_end / dt))
    iu, iv = 1 / (1 + dt * K2), 1 / (1 + dt * d * K2)
    want = {int(round(t / dt)): t for t in snaps}
    u, v = state
    out = {}
    for i in range(1, n + 1):
        uuv = u * u * v
        u = np.fft.irfft2(np.fft.rfft2(u + dt * g * (a - u + uuv)) * iu, s=u.shape)
        v = np.fft.irfft2(np.fft.rfft2(v + dt * g * (b - uuv)) * iv, s=v.shape)
        if i in want:
            out[want[i]] = u.copy()
    return (u, v), out


SHELL = np.rint(np.sqrt(K2) / (2 * np.pi / L_BOX)).astype(int)     # |k| in units of 2*pi/L


def radial_spectrum(u):
    """Radially averaged power spectrum of an image, by integer wavenumber shell."""
    p = np.abs(np.fft.rfft2(u - u.mean())) ** 2
    p[:, 1:N_GRID // 2] *= 2
    return np.bincount(SHELL.ravel(), p.ravel()) / np.maximum(np.bincount(SHELL.ravel()), 1)


def pattern_wavelength(u):
    """Wavelength of the spectral peak (parabolic interpolation in log power)."""
    sp = radial_spectrum(u)[: N_GRID // 2]
    sp[0] = 0
    i = int(np.argmax(sp))
    y0, y1, y2 = np.log(sp[i - 1:i + 2] + 1e-30)
    return L_BOX / (i + 0.5 * (y0 - y2) / (y0 - 2 * y1 + y2))


t0 = time.time()
T_EARLY = (4.0, 8.0, 12.0, 16.0)
state0 = initial_state(TRUE["s"], TRUE["rho"], seed=1)
state, early = simulate(state0, **TRUE, t_end=16.0, dt=0.005, snaps=T_EARLY)
state, late = simulate(state, **TRUE, t_end=284.0, snaps=(24.0, 44.0))
u_final = state[0]
(u_stripes, _), _ = simulate(initial_state(1.0, 0.1, seed=2), 1.0, 0.1, 10.0, 1.0, t_end=300.0)
print(f"three simulations: {time.time() - t0:.1f} s")
W_OBS = pattern_wavelength(u_final)
print(f"final pattern (d = 20): wavelength {W_OBS:.2f}; linear theory 2*pi/k_m = "
      f"{2 * np.pi / km_true[0]:.2f}; ratio {W_OBS / (2 * np.pi / km_true[0]):.3f}")
print(f"stripes (d = 10): wavelength {pattern_wavelength(u_stripes):.2f}, linear theory "
      f"{2 * np.pi / fastest_mode(1.0, 0.1, 10.0, 1.0)[0][0]:.2f}")

fig, axes = plt.subplots(1, 5, figsize=(15, 3.4))
panels = [(early[16.0], "t = 16 (d = 20)"), (late[24.0], "t = 40"), (late[44.0], "t = 60"),
          (u_final, "t = 300: spots"), (u_stripes, "d = 10, t = 300: stripes")]
for ax, (img, title) in zip(axes, panels):
    ax.imshow(img, cmap="magma", extent=(0, L_BOX, 0, L_BOX))
    ax.set(title=title, xticks=[], yticks=[])
    ax.grid(False);

three simulations: 5.8 s
final pattern (d = 20): wavelength 11.35; linear theory 2*pi/k_m = 12.95; ratio 0.877
stripes (d = 10): wavelength 10.98, linear theory 11.10

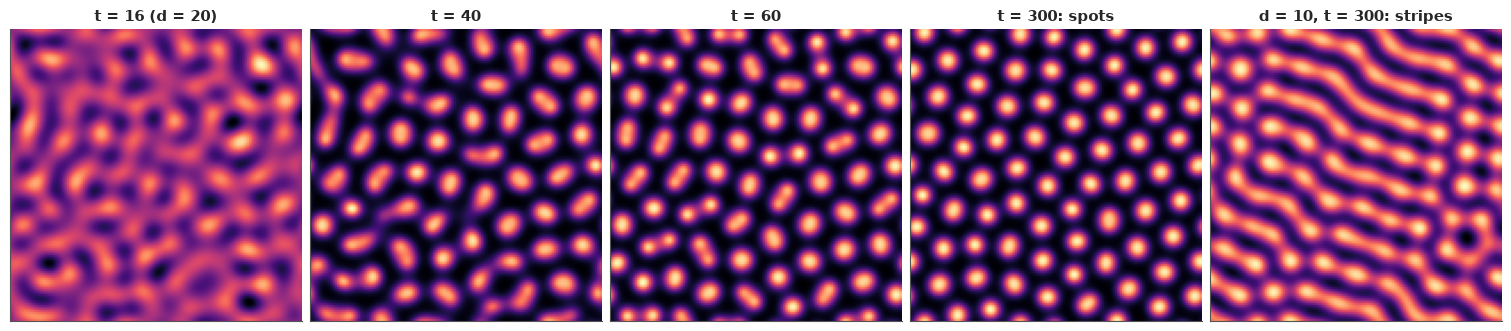

Activator concentration $u$ at five moments. At $t = 16$ the field still looks like smoothed noise (its range is only about ±2% around $u^* = 1$): all the modes in the unstable band are growing together, each from its own random start. By $t = 40$ the fastest modes dominate and the peaks have begun to saturate; by $t = 60$ the spots have formed, and afterwards they shift slowly into a nearly hexagonal arrangement. With the same kinetics but $d = 10$, just above $d_c = 8.6$, the pattern is stripes (labyrinths in general): near onset the quadratic interactions between modes that favour spots are weak. So the same chemistry makes spots or stripes depending on one diffusion ratio. Nothing in the model marks where a spot should be; their positions come from the noise, their spacing from the dispersion relation.

The animation replays both simulations up to $t = 150$. Each image is scaled to its own range (early on the pattern is only a few parts per thousand of $u^*$, so a fixed scale would show nothing), and the right panel tracks the radially averaged power spectrum of the spot pattern: the power concentrates on the fastest-growing wavenumber of linear theory (dashed) long before the spots are visible, then locks there as they saturate.

T_ANIM = np.arange(4.0, 150.1, 4.0)
_, anim_spots = simulate(initial_state(TRUE["s"], TRUE["rho"], seed=1), **TRUE, t_end=T_ANIM[-1], snaps=T_ANIM)
_, anim_stripes = simulate(initial_state(1.0, 0.1, seed=2), 1.0, 0.1, 10.0, 1.0, t_end=T_ANIM[-1], snaps=T_ANIM)
spectra = np.array([radial_spectrum(anim_spots[t])[: N_GRID // 2] for t in T_ANIM])

fig = plt.figure(figsize=(12, 3.9), dpi=72, layout="constrained")
ax_a, ax_b, ax_c = fig.subplots(1, 3)
im_a = ax_a.imshow(anim_spots[T_ANIM[0]], cmap="magma", extent=(0, L_BOX, 0, L_BOX))
im_b = ax_b.imshow(anim_stripes[T_ANIM[0]], cmap="magma", extent=(0, L_BOX, 0, L_BOX))
for ax_, t_ in [(ax_a, "d = 20: spots"), (ax_b, "d = 10: stripes")]:
    ax_.set(xticks=[], yticks=[], title=t_)
    ax_.grid(False)
shells = np.arange(N_GRID // 2)
(spec_line,) = ax_c.semilogy(shells[1:], spectra[0, 1:], color=BLUE)
ax_c.axvline(km_true[0] / (2 * np.pi / L_BOX), color=INK, ls="--", lw=1, label="fastest mode, linear theory")
ax_c.set(xlabel="wavenumber shell |k| L / 2 pi", ylabel="power", xlim=(0, 30),
         ylim=(spectra[:, 1:30].min() / 2, spectra[:, 1:30].max() * 2), title="power spectrum (spots)")
ax_c.legend(fontsize=8)
suptitle = fig.suptitle("")
plt.close(fig)


def update(i):
    t_ = T_ANIM[i]
    for im_, u_ in [(im_a, anim_spots[t_]), (im_b, anim_stripes[t_])]:
        im_.set_data(u_)
        im_.set_clim(u_.min(), u_.max())
    spec_line.set_ydata(spectra[i, 1:])
    suptitle.set_text(f"t = {t_:.0f}   (spot field range {anim_spots[t_].min():.3f} to {anim_spots[t_].max():.3f})")
    return im_a, im_b, spec_line


anim = animation.FuncAnimation(fig, update, frames=len(T_ANIM), interval=200)
with plt.rc_context({"animation.frame_format": "jpeg"}):          # noisy images: JPEG frames are ~5x smaller
    html = anim.to_jshtml(default_mode="once")
HTML(html)

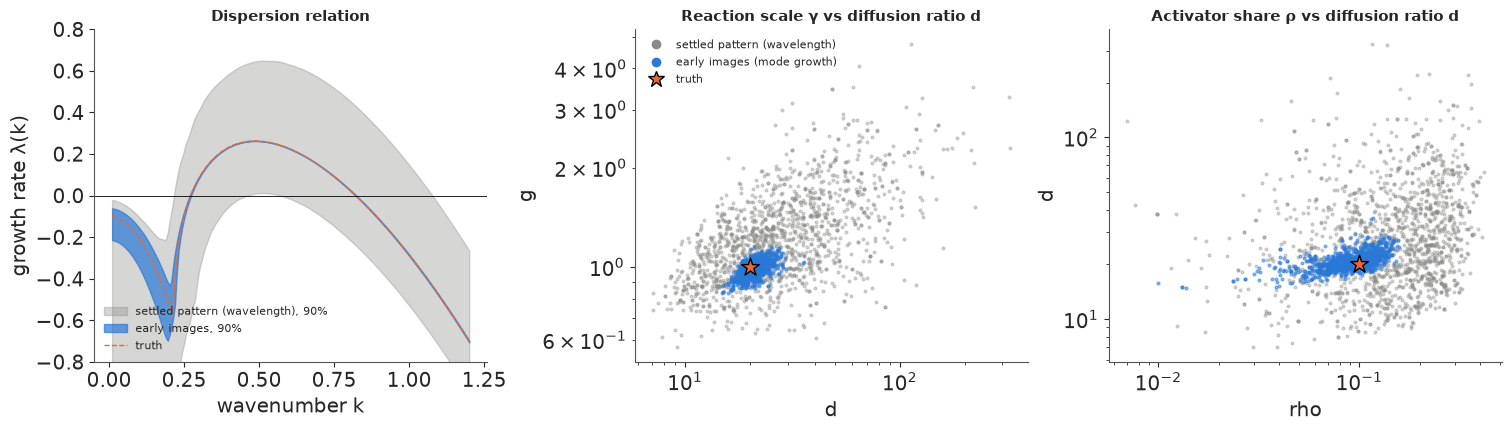

#3 · What a finished pattern can tell you

Suppose all we have is a picture of the settled pattern. It is tempting to fit the PDE to the image pixel by pixel, but that is hopeless and wrong: the spots' positions are set by the initial noise, which we do not know, so any small change in parameters or noise moves every spot. What a steady pattern reliably reports is its statistics: the wavelength (the peak of the radially averaged power spectrum, or equivalently the spot density), whether it is spots or stripes, and the contrast. Contrast needs calibrated concentrations, which fluorescence images seldom give, so we use the wavelength alone and ask what it identifies.

A feature likelihood needs a forward model for the feature. Linear theory predicts the wavelength $2\pi/k_m$ of the fastest-growing mode, but the settled pattern is shaped by nonlinear selection too. So we calibrate: simulate settled patterns for random parameter sets that satisfy the Turing conditions and compare the measured wavelength with the linear prediction.

def prior_draws(n, r):
    """Prior for Part A: s = a + b, rho = a / (a + b), diffusion ratio d, reaction scale gamma."""
    return dict(s=r.lognormal(0.0, 0.5, n), rho=r.beta(2.0, 5.0, n),
                d=r.lognormal(np.log(10), 1.0, n), g=r.lognormal(0.0, 0.7, n))


rcal = np.random.default_rng(611)
cand = prior_draws(3000, rcal)
km_c, lm_c = fastest_mode(**cand)
wl_c = 2 * np.pi / km_c
use = np.where(is_turing(cand["s"], cand["rho"], cand["d"]) & (lm_c > 0.03) & (wl_c > 7) & (wl_c < 25))[0][:10]
t0 = time.time()
ratios = []
for i in use:
    p = {k: cand[k][i] for k in cand}
    (u_i, _), _ = simulate(initial_state(p["s"], p["rho"], seed=int(i)), **p, t_end=300.0)
    ratios.append(pattern_wavelength(u_i) / wl_c[i])
ratios = np.array(ratios)
C_MU, C_SD = np.log(ratios).mean(), np.log(ratios).std(ddof=1)
print(f"{len(use)} calibration patterns in {time.time() - t0:.0f} s; "
      f"measured / linear wavelength: {np.round(ratios, 2)}")
print(f"log ratio: mean {C_MU:.3f} (factor {np.exp(C_MU):.3f}), sd {C_SD:.3f}")

10 calibration patterns in 30 s; measured / linear wavelength: [0.88 0.9  0.93 0.97 0.95 0.87 0.9  0.97 1.04 0.88]
log ratio: mean -0.076 (factor 0.927), sd 0.056

Settled patterns are usually shorter than the linear prediction, by about 7% on average (ratios from 0.87 to 1.04), with a scatter of about 6% between parameter sets. Nonlinear selection prefers a wavenumber above $k_m$ here, and the periodic box can only hold whole numbers of wavelengths. We fold both into the feature likelihood:

$$\log w_{\text{obs}} \sim \mathcal{N}\!\left(\log \frac{2\pi}{k_m(\theta)} + c,\ \sigma_c\right),$$

with $c$ and $\sigma_c$ the calibration mean and sd, restricted to parameters that satisfy the Turing conditions (we saw a pattern, so the uniform state must be unstable). With only four parameters and a one-dimensional feature, the posterior is easy to get by importance sampling from the prior: draw 200,000 parameter sets, weight each by the likelihood, and check the effective sample size. This is the same computation that ABC or pm.Simulator would do, minus the simulations, because the calibrated linear theory replaces the simulator.

r_is = np.random.default_rng(612)
pri = prior_draws(200_000, r_is)
km_p, _ = fastest_mode(**pri)
turing_p = is_turing(pri["s"], pri["rho"], pri["d"])
logw = np.where(turing_p, -0.5 * ((np.log(W_OBS) - np.log(2 * np.pi / km_p) - C_MU) / C_SD) ** 2, -np.inf)
w_is = np.exp(logw - logw.max())
w_is /= w_is.sum()
ess_is = 1 / np.sum(w_is**2)
snap_idx = r_is.choice(len(w_is), 4000, p=w_is)
snap = {k: v[snap_idx] for k, v in pri.items()}
print(f"prior probability of a Turing instability: {turing_p.mean():.3f}")
print(f"importance sampling ESS: {ess_is:.0f} of {len(w_is)}")
for k in ["s", "rho", "d", "g"]:
    q_pr, q_po = np.quantile(pri[k], [0.05, 0.95]), np.quantile(snap[k], [0.05, 0.95])
    print(f"  {k:>4}: prior 90% [{q_pr[0]:.3g}, {q_pr[1]:.3g}]   snapshot posterior [{q_po[0]:.3g}, "
          f"{q_po[1]:.3g}]   truth {TRUE[k]}")

prior probability of a Turing instability: 0.113
importance sampling ESS: 4285 of 200000
     s: prior 90% [0.437, 2.27]   snapshot posterior [0.731, 1.7]   truth 1.0
   rho: prior 90% [0.0625, 0.583]   snapshot posterior [0.0439, 0.311]   truth 0.1
     d: prior 90% [1.93, 51.9]   snapshot posterior [11, 83.4]   truth 20.0
     g: prior 90% [0.319, 3.15]   snapshot posterior [0.771, 2.09]   truth 1.0

The wavelength (about 11.4 units, observed without noise here) narrows the prior only a little in any single parameter. The prior probability of a Turing instability is about one in nine under these priors (0.11), and conditioning on "there is a pattern" alone pushes $d$ up and $\rho$ down. The rest of what the wavelength says is a single combination of parameters: $k_m \propto \sqrt{\gamma}$ times a function of $(s, \rho, d)$, so a fast-reacting system with one diffusion ratio and a slower one with another give the same spacing. The figure in section 4 shows this ridge.

#4 · Watching the pattern grow: an exact likelihood from mode growth

The early images carry much more information, and they come with an exact likelihood. While the perturbation is small, the dynamics are linear, so every Fourier mode evolves independently:

$$\begin{pmatrix}\hat u_{\mathbf k}(t) \\ \hat v_{\mathbf k}(t)\end{pmatrix} = e^{A(k)t} \begin{pmatrix}\hat u_{\mathbf k}(0) \\ \hat v_{\mathbf k}(0)\end{pmatrix}.$$

White initial noise of variance $s_0^2$ gives independent complex Gaussian Fourier coefficients (normalising the FFT by the number of pixels' square root), and a linear map of Gaussians is Gaussian. If we image only the activator at times $t_1, \dots, t_T$ with white camera noise of variance $\sigma^2$, the vector $x_{\mathbf k} = (\hat u_{\mathbf k}(t_1), \dots, \hat u_{\mathbf k}(t_T))$ is complex Gaussian with covariance

$$C(k) = s_0^2\, U U^\top + \sigma^2 I, \qquad U_{i\cdot} = \text{first row of } e^{A(k) t_i},$$

and modes with different $\mathbf k$ are independent. The log-likelihood is $\sum_{\mathbf k} \left[-\log\det C(k) - x_{\mathbf k}^H C(k)^{-1} x_{\mathbf k}\right]$. Two exact simplifications make it cheap:

• Sufficient statistics. $C$ depends only on $k^2$, so the modes can be grouped by their integer $k^2$ (in units of $(2\pi/L)^2$) and only the summed outer products $S(k) = \sum x x^H$ are needed.
• Woodbury. $C$ is rank 2 plus a diagonal, so with $H = I_2 + (s_0^2/\sigma^2) U^\top U$, $\det C = \sigma^{2T}\det H$ and $\operatorname{tr}(C^{-1}S) = \sigma^{-2}\left[\operatorname{tr} S
  • (s_0^2/\sigma^2)\operatorname{tr}(H^{-1} U^\top S U)\right]$: only 2 × 2 algebra per wavenumber. The first try, a batched 4 × 4 Cholesky, was 10 times slower to sample.

The 2 × 2 matrix exponential has a closed form: with $\tau = \operatorname{tr}A/2$ and $q = \tau^2 - \det A$, $e^{At} = e^{\tau t}[\cosh(\sqrt q\, t) I + \sinh(\sqrt q\, t)(A - \tau I)/\sqrt q]$, with cos/sin when $q < 0$. We write the hyperbolic case as $(e^{(\tau + \sqrt q)t} \pm e^{(\tau - \sqrt q)t})/2$ so that heavily damped high-$k$ modes do not overflow, and guard both square roots so that pt.switch never differentiates a NaN.

The data: the four early images at $t = 4, 8, 12, 16$ of the simulation in section 2 (simulated with a fine step, $\Delta t = 0.005$, so that time-stepping error is negligible), plus camera noise of sd $5 \times 10^{-4}$. We keep wavenumbers with $k^2 < 1.5$; above that, every mode has decayed below the noise within the first image and carries no information about the kinetics.

SIGMA_CAM = 5e-4
r_cam = np.random.default_rng(613)
imgs = [early[t] + SIGMA_CAM * r_cam.standard_normal((N_GRID, N_GRID)) for t in T_EARLY]
coef = np.stack([np.fft.rfft2(im) / N_GRID for im in imgs])          # (T, 128, 65), E|x|^2 = variance
m_int = (np.fft.fftfreq(N_GRID) * N_GRID)[:, None] ** 2 + np.arange(N_GRID // 2 + 1)[None, :] ** 2
inner = np.zeros(m_int.shape, bool)
inner[:, 1:N_GRID // 2] = True               # columns without a conjugate partner inside the half-plane
k2_int, grp = np.unique(m_int[inner].astype(int), return_inverse=True)
X = coef[:, inner]
nT = len(T_EARLY)
S_all = np.zeros((len(k2_int), nT, nT))
for i in range(nT):
    for j in range(nT):
        S_all[:, i, j] = np.bincount(grp, np.real(X[i] * np.conj(X[j])), minlength=len(k2_int))
n_all = np.bincount(grp, minlength=len(k2_int)).astype(float)
q_all = k2_int * (2 * np.pi / L_BOX) ** 2
keep = q_all < 1.5
q_fit, S_fit, n_fit = q_all[keep], S_all[keep], n_all[keep]
print(f"{int(n_all.sum())} independent Fourier modes, {len(k2_int)} distinct k^2; "
      f"fitting {int(n_fit.sum())} modes in {keep.sum()} groups (k^2 < 1.5)")
print("image sd at t = 4, 8, 12, 16:", [f"{im.std():.4f}" for im in imgs])

8064 independent Fourier modes, 1618 distinct k^2; fitting 581 modes in 138 groups (k^2 < 1.5)
image sd at t = 4, 8, 12, 16: ['0.0006', '0.0010', '0.0024', '0.0062']

def expm2(a11, a12, a21, a22, t):
    """exp(A t) for a batch of 2x2 matrices, overflow-safe and NaN-free in both branches."""
    tau = (a11 + a22) / 2
    q = tau**2 - (a11 * a22 - a12 * a21)
    rq = pt.sqrt(pt.maximum(q, 1e-12))
    wq = pt.sqrt(pt.maximum(-q, 1e-12))
    ep, em = pt.exp((tau + rq) * t), pt.exp((tau - rq) * t)
    c = pt.switch(q > 0, (ep + em) / 2, pt.exp(tau * t) * pt.cos(wq * t))
    sh = pt.switch(q > 0, (ep - em) / (2 * rq), pt.exp(tau * t) * pt.sin(wq * t) / wq)
    return c + sh * (a11 - tau), sh * a12, sh * a21, c + sh * (a22 - tau)


with pm.Model() as turing_model:
    s = pm.LogNormal("s", 0.0, 0.5)
    rho = pm.Beta("rho", 2.0, 5.0)
    d = pm.LogNormal("d", np.log(10), 1.0)
    g = pm.LogNormal("g", 0.0, 0.7)
    s0 = pm.LogNormal("s0", np.log(1e-3), 1.5)
    sig = pm.LogNormal("sigma", np.log(1e-3), 1.5)
    pm.Deterministic("a", rho * s)
    pm.Deterministic("b", (1 - rho) * s)
    fu, fv, gu, gv = 1 - 2 * rho, s**2, -2 * (1 - rho), -(s**2)
    ones = pt.ones_like(q_fit)
    # U[i] = first row of exp(A t_i): response of u(t_i) to initial u and initial v
    U = [expm2(g * fu - q_fit, g * fv * ones, g * gu * ones, g * gv - d * q_fit, t)[:2] for t in T_EARLY]
    r = s0**2 / sig**2
    G00 = sum(u0 * u0 for u0, _ in U)
    G01 = sum(u0 * u1 for u0, u1 in U)
    G11 = sum(u1 * u1 for _, u1 in U)
    H00, H01, H11 = 1 + r * G00, r * G01, 1 + r * G11
    detH = H00 * H11 - H01**2
    W = [[sum(U[i][p] * S_fit[:, i, j] * U[j][p2] for i in range(nT) for j in range(nT))
          for p2 in range(2)] for p in range(2)]
    tr_HinvW = (H11 * W[0][0] - H01 * (W[0][1] + W[1][0]) + H00 * W[1][1]) / detH
    tr_S = sum(S_fit[:, i, i] for i in range(nT))
    logdet = nT * pt.log(sig**2) + pt.log(detH)
    quad = (tr_S - r * tr_HinvW) / sig**2
    pm.Potential("mode_growth", pt.sum(-n_fit * logdet - quad))

    t0 = time.time()
    idata_t = pm.sample(tune=1500, target_accept=0.95, random_seed=RANDOM_SEED, progressbar=False)
    t_turing = time.time() - t0
sum_t = report(idata_t, ["s", "rho", "d", "g", "s0", "sigma"], "mode-growth fit", t_turing)
print(az.summary(idata_t, var_names=["a", "b", "d", "g", "s0", "sigma"], round_to=4)
      [["mean", "sd", "eti89_lb", "eti89_ub", "ess_bulk", "r_hat"]])

mode-growth fit: 93 s, 0 divergences, max r_hat 1.012, min bulk ESS 584, warm-up 1500 steps
          mean      sd  eti89_lb  eti89_ub   ess_bulk   r_hat
a       0.0960  0.0243    0.0544    0.1330   589.4864  1.0066
b       0.9383  0.0608    0.8434    1.0358   547.1988  1.0128
d      21.0113  2.3735   17.7008   25.2275   722.3613  1.0066
g       0.9870  0.0566    0.8993    1.0803   586.1164  1.0082
s0      0.0010  0.0000    0.0009    0.0010  1958.5790  1.0025
sigma   0.0005  0.0000    0.0005    0.0005  3377.6778  1.0023

The first attempt used nutpie's low-rank mass-matrix adaptation, which usually helps with correlated parameters: about 130-160 divergences ("large energy error") and $\hat r$ up to 1.8. The posterior is curved rather than linearly correlated (the data pin down entries of $\gamma J$, and $\gamma$, $s$, $\rho$ enter them as products and differences). The default diagonal adaptation with target_accept=0.95 and 1,500 warm-up steps samples cleanly: 0 divergences, $\hat r \le 1.013$, bulk ESS above 500, in about 90 s.

Four noisy images of what still looks like smoothed noise recover all four kinetic parameters: $d$ within about ±12% (89% interval 17.7-25.2, truth 20), $\gamma$ within about ±9% (0.90-1.08, truth 1), $b$ (0.84-1.04, truth 0.9) and, less precisely, $a$ (0.054-0.133, truth 0.1). The initial noise $s_0$ and camera noise $\sigma$ come out at their true values. The likelihood is exact for the linearised dynamics, and the images were taken while the field was within about ±2% of the uniform state, so the linearisation holds; the fine simulation step keeps time-stepping error negligible.

post_t = az.extract(idata_t, var_names=["s", "rho", "d", "g"], num_samples=1000, random_seed=RANDOM_SEED)
pt_draws = {k: post_t[k].values for k in ["s", "rho", "d", "g"]}
kq = np.linspace(0.01, 1.2, 200)
lam_early = growth_rate(kq[None, :] ** 2, *(pt_draws[k][:, None] for k in ["s", "rho", "d", "g"]))
sub = r_is.choice(len(snap["s"]), 1000, replace=False)
lam_snap = growth_rate(kq[None, :] ** 2, *(snap[k][sub, None] for k in ["s", "rho", "d", "g"]))

for arr, lab in [(lam_early, "early images"), (lam_snap, "settled pattern")]:
    q_l = np.quantile(arr.max(axis=1), [0.05, 0.95])
    q_k = np.quantile(kq[arr.argmax(axis=1)], [0.05, 0.95])
    print(f"{lab:>16}: fastest growth rate 90% [{q_l[0]:.3f}, {q_l[1]:.3f}], "
          f"its wavenumber [{q_k[0]:.3f}, {q_k[1]:.3f}]  (truth {lm_true[0]:.3f} at {km_true[0]:.3f})")

fig, axes = plt.subplots(1, 3, figsize=(15, 4.2))
ax = axes[0]
for arr, c, lab, al in [(lam_snap, GREY, "settled pattern (wavelength)", 0.35), (lam_early, BLUE, "early images", 0.7)]:
    lo, hi = np.quantile(arr, [0.05, 0.95], axis=0)
    ax.fill_between(kq, lo, hi, color=c, alpha=al, label=f"{lab}, 90%")
ax.plot(kq, growth_rate(kq**2, **TRUE), color=ORANGE, lw=1, ls="--", label="truth")
ax.axhline(0, color="k", lw=0.6)
ax.set(ylim=(-0.8, 0.8), xlabel="wavenumber k", ylabel="growth rate λ(k)", title="Dispersion relation")
ax.legend(fontsize=8, loc="lower left")
for ax, (xk, yk) in zip(axes[1:], [("d", "g"), ("rho", "d")]):
    ax.scatter(snap[xk][:1500], snap[yk][:1500], s=4, color=GREY, alpha=0.35, label="settled pattern")
    ax.scatter(pt_draws[xk], pt_draws[yk], s=4, color=BLUE, alpha=0.5, label="early images")
    ax.scatter([TRUE[xk]], [TRUE[yk]], marker="*", s=180, color=ORANGE, edgecolor="k", zorder=5,
               label="truth")
    ax.set(xscale="log", yscale="log", xlabel=xk, ylabel=yk)
handles = [plt.Line2D([], [], marker="o", ls="", color=GREY, label="settled pattern (wavelength)"),
           plt.Line2D([], [], marker="o", ls="", color=BLUE, label="early images (mode growth)"),
           plt.Line2D([], [], marker="*", ls="", ms=12, color=ORANGE, mec="k", label="truth")]
axes[1].legend(handles=handles, fontsize=8)
axes[1].set_title("Reaction scale γ vs diffusion ratio d")
axes[2].set_title("Activator share ρ vs diffusion ratio d");

    early images: fastest growth rate 90% [0.262, 0.264], its wavenumber [0.488, 0.488]  (truth 0.263 at 0.485)
 settled pattern: fastest growth rate 90% [0.014, 0.650], its wavenumber [0.464, 0.560]  (truth 0.263 at 0.485)

Left: the dispersion relation implied by each posterior (90% bands) against the truth (dashed). The settled pattern's wavelength constrains only where the fastest mode sits (its wavenumber to 0.46-0.56, truth 0.485); its growth rate (anywhere from 0.01 to 0.65), the width of the unstable band and the behaviour at small $k$ are almost free (grey). The early images pin the unstable band: the fastest growth rate to 0.262-0.264 (truth 0.263). Only the damped modes at small $k$, whose signal sinks below the camera noise within the first images, stay uncertain (blue, left). Middle and right: posterior draws of pairs of parameters. The wavelength-only posterior (grey) is a broad cloud along ridges: larger $d$ with larger $\gamma$, larger $d$ with larger $\rho$ give similar spacings. The mode-growth posterior (blue) is a small blob around the truth, elongated only along $\rho$ (the activator's direct supply $a$ is the least well determined parameter).

The lesson is general: a steady state reports a length scale; the approach to it reports rates. E50 found the same for a morphogen gradient, whose steady profile identified only $\sqrt{D/k}$ until FRAP added a time scale. For patterns, filming their onset (or perturbing a settled pattern and watching it recover) is the rate experiment, and in the linear regime it comes with an exact Gaussian likelihood in Fourier space: no simulator, no summary statistics, no ABC tolerance.

#5 · Is it Turing? Nodal and Lefty, and the size of Turing space

The Nodal/Lefty debate. In zebrafish embryos, the signalling protein Nodal activates its own expression and that of its inhibitor Lefty, the textbook arrangement of an activator-inhibitor system. Müller et al. (2012, Science 336:721) measured the proteins' effective diffusion coefficients by FRAP and found that the Leftys diffuse much faster than the Nodals, as Turing's recipe requires (E50, section 7, fits a FRAP experiment). The values, as quoted by Kuhn et al. (2022, Nature Communications), are (µm²/s):

protein	Cyclops (Nodal)	Squint (Nodal)	Lefty1	Lefty2
effective $D$	0.7 ± 0.2	3.2 ± 0.5	11.1 ± 0.6	18.9 ± 3.0

(TRANSCRIBED; we treat the ± as one standard error.) Is the ratio large enough? The answer depends on the reaction kinetics too, and those are poorly known. For a generic activator-inhibitor pair with Jacobian $J = \begin{pmatrix} f_u & f_v \\ g_u & g_v\end{pmatrix}$ ($f_u > 0$, $f_v < 0$, $g_u > 0$, $g_v < 0$) the critical ratio from section 1 can be written in two dimensionless numbers:

• $\varphi = f_u / |g_v| \in (0, 1)$: net self-activation of the activator relative to the inhibitor's clearance (stability without diffusion requires $\varphi < 1$; Müller et al. reported similar clearance rates for Nodals and Leftys);
• $e = \det J / (f_u |g_v|) > 0$: how much the inhibition loop exceeds the minimum needed for the uniform state to be stable.

Then $\det J = f_u |g_v|\, e$ and $d_c = \big(\sqrt{e} + \sqrt{1 + e}\big)^2 / \varphi$. Weak self-activation or a strong inhibition loop both raise the bar. We know neither, so we give them priors ($\varphi \sim \text{Beta}(2, 2)$, $e \sim \text{LogNormal}(0, 1)$), fit the four diffusion coefficients to their measurements, and compute the posterior probability that $D_{\text{Lefty}} / D_{\text{Nodal}} > d_c$ for each pair. No data touch $\varphi$ and $e$, so their posterior is their prior: the answer is honest about how much it rests on assumptions.

D_OBS = np.array([0.7, 3.2, 11.1, 18.9])
D_SE = np.array([0.2, 0.5, 0.6, 3.0])
proteins = ["Cyclops", "Squint", "Lefty1", "Lefty2"]
with pm.Model(coords={"protein": proteins}) as nodal_model:
    D = pm.LogNormal("D", np.log(3.0), 2.0, dims="protein")
    pm.Normal("D_hat", D, D_SE, observed=D_OBS, dims="protein")
    phi = pm.Beta("phi", 2.0, 2.0)
    e_loop = pm.LogNormal("e", 0.0, 1.0)
    pm.Deterministic("d_c", (pt.sqrt(e_loop) + pt.sqrt(1 + e_loop)) ** 2 / phi)
    idata_n = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
report(idata_n, ["D", "phi", "e"], "Nodal/Lefty")
pn = az.extract(idata_n, var_names=["D", "d_c"])
Dd, dc_draws = pn["D"].values, pn["d_c"].values
pairs = [("Lefty1", "Cyclops"), ("Lefty2", "Cyclops"), ("Lefty1", "Squint"), ("Lefty2", "Squint")]
print(f"prior median of d_c: {np.median(dc_draws):.1f} (90%: {np.quantile(dc_draws, 0.05):.1f}-"
      f"{np.quantile(dc_draws, 0.95):.0f})")
p_turing = {}
for inh, act in pairs:
    ratio = Dd[proteins.index(inh)] / Dd[proteins.index(act)]
    p_turing[f"{inh}/{act}"] = (ratio > dc_draws).mean()
    print(f"{inh:>6}/{act:<7}: ratio median {np.median(ratio):5.1f} "
          f"(90% {np.quantile(ratio, 0.05):4.1f}-{np.quantile(ratio, 0.95):5.1f}), "
          f"P(ratio > d_c) = {p_turing[f'{inh}/{act}']:.2f}")

Nodal/Lefty: 0 divergences, max r_hat 1.003, min bulk ESS 2880, warm-up 400 steps
prior median of d_c: 13.4 (90%: 3.9-76)
Lefty1/Cyclops: ratio median  16.7 (90% 10.9- 33.7), P(ratio > d_c) = 0.60
Lefty2/Cyclops: ratio median  27.5 (90% 16.2- 58.2), P(ratio > d_c) = 0.76
Lefty1/Squint : ratio median   3.5 (90%  2.8-  4.9), P(ratio > d_c) = 0.04
Lefty2/Squint : ratio median   5.8 (90%  4.0-  8.6), P(ratio > d_c) = 0.17

With these priors, the critical ratio has a median of about 13 and a long right tail (90% interval 4-76). The Cyclops pairs clear it more often than not: $P(D_{\text{Lefty2}}/D_{\text{Cyclops}}

d_c) \approx 0.76$, and 0.60 for Lefty1. The Squint pairs, whose ratios are only about 3.5 and 6, mostly do not (0.04 and 0.17). Measurement error in the $D$s matters for the Cyclops pairs (Cyclops' $D = 0.7 \pm 0.2$ spreads the ratio over a factor of about three between its 5% and 95% points), but the dominant uncertainty is the kinetics. So the honest summary of "are the diffusivities different enough for a Turing instability?" is: for Cyclops probably, for Squint probably not, and mainly it depends on reaction rates nobody has measured. That is a statement about a linear instability only; whether a zebrafish embryo actually forms a periodic pattern is a different question (it forms a graded domain of Nodal signalling at the margin, and Müller et al. presented Nodal/Lefty as a reaction-diffusion system with differential diffusivity, not as a demonstration of periodic Turing patterns).

The size of Turing space. How special must parameters be for a pattern to form at all? Under the Schnakenberg priors of section 3, we can compute the fraction of parameter space that is Turing unstable exactly (the conditions are closed-form), as a function of the diffusion ratio.

r_ts = np.random.default_rng(614)
kin = prior_draws(400_000, r_ts)
d_grid = np.geomspace(1, 1000, 60)
frac_schnak = [is_turing(kin["s"], kin["rho"], dd).mean() for dd in d_grid]
frac_generic = [(dc_draws < dd).mean() for dd in d_grid]
for dd in [5, 10, 20, 50, 100]:
    print(f"d = {dd:>3}: Schnakenberg Turing fraction {is_turing(kin['s'], kin['rho'], dd).mean():.3f}, "
          f"generic activator-inhibitor {(dc_draws < dd).mean():.3f}")

fig, axes = plt.subplots(1, 3, figsize=(15, 4.2))
A_, B_ = np.meshgrid(np.linspace(0.001, 0.6, 300), np.linspace(0.001, 3.0, 300))
S_, R_ = A_ + B_, A_ / (A_ + B_)
for dd, c in zip([10, 30, 100], [AQUA, BLUE, PURPLE]):
    axes[0].contour(A_, B_, is_turing(S_, R_, dd).astype(float), levels=[0.5], colors=[c], linewidths=2)
    axes[0].plot([], [], color=c, label=f"d = {dd}")
axes[0].plot(0.1, 0.9, "*", ms=14, color=ORANGE, mec="k")
axes[0].set(xlabel="a", ylabel="b", title="Turing space in (a, b): inside each curve")
axes[0].legend(fontsize=8)
axes[1].plot(d_grid, frac_schnak, color=BLUE, label="Schnakenberg, section 3 prior")
axes[1].plot(d_grid, frac_generic, color=ORANGE, label="generic, φ ~ Beta(2,2), e ~ LogNormal(0,1)")
axes[1].set(xscale="log", ylim=(0, 1), xlabel="diffusion ratio d = D_inhibitor / D_activator",
            ylabel="fraction of prior that patterns", title="How large is Turing space?")
axes[1].legend(fontsize=8)
bins = np.geomspace(1, 1000, 60)
axes[2].hist(dc_draws, bins=bins, density=True, color=GREY, alpha=0.5, label="critical ratio d_c (prior)")
for (inh, act), c in zip(pairs, [AQUA, BLUE, ORANGE, PURPLE]):
    ratio = Dd[proteins.index(inh)] / Dd[proteins.index(act)]
    axes[2].hist(ratio, bins=bins, density=True, histtype="step", lw=2, color=c,
                 label=f"{inh}/{act}: P = {p_turing[f'{inh}/{act}']:.2f}")
axes[2].set(xscale="log", xlabel="ratio of diffusion coefficients", ylabel="density",
            title="Nodal/Lefty: measured ratio vs required ratio")
axes[2].legend(fontsize=8);

d =   5: Schnakenberg Turing fraction 0.000, generic activator-inhibitor 0.104
d =  10: Schnakenberg Turing fraction 0.047, generic activator-inhibitor 0.379
d =  20: Schnakenberg Turing fraction 0.203, generic activator-inhibitor 0.659
d =  50: Schnakenberg Turing fraction 0.402, generic activator-inhibitor 0.903
d = 100: Schnakenberg Turing fraction 0.505, generic activator-inhibitor 0.966

Left: the classic picture (Murray, Mathematical Biology): in the $(a, b)$ plane the Turing region is a wedge that opens up as $d$ grows. The simulated system (star) sits just inside the $d = 10$ region; at $d = 30$ or 100 it would be comfortably inside. Middle: the fraction of the prior that is Turing unstable. In the Schnakenberg model nothing patterns below $d = (1 + \sqrt 2)^2 \approx 5.8$; at $d = 10$ only about 5% of the prior does, 20% at $d = 20$ and about half at $d = 100$. The generic activator-inhibitor prior is more permissive (38% at $d = 10$, 66% at $d = 20$), but neither makes Turing patterns likely at the modest ratios (2-5) typical of similar-sized proteins. This is the robustness problem of Turing mechanisms: the parameter region that patterns is small unless the diffusivities differ a lot. Screens of many network topologies came to similar conclusions and identified ways around it, such as extra immobile or differentially diffusing species and cell-autonomous feedbacks (Marcon et al. 2016, eLife; Scholes et al. 2019, Cell Systems). Right: the section-5 calculation as a picture. The grey histogram is the critical ratio the kinetics prior allows; the coloured lines are the posterior ratios of the four Nodal/Lefty pairs. The Squint pairs sit at the low end, where only a small part of the grey mass lies below them.

Part B · Kinetic proofreading¶

#6 · Hopfield's trick: accuracy paid for with time

A receptor must respond to a "correct" ligand and ignore an "incorrect" one that binds with nearly the same on-rate but unbinds faster. At equilibrium the best it can do is to respond in proportion to occupancy, so the discrimination between two ligands is the ratio of their dissociation constants, $K_D^{\text{wrong}} / K_D^{\text{right}} = e^{\Delta\Delta G / k_B T}$: a few kcal/mol give a factor of tens to hundreds, not the $10^4$ or more that DNA replication or T-cell antigen recognition achieve.

Kinetic proofreading (Hopfield 1974 for protein synthesis; Ninio 1975) inserts $N$ irreversible, energy-consuming steps between binding and the decision. McKeithan (1995) applied it to the T-cell receptor: a bound TCR-pMHC complex is modified step by step (phosphorylation of the receptor's ITAMs, recruitment of ZAP-70, ...), each step at rate $k_p$, and unbinding resets it. A complex reaches the signalling state with probability $\left(k_p / (k_p + k_{\text{off}})\right)^N$. With a common on-rate $k_{\text{on}}$, $k_{\text{off}} = k_{\text{on}} K_D$, so

$$\text{productive signal} \;\propto\; \underbrace{\frac{L}{K_D}}_{\text{occupancy (low dose)}} \times \underbrace{\left(1 + \frac{K_D}{K_p}\right)^{-N}}_{\text{proofreading}}, \qquad K_p = \frac{k_p}{k_{\text{on}}} .$$

$K_p$ is the affinity at which a complex's lifetime equals the time per step. For ligands much weaker than $K_p$ each step multiplies the discrimination by $K_D^{\text{wrong}}/K_D^{\text{right}}$, up to the Hopfield limit (ratio)$^{N+1}$. The price: even the right ligand only signals a fraction $(1 + K_D/K_p)^{-N}$ of the time (sensitivity), and it takes on average $N/k_p$ to do so (speed).

A useful summary is the discrimination power (Pettmann et al. 2021): the slope $\alpha = d\log(\text{EC}_{50}) / d\log K_D$ of ligand potency against affinity. Occupancy alone gives $\alpha = 1$; proofreading gives

$$\alpha(K_D) = 1 + N \frac{K_D}{K_D + K_p},$$

rising from 1 for strong ligands to $N + 1$ for weak ones.

kd_axis = np.geomspace(0.1, 1e4, 300)
fig, axes = plt.subplots(1, 2, figsize=(12, 4.2))
for n_, c in zip([0, 1, 3, 6], [GREY, AQUA, BLUE, PURPLE]):
    sig_ = (1 / kd_axis) * (1 + kd_axis / 10.0) ** (-n_)
    axes[0].plot(kd_axis, sig_ / sig_[0], color=c, label=f"N = {n_}")
axes[0].set(xscale="log", yscale="log", ylim=(1e-14, 2), xlabel="K_D (µM)",
            ylabel="productive signal per ligand (relative)",
            title="Proofreading steepens the affinity dependence (K_p = 10 µM)")
axes[0].legend(fontsize=8)
kp_axis = np.geomspace(0.01, 1e4, 400)                         # K_p (uM)
KD_RIGHT, KD_WRONG = 10.0, 100.0
for n_, c in zip([1, 2, 3, 5, 8], [AQUA, BLUE, ORANGE, PURPLE, RED]):
    sens = (1 + KD_RIGHT / kp_axis) ** (-n_)
    disc = (KD_WRONG / KD_RIGHT) * ((1 + KD_WRONG / kp_axis) / (1 + KD_RIGHT / kp_axis)) ** n_
    axes[1].plot(disc, sens, color=c, label=f"N = {n_}")
    axes[1].plot(10.0 ** (n_ + 1), 1e-12, marker="|", ms=12, color=c)
axes[1].set(xscale="log", yscale="log", ylim=(1e-12, 1.5), xlim=(5, 2e9),
            xlabel="discrimination: signal(10 µM) / signal(100 µM)",
            ylabel="fraction of right complexes that signal",
            title="Sensitivity vs accuracy (K_p varies along each curve)")
axes[1].legend(fontsize=8);

Left: with $K_p = 10$ µM, occupancy alone ($N = 0$) makes the signal fall as $1/K_D$; every proofreading step adds one more power of $K_D$ once $K_D \gg K_p$. Right: each curve follows one $N$ as the proofreading rate varies. A fast step ($K_p$ large, top left) keeps the right ligand's signal but discriminates only as well as occupancy (factor 10); a slow step (bottom right) approaches the Hopfield limit $10^{N+1}$ (ticks on the bottom axis) while almost no right complexes signal either. More steps buy a better trade-off curve, but moving along any of them trades sensitivity for accuracy, and each step also adds $1/k_p$ to the time to decide.

#7 · Data: how T cells respond to weaker and weaker antigens

Pettmann et al. (2021) measured the affinities of the 1G4 T-cell receptor for the cancer-testis antigen NY-ESO-1 (peptide SLLMWITQV, "9V") and single-residue variants, down to very weak binders, by surface plasmon resonance, and stimulated primary human T cells expressing 1G4 with target cells pulsed with each peptide over a dose range. Activation is the percentage of T cells expressing the early activation marker CD69. We use their source data for T cell blasts on U87 target cells (five independent experiments) and their affinity table (37 °C; the paper's rule: the Bmax-constrained $K_D$ above 20 µM, the Bmax-fitted one otherwise).

data.describe("pettmann2021_1g4_cd69")
tc = data.load("pettmann2021_1g4_cd69")
kd_tab = (tc.groupby("peptide")[["kd_um", "kd_sd_um", "kd_n", "sequence"]].first()
          .sort_values("kd_um"))
PEPS = kd_tab.index.tolist()
EXPS = sorted(tc["experiment"].astype(str).unique())
print(kd_tab)
print(f"{len(tc)} wells: {tc['experiment'].nunique()} experiments x {len(PEPS)} peptides x "
      f"~12 doses ({tc['dose_uM'][tc['dose_uM'] > 0].min():g}-{tc['dose_uM'].max():g} µM, plus unpulsed)")

cols = plt.cm.viridis(np.linspace(0, 0.95, len(PEPS)))
fig, axes = plt.subplots(1, 5, figsize=(16, 3.6), sharey=True)
for ax, ex in zip(axes, EXPS):
    sub_ = tc[tc["experiment"].astype(str) == ex]
    for p_, c in zip(PEPS, cols):
        dd = sub_[sub_["peptide"] == p_].sort_values("dose_uM")
        ax.plot(dd["dose_uM"].clip(lower=3e-8), dd["cd69_pct"], "o-", ms=3, lw=1, color=c,
                label=p_.replace("NYE ", ""))
    ax.set(xscale="log", title=f"experiment {ex}", xlabel="peptide dose (µM)")
axes[0].set_ylabel("% CD69+")
axes[-1].legend(fontsize=7, ncol=2);

pettmann2021_1g4_cd69: Activation of primary human T cell blasts expressing the 1G4 TCR by U87 target cells pulsed with one of 8 variants of the NY-ESO-1 peptide (SLLMWITQV = 9V and single substitutions), one row per well: experiment (date code, 5 independent experiments), peptide, dose_uM (peptide pulsing concentration, 0 = unpulsed), cd69_pct (% CD69-positive T cells). Per peptide: sequence, kd_um, kd_sd_um, kd_n (SPR KD mean, SD and number of measurements; the Bmax-constrained estimate where it exceeds 20 uM, else the Bmax-fitted one, the rule stated in the paper) and kd_method.
  source: Pettmann, Huhn, Abu Shah, Kutuzov, Wilson, Dustin, Davis, van der Merwe & Dushek (2021), The discriminatory power of the T cell receptor, eLife 10:e67092 (CC BY 4.0). ASSEMBLED from two of the article's source-data files: Figure 2 source data 1 (elife-67092-fig2-data1-v3.zip, folder 'Figure 2 - 1G4 blasts and U87', five CSVs) and Figure 1 source data 2 (elife-67092-fig1-data2-v3.csv, SPR affinities at 37 C), so keep the cached file in data/.
  url:    https://elifesciences.org/articles/67092
           kd_um  kd_sd_um  kd_n   sequence
peptide
NYE 9V      7.97      2.55    10  SLLMWITQV
NYE 6V     22.80     13.80     6  SLLMWVTQV
NYE 3Y     47.30      8.58     3  SLYMWITQV
NYE 4D    140.00     18.30     4  SLLDWITQV
NYE 6T    162.00     26.30     4  SLLMWTTQV
NYE 4A    299.00     48.60     4  SLLAWITQV
NYE 5Y    433.00    103.00     3  SLLMYITQV
NYE 5F   1309.00    505.00     8  SLLMFITQV
470 wells: 5 experiments x 8 peptides x ~12 doses (2e-07-10 µM, plus unpulsed)

Each panel is one experiment; the leftmost points are the unpulsed controls. Weaker binders (lighter colours) need more peptide to activate the same fraction of T cells, and the weakest (5F, $K_D \approx 1.3$ mM) still activates at high dose, the paper's headline finding. Two features matter for modelling. The baseline (unstimulated CD69+) differs between experiments (about 30% to 55%), as does the plateau, so both must be experiment-specific. And one peptide breaks the order: 5Y ($K_D \approx 430$ µM) is far less potent than the weaker 5F in every experiment and barely leaves baseline. Affinity is not the only thing that differs between peptides (how well each loads onto MHC, for example, which these data do not measure), so a model should allow a peptide-specific deviation from the affinity law.

#8 · A proofreading model of potency, with the number of steps summed out

For peptide $j$ in experiment $e$ at dose $x$,

$$y = \beta_e + (\tau_e - \beta_e)\,\operatorname{logistic}\!\big(h\,(\log x - \log \text{EC}_{50,ej})\big) + \varepsilon, \qquad \varepsilon \sim \mathcal N(0, \sigma),$$

$$\log \text{EC}_{50,ej} = m_0 + (\log K_{D,j} - \log K_m) + N\left[\log\!\Big(1 + \frac{K_{D,j}}{K_p}\Big) - \log\!\Big(1 + \frac{K_m}{K_p}\Big)\right] + \delta_e + \eta_j .$$

The potency law is the proofreading signal of section 6; $K_m$ is a fixed reference affinity (the geometric mean of the eight $K_D$s, about 120 µM), so $m_0$ is the log-EC50 of a ligand of that affinity. $\delta_e$ is an experiment shift (zero-sum), $\eta_j \sim \text{StudentT}_3(0, \tau)$ a peptide-specific deviation with heavy tails so that one odd peptide (5Y) cannot drag the rest. The measured $K_D$s enter with their SPR uncertainty: $\log K_{D,j} \sim \mathcal N(\log \hat K_{D,j}, \text{CV}_j/\sqrt{n_j})$, floored at 0.1.

The discrete $N$ and a multimodality trap. $N \in \{1, \dots, 10\}$ is summed out: the model's log-likelihood is $\log \sum_N p(N)\, p(y \mid N, \theta)$ (pt.logsumexp in a pm.Potential), and $p(N \mid y)$ is recovered per draw. A first version (sampling $\log K_p$ directly, with $N = 0, \dots, 8$ and a Gaussian $\eta$) failed: each $N$ wants a different $K_p$, so the posterior over $(K_p, \dots)$ is a mixture of separated modes, and the four chains settled in different ones ($\hat r$ up to 1.44, 30 divergences, chains putting all their mass on $N = 1$ or on $N = 0$ and $3$). The fix is to parameterise by what the data identify whatever $N$ is: the local discrimination power at the reference affinity, $\alpha_m = 1 + N K_m/(K_m + K_p)$, with prior $\alpha_m - 1 \sim \text{LogNormal}(0, 1)$. Given $\alpha_m$, each $N$ implies its own $K_p$; values of $N < \alpha_m - 1$ are impossible and get zero weight. Now the continuous parameters mean the same thing under every $N$, and $N$ only has to explain the curvature of potency against affinity.

pep_i = pd.Index(PEPS).get_indexer(tc["peptide"])
exp_i = pd.Index(EXPS).get_indexer(tc["experiment"].astype(str))
assert (pep_i >= 0).all() and (exp_i >= 0).all()
dose = tc["dose_uM"].to_numpy()
y_obs = tc["cd69_pct"].to_numpy()
pulsed = dose > 0
log_dose = np.log(np.where(pulsed, dose, 1.0))
logkd_hat = np.log(kd_tab["kd_um"].to_numpy())
logkd_se = np.maximum(kd_tab["kd_sd_um"].to_numpy() / kd_tab["kd_um"].to_numpy()
                      / np.sqrt(kd_tab["kd_n"].to_numpy()), 0.1)
LOG_KM = float(logkd_hat.mean())
N_VALS = np.arange(1, 11)
print(f"reference affinity K_m = {np.exp(LOG_KM):.0f} µM")

coords = {"peptide": PEPS, "experiment": EXPS, "N": N_VALS}
with pm.Model(coords=coords) as kp_model:
    logkd = pm.Normal("logkd", logkd_hat, logkd_se, dims="peptide")
    alpha_m1 = pm.LogNormal("alpha_m1", 0.0, 1.0)
    alpha = pm.Deterministic("alpha", 1 + alpha_m1)
    m0 = pm.Normal("m0", -5.0, 4.0)
    sd_exp = pm.HalfNormal("sd_exp", 1.0)
    delta = pm.ZeroSumNormal("delta", sigma=sd_exp, dims="experiment")
    tau = pm.HalfNormal("tau", 0.5)
    eta = pm.StudentT("eta", nu=3, mu=0.0, sigma=tau, dims="peptide")
    h = pm.LogNormal("h", 0.0, 0.5)
    base = pm.Normal("base", 40.0, 15.0, dims="experiment")
    top = pm.Normal("top", 85.0, 15.0, dims="experiment")
    sigma = pm.HalfNormal("sigma", 5.0)

    nf = N_VALS.astype(float)[:, None]                       # (N, 1)
    share = (alpha - 1) / nf                                 # K_m / (K_m + K_p) for each N
    possible = share < 0.999
    share_c = pt.minimum(share, 0.999)
    log_kp = LOG_KM + pt.log1p(-share_c) - pt.log(share_c)   # (N, 1)
    pm.Deterministic("log_Kp", log_kp[:, 0], dims="N")
    proof = pt.log1p(pt.exp(logkd[None, :] - log_kp)) - pt.log1p(pt.exp(LOG_KM - log_kp))
    log_ec50 = m0 + (logkd[None, :] - LOG_KM) + nf * proof + eta[None, :]      # (N, peptide)
    pm.Deterministic("log_ec50_N", log_ec50, dims=("N", "peptide"))
    z = h * (log_dose[None, :] - log_ec50[:, pep_i] - delta[exp_i][None, :])
    frac = pt.where(pulsed[None, :], pm.math.sigmoid(z), 0.0)
    mu_y = base[exp_i][None, :] + (top - base)[exp_i][None, :] * frac
    ll_n = pt.sum(pm.logp(pm.Normal.dist(mu_y, sigma), y_obs[None, :]), axis=1)
    ll_n = pt.where(possible[:, 0], ll_n, -np.inf) + np.log(1 / len(N_VALS))
    pm.Potential("likelihood", pt.logsumexp(ll_n))
    pm.Deterministic("p_N", pt.exp(ll_n - pt.logsumexp(ll_n)), dims="N")

    t0 = time.time()
    idata_kp = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
    t_kp = time.time() - t0
sum_kp = report(idata_kp, ["alpha", "m0", "tau", "eta", "h", "sigma", "sd_exp", "logkd", "base", "top"],
                "proofreading fit", t_kp)
print(az.summary(idata_kp, var_names=["alpha", "m0", "tau", "h", "sigma", "sd_exp"], round_to=3)
      [["mean", "sd", "eti89_lb", "eti89_ub", "ess_bulk", "r_hat"]])
print(az.summary(idata_kp, var_names=["eta"], round_to=2)[["mean", "sd", "eti89_lb", "eti89_ub"]])

reference affinity K_m = 116 µM

proofreading fit: 5 s, 1 divergences, max r_hat 1.012, min bulk ESS 364, warm-up 400 steps
         mean     sd  eti89_lb  eti89_ub  ess_bulk  r_hat
alpha   1.677  0.256     1.337     2.137   535.994  1.004
m0     -4.998  0.411    -5.627    -4.340   364.199  1.012
tau     0.820  0.248     0.463     1.256  2452.090  1.003
h       0.882  0.030     0.836     0.930  4827.681  1.001
sigma   2.944  0.096     2.796     3.105  5054.067  1.001
sd_exp  0.917  0.346     0.499     1.537  4553.803  1.001
             mean    sd  eti89_lb  eti89_ub
eta[NYE 9V]  0.12  0.49     -0.61      0.89
eta[NYE 6V]  0.06  0.49     -0.70      0.86
eta[NYE 3Y]  0.32  0.44     -0.33      1.01
eta[NYE 4D] -0.88  0.45     -1.63     -0.21
eta[NYE 6T] -0.67  0.45     -1.40      0.00
eta[NYE 4A]  1.37  0.57      0.40      2.25
eta[NYE 5Y]  6.97  0.82      5.59      8.18
eta[NYE 5F] -0.30  1.05     -2.01      1.23

The model fits in a few seconds with 1 divergence, $\hat r \le 1.012$ and bulk ESS above 350. The discrimination power at the reference affinity is $\alpha_m \approx 1.7$ (89% interval 1.3-2.1): clearly above the occupancy value 1, and close to the $\alpha \approx 2$ that Pettmann et al. report from these kinds of data with a different potency measure (the dose giving 15% activation) and regression. The dose-response curves have a shallow Hill slope ($h \approx 0.88$) and the residual sd is about 3 percentage points.

The peptide deviations tell their own story. 5Y is $e^{7} \approx 1{,}000$-fold less potent than its affinity predicts ($\eta = 7.0$, 89% interval 5.6-8.2), 4A about $e^{1.4} \approx 4$-fold less, 4D about 2.4-fold more. With 5Y handled by the heavy-tailed $\eta$, the typical peptide scatter is $\tau \approx 0.8$ on the log scale: a peptide's potency is predicted from its affinity only to within a factor of about two. That scatter, not the replicate noise, limits what the potency-affinity curve can say about mechanism.

pb = az.extract(idata_kp, var_names=["p_N", "log_ec50_N", "h", "base", "top", "delta"],
                num_samples=1000, random_seed=RANDOM_SEED)
pN_draw = pb["p_N"].transpose("sample", "N").values                         # (S, N)
lec = pb["log_ec50_N"].transpose("sample", "N", "peptide").values           # (S, N, pep)
n_pick = np.array([np.random.default_rng(i).choice(len(N_VALS), p=p / p.sum()) for i, p in enumerate(pN_draw)])
lec_draw = lec[np.arange(len(n_pick)), n_pick]                              # (S, pep), N drawn per draw
hh, bb, tt = pb["h"].values, pb["base"].values, pb["top"].values
dl = pb["delta"].values
xg = np.geomspace(1e-7, 10, 120)
fig, axes = plt.subplots(1, 5, figsize=(16, 3.6), sharey=True)
r_ppc = np.random.default_rng(615)
for e_, (ax, ex) in enumerate(zip(axes, EXPS)):
    sub_ = tc[tc["experiment"].astype(str) == ex]
    for j, (p_, c) in enumerate(zip(PEPS, cols)):
        zz = hh[:, None] * (np.log(xg)[None, :] - lec_draw[:, j, None] - dl[e_][:, None])
        mu_ = bb[e_][:, None] + (tt[e_] - bb[e_])[:, None] / (1 + np.exp(-zz))
        lo, med, hi = np.quantile(mu_, [0.05, 0.5, 0.95], axis=0)
        ax.fill_between(xg, lo, hi, color=c, alpha=0.25, lw=0)
        ax.plot(xg, med, color=c, lw=1)
        dd = sub_[(sub_["peptide"] == p_) & (sub_["dose_uM"] > 0)]
        ax.plot(dd["dose_uM"], dd["cd69_pct"], "o", ms=3, color=c)
    ax.set(xscale="log", title=f"experiment {ex}", xlabel="peptide dose (µM)")
axes[0].set_ylabel("% CD69+");
