Population pharmacokinetics: hierarchical compartment models, a mirror-image posterior, and choosing a dose

#From a blood sample to a dose

A drug's effect depends on its concentration where it acts, and for most drugs that tracks the concentration in plasma. Pharmacokinetics (PK) describes how a dose becomes a concentration over time: absorption from the gut, distribution into a volume of body water and tissue, and elimination by the liver and kidneys. Patients differ, sometimes by a factor of two or three in how fast they clear a drug, so one dose does not fit all. Population PK estimates both the typical patient and how patients vary, from a few samples per person, and is the standard tool of drug development and dose selection (Sheiner & Beal's NONMEM, 1980s onwards). It is a nonlinear hierarchical model: a Bayesian treatment is natural and increasingly common.

This notebook builds a population-PK model on theophylline (a bronchodilator with a narrow therapeutic range, classically 10-20 mg/L with toxicity above 20 mg/L; some current guidelines aim lower, 5-15 mg/L), meets the classic identifiability trap of oral dosing, adds covariates, censoring and a pharmacodynamic model on warfarin, and ends with the clinical question: what dose should this patient get, and how much do two blood samples change the answer?

#The plan

1. The theophylline data and the one-compartment model
2. Flip-flop: the same curve from two different bodies
3. Fixing it: an ordering constraint and a physiological prior
4. The population model: prior predictive, fit, diagnostics
5. Checking the fit: error models, individual curves, normalised prediction errors

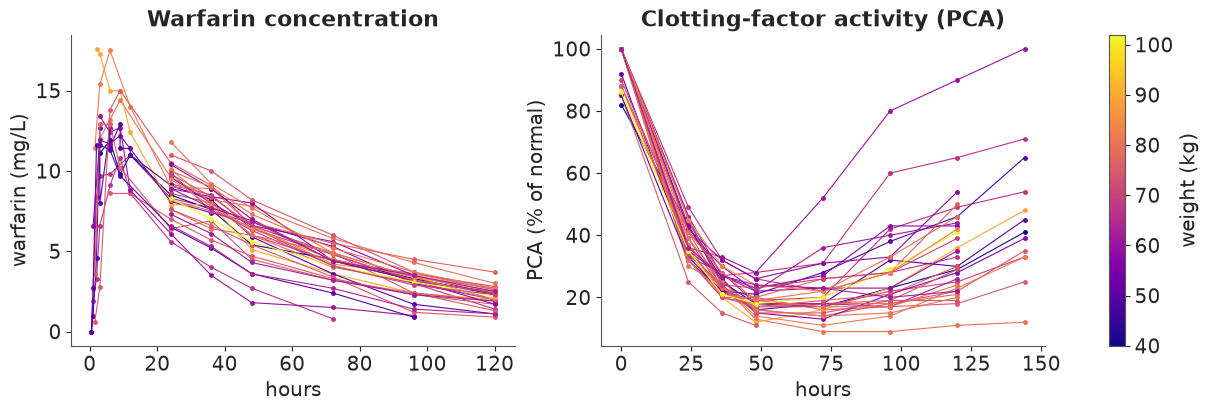

6. Warfarin: covariates, allometry and a censored sample
7. A little PK/PD: warfarin's effect on clotting as a turnover model

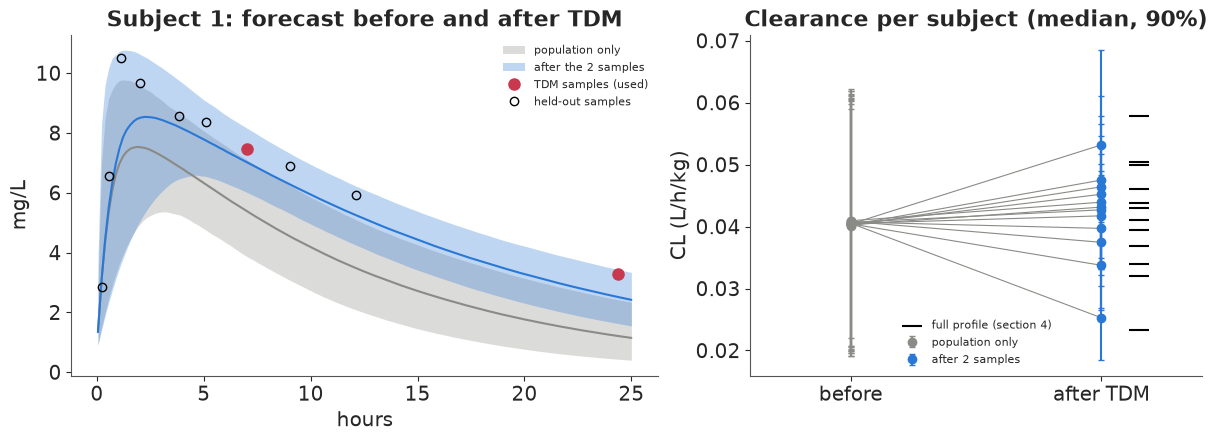

8. Bayesian therapeutic drug monitoring: two samples, validated on every subject

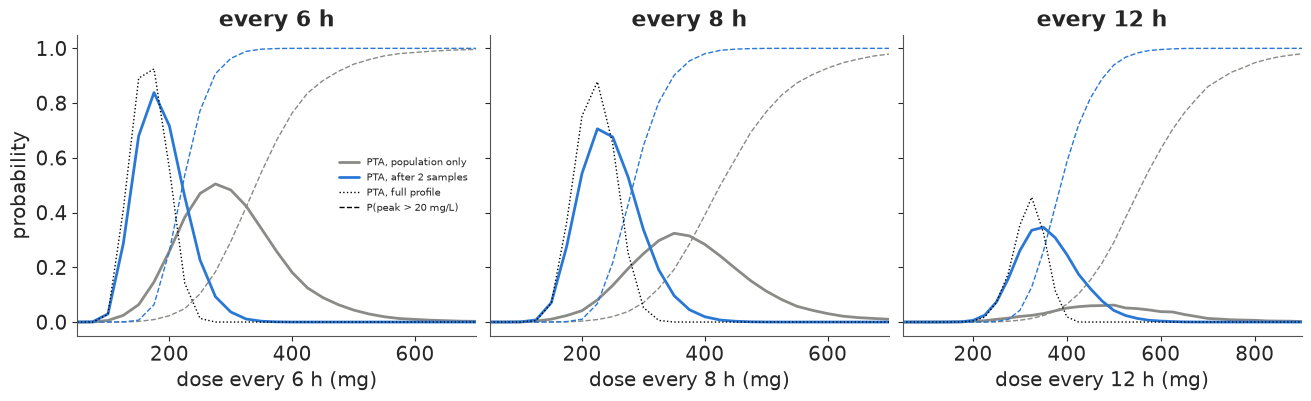

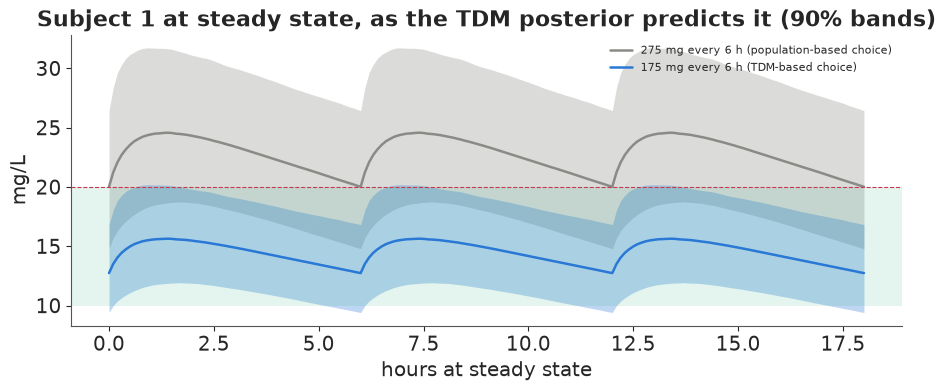

9. The decision: which regimen for this patient?

import logging
import time
import warnings

import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import nutpie
import pandas as pd
import pymc as pm
import pytensor
import pytensor.tensor as pt
from scipy.stats import norm

from IPython.display import display

from pymc_challenges import data

RANDOM_SEED = 64
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
logging.getLogger("pymc").setLevel(logging.WARNING)  # several fits: no sampler banner each
warnings.filterwarnings("ignore", category=RuntimeWarning, module="arviz")  # NaN r_hat of constants
BLUE, ORANGE, AQUA, GREY, PURPLE, RED = "#2a78d6", "#eb6834", "#1baf7a", "#8a8a86", "#8c5ac8", "#c8384e"
print(f"PyMC {pm.__version__}, ArviZ {az.__version__}, PyTensor {pytensor.__version__}")


def q(x, probs=(0.05, 0.5, 0.95), axis=None):
    """Posterior quantiles of draws, rounded for printing."""
    return np.round(np.quantile(x, probs, axis=axis), 3)


def fit_report(idata, name):
    """One-line convergence summary: divergences, worst r_hat, smallest bulk ESS."""
    post = idata.posterior.to_dataset()
    keep = [v for v in post.data_vars if not v.endswith("_corr")]  # constant diagonal -> NaN
    rhat = az.rhat(post[keep]).to_dataarray().max().item()
    ess = az.ess(post[keep]).to_dataarray().min().item()
    print(f"{name}: {int(idata.sample_stats['diverging'].sum())} divergences, "
          f"max r_hat {rhat:.3f}, min bulk ESS {ess:.0f}")

PyMC 6.3.2, ArviZ 1.3.0, PyTensor 3.3.2

#1 · Theophylline: twelve people, one dose each

Each subject swallowed one dose (3-6 mg per kg of body weight) and gave a blood sample just before it and 10 more over the next 25 hours.

data.describe("theoph")
th_raw = data.load("theoph")
th_raw.head()

theoph: Serum theophylline concentration (conc, mg/L) in 12 subjects after a single oral dose (Dose, mg/kg, 3.1-5.9), 11 samples each over 25 h (Time, h since dosing; 132 rows), with body weight (Wt, kg). Some pre-dose (Time 0) samples are above zero.
  source: Theophylline pharmacokinetics from Boeckmann, Sheiner & Beal (1994), NONMEM Users Guide Part V; R package `datasets` (GPL-2 | GPL-3, part of R), via Rdatasets. Also in Pinheiro & Bates (2000).
  url:    https://vincentarelbundock.github.io/Rdatasets/csv/datasets/Theoph.csv

c_pre = th_raw[th_raw.Time == 0].set_index("Subject").conc.sort_index().to_numpy()
th = th_raw[th_raw.Time > 0].reset_index(drop=True)
S = th.Subject.nunique()
sid = th.Subject.to_numpy() - 1
t_obs = th.Time.to_numpy()
y_obs = th.conc.to_numpy()
per_subj = th.groupby("Subject").agg(wt=("Wt", "first"), dose=("Dose", "first"), cmax=("conc", "max"))
per_subj["tmax"] = th.loc[th.groupby("Subject").conc.idxmax(), "Time"].to_numpy()
dose_kg = per_subj.dose.to_numpy()
wt_th = per_subj.wt.to_numpy()
per_subj["pre-dose conc"] = c_pre
print(f"{S} subjects, {len(th)} post-dose samples; pre-dose concentration above 0 in "
      f"{(c_pre > 0).sum()} subjects (max {c_pre.max()} mg/L)")
per_subj.T.round(2)

12 subjects, 120 post-dose samples; pre-dose concentration above 0 in 3 subjects (max 0.74 mg/L)

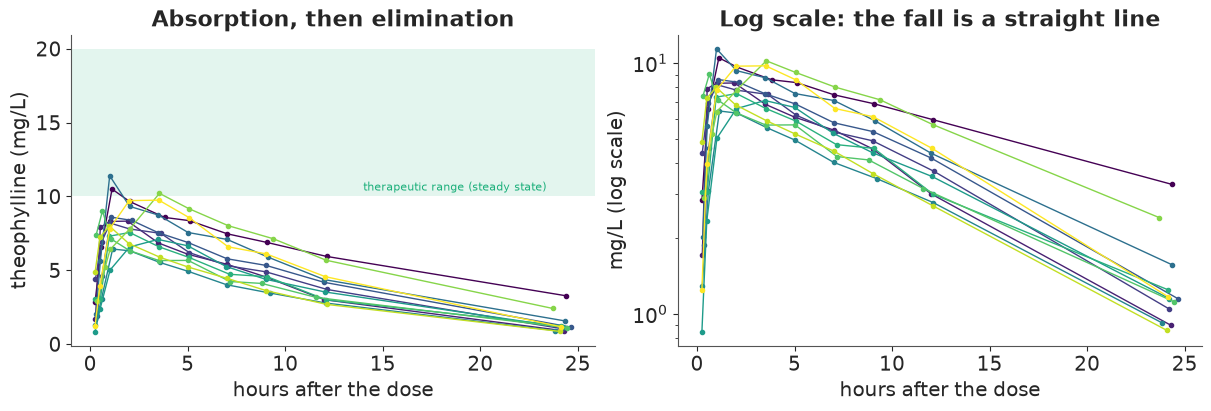

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
cmap = plt.get_cmap("viridis")
for k in range(S):
    r = sid == k
    col = cmap(k / (S - 1))
    for ax in axes:
        ax.plot(t_obs[r], y_obs[r], "o-", ms=3, lw=1, color=col)
axes[0].axhspan(10, 20, color=AQUA, alpha=0.12, lw=0)
axes[0].text(14, 10.4, "therapeutic range (steady state)", fontsize=8, color=AQUA)
axes[0].set(xlabel="hours after the dose", ylabel="theophylline (mg/L)",
            title="Absorption, then elimination")
axes[1].set_yscale("log")
axes[1].set(xlabel="hours after the dose", ylabel="mg/L (log scale)",
            title="Log scale: the fall is a straight line");

Concentrations peak within about 0.5-3.5 hours and then fall along nearly straight lines on the log scale, with slopes that differ between people. Three subjects had a little theophylline in their blood before the dose (the largest 0.74 mg/L), left over from earlier use; we keep it in the model as a known amount that decays with the subject's own elimination rate.

The one-compartment model. Think of the body as one well-mixed volume $V$ (litres per kg here, because doses are per kg) that the drug enters from the gut at rate $k_a A_\text{gut}$ and leaves at rate $k_e C V$. Two linear ODEs with the closed-form solution

$$C(t) = \frac{D\,k_a}{V\,(k_a - k_e)}\left(e^{-k_e t} - e^{-k_a t}\right) + C_\text{pre}\,e^{-k_e t}, \qquad k_e = \frac{CL}{V},$$

where $CL$ is the clearance (volume of plasma cleared of drug per hour, per kg). $CL$ and $V$ are "apparent" values, $CL/F$ and $V/F$, because the absorbed fraction $F$ of an oral dose is unknown. Clearance is the parameter that sets exposure: the area under the curve is $\mathrm{AUC} = D / CL$, and at steady state the average concentration is dose rate / $CL$.

The expression has a removable 0/0 at $k_a = k_e$. Writing $\frac{e^{-k_e t} - e^{-k_a t}}{k_a - k_e} = e^{-k_e t}\,\frac{-\mathrm{expm1}(-\delta t)}{\delta}$ with $\delta = k_a - k_e$ keeps it accurate for any $\delta \neq 0$, of either sign.

def conc_pt(CL, V, ka, t, dose, c_pre=0.0):
    """One-compartment oral model (PyTensor), valid for ka > ke and ka < ke."""
    ke = CL / V
    delta = ka - ke
    return dose * ka / V * pt.exp(-ke * t) * (-pt.expm1(-delta * t)) / delta + c_pre * pt.exp(-ke * t)


def conc_np(CL, V, ka, t, dose, c_pre=0.0):
    """Same model in NumPy, for predictions from posterior draws."""
    ke = CL / V
    delta = ka - ke
    return dose * ka / V * np.exp(-ke * t) * (-np.expm1(-delta * t)) / delta + c_pre * np.exp(-ke * t)

#2 · Flip-flop: the same curve from two different bodies

Swap the two rates, $k_a \leftrightarrow k_e$, in the formula above. The bracket changes sign and so does the denominator, so the curve keeps its shape; only the prefactor changes, from $k_a / V$ to $k_e / V'$. Choose $V' = V k_e / k_a$ and the curves are identical at every time. The mirror patient absorbs slowly and eliminates fast, with a much smaller volume, and the same clearance ($CL' = V' k_a = V k_e = CL$). After a single oral dose nothing in the data can tell the two apart: the rise is governed by the faster of the two rates and the fall by the slower, whichever is which. Pharmacologists call slow absorption that masquerades as elimination flip-flop kinetics.

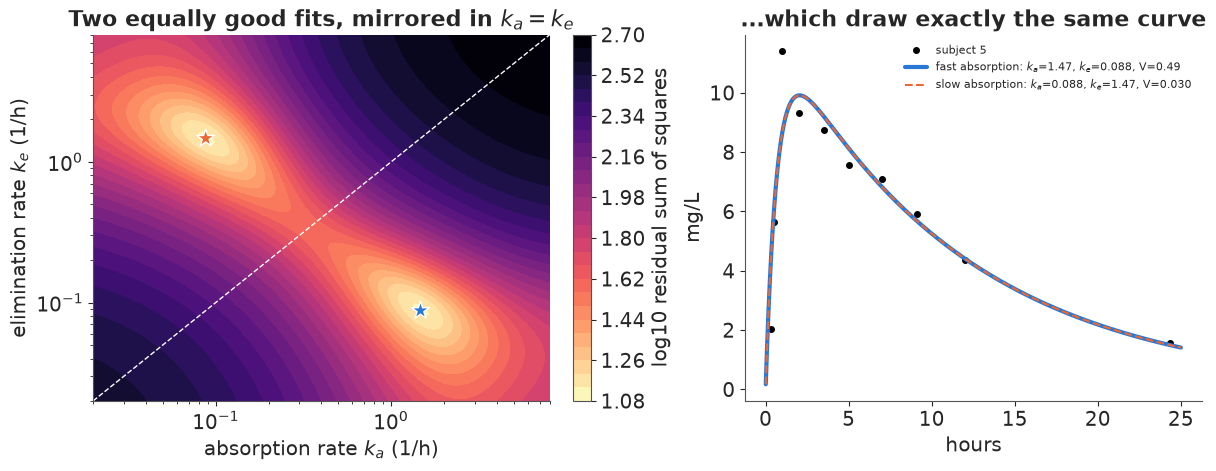

For one subject we can see this directly. For fixed $(k_a, k_e)$ the curve is linear in the prefactor, so least squares gives the best prefactor in closed form, and we can map the residual sum of squares over a grid of both rates.

k_demo = 4  # subject 5
r = sid == k_demo
lka = np.linspace(np.log(0.02), np.log(8), 220)
KA, KE = np.meshgrid(np.exp(lka), np.exp(lka))
dlt = KA - KE
dlt = np.where(np.abs(dlt) < 1e-9, 1e-9, dlt)
shape_ = np.exp(-KE[..., None] * t_obs[r]) * -np.expm1(-dlt[..., None] * t_obs[r]) / dlt[..., None]
amp = (shape_ * y_obs[r]).sum(-1) / (shape_ ** 2).sum(-1)  # least-squares prefactor
rss = ((y_obs[r] - amp[..., None] * shape_) ** 2).sum(-1)
i_best = np.unravel_index(np.argmin(np.where(KA > KE, rss, np.inf)), rss.shape)
ka_hat, ke_hat = KA[i_best], KE[i_best]
V_hat = dose_kg[k_demo] * ka_hat / amp[i_best]  # the prefactor is D ka / V
print(f"subject {k_demo + 1}: best fit ka = {ka_hat:.2f}/h, ke = {ke_hat:.3f}/h, V = {V_hat:.2f} L/kg; "
      f"mirror: ka = {ke_hat:.3f}/h, ke = {ka_hat:.2f}/h, V = {V_hat * ke_hat / ka_hat:.3f} L/kg")
print(f"residual sum of squares: {rss[i_best]:.4f} vs mirror {rss[i_best[1], i_best[0]]:.4f}")

tg = np.linspace(0.01, 25, 300)
fig, axes = plt.subplots(1, 2, figsize=(12, 4.6))
cs = axes[0].contourf(KA, KE, np.log10(rss), levels=25, cmap="magma_r")
fig.colorbar(cs, ax=axes[0], label="log10 residual sum of squares")
axes[0].plot([0.02, 8], [0.02, 8], color="w", lw=1, ls="--")
axes[0].scatter([ka_hat, ke_hat], [ke_hat, ka_hat], marker="*", s=180, c=[BLUE, ORANGE],
                edgecolor="w", zorder=5)
axes[0].set(xscale="log", yscale="log", xlabel="absorption rate $k_a$ (1/h)",
            ylabel="elimination rate $k_e$ (1/h)", title="Two equally good fits, mirrored in $k_a = k_e$")
axes[1].plot(t_obs[r], y_obs[r], "ko", ms=4, label=f"subject {k_demo + 1}")
axes[1].plot(tg, conc_np(V_hat * ke_hat, V_hat, ka_hat, tg, dose_kg[k_demo]), color=BLUE, lw=3,
             label=f"fast absorption: $k_a$={ka_hat:.2f}, $k_e$={ke_hat:.3f}, V={V_hat:.2f}")
V_m = V_hat * ke_hat / ka_hat
axes[1].plot(tg, conc_np(V_m * ka_hat, V_m, ke_hat, tg, dose_kg[k_demo]), color=ORANGE, lw=1.5, ls="--",
             label=f"slow absorption: $k_a$={ke_hat:.3f}, $k_e$={ka_hat:.2f}, V={V_m:.3f}")
axes[1].set(xlabel="hours", ylabel="mg/L", title="...which draw exactly the same curve")
axes[1].legend(fontsize=8);

subject 5: best fit ka = 1.47/h, ke = 0.088/h, V = 0.49 L/kg; mirror: ka = 0.088/h, ke = 1.47/h, V = 0.030 L/kg
residual sum of squares: 13.4682 vs mirror 13.4682

The error surface is exactly symmetric about the diagonal. Each subject has two best fits, and the mirror one needs a volume of about 0.03 L/kg (2 L for a 70 kg adult), less than the volume of blood plasma. So the data cannot choose, but physiology can.

What does a sampler do with this? In a hierarchical model the whole population can flip together, because the map $(\log CL, \log V, \log k_a) \mapsto (\log CL,\ \log CL - \log k_a,\ \log CL - \log V)$ is linear with unit Jacobian: a multivariate normal population maps to another multivariate normal population, fitting the data exactly as well. We fit a model that puts independent vague priors on $\log CL$, $\log V$, $\log k_a$, and start two chains in the usual place and two in the mirror world. (PyMC's own NUTS sampler, which accepts one starting point per chain; cores=2 keeps memory low.)

coords_th = {"subj": np.arange(1, S + 1), "par": ["CL", "V", "ka"]}


def sigma_combined(c, sig_prop, sig_add):
    return pt.sqrt((sig_prop * c) ** 2 + sig_add ** 2)


with pm.Model(coords=coords_th) as m_vague:
    mu = pm.Normal("mu", 0.0, 2.0, dims="par")  # log CL, log V, log ka: vague and unordered
    chol, _, _ = pm.LKJCholeskyCov("L", n=3, eta=2.0, sd_dist=pm.HalfNormal.dist(1.0),
                                   compute_corr=True)
    z = pm.Normal("z", 0.0, 1.0, dims=("subj", "par"))
    theta = mu + z @ chol.T
    CL, V, ka = pt.exp(theta[:, 0]), pt.exp(theta[:, 1]), pt.exp(theta[:, 2])
    c = conc_pt(CL[sid], V[sid], ka[sid], t_obs, dose_kg[sid], c_pre[sid])
    sig_prop = pm.HalfNormal("sig_prop", 0.2)
    sig_add = pm.HalfNormal("sig_add", 0.5)
    pm.Normal("y", c, sigma_combined(c, sig_prop, sig_add), observed=y_obs)

usual = {"mu": np.array([np.log(0.04), np.log(0.5), np.log(1.5)])}
mirror = {"mu": np.array([np.log(0.04), np.log(0.04) - np.log(1.5), np.log(0.04) - np.log(0.5)])}
t0 = time.perf_counter()
with m_vague:
    idata_vague = pm.sample(nuts_sampler="pymc", chains=4, cores=2, initvals=[usual, usual, mirror, mirror],
                            random_seed=RANDOM_SEED, progressbar=False)
    pm.compute_log_likelihood(idata_vague, progressbar=False)
print(f"sampled in {time.perf_counter() - t0:.0f} s")
fit_report(idata_vague, "vague, unordered")
az.summary(idata_vague, var_names=["mu", "sig_prop", "sig_add"], round_to=3)

sampled in 9 s
vague, unordered: 72 divergences, max r_hat 1.759, min bulk ESS 6

per_chain = pd.DataFrame({
    "CL (L/h/kg)": np.exp(idata_vague.posterior["mu"].sel(par="CL")).mean("draw").values,
    "V (L/kg)": np.exp(idata_vague.posterior["mu"].sel(par="V")).mean("draw").values,
    "ka (1/h)": np.exp(idata_vague.posterior["mu"].sel(par="ka")).mean("draw").values,
    "log-likelihood": idata_vague.log_likelihood["y"].sum("y_dim_0").mean("draw").values,
    "divergences": idata_vague.sample_stats["diverging"].sum("draw").values,
}, index=pd.Index(["usual", "usual", "mirror", "mirror"], name="chain started at"))
per_chain["ke = CL/V"] = per_chain["CL (L/h/kg)"] / per_chain["V (L/kg)"]
per_chain.round(3)

Each chain stays in the world it started in. The typical clearance is the same in all four (it is identified: $CL = D/\mathrm{AUC}$), and the data fit equally well (average log-likelihoods within about 1). All the divergences come from the mirror chains, whose population has to squeeze into very small volumes. And the mirror chains describe a population with a volume of 0.03 L/kg and an absorption rate that equals the usual chains' elimination rate. r_hat on $\mu_V$ and $\mu_{k_a}$ is far above 1, which is the right alarm. The unsettling part: a single run that happened to start in one basin would look perfectly healthy. Default nutpie starts near $\log k_a = \log V = \log CL = 0$, i.e. $k_a = k_e$ on the ridge between the two basins; which way each chain rolls depends on the data, the units and the random jitter.

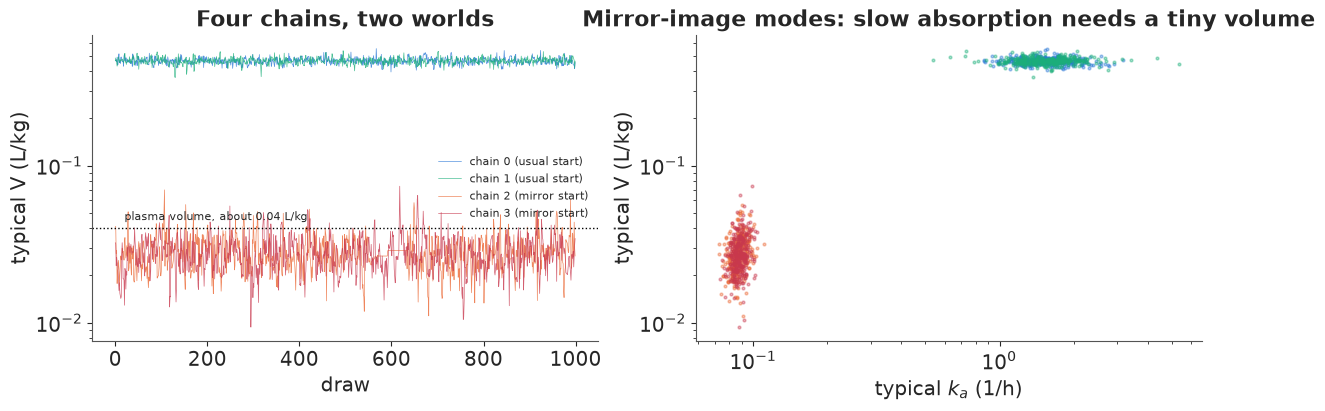

mu_post = idata_vague.posterior["mu"]
fig, axes = plt.subplots(1, 2, figsize=(12, 4))
for ch, col in zip(range(4), [BLUE, AQUA, ORANGE, RED]):
    axes[0].plot(np.exp(mu_post.sel(chain=ch, par="V")), lw=0.5, color=col, alpha=0.8,
                 label=f"chain {ch} ({per_chain.index[ch]} start)")
    axes[1].scatter(np.exp(mu_post.sel(chain=ch, par="ka"))[::3], np.exp(mu_post.sel(chain=ch, par="V"))[::3],
                    s=4, alpha=0.4, color=col)
axes[0].legend(fontsize=8, markerscale=3, loc="center right")
axes[0].axhline(0.04, color="k", ls=":", lw=1)
axes[0].text(20, 0.045, "plasma volume, about 0.04 L/kg", fontsize=8)
axes[0].set(yscale="log", xlabel="draw", ylabel="typical V (L/kg)", title="Four chains, two worlds")
axes[1].set(xscale="log", yscale="log", xlabel="typical $k_a$ (1/h)", ylabel="typical V (L/kg)",
            title="Mirror-image modes: slow absorption needs a tiny volume");

#3 · Fixing it: an ordering constraint and a physiological prior

Two kinds of information break the symmetry, and they encode different assumptions.

1. Ordering: $k_a > k_e$. Parameterise the absorption rate as $k_a = k_e + \exp(\eta)$, so only the "absorption faster than elimination" branch exists. True for an immediate-release oral solution like this one; false for sustained-release tablets, depots and many subcutaneous biologics, where absorption is the slow step and true flip-flop kinetics occurs. There the ordering would silently pick the wrong world.
2. A physiological prior on $V$. Theophylline distributes in total body water, about 0.5 L/kg in adults (textbook values 0.3-0.7), and no drug's volume can be smaller than plasma (0.04 L/kg). A LogNormal(log 0.5, 0.3) prior on the typical volume puts the mirror mode at $\log(0.5/0.03)/0.3 \approx 9$ prior standard deviations: it simply disappears. This works for sustained release too, because it does not assume which rate is faster.

We use both, plus weakly informative priors from the same textbook knowledge: typical theophylline clearance about 0.04 L/h/kg in adult non-smokers (LogNormal(log 0.04, 0.5) covers 0.015-0.1), and an absorption excess $k_a - k_e$ around 1.5/h with a wide prior. Between-subject standard deviations on the log scale get HalfNormal(0.5) (coefficients of variation up to about 100%), with an LKJ(2) prior on their correlations. Parameters are non-centred ($\theta_i = \mu + L z_i$), as usual for a dozen groups.

MU_PRIOR = np.array([np.log(0.04), np.log(0.5), np.log(1.5)])
SD_PRIOR = np.array([0.5, 0.3, 1.0])
coords_pop = {"subj": np.arange(1, S + 1), "par": ["CL", "V", "ka_excess"]}


def build_theoph(error="combined", mask=False, ghost=False):
    """Population model. mask: likelihood weights as pm.Data (for held-out fits);
    ghost: one extra subject with no data, i.e. a new patient from the population."""
    coords = dict(coords_pop, subj=np.arange(1, S + 1 + ghost))
    with pm.Model(coords=coords) as m:
        mu = pm.Normal("mu", MU_PRIOR, SD_PRIOR, dims="par")
        chol, _, _ = pm.LKJCholeskyCov("L", n=3, eta=2.0, sd_dist=pm.HalfNormal.dist(0.5),
                                       compute_corr=True)
        z = pm.Normal("z", 0.0, 1.0, dims=("subj", "par"))
        theta = mu + z @ chol.T
        CL = pm.Deterministic("CL", pt.exp(theta[:, 0]), dims="subj")
        V = pm.Deterministic("V", pt.exp(theta[:, 1]), dims="subj")
        ka = pm.Deterministic("ka", CL / V + pt.exp(theta[:, 2]), dims="subj")  # ka > ke by construction
        c = conc_pt(CL[sid], V[sid], ka[sid], t_obs, dose_kg[sid], c_pre[sid])
        if error == "combined":
            sig = sigma_combined(c, pm.HalfNormal("sig_prop", 0.2), pm.HalfNormal("sig_add", 0.5))
        elif error == "proportional":
            sig = pm.HalfNormal("sig_prop", 0.2) * c
        else:
            sig = pm.HalfNormal("sig_add", 0.5) * pt.ones_like(c)
        if mask:
            w = pm.Data("w", np.ones(len(y_obs)))
            pm.Potential("loglik", (w * pm.logp(pm.Normal.dist(c, sig), y_obs)).sum())
        else:
            pm.Normal("y", c, sig, observed=y_obs)
    return m


m_pop = build_theoph()
with m_pop:
    prior_pop = pm.sample_prior_predictive(1000, random_seed=RANDOM_SEED)

#4 · The population model: prior predictive, fit, diagnostics

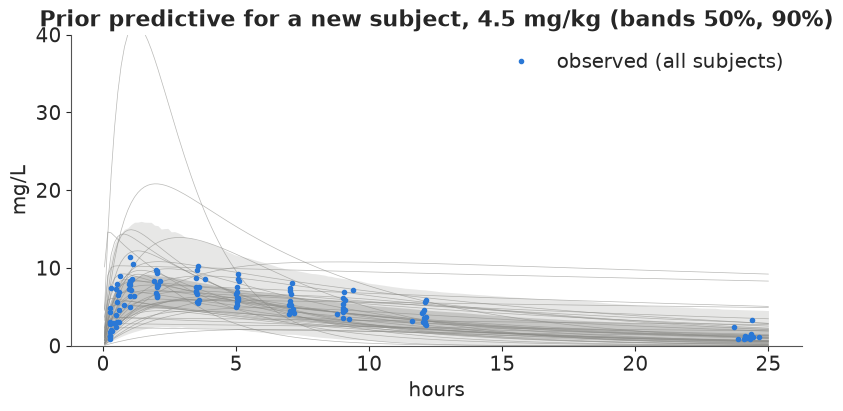

Before fitting: what concentration curves do these priors imply for a 4.5 mg/kg dose?

pr = prior_pop.prior
tg = np.linspace(0.05, 25, 200)
prior_curves = conc_np(pr["CL"].values[0, :, 0, None], pr["V"].values[0, :, 0, None],
                       pr["ka"].values[0, :, 0, None], tg, 4.5)
fig, ax = plt.subplots(figsize=(8, 4))
for lo, hi, a in [(0.05, 0.95, 0.2), (0.25, 0.75, 0.35)]:
    ax.fill_between(tg, *np.quantile(prior_curves, [lo, hi], axis=0), color=GREY, alpha=a, lw=0)
ax.plot(tg, prior_curves[:40].T, color=GREY, lw=0.5, alpha=0.6)
ax.plot(t_obs, y_obs, "o", ms=3, color=BLUE, label="observed (all subjects)")
ax.set(ylim=(0, 40), xlabel="hours", ylabel="mg/L",
       title="Prior predictive for a new subject, 4.5 mg/kg (bands 50%, 90%)")
ax.legend()
print("prior predictive peak concentration, 5/50/95%:", q(prior_curves.max(axis=1)))
print("prior predictive time of peak (h), 5/50/95%:", q(tg[prior_curves.argmax(axis=1)]))

prior predictive peak concentration, 5/50/95%: [ 3.032  7.406 17.024]
prior predictive time of peak (h), 5/50/95%: [0.552 1.931 6.576]

The priors allow peaks from about 3 to 17 mg/L and times to peak from half an hour to six and a half hours: they rule out absurd bodies (and the mirror world) without deciding the answer.

t0 = time.perf_counter()
with m_pop:
    idata_pop = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
    pm.compute_log_likelihood(idata_pop, progressbar=False)
print(f"sampled in {time.perf_counter() - t0:.0f} s (nutpie, "
      f"{idata_pop.posterior.attrs.get('tuning_steps')} warm-up steps)")
fit_report(idata_pop, "population model")
az.summary(idata_pop, var_names=["mu", "L_stds", "sig_prop", "sig_add"], ci_prob=0.9, round_to=3)

sampled in 4 s (nutpie, 400 warm-up steps)
population model: 0 divergences, max r_hat 1.005, min bulk ESS 684

post_mu = az.extract(idata_pop, var_names=["mu"]).values
corr = az.extract(idata_pop, var_names=["L_corr"]).values
sds = az.extract(idata_pop, var_names=["L_stds"]).values
typ = pd.DataFrame({
    "typical CL (L/h/kg)": q(np.exp(post_mu[0])),
    "typical V (L/kg)": q(np.exp(post_mu[1])),
    "typical ka (1/h)": q(np.exp(post_mu[0] - post_mu[1]) + np.exp(post_mu[2])),
    "half-life (h)": q(np.log(2) * np.exp(post_mu[1] - post_mu[0])),
    "between-subject CV of CL": q(np.sqrt(np.expm1(sds[0] ** 2))),
    "corr(log CL, log V)": q(corr[0, 1]),
}, index=["5%", "50%", "95%"]).T
typ

Clean sampling in 3 seconds: no divergences, r_hat at most 1.005, bulk ESS above 680 for every parameter. The typical subject clears 0.040 L/h per kg with a volume of 0.46 L/kg, so the half-life is about 8 hours, close to textbook values for adult non-smokers. Clearance varies between people by about 27% (coefficient of variation), the volume by about half that, and absorption a lot (log-scale sd 0.75). The correlation between clearance and volume is probably positive (median 0.6), but with 12 people its 90% interval runs from 0.04 to 0.90.

The data identified the typical values well: the prior's 90% interval for the typical clearance was 0.018-0.091 L/h/kg, the posterior's is 0.035-0.047.

#5 · Checking the fit

Error model. Assay errors are often proportional to the concentration plus a floor near the quantification limit. We fitted both terms; LOO compares that with the additive error alone.

loo_err = {"combined": az.loo(idata_pop)}
for err in ["additive"]:
    with build_theoph(error=err):
        idt = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
        pm.compute_log_likelihood(idt, progressbar=False)
    fit_report(idt, err)
    loo_err[err] = az.loo(idt)
    del idt
az.compare(loo_err, round_to=1)

additive: 0 divergences, max r_hat 1.011, min bulk ESS 650

The two error models differ by 0.4 in expected log predictive density with a standard error of 3.1: 120 concentrations between 0.85 and 11 mg/L do not decide the question (and 6-7 observations have Pareto $\hat k > 0.7$ in each model, so the LOO numbers are themselves approximate). We keep the combined model, which contains the additive one and matters when we extrapolate to steady-state concentrations twice as high as anything observed here. Its proportional part is about 8% (though its interval reaches from 2% to 13%) and its additive part about 0.6 mg/L.

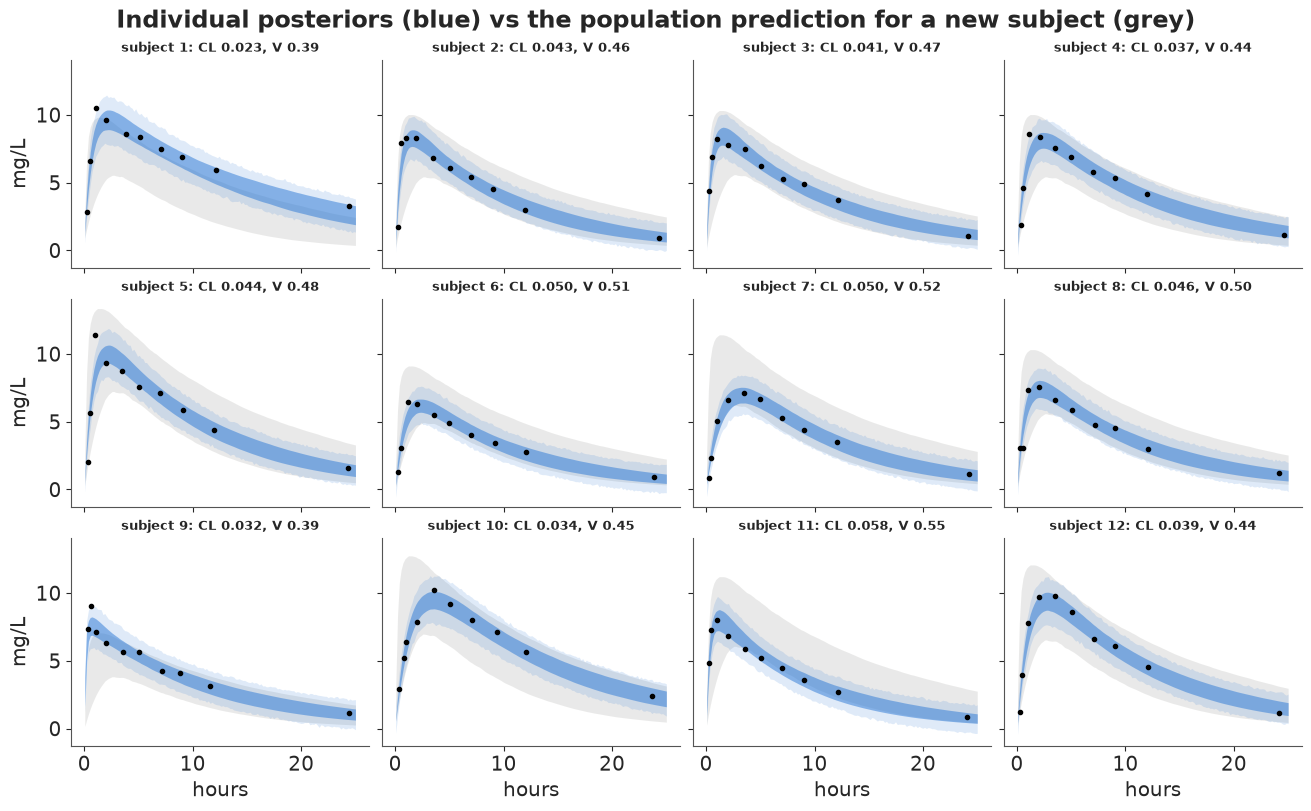

Individual fits. Each panel shows one subject's posterior (dark band: the curve, 90%; light band: a new measurement, 90%), and in grey what the population would have predicted for a new person with that dose. The gap between grey and blue is what the subject's own data taught the model.

dr = az.extract(idata_pop, var_names=["CL", "V", "ka", "sig_prop", "sig_add", "mu", "L_stds", "L_corr"],
                num_samples=1000, random_seed=RANDOM_SEED)
CLd, Vd, kad = (dr[v].values for v in ["CL", "V", "ka"])  # (subj, draw)
spd, sad = dr["sig_prop"].values, dr["sig_add"].values
# a brand-new subject from the population, per posterior draw: eta ~ MvNormal(0, diag(s) R diag(s))
s_d = dr["L_stds"].values.T                                   # (draw, 3)
cov_d = s_d[:, :, None] * np.moveaxis(dr["L_corr"].values, -1, 0) * s_d[:, None, :]
eta_new = np.einsum("dij,dj->id", np.linalg.cholesky(cov_d), rng.normal(size=(len(s_d), 3)))
th_new = dr["mu"].values + eta_new
CL_new, V_new = np.exp(th_new[0]), np.exp(th_new[1])
ka_new = CL_new / V_new + np.exp(th_new[2])

tg = np.linspace(0.05, 25, 150)
fig, axes = plt.subplots(3, 4, figsize=(13, 8), sharex=True, sharey=True)
for k, ax in enumerate(axes.flat):
    r = sid == k
    cur = conc_np(CLd[k][:, None], Vd[k][:, None], kad[k][:, None], tg, dose_kg[k], c_pre[k])
    ynew = cur + rng.normal(size=cur.shape) * np.sqrt((spd[:, None] * cur) ** 2 + sad[:, None] ** 2)
    pop = conc_np(CL_new[:, None], V_new[:, None], ka_new[:, None], tg, dose_kg[k], c_pre[k])
    ax.fill_between(tg, *np.quantile(pop, [0.05, 0.95], axis=0), color=GREY, alpha=0.18, lw=0)
    ax.fill_between(tg, *np.quantile(ynew, [0.05, 0.95], axis=0), color=BLUE, alpha=0.15, lw=0)
    ax.fill_between(tg, *np.quantile(cur, [0.05, 0.95], axis=0), color=BLUE, alpha=0.5, lw=0)
    ax.plot(t_obs[r], y_obs[r], "ko", ms=3)
    ax.set_title(f"subject {k + 1}: CL {np.median(CLd[k]):.3f}, V {np.median(Vd[k]):.2f}", fontsize=9)
for ax in axes[-1]:
    ax.set_xlabel("hours")
for ax in axes[:, 0]:
    ax.set_ylabel("mg/L")
fig.suptitle("Individual posteriors (blue) vs the population prediction for a new subject (grey)");

From 2 hours on, nearly every sample sits inside its subject's band, whether the rise is fast (subjects 1, 5, 9) or slow (7, 10, 12). The misses are at the peak: subjects 1, 5 and 9 each have a sample in the first hour or so at or above the upper edge of the band. A single first-order absorption rate cannot follow a very sharp early peak, and that is also where a few minutes' error in the recorded sampling time changes the concentration most. The grey population band is wide: before seeing a patient's own concentrations, the model can only say their peak will be somewhere between about 5 and 12 mg/L. That width is the case for measuring.

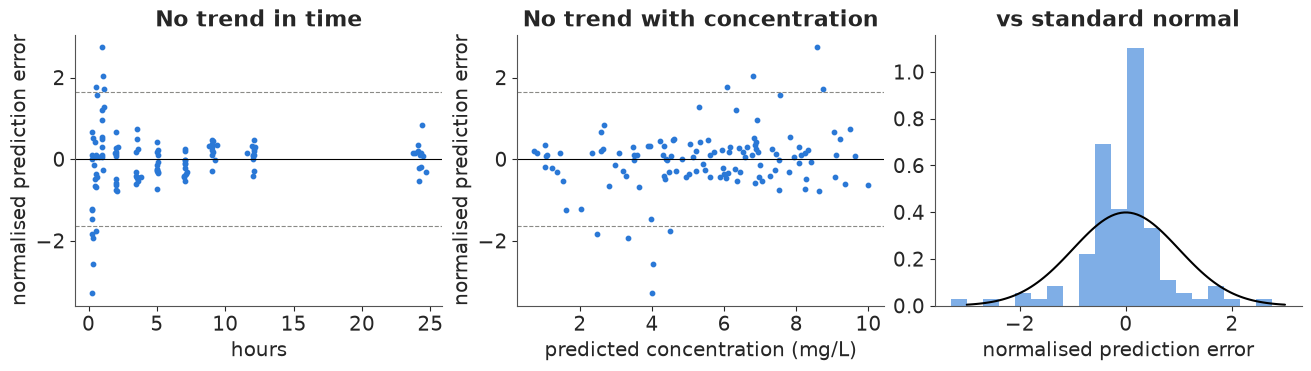

Normalised prediction errors. The population-PK version of a residual plot: for each observation, where does it fall within its own posterior predictive distribution? Plot the standard-normal quantile of that probability against time and against the predicted concentration: no trend and roughly unit spread mean the structural model and the error model are adequate.

c_obs_d = conc_np(CLd[sid], Vd[sid], kad[sid], t_obs[:, None], dose_kg[sid, None], c_pre[sid, None])
sd_obs_d = np.sqrt((spd * c_obs_d) ** 2 + sad ** 2)
y_rep = c_obs_d + rng.normal(size=c_obs_d.shape) * sd_obs_d
pit = (y_rep < y_obs[:, None]).mean(axis=1).clip(0.5 / y_rep.shape[1], 1 - 0.5 / y_rep.shape[1])
npe = norm.ppf(pit)
pred_med = np.median(c_obs_d, axis=1)
fig, axes = plt.subplots(1, 3, figsize=(13, 3.6))
axes[0].scatter(t_obs, npe, s=10, c=BLUE)
axes[1].scatter(pred_med, npe, s=10, c=BLUE)
for ax, xl in zip(axes[:2], ["hours", "predicted concentration (mg/L)"]):
    ax.axhline(0, color="k", lw=0.8)
    for s_ in (-1.645, 1.645):
        ax.axhline(s_, color=GREY, ls="--", lw=0.8)
    ax.set(xlabel=xl, ylabel="normalised prediction error")
axes[2].hist(npe, bins=20, density=True, color=BLUE, alpha=0.6)
xx = np.linspace(-3, 3, 100)
axes[2].plot(xx, norm.pdf(xx), color="k")
axes[2].set(xlabel="normalised prediction error", title="vs standard normal")
axes[0].set_title("No trend in time")
axes[1].set_title("No trend with concentration")
print(f"share outside the 90% predictive interval: {(np.abs(npe) > 1.645).mean():.3f} (expect about 0.10); "
      f"sd of the errors: {npe.std():.2f}")

share outside the 90% predictive interval: 0.075 (expect about 0.10); sd of the errors: 0.77

The errors are centred on zero at every time and concentration, with no drift. Their spread is not constant, though: wide in the first two hours, narrow afterwards. That repeats what the individual panels showed. The absorption phase is where the model is weakest and where the one error model is too tight; later samples are predicted more closely than the error model expects (in-sample checks with 36 subject-level parameters for 120 observations are optimistic). Overall 7.5% of observations fall outside their 90% interval and the errors have an sd of 0.77. For the decisions below, which rest on clearance and the elimination phase, this is adequate; section 8 tests the model out of sample.

#6 · Warfarin: covariates, allometry and a censored sample

Theophylline doses were already scaled per kg, which hides the question of how the body's parameters scale with size. The warfarin study (32 subjects, 1.5 mg/kg each) records weight, age and sex, and its sampling is uneven: 13 subjects were sampled in the first hours, the other 19 only from 24 hours on, when absorption is long over.

data.describe("warfarin_pkpd")
wf = data.load("warfarin_pkpd")
ids = np.sort(wf.id.unique())
Sw = len(ids)
pos = {k: i for i, k in enumerate(ids)}
cov = wf.groupby("id").first().loc[ids]
wt = cov.wt.to_numpy()
female = (cov.sex == "female").to_numpy().astype(float)
dose_w = wf[wf.evid == 1].set_index("id").amt.loc[ids].to_numpy()
cp = wf[(wf.dvid == "cp") & (wf.evid == 0)]
pk_i, pk_t, pk_y = cp.id.map(pos).to_numpy(), cp.time.to_numpy(), cp.dv.to_numpy()
pca = wf[wf.dvid == "pca"]
pd_i, pd_t, pd_y = pca.id.map(pos).to_numpy(), pca.time.to_numpy(), pca.dv.to_numpy()
early = cp.groupby("id").time.min().loc[ids] < 24
print(f"{Sw} subjects, {len(cp)} concentrations, {len(pca)} PCA values; sampled before 24 h: "
      f"{early.sum()}; weight {wt.min():.0f}-{wt.max():.0f} kg; {int(female.sum())} women")
print("concentrations reported as 0:", cp[cp.dv == 0][["id", "time"]].to_numpy().tolist(),
      "| smallest positive value:", cp[cp.dv > 0].dv.min())

warfarin_pkpd: Warfarin PK/PD in 32 subjects after one oral dose of 1.5 mg/kg (amt, mg, on the evid = 1 rows). 515 rows: id, time (h, 0-144), amt, dv (plasma warfarin mg/L when dvid = 'cp', 251 samples, four reported as 0 at 0.5 h; prothrombin complex activity, % of normal, when dvid = 'pca', 232 samples), evid, wt (kg, 40-102), age (y, 21-63), sex (27 male, 5 female).
  source: O'Reilly, Aggeler & Leong (1963) J Clin Invest 42:1542 and O'Reilly & Aggeler (1968) Circulation 38:169, as curated by Funaki, Holford & Fujita (2018) in R package `nlmixr2data` (GPL >= 3). CONVERTED from the package's `warfarin.rda` (R serialisation) to CSV, so keep the cached file in data/.
  url:    https://github.com/nlmixr2/nlmixr2data/raw/main/data/warfarin.rda
32 subjects, 251 concentrations, 232 PCA values; sampled before 24 h: 13; weight 40-102 kg; 5 women
concentrations reported as 0: [[1.0, 0.5], [3.0, 0.5], [9.0, 0.5], [15.0, 0.5]] | smallest positive value: 0.6

fig, axes = plt.subplots(1, 2, figsize=(12, 4))
norm_w = plt.Normalize(wt.min(), wt.max())
for k in range(Sw):
    col = plt.get_cmap("plasma")(norm_w(wt[k]))
    r1, r2 = pk_i == k, pd_i == k
    axes[0].plot(pk_t[r1], pk_y[r1], "o-", ms=2.5, lw=0.8, color=col)
    axes[1].plot(pd_t[r2], pd_y[r2], "o-", ms=2.5, lw=0.8, color=col)
axes[0].set(xlabel="hours", ylabel="warfarin (mg/L)", title="Warfarin concentration")
axes[1].set(xlabel="hours", ylabel="PCA (% of normal)", title="Clotting-factor activity (PCA)")
fig.colorbar(plt.cm.ScalarMappable(norm=norm_w, cmap="plasma"), ax=axes, label="weight (kg)");

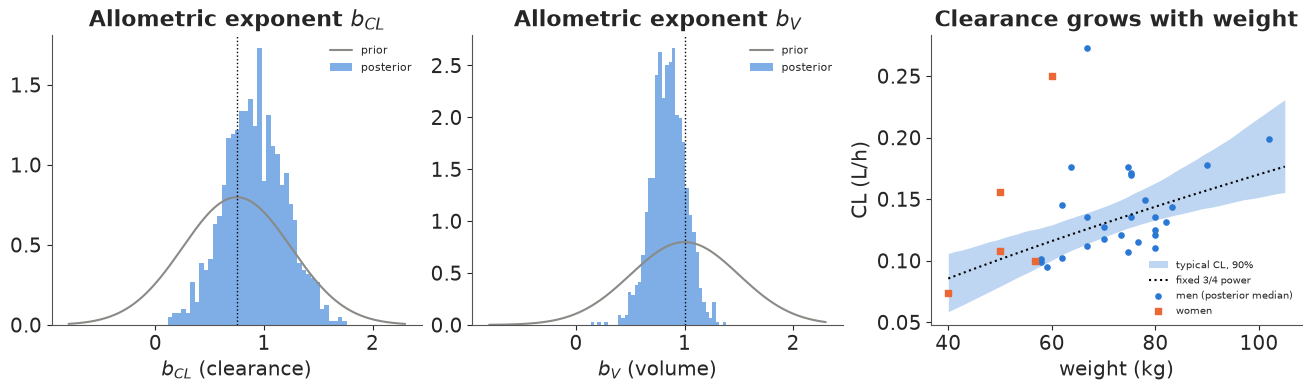

Allometric scaling. Across mammals, metabolic rate and hence clearance scale with body mass to roughly the power 3/4, and volumes with power 1. The population model writes this as a covariate on the typical values,

$$\log CL_i = \theta_{CL} + b_{CL}\log(\mathrm{wt}_i/70) + \beta_\text{F}\,\mathrm{female}_i + \eta_{CL,i}, \qquad \log V_i = \theta_V + b_V \log(\mathrm{wt}_i/70) + \eta_{V,i},$$

and we estimate the exponents with priors centred on theory (Normal(0.75, 0.5) and Normal(1, 0.5)) rather than fixing them, to see whether 32 people between 40 and 102 kg can tell. Absorption gets a population lag time (warfarin tablets take a while to dissolve) and the same ordering as before.

Censoring. Four samples at 0.5 h are reported as 0. A concentration is never exactly 0 after a dose; these are almost certainly below the assay's limit of quantification. The limit is not reported; the smallest positive value is 0.6 mg/L, so we assume LLOQ = 0.5 mg/L and use the censored likelihood $P(y < \text{LLOQ})$ for those four rows (pm.Censored with a lower bound on those rows only, $-\infty$ elsewhere): a reported 0 says "below the limit", not "zero".

#7 · A little PK/PD: warfarin's effect on clotting as a turnover model

Warfarin does not act on its target directly: it blocks the synthesis of clotting factors, which then disappear at their own natural turnover rate. So the prothrombin complex activity (PCA) keeps falling for a day or two after the concentration has peaked, and recovers slowly. The standard description is an indirect-response (turnover) model,

$$\frac{dR}{dt} = k_\text{in}\left(1 - \frac{C(t)}{C_{50} + C(t)}\right) - k_\text{out} R, \qquad R(0) = R_0 = k_\text{in}/k_\text{out}.$$

It needs no ODE solver: given $C(t)$ the equation is linear in $R$, and its exact solution is a convolution,

$$\frac{R(t)}{R_0} = 1 - k_\text{out}\int_0^t e^{-k_\text{out}(t-u)}\,I(u)\,du, \qquad I(u) = \frac{C(u)}{C_{50} + C(u)}.$$

We evaluate the integral with the trapezoid rule on a half-hour grid, for all subjects and observation times at once, as one weight tensor times the inhibition curves: a few thousand multiplications per gradient. Each subject gets their own baseline $R_0$, potency $C_{50}$ and turnover rate $k_\text{out}$ (log-normal, non-centred), and PK and PD are fitted jointly.

h_grid = 0.5
grid = np.arange(0, 144 + h_grid, h_grid)
t_pd = np.unique(pd_t)
lag = t_pd[:, None] - grid[None, :]
trap = np.where(lag >= 0, h_grid, 0.0)
trap[:, 0] = h_grid / 2
trap[np.arange(len(t_pd)), np.searchsorted(grid, t_pd)] = h_grid / 2  # trapezoid end points
trap[t_pd == 0] = 0.0
lag_pos = np.maximum(lag, 0.0)
pd_ti = np.searchsorted(t_pd, pd_t)
LLOQ = 0.5
cens = pk_y < LLOQ
lwt = np.log(wt / 70)
coords_w = {"subj": ids, "pk": ["CL", "V", "ka_excess"], "pd": ["R0", "C50", "kout"]}


def conc_lag_pt(CL, V, ka, tlag, t, dose):
    return conc_pt(CL, V, ka, pt.maximum(t - tlag, 0.0), dose)


with pm.Model(coords=coords_w) as m_wf:
    th_CL = pm.Normal("th_CL", np.log(0.13), 0.5)   # L/h for 70 kg (textbook ~0.1-0.2)
    th_V = pm.Normal("th_V", np.log(8.0), 0.5)      # L for 70 kg (~0.1 L/kg)
    th_ka = pm.Normal("th_ka", np.log(1.0), 1.0)
    b_CL = pm.Normal("b_CL", 0.75, 0.5)
    b_V = pm.Normal("b_V", 1.0, 0.5)
    beta_F = pm.Normal("beta_female_CL", 0.0, 0.3)
    tlag = pm.LogNormal("tlag", np.log(0.5), 0.5)
    chol_w, _, _ = pm.LKJCholeskyCov("Lpk", n=3, eta=2.0, sd_dist=pm.HalfNormal.dist(0.5),
                                     compute_corr=True)
    z_pk = pm.Normal("z_pk", 0.0, 1.0, dims=("subj", "pk"))
    eta = z_pk @ chol_w.T
    CLw = pm.Deterministic("CL", pt.exp(th_CL + b_CL * lwt + beta_F * female + eta[:, 0]), dims="subj")
    Vw = pm.Deterministic("V", pt.exp(th_V + b_V * lwt + eta[:, 1]), dims="subj")
    kaw = pm.Deterministic("ka", CLw / Vw + pt.exp(th_ka + eta[:, 2]), dims="subj")
    c_pk = conc_lag_pt(CLw[pk_i], Vw[pk_i], kaw[pk_i], tlag, pk_t, dose_w[pk_i])
    sp_w = pm.HalfNormal("sig_prop", 0.2)
    sa_w = pm.HalfNormal("sig_add", 0.5)
    pm.Censored("cp", pm.Normal.dist(c_pk, sigma_combined(c_pk, sp_w, sa_w)),
                lower=np.where(cens, LLOQ, -np.inf), upper=None, observed=np.where(cens, LLOQ, pk_y))
    # PD: turnover with inhibition of synthesis
    mu_pd = pm.Normal("mu_pd", [np.log(95.0), np.log(1.5), np.log(0.05)], [0.2, 0.7, 0.7], dims="pd")
    sd_pd = pm.HalfNormal("sd_pd", [0.2, 0.5, 0.5], dims="pd")
    z_pd = pm.Normal("z_pd", 0.0, 1.0, dims=("subj", "pd"))
    pdp = pt.exp(mu_pd + z_pd * sd_pd)
    R0 = pm.Deterministic("R0", pdp[:, 0], dims="subj")
    C50 = pm.Deterministic("C50", pdp[:, 1], dims="subj")
    kout = pm.Deterministic("kout", pdp[:, 2], dims="subj")
    c_grid = conc_lag_pt(CLw[:, None], Vw[:, None], kaw[:, None], tlag, grid[None, :], dose_w[:, None])
    inhib = c_grid / (C50[:, None] + c_grid)                                  # (subj, grid)
    kern = pt.exp(-kout[:, None, None] * lag_pos[None]) * trap[None]          # (subj, time, grid)
    resp = R0[:, None] * (1 - kout[:, None] * (kern * inhib[:, None, :]).sum(-1))
    sig_pd = pm.HalfNormal("sig_pd", 10.0)
    pm.Normal("pca", resp[pd_i, pd_ti], sig_pd, observed=pd_y)

t0 = time.perf_counter()
with m_wf:
    idata_wf0 = pm.sample(random_seed=RANDOM_SEED, progressbar=False, target_accept=0.9)
print(f"sampled in {time.perf_counter() - t0:.0f} s")
fit_report(idata_wf0, "warfarin PK/PD, default starts")


def per_chain_table(idt):
    return pd.DataFrame({v: idt.posterior[v].mean("draw").values for v in ["tlag", "sig_add", "sig_prop"]}
                        | {"mean log density": idt.sample_stats["logp"].mean("draw").values},
                        index=pd.Index(range(4), name="chain")).round(3)


per_chain_table(idata_wf0)

sampled in 79 s

warfarin PK/PD, default starts: 0 divergences, max r_hat 1.131, min bulk ESS 20

Three chains agree; chain 2 sits at a lag time around 1 h with a larger additive error and a mean log density about 19 units lower, and r_hat flags tlag, sig_add and sig_prop (1.13). There are no divergences: this is a second, spurious mode, not a geometry problem. Its cause is the lag. For any sample taken before $t_\text{lag}$ the model predicts exactly 0 and pt.maximum(t - tlag, 0) passes no gradient back to $t_\text{lag}$ from it. With a lag above 1 h, the three positive samples at 1 h (1.0-2.7 mg/L) are simply absorbed as additive noise, and nothing pulls the chain back. nutpie's default start jitters every parameter by up to ±1 on the unconstrained scale, so the lag started anywhere between 0.2 and 1.4 h.

The fix here is to start the lag where the early data can see it: initvals={"tlag": 0.6} and no jitter for that one variable (compile_kwargs={"jitter_rvs": ...} lists the variables that are still jittered). The alternatives are smoother absorption models without a kink (a chain of transit compartments), or a prior that excludes lags beyond the first samples.

not_tlag = {v for v in m_wf.free_RVs if v.name != "tlag"}
t0 = time.perf_counter()
with m_wf:
    idata_wf = pm.sample(random_seed=RANDOM_SEED, progressbar=False, target_accept=0.9,
                         initvals={"tlag": 0.6}, compile_kwargs={"jitter_rvs": not_tlag})
print(f"sampled in {time.perf_counter() - t0:.0f} s")
fit_report(idata_wf, "warfarin PK/PD, lag time started at 0.6 h")
display(per_chain_table(idata_wf))
del idata_wf0
az.summary(idata_wf, var_names=["th_CL", "th_V", "b_CL", "b_V", "beta_female_CL", "tlag", "Lpk_stds",
                                "sig_prop", "sig_add", "mu_pd", "sd_pd", "sig_pd"],
           ci_prob=0.9, round_to=3)

sampled in 90 s

warfarin PK/PD, lag time started at 0.6 h: 0 divergences, max r_hat 1.019, min bulk ESS 286

ew = az.extract(idata_wf, num_samples=1000, random_seed=RANDOM_SEED)
b_cl, b_v = ew["b_CL"].values, ew["b_V"].values
print("typical CL, 70 kg man (L/h):", q(np.exp(ew["th_CL"].values)))
print("typical V, 70 kg (L)       :", q(np.exp(ew["th_V"].values)))
print("half-life (h)              :", q(np.log(2) * np.exp(ew["th_V"].values - ew["th_CL"].values)))
print("b_CL (theory 0.75)         :", q(b_cl), " b_V (theory 1):", q(b_v))
print("typical C50 (mg/L)         :", q(np.exp(ew["mu_pd"].sel(pd="C50").values)),
      " turnover half-life of PCA (h):", q(np.log(2) / np.exp(ew["mu_pd"].sel(pd="kout").values)))
print("AUC ratio 100 kg vs 50 kg under mg/kg dosing (= 2^(1 - b_CL)):", q(2 ** (1 - b_cl)))

typical CL, 70 kg man (L/h): [0.119 0.13  0.144]
typical V, 70 kg (L)       : [7.497 7.901 8.341]
half-life (h)              : [38.087 41.98  46.13 ]
b_CL (theory 0.75)         : [0.455 0.912 1.387]  b_V (theory 1): [0.595 0.852 1.111]
typical C50 (mg/L)         : [1.017 1.17  1.347]  turnover half-life of PCA (h): [12.462 13.066 13.628]
AUC ratio 100 kg vs 50 kg under mg/kg dosing (= 2^(1 - b_CL)): [0.765 1.063 1.459]

fig, axes = plt.subplots(1, 3, figsize=(13, 3.8))
xx = np.linspace(-0.8, 2.3, 200)
for ax, draws, mu0, lab in [(axes[0], b_cl, 0.75, "$b_{CL}$ (clearance)"), (axes[1], b_v, 1.0, "$b_V$ (volume)")]:
    ax.plot(xx, norm.pdf(xx, mu0, 0.5), color=GREY, label="prior")
    ax.hist(draws, bins=40, density=True, color=BLUE, alpha=0.6, label="posterior")
    ax.axvline(mu0, color="k", ls=":", lw=1)
    ax.set(xlabel=lab, title=f"Allometric exponent {lab.split()[0]}")
    ax.legend(fontsize=8)
wgrid = np.linspace(40, 105, 50)
cl_curve = np.exp(ew["th_CL"].values[:, None] + b_cl[:, None] * np.log(wgrid / 70))
axes[2].fill_between(wgrid, *np.quantile(cl_curve, [0.05, 0.95], axis=0), color=BLUE, alpha=0.3, lw=0,
                     label="typical CL, 90%")
axes[2].plot(wgrid, np.median(np.exp(ew["th_CL"].values)) * (wgrid / 70) ** 0.75, "k:", label="fixed 3/4 power")
CLw_med = np.median(ew["CL"].values, axis=1)
axes[2].scatter(wt[female == 0], CLw_med[female == 0], s=14, color=BLUE, label="men (posterior median)")
axes[2].scatter(wt[female == 1], CLw_med[female == 1], s=18, color=ORANGE, marker="s", label="women")
axes[2].set(xlabel="weight (kg)", ylabel="CL (L/h)", title="Clearance grows with weight")
axes[2].legend(fontsize=7);

Now all chains agree (r_hat at most 1.02, lag time 0.87 h). Warfarin's typical clearance is 0.13 L/h and volume 7.9 L for a 70 kg man, a half-life of about 42 hours. The data do not narrow the exponents much: 32 subjects cannot distinguish a 3/4 power from a linear one for clearance ($b_{CL}$ 90% interval 0.46-1.39; $b_V$ 0.60-1.11). That is the common experience in small studies, and why many analyses fix the exponents at 3/4 and 1 instead of estimating them. The practical question behind it has a more useful answer: under mg/kg dosing, exposure (AUC = dose / CL) scales as $\mathrm{wt}^{1 - b_{CL}}$, so a 100 kg patient gets about the same exposure as a 50 kg one (ratio 1.06, 90% interval 0.77-1.46), rather than twice as much as with a flat dose. The five women have a somewhat higher clearance for their weight (log effect 0.25, 90% interval 0.01-0.50), too few to rely on.

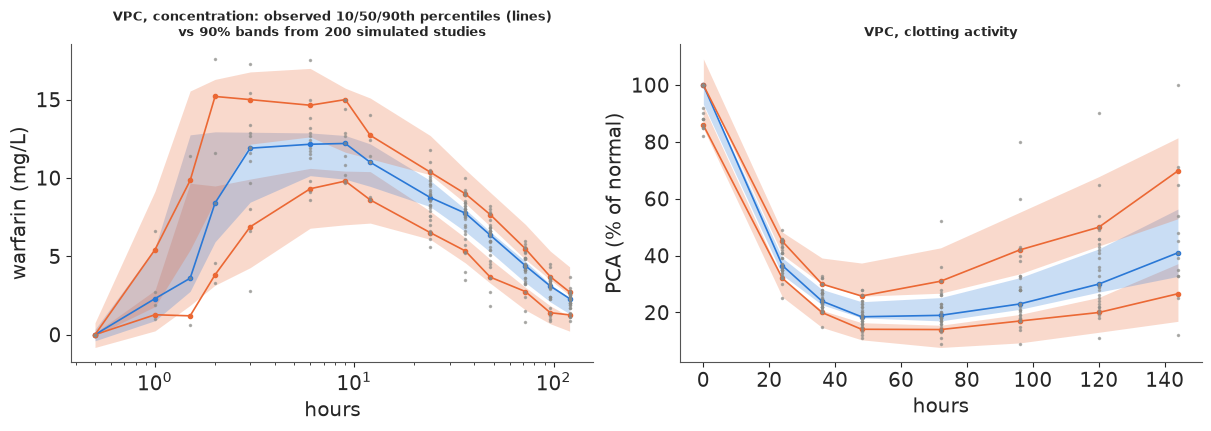

Visual predictive check. The workhorse check in population PK: simulate the whole study again, with new subjects drawn from the population (same doses and weights), and compare the 10th, 50th and 90th percentiles of the simulated data at each sampling time with those of the real data. A good model puts the observed percentiles inside the simulated bands.

def simulate_warfarin(ew, n_rep=200, seed=1):
    """Replicate the study with NEW subjects (same covariates and doses): returns PK and PD data."""
    rs = np.random.default_rng(seed)
    idx = rs.choice(ew.sizes["sample"], n_rep)
    sds = ew["Lpk_stds"].values[:, idx]
    cor = ew["Lpk_corr"].values[:, :, idx]
    out_pk, out_pd = [], []
    for j, d_ in enumerate(idx):
        cv = np.outer(sds[:, j], sds[:, j]) * cor[:, :, j]
        e = rs.multivariate_normal(np.zeros(3), cv, size=Sw)
        g = {k: ew[k].values[d_] for k in ["th_CL", "th_V", "th_ka", "b_CL", "b_V", "beta_female_CL", "tlag",
                                          "sig_prop", "sig_add", "sig_pd"]}
        CL_ = np.exp(g["th_CL"] + g["b_CL"] * lwt + g["beta_female_CL"] * female + e[:, 0])
        V_ = np.exp(g["th_V"] + g["b_V"] * lwt + e[:, 1])
        ka_ = CL_ / V_ + np.exp(g["th_ka"] + e[:, 2])
        c_ = conc_np(CL_[pk_i], V_[pk_i], ka_[pk_i], np.maximum(pk_t - g["tlag"], 0), dose_w[pk_i])
        out_pk.append(c_ + rs.normal(size=c_.shape) * np.sqrt((g["sig_prop"] * c_) ** 2 + g["sig_add"] ** 2))
        pdp_ = np.exp(ew["mu_pd"].values[:, d_] + rs.normal(size=(Sw, 3)) * ew["sd_pd"].values[:, d_])
        cg = conc_np(CL_[:, None], V_[:, None], ka_[:, None], np.maximum(grid - g["tlag"], 0), dose_w[:, None])
        inh = cg / (pdp_[:, 1:2] + cg)
        kern_ = np.exp(-pdp_[:, 2, None, None] * lag_pos[None]) * trap[None]
        resp_ = pdp_[:, 0:1] * (1 - pdp_[:, 2:3] * (kern_ * inh[:, None, :]).sum(-1))
        out_pd.append(resp_[pd_i, pd_ti] + rs.normal(size=len(pd_i)) * g["sig_pd"])
    return np.array(out_pk), np.array(out_pd)


sim_pk, sim_pd = simulate_warfarin(ew)
fig, axes = plt.subplots(1, 2, figsize=(12, 4.2))
for ax, tt_, yy, sim, lab in [(axes[0], pk_t, pk_y, sim_pk, "warfarin (mg/L)"),
                              (axes[1], pd_t, pd_y, sim_pd, "PCA (% of normal)")]:
    bins = np.unique(tt_)
    for qq, col in [(0.1, ORANGE), (0.5, BLUE), (0.9, ORANGE)]:
        sim_q = np.array([np.quantile(sim[:, tt_ == b], qq, axis=1) for b in bins])  # (bins, rep)
        ax.fill_between(bins, *np.quantile(sim_q, [0.05, 0.95], axis=1), color=col, alpha=0.25, lw=0)
        ax.plot(bins, [np.quantile(yy[tt_ == b], qq) for b in bins], "o-", color=col, ms=3, lw=1.2)
    ax.plot(tt_, yy, ".", color=GREY, ms=3, alpha=0.6)
    ax.set(xlabel="hours", ylabel=lab)
axes[0].set_title("VPC, concentration: observed 10/50/90th percentiles (lines)\nvs 90% bands from 200 simulated studies",
                  fontsize=9)
axes[1].set_title("VPC, clotting activity", fontsize=9)
axes[0].set_xscale("log");
