The setting
Japanese prints of the 1760s were printed with plant dyes that are famous for fading. The blue from dayflower (aigami, from Commelina communis) and the pink from safflower (beni) can vanish after months of daylight, and the greens that were mixed from dayflower and a yellow turn yellow when the blue goes. Many prints of this period survive in colours their makers never saw.
Two questions follow, one looking back and one looking forward:
- What did a print look like when it was new? Looking at a faded print, which colourants are there, how much light has it seen, and what colour was each area originally - and how sure can we be?
- How long can it be shown? A museum lights a print at 50 lux. After how many months will a visitor-noticeable change (ΔE00 = 1, a "just noticeable difference") have happened?
Both need a model of how colour changes with light dose, fitted to measured fading, with honest uncertainty. And the first raises a visualisation problem that most uncertainty displays cannot handle: the thing being estimated is a colour, so colour cannot also be used to show the uncertainty (no "red means uncertain" here).
| part | question | tool |
|---|---|---|
| A | What does fading look like, instrument by instrument? | spectra to CIELAB, fading strips, ΔE00 against Blue Wool |
| B | Can one physical model describe all of it? | Kubelka-Munk, rank check, hierarchical stretched exponential; browning as the failure and its fix |

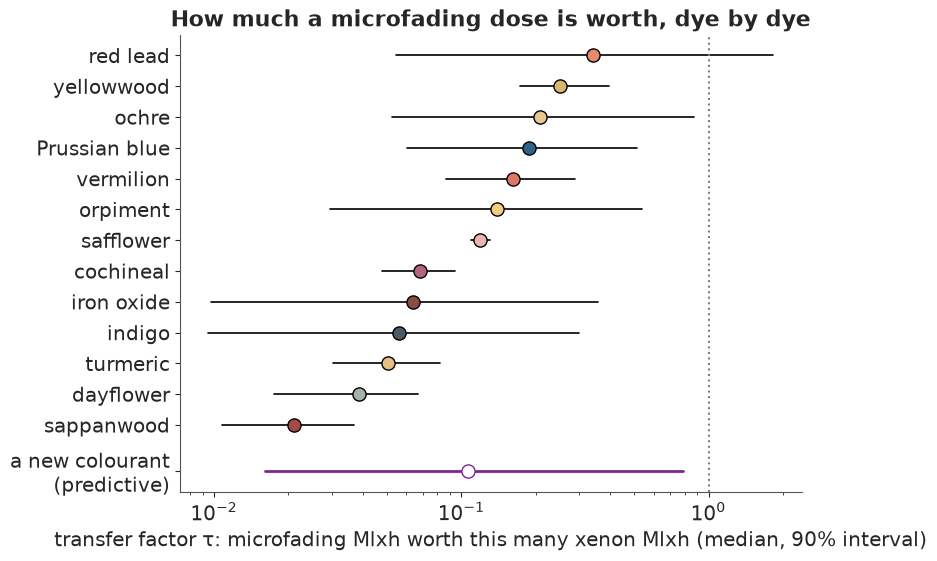

| C | Does a microfading test predict a long exposure? | a per-dye transfer factor, pooled; what a new dye's test would tell you |
| D | Do mixtures fade like their parts? | prediction without refitting, as a check |
| E | What did Harunobu's print look like? | photographic calibration, a two-impression model, recipe and dose, a grid posterior per colour area |
| F | How do you show uncertainty in a colour? | split swatches, restorations as hypothetical outcomes, trajectory tubes, a visibility map, recipe probabilities |

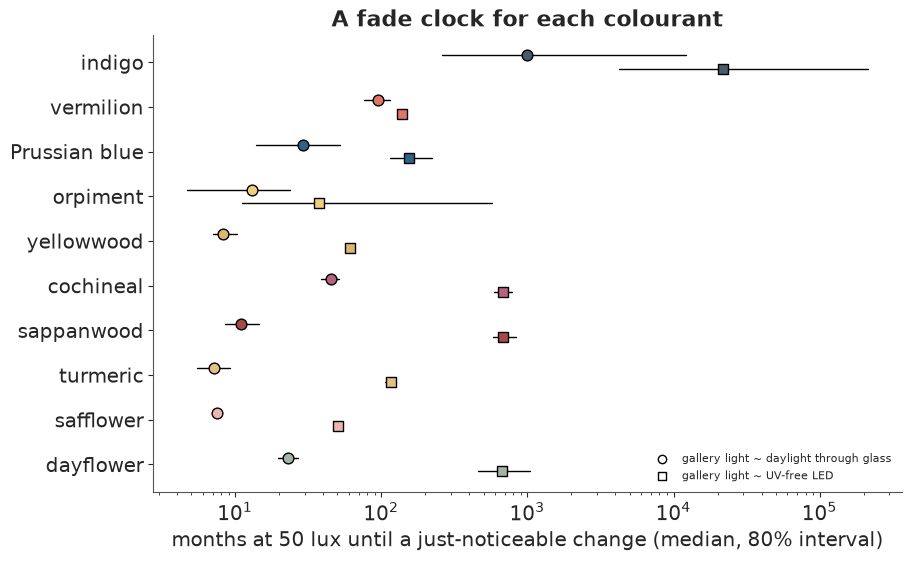

| G | How long can a print be displayed? | time to a just-noticeable change, plug-in vs risk-based |
import io
import logging
import time
import warnings
import arviz as az
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pymc as pm
import pytensor.tensor as pt
import xarray as xr
from IPython.display import HTML, Image, display
from matplotlib import animation
from scipy import ndimage
from scipy.cluster.vq import kmeans2
from scipy.optimize import nnls
from scipy.stats import spearmanr
from pymc_challenges import data
RANDOM_SEED = 74
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
logging.getLogger("pymc").setLevel(logging.WARNING)
warnings.filterwarnings("ignore", category=RuntimeWarning, module="arviz")
pd.set_option("display.width", 170)
pd.set_option("display.max_columns", 20)
def show_jpeg(fig, quality=85):
"""Photographs compress badly as PNG: show figures of prints as JPEG (a fifth of the size)."""
buf = io.BytesIO()
fig.savefig(buf, format="jpeg", dpi=90, pil_kwargs={"quality": quality})
plt.close(fig)
display(Image(buf.getvalue()))
A. From spectra to colours, and what fading looks like
The data are reflectance spectra: the fraction of light a sample reflects at each wavelength, 380-730 nm in 10 nm steps, measured again and again as the sample is exposed to light. Exposure is counted in million lux hours (Mlxh): 1 Mlxh is 50 lux (a typical museum limit for works on paper) for 20,000 hours, roughly eight years of opening hours.
Two instruments faded the same 1999 reconstructions:
- the microfading tester (MFT) focuses a 0.6 mm spot of white LED light (2700 K, no UV) at about 4 million lux onto the sample and measures the spectrum every 10 seconds: 1.4 Mlxh in 20 minutes, three spots per sample, averaged;
- the xenon-arc chamber (XT) exposes the whole sample to filtered xenon light ("daylight through window glass", which includes some UV) at 0.1 million lux, measured after 0.5 to 35 hours: up to 3.5 Mlxh.
The MFT also faded four Blue Wool references, the dyed wool cloths conservators use as a common ruler (BW1 fades fastest; each grade is meant to be about twice as durable as the one below).
data.describe("woodblock_fading")
spec = data.load("woodblock_fading")
lab_pub = data.load("woodblock_fading_lab")
cie = data.load("cie1964_d65").set_index("wavelength")
print(spec.groupby("instrument").agg(colourants=("colourant", "nunique"), max_dose=("dose_Mlxh", "max"),
spectra=("dose_Mlxh", lambda d: len(d) // 36)))
woodblock_fading: Reflectance spectra of reconstructions of Edo-period woodblock-print colourants printed on Japanese paper in 1999 by the Museum of Fine Arts, Boston, faded in 2024 by a microfading tester (instrument MFT: 2700 K LED spot, ~4.2 Mlx, no UV; three spots averaged) and in a xenon-arc chamber (XT: daylight-through-glass filter, 0.1 Mlx). One row per (instrument, colourant, dose, wavelength): dose_Mlxh (visible exposure, million lux hours), wavelength (380-730 nm, 10 nm; MFT averaged over +-4 nm), reflectance (0-1), refl_sd (MFT spot sd). Colourants: dayflower, safflower, turmeric, sappanwood, cochineal, yellowwood, orpiment, indigo, Prussian blue, vermilion, red lead, iron oxide, ochre, lead white, mica, brass powder, three mixtures (safflower+dayflower, indigo+orpiment, turmeric+orpiment), the bare paper, and (MFT only) Blue Wool references BW1-BW4.
source: Baines, Brokerhof, Christoforou, Jansen, van Leeuwen, Patin & Sauvage (2026), Balancing access and preservation: investigating light-induced fading of colourants used in Japanese woodblock prints, Journal of Paper Conservation 27:18-30; data on Zenodo 17014267 (CC BY 4.0), Rijksmuseum / Cultural Heritage Agency of the Netherlands (RCE). BUILT by tools/build_e74_fading.py from the MFT and xenotest spreadsheets - keep the cached file.
url: https://zenodo.org/records/17014267
colourants max_dose spectra
instrument
MFT 24 2.105 1100
XT 20 3.500 213Colour science in a few lines
A colour is what an observer sees when a light source illuminates the sample. With the CIE colour-matching functions $\bar x, \bar y, \bar z$ (the 1964 "10-degree" observer, as in the study) and illuminant D65 (daylight) with power $S(\lambda)$, the tristimulus values of a sample with reflectance $R(\lambda)$ are sums over wavelength, normalised so that a perfect white has $X = Y = Z = 1$:
$$X = \frac{\sum_\lambda R(\lambda) S(\lambda) \bar x(\lambda)}{\sum_\lambda S(\lambda)\bar x(\lambda)}, \quad \text{and the same for } Y, Z.$$
CIELAB turns $XYZ$ into lightness $L^*$ (0 black to 100 white), $a^*$ (green to red) and $b^*$ (blue to yellow) with a cube root that roughly equalises perceptual steps. The colour difference people perceive is best measured by CIEDE2000 (ΔE00), a corrected distance in CIELAB; ΔE00 around 1 is a just-noticeable difference side by side. All of it is a linear map followed by a fixed nonlinearity, so it can live inside a PyMC model.
The first check: do our colours agree with the ones the authors computed from the same spectra?
WL = np.arange(380, 731, 10)
W_OBS = cie.loc[WL, ["xbar", "ybar", "zbar"]].to_numpy() * cie.loc[WL, "d65"].to_numpy()[:, None]
W_OBS = W_OBS / W_OBS.sum(0) # reflectance (.., 36) @ W_OBS -> XYZ relative to white
D65_WHITE_2DEG = np.array([0.95047, 1.0, 1.08883])
M_SRGB = np.array([[0.4124, 0.3576, 0.1805], [0.2126, 0.7152, 0.0722], [0.0193, 0.1192, 0.9505]])
def ks(R):
"""Kubelka-Munk: reflectance of an opaque layer -> absorption/scattering ratio K/S."""
return (1 - R) ** 2 / (2 * R)
def km_reflectance(K):
"""Inverse Kubelka-Munk: K/S -> reflectance (works on NumPy arrays and PyTensor tensors)."""
return 1 + K - (K**2 + 2 * K) ** 0.5
def xyz_to_lab(XYZ):
d = 6 / 29
f = np.where(XYZ > d**3, np.cbrt(np.maximum(XYZ, 1e-12)), XYZ / (3 * d**2) + 4 / 29)
return np.stack([116 * f[..., 1] - 16, 500 * (f[..., 0] - f[..., 1]), 200 * (f[..., 1] - f[..., 2])], -1)
def spectra_to_lab(R):
return xyz_to_lab(R @ W_OBS)
def lab_pt(R):
"""The same observer + CIELAB inside a PyTensor graph."""
d = 6 / 29
XYZ = pt.dot(R, W_OBS)
f = pt.switch(XYZ > d**3, pt.maximum(XYZ, 1e-6) ** (1 / 3), XYZ / (3 * d**2) + 4 / 29)
return pt.stack([116 * f[..., 1] - 16, 500 * (f[..., 0] - f[..., 1]), 200 * (f[..., 1] - f[..., 2])], -1)
def srgb_to_lab(rgb):
lin = np.where(rgb <= 0.04045, rgb / 12.92, ((rgb + 0.055) / 1.055) ** 2.4)
return xyz_to_lab(lin @ M_SRGB.T / D65_WHITE_2DEG)
def lab_to_srgb(lab):
d = 6 / 29
fy = (lab[..., 0] + 16) / 116
f = np.stack([fy + lab[..., 1] / 500, fy, fy - lab[..., 2] / 200], -1)
XYZ = np.where(f > d, f**3, 3 * d**2 * (f - 4 / 29)) * D65_WHITE_2DEG
lin = np.clip(XYZ @ np.linalg.inv(M_SRGB).T, 0, 1)
return np.where(lin <= 0.0031308, 12.92 * lin, 1.055 * lin ** (1 / 2.4) - 0.055)
def de2000(lab1, lab2):
"""CIEDE2000 colour difference (Sharma, Wu & Dalal 2005), vectorised over leading axes."""
L1, a1, b1 = np.moveaxis(np.asarray(lab1, float), -1, 0)
L2, a2, b2 = np.moveaxis(np.asarray(lab2, float), -1, 0)
Cb = (np.hypot(a1, b1) + np.hypot(a2, b2)) / 2
G = 0.5 * (1 - np.sqrt(Cb**7 / (Cb**7 + 25.0**7)))
a1p, a2p = (1 + G) * a1, (1 + G) * a2
C1p, C2p = np.hypot(a1p, b1), np.hypot(a2p, b2)
h1p, h2p = np.degrees(np.arctan2(b1, a1p)) % 360, np.degrees(np.arctan2(b2, a2p)) % 360
zero = C1p * C2p == 0
dh = h2p - h1p
dh = np.where(dh > 180, dh - 360, np.where(dh < -180, dh + 360, dh))
dh = np.where(zero, 0, dh)
dL, dC = L2 - L1, C2p - C1p
dH = 2 * np.sqrt(C1p * C2p) * np.sin(np.radians(dh / 2))
Lb, Cbp = (L1 + L2) / 2, (C1p + C2p) / 2
hs = h1p + h2p
hb = np.where(zero, hs, np.where(np.abs(h1p - h2p) <= 180, hs / 2, np.where(hs < 360, (hs + 360) / 2, (hs - 360) / 2)))
T = (1 - 0.17 * np.cos(np.radians(hb - 30)) + 0.24 * np.cos(np.radians(2 * hb))
+ 0.32 * np.cos(np.radians(3 * hb + 6)) - 0.20 * np.cos(np.radians(4 * hb - 63)))
Rt = (-np.sin(np.radians(60 * np.exp(-(((hb - 275) / 25) ** 2))))
* 2 * np.sqrt(Cbp**7 / (Cbp**7 + 25.0**7)))
Sl = 1 + 0.015 * (Lb - 50) ** 2 / np.sqrt(20 + (Lb - 50) ** 2)
Sc, Sh = 1 + 0.045 * Cbp, 1 + 0.015 * Cbp * T
return np.sqrt((dL / Sl) ** 2 + (dC / Sc) ** 2 + (dH / Sh) ** 2 + Rt * (dC / Sc) * (dH / Sh))
# Sharma et al.'s first test pair has ΔE00 = 2.0425
assert abs(de2000([50, 2.6772, -79.7751], [50, 0, -82.7485]) - 2.0425) < 1e-4
def spectra_table(instrument, colourant):
"""dose x wavelength table of reflectance."""
s = spec[(spec.instrument == instrument) & (spec.colourant == colourant)]
return s.pivot(index="dose_Mlxh", columns="wavelength", values="reflectance")
check = []
for (inst, col), _ in spec.groupby(["instrument", "colourant"]):
tab = spectra_table(inst, col)
ours = spectra_to_lab(tab.to_numpy())
pub = lab_pub[(lab_pub.instrument == inst) & (lab_pub.colourant == col)]
nearest = pub.iloc[[np.argmin(np.abs(pub.dose_Mlxh.to_numpy() - d)) for d in tab.index]]
check.append((inst, np.abs(ours - nearest[["L", "a", "b"]].to_numpy()).max()))
print(pd.DataFrame(check, columns=["instrument", "max |ours - published|"]).groupby("instrument").max().round(2))
max |ours - published| instrument MFT 0.42 XT 0.02
The xenon-arc colours agree to 0.02 units, the rounding of the published table. The microfading colours agree to about 0.4: the authors used the full 1 nm spectrum to 780 nm, our file keeps 10 nm points to 730 nm (to match the xenon data). Far below a noticeable difference.

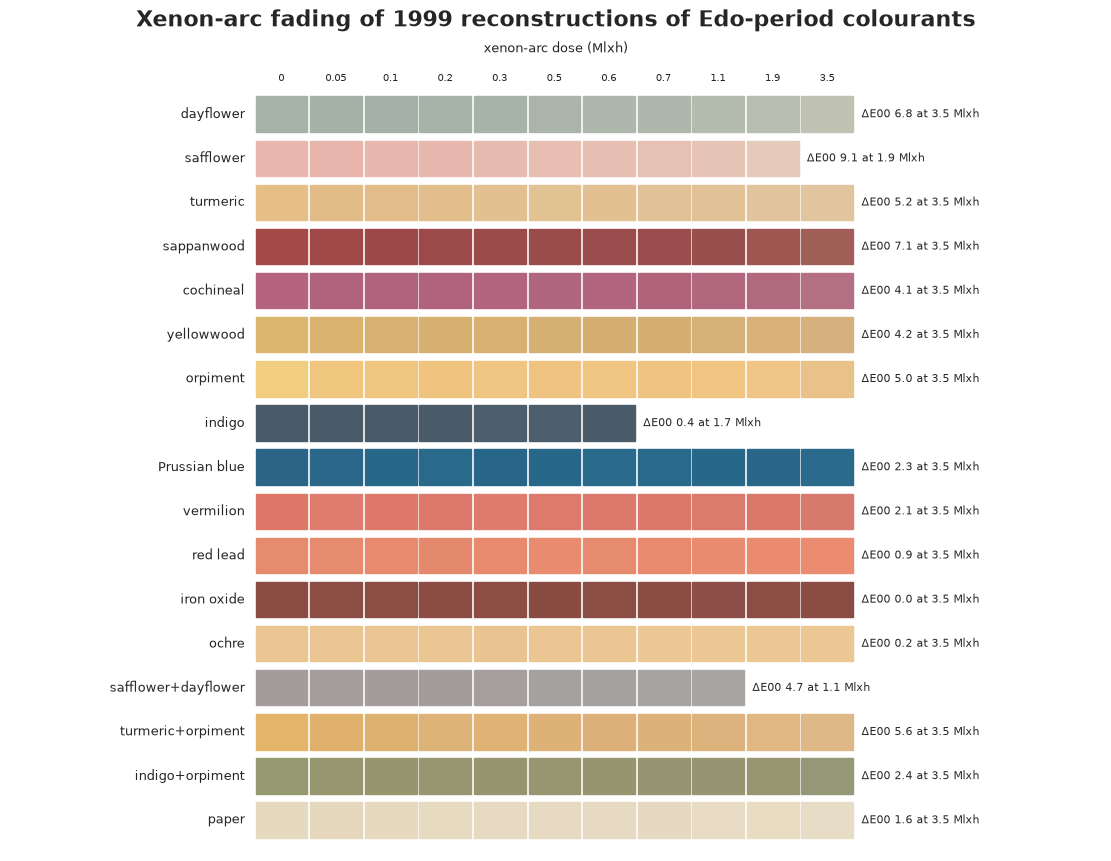

Fading strips
The most direct display of the data is a strip of swatches per colourant, left to right in increasing dose, painted in the colour each spectrum renders to. The number at the right is the ΔE00 between the first and the last swatch.
SINGLE = ["dayflower", "safflower", "turmeric", "sappanwood", "cochineal", "yellowwood", "orpiment",
"indigo", "Prussian blue", "vermilion", "red lead", "iron oxide", "ochre"]
MIXES = {"safflower+dayflower": ("safflower", "dayflower"), "turmeric+orpiment": ("turmeric", "orpiment"),
"indigo+orpiment": ("indigo", "orpiment")}
fig, ax = plt.subplots(figsize=(11, 8.5))
rows_show = SINGLE + list(MIXES) + ["paper"]
for r, col in enumerate(rows_show):
tab = spectra_table("XT", col)
lab = spectra_to_lab(tab.to_numpy())
rgb = lab_to_srgb(lab)
for j, d in enumerate(tab.index):
ax.add_patch(plt.Rectangle((j, -r - 0.9), 0.95, 0.8, color=rgb[j]))
ax.text(-0.2, -r - 0.5, col, ha="right", va="center", fontsize=9)
ax.text(len(tab) + 0.1, -r - 0.5, f"ΔE00 {de2000(lab[0], lab[-1]):.1f} at {tab.index[-1]:.1f} Mlxh",
va="center", fontsize=8)
doses_xt = spectra_table("XT", "dayflower").index
for j, d in enumerate(doses_xt):
ax.text(j + 0.47, 0.25, f"{d:g}", ha="center", fontsize=7)
ax.text(len(doses_xt) / 2, 0.9, "xenon-arc dose (Mlxh)", ha="center", fontsize=9)
ax.set_xlim(-4.5, len(doses_xt) + 4.5)
ax.set_ylim(-len(rows_show) - 0.2, 1.3)
ax.axis("off")
ax.set_title("Xenon-arc fading of 1999 reconstructions of Edo-period colourants");
The plant dyes behave very differently from the minerals. Safflower pink is nearly gone after 1.9 Mlxh; dayflower was already a pale grey-green before the test (it faded during the 25 years since 1999 - "0 Mlxh" here is not a fresh print, a point that will matter); turmeric and yellowwood lose their yellow; sappanwood and cochineal reds go brownish rather than simply paler. Indigo, iron oxide, ochre and red lead barely move. The yellow mixed from turmeric and orpiment (a mineral yellow) fades much like turmeric alone; the green of indigo and orpiment changes by less than half as much.

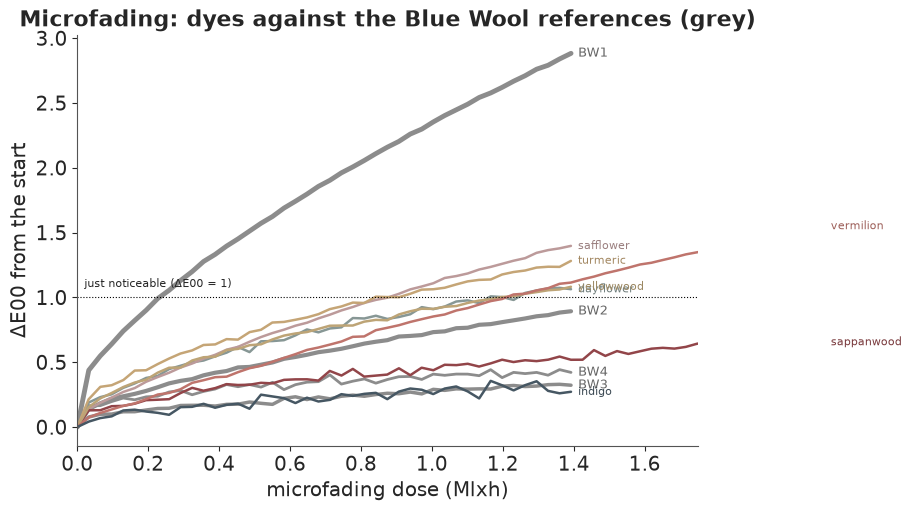

The Blue Wool ruler
Conservators describe light sensitivity by comparison with Blue Wool: "this dye fades like BW2". The microfading tester faded the four references alongside the dyes, so every dye can be placed on that ruler.
def de_curve(instrument, colourant):
tab = spectra_table(instrument, colourant)
lab = spectra_to_lab(tab.to_numpy())
return tab.index.to_numpy(), de2000(lab[:1], lab)
fig, ax = plt.subplots(figsize=(9, 5))
for bw, lw in zip(["BW1", "BW2", "BW3", "BW4"], [3.5, 3, 2.5, 2]):
d, e = de_curve("MFT", bw)
ax.plot(d, e, color="0.55", lw=lw, zorder=1)
ax.text(d[-1] + 0.02, e[-1], bw, color="0.4", va="center", fontsize=9)
highlight = ["dayflower", "safflower", "turmeric", "sappanwood", "yellowwood", "vermilion", "indigo"]
for col in highlight:
d, e = de_curve("MFT", col)
rgb = lab_to_srgb(spectra_to_lab(spectra_table("MFT", col).to_numpy()[0]))
ax.plot(d, e, color=np.clip(rgb * 0.85, 0, 1), lw=1.8)
ax.text(d[-1] + 0.02, e[-1], col, fontsize=8, va="center", color=np.clip(rgb * 0.7, 0, 1))
ax.axhline(1, color="k", lw=0.8, ls=":")
ax.text(0.02, 1.08, "just noticeable (ΔE00 = 1)", fontsize=8)
ax.set_xlabel("microfading dose (Mlxh)")
ax.set_ylabel("ΔE00 from the start")
ax.set_xlim(0, 1.75)
ax.set_title("Microfading: dyes against the Blue Wool references (grey)");
rank = []
for col in SINGLE + list(MIXES):
d, e = de_curve("MFT", col)
e_end = np.interp(1.4, d, e)
bw_end = [np.interp(1.4, *de_curve("MFT", bw)) for bw in ["BW1", "BW2", "BW3", "BW4"]]
grade = ("more sensitive than BW1" if e_end > bw_end[0] else
"between BW1 and BW2" if e_end > bw_end[1] else "BW2 or more durable")
rank.append((col, round(float(e_end), 2), grade))
bw_end = {bw: round(float(np.interp(1.4, *de_curve("MFT", bw))), 2) for bw in ["BW1", "BW2", "BW3", "BW4"]}
print("ΔE00 of the Blue Wools at 1.4 Mlxh:", bw_end)
print(pd.DataFrame(rank, columns=["colourant", "ΔE00 at 1.4 Mlxh (MFT)", "change compared with Blue Wool"]).to_string(index=False))
ΔE00 of the Blue Wools at 1.4 Mlxh: {'BW1': 2.88, 'BW2': 0.89, 'BW3': 0.32, 'BW4': 0.42}
colourant ΔE00 at 1.4 Mlxh (MFT) change compared with Blue Wool
dayflower 1.06 between BW1 and BW2
safflower 1.40 between BW1 and BW2
turmeric 1.28 between BW1 and BW2
sappanwood 0.52 BW2 or more durable
cochineal 0.37 BW2 or more durable
yellowwood 1.08 between BW1 and BW2
orpiment 4.67 more sensitive than BW1
indigo 0.27 BW2 or more durable
Prussian blue 1.25 between BW1 and BW2
vermilion 1.12 between BW1 and BW2
red lead 0.27 BW2 or more durable
iron oxide 0.13 BW2 or more durable
ochre 0.38 BW2 or more durable
safflower+dayflower 1.49 between BW1 and BW2
turmeric+orpiment 1.93 between BW1 and BW2
indigo+orpiment 1.96 between BW1 and BW2
(BW3 and BW4 hardly move in 1.4 Mlxh and their order is within noise, so the ruler is only resolved at its sensitive end.) Under microfading, most plant dyes change by 1-1.5 ΔE00 in 1.4 Mlxh: between BW1 and BW2, the "high sensitivity" class. Orpiment is the exception, changing by almost 5, more than BW1: it darkens. Now compare the xenon strips above: at a similar dose (1.1-1.9 Mlxh) safflower changed by about 8 and dayflower, turmeric and sappanwood by 3-5. The two instruments disagree by a large factor. Part C measures how large.
B. One physical model for all of it
Kubelka-Munk: why fading is linear in K/S
A dyed sheet of paper both absorbs (coefficient $K$) and scatters ($S$) light. For a thick, opaque layer the Kubelka-Munk theory gives the reflectance as a function of $K/S$ alone,
$$\frac{K}{S}(\lambda) = \frac{(1 - R(\lambda))^2}{2R(\lambda)}, \qquad R = 1 + \frac KS - \sqrt{\left(\frac KS\right)^2 + 2\frac KS},$$
and, crucially, $K/S$ adds up over the components of the layer: paper plus dye, each dye in proportion to its amount. So if light destroys a fraction of the dye molecules and leaves everything else alone, the spectrum at dose $H$ is
$$\frac KS(\lambda, H) = \underbrace{\frac KS_{\text{paper}}(\lambda, H)}_{\text{measured}} + q(H)\,\varepsilon(\lambda),\qquad q(0) = 1,$$
where $\varepsilon(\lambda)$ is the dye's own absorption spectrum and $q(H)$ is the fraction of dye remaining. In reflectance or in colour the change is curved and colour-dependent; in K/S it is one number, $q$, times a fixed shape.
That is testable before any model: stack the changes in K/S over doses into a matrix (dose x wavelength). If one chromophore just gets weaker, the matrix has rank one, and its direction is the dye's own spectrum $\varepsilon$.
paper_xt = spectra_table("XT", "paper")
rank_rows = []
for col in SINGLE + list(MIXES):
K = ks(spectra_table("XT", col).to_numpy())
dK = K[1:] - K[0]
sv = np.linalg.svd(dK, compute_uv=False)
eps0 = K[0] - ks(paper_xt.to_numpy()[0])
v1 = np.linalg.svd(dK, full_matrices=False)[2][0]
rank_rows.append((col, round(sv[0] ** 2 / (sv**2).sum(), 3), round(abs(v1 @ eps0) / np.linalg.norm(eps0), 2)))
rank_tab = pd.DataFrame(rank_rows, columns=["colourant", "share of change in rank 1", "|cos(change, dye spectrum)|"])
print(rank_tab.to_string(index=False))
colourant share of change in rank 1 |cos(change, dye spectrum)|
dayflower 0.995 0.99
safflower 0.990 0.99
turmeric 0.997 0.99
sappanwood 0.927 0.85
cochineal 0.809 0.89
yellowwood 0.828 0.78
orpiment 0.784 0.67
indigo 0.984 1.00
Prussian blue 0.624 0.70
vermilion 0.988 0.99
red lead 0.829 0.85
iron oxide 0.951 1.00
ochre 0.983 1.00
safflower+dayflower 0.992 0.98
turmeric+orpiment 0.996 0.98
indigo+orpiment 0.675 0.86For dayflower, safflower, turmeric and the turmeric-orpiment yellow, over 99% of the change is one direction, and that direction is the dye's own spectrum (cosine 0.98-0.99): textbook "one chromophore disappearing". Sappanwood, cochineal, yellowwood, orpiment and Prussian blue are less clean: something else changes as they fade (for the organic reds and yellows, brownish degradation products are the usual suspect). The stable minerals have so little change that the rank of their "change" is mostly noise. A model that assumes pure loss will fit the first group and struggle with the second. We fit it anyway, look at where it fails, and then fix it.
The fading curve
For $q(H)$ use a stretched exponential,
$$q(H) = \exp\!\big(-(kH)^\beta\big),$$
with rate $k$ (per Mlxh) and shape $\beta$. $\beta = 1$ is first-order kinetics (each molecule equally likely to be destroyed); $\beta < 1$ is what a heterogeneous population gives (exposed molecules on the surface go first, protected ones later) and is typical of dyes on paper.
The model is hierarchical over the 13 single colourants (log rates and log shapes are drawn from common distributions, so a dye with little information borrows from the others), and it is fitted to colour: each spectrum predicted by the K/S model is rendered through the observer to CIELAB and compared with the measured colour by a Student-t with its own scale for each colourant and instrument. Colour rather than 36 correlated reflectances keeps the likelihood from pretending to have 36 independent measurements per spectrum, and puts the error in units people perceive.
Both instruments go into the same model. Their doses are not assumed equivalent: the rate under microfading is $k\,\tau$, with a transfer factor $\tau$ per colourant, also pooled. Part C is about $\tau$.
The paper term is the measured paper sample at the same dose (paper also changes under light), and $\varepsilon$ is taken from each sample's first spectrum on each instrument (the two instruments measure different spots and read slightly differently).
def build_rows(instruments=("XT", "MFT"), n_mft=12):
rows = []
for inst in instruments:
paper = spectra_table(inst, "paper")
for col in SINGLE:
tab = spectra_table(inst, col)
d = tab.index.to_numpy()
if inst == "MFT": # 44 spectra per dye: 12 evenly spaced ones are plenty, and weigh less
keep = np.unique(np.linspace(0, len(d) - 1, n_mft).round().astype(int))
tab, d = tab.iloc[keep], d[keep]
Kp = np.stack([np.interp(d, paper.index, ks(paper[w].to_numpy())) for w in WL], 1)
eps = ks(tab.to_numpy()[0]) - Kp[0]
for i, dose in enumerate(d):
rows.append(dict(inst=inst, col=col, dose=dose, Kp=Kp[i], eps=eps,
lab=spectra_to_lab(tab.to_numpy()[i])))
return pd.DataFrame(rows)
fade = build_rows()
fade["group"] = fade.inst + ": " + fade.col
groups = list(dict.fromkeys(fade.group))
col_idx = fade.col.map({c: i for i, c in enumerate(SINGLE)}).to_numpy()
grp_idx = fade.group.map({g: i for i, g in enumerate(groups)}).to_numpy()
is_mft = (fade.inst == "MFT").to_numpy().astype(float)
Kp_rows, eps_rows = np.stack(fade.Kp), np.stack(fade.eps)
lab_obs = np.stack(fade.lab)
print(fade.groupby("inst").size().rename("spectra"))
inst_idx = is_mft.astype(int) # 0 = xenon arc, 1 = microfading
def fading_model(products: bool):
coords = {"col": SINGLE, "group": groups, "obs": np.arange(len(fade)), "lab": ["L", "a", "b"],
"inst": ["XT", "MFT"]}
with pm.Model(coords=coords) as m:
mu_k = pm.Normal("mu_logk", -2, 1.5)
sd_k = pm.HalfNormal("sd_logk", 2)
logk = pm.Deterministic("logk", mu_k + sd_k * pm.Normal("z_logk", 0, 1, dims="col"), dims="col")
mu_b = pm.Normal("mu_logbeta", 0, 0.5)
sd_b = pm.HalfNormal("sd_logbeta", 0.3)
logbeta = pm.Deterministic("logbeta", mu_b + sd_b * pm.Normal("z_logbeta", 0, 1, dims="col"), dims="col")
mu_t = pm.Normal("mu_logtau", 0, 1.5)
sd_t = pm.HalfNormal("sd_logtau", 1)
logtau = pm.Deterministic("logtau", mu_t + sd_t * pm.Normal("z_logtau", 0, 1, dims="col"), dims="col")
rate = pt.exp(logk[col_idx] + is_mft * logtau[col_idx])
q = pt.exp(-((rate * fade.dose.to_numpy() + 1e-12) ** pt.exp(logbeta[col_idx])))
K = Kp_rows + q[:, None] * eps_rows
if products:
rho = pm.HalfNormal("rho", 0.5, dims=("inst", "col"))
ell = pm.LogNormal("ell", np.log(60), 0.5, dims=("inst", "col"))
shape = pt.exp(-(WL[None, :] - 380) / ell[inst_idx, col_idx][:, None])
K = K + (rho[inst_idx, col_idx] * (1 - q))[:, None] * shape
sigma = pm.HalfNormal("sigma", 1, dims="group")
pm.StudentT("lab_obs", nu=4, mu=lab_pt(km_reflectance(K)), sigma=sigma[grp_idx][:, None],
observed=lab_obs, dims=("obs", "lab"))
return m
inst MFT 156 XT 138 Name: spectra, dtype: int64
Prior predictive check. Before fitting, what do these priors say about fading? Draw rates and shapes from the prior and look at the fraction of dye left after 1 and after 10 Mlxh (xenon).
with fading_model(products=False):
prior = pm.sample_prior_predictive(1000, random_seed=RANDOM_SEED)
pk = np.exp(prior.prior["logk"].values.reshape(-1))
pb = np.exp(prior.prior["logbeta"].values.reshape(-1))
q_prior = {H: np.exp(-((pk * H) ** pb)) for H in (1, 10)}
print(pd.DataFrame({f"q after {H} Mlxh": np.quantile(v, [0.05, 0.25, 0.5, 0.75, 0.95]) for H, v in q_prior.items()},
index=["5%", "25%", "50%", "75%", "95%"]).round(3))
print("prior 90% interval of tau:", np.quantile(np.exp(prior.prior["logtau"].values), [0.05, 0.95]).round(3))
q after 1 Mlxh q after 10 Mlxh 5% 0.000 0.000 25% 0.535 0.004 50% 0.849 0.286 75% 0.973 0.678 95% 1.000 0.989 prior 90% interval of tau: [ 0.054 18.681]
The prior allows anything from "untouched after 10 Mlxh" to "gone after 1 Mlxh", with most mass in between: weakly informative on the scale that matters. The transfer factor may be anywhere from about 1/20 to 20.
First fit: pure loss of dye
t0 = time.time()
with fading_model(products=False) as m_loss:
idata_loss = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
pm.compute_log_likelihood(idata_loss, progressbar=False)
print(f"sampled in {time.time() - t0:.0f} s; divergences: {int(idata_loss.sample_stats['diverging'].sum())}; "
f"largest r_hat: {float(az.summary(idata_loss, var_names=['logk', 'logbeta', 'logtau', 'sigma']).r_hat.max()):.2f}")
sampled in 10 s; divergences: 0; largest r_hat: 1.01
The sampler is healthy. Is the model? The fitted scales $\sigma$ are the typical colour error per colourant and instrument (in CIELAB units): a direct posterior predictive summary.
def sigma_table(idata):
return idata.posterior["sigma"].median(("chain", "draw")).to_series()
sig_loss = sigma_table(idata_loss)
print(sig_loss.sort_values(ascending=False).head(8).round(2))
group MFT: orpiment 2.80 XT: sappanwood 2.70 XT: orpiment 2.66 XT: yellowwood 2.38 XT: turmeric 1.64 XT: cochineal 1.46 XT: Prussian blue 0.96 XT: vermilion 0.92 Name: sigma, dtype: float64
The worst fits are the colourants the rank check flagged (orpiment, sappanwood, yellowwood, cochineal), plus turmeric, with typical errors of 1.5-2.8 CIELAB units, which is visible. The picture shows how they fail: in the $a^*b^*$ plane the measured colours take a direction the model's paths cannot follow, because losing dye can only move a colour towards the paper's.
def fitted_path(idata, col, inst, products, n_dose=40, draws=200):
"""Posterior draws of the rendered colour along a dose grid."""
rows = fade[(fade.col == col) & (fade.inst == inst)]
H = np.linspace(0, rows.dose.max(), n_dose)
paper = spectra_table(inst, "paper")
Kp = np.stack([np.interp(H, paper.index, ks(paper[w].to_numpy())) for w in WL], 1)
eps = rows.eps.iloc[0]
post = az.extract(idata, num_samples=draws, random_seed=1)
c = SINGLE.index(col)
k = np.exp(post["logk"].values[c] + (inst == "MFT") * post["logtau"].values[c])
b = np.exp(post["logbeta"].values[c])
q = np.exp(-((k[:, None] * H[None]) ** b[:, None]))
K = Kp[None] + q[..., None] * eps
if products:
ell_, rho_ = post["ell"].sel(inst=inst).values[c], post["rho"].sel(inst=inst).values[c]
shape = np.exp(-(WL[None, :] - 380) / ell_[:, None])
K = K + (rho_[:, None] * (1 - q))[..., None] * shape[:, None, :]
return H, spectra_to_lab(km_reflectance(K))
fig, axs = plt.subplots(1, 4, figsize=(15, 4))
for ax, col in zip(axs, ["sappanwood", "cochineal", "yellowwood", "turmeric"]):
rows = fade[(fade.col == col) & (fade.inst == "XT")]
obs = np.stack(rows.lab)
_, path = fitted_path(idata_loss, col, "XT", products=False)
for p in path[::10]:
ax.plot(p[:, 1], p[:, 2], color="0.6", lw=0.6, alpha=0.6)
ax.scatter(obs[:, 1], obs[:, 2], c=lab_to_srgb(obs), edgecolor="k", s=45, zorder=3)
ax.annotate("", xy=obs[-1, 1:], xytext=obs[0, 1:], arrowprops=dict(arrowstyle="->", color="k", lw=0.8))
ax.set_title(col)
ax.set_xlabel("a*")
axs[0].set_ylabel("b*")

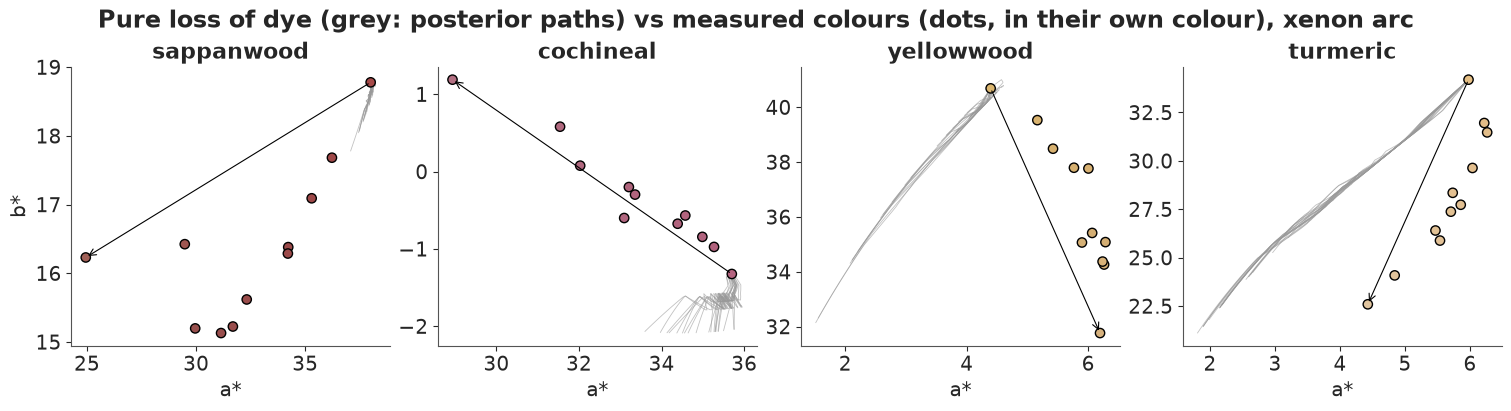

fig.suptitle("Pure loss of dye (grey: posterior paths) vs measured colours (dots, in their own colour), xenon arc");
The fix: coloured degradation products
Dyes do not vanish into nothing; they break into smaller molecules, and for many natural reds and yellows those absorb in the blue and violet, which reads as brown or yellow. Add a second absorber that grows as the dye is lost:
$$\frac KS(\lambda, H) = \frac KS_{\text{paper}} + q(H)\,\varepsilon(\lambda) + \rho\,(1 - q(H))\, e^{-(\lambda - 380)/\ell},$$
with amount $\rho \ge 0$ and a smooth absorption falling with wavelength over a scale $\ell$ (nm); $\rho = 0$ recovers the first model. Which products form depends on the light: the xenon chamber's UV opens reaction paths that the LED's visible light does not. So $\rho$ and $\ell$ are estimated separately for each instrument (a first version that shared them was dominated by the smooth, precise microfading curves and still missed the direction of the xenon changes).
t0 = time.time()
with fading_model(products=True) as m_fade:
# 1000 warm-up steps: with nutpie's default 400 the population rate parameters had r_hat ~1.03
idata_fade = pm.sample(tune=1000, random_seed=RANDOM_SEED, progressbar=False)
pm.compute_log_likelihood(idata_fade, progressbar=False)
print(f"sampled in {time.time() - t0:.0f} s; divergences: {int(idata_fade.sample_stats['diverging'].sum())}; "
f"largest r_hat: {float(az.summary(idata_fade, var_names=['logk', 'logbeta', 'logtau', 'rho', 'ell', 'sigma']).r_hat.max()):.2f}")
sig_fade = sigma_table(idata_fade)
print(pd.DataFrame({"pure loss": sig_loss, "with products": sig_fade}).loc[sig_loss.sort_values(ascending=False).index[:8]].round(2))
loo_loss, loo_fade = az.loo(idata_loss), az.loo(idata_fade)
print(az.compare({"pure loss": loo_loss, "with products": loo_fade}, round_to=1)[["elpd", "elpd_diff", "dse", "p"]])
del idata_loss
sampled in 137 s; divergences: 0; largest r_hat: 1.01
pure loss with products
group
MFT: orpiment 2.80 2.42
XT: sappanwood 2.70 1.01
XT: orpiment 2.66 1.79
XT: yellowwood 2.38 0.50
XT: turmeric 1.64 0.62
XT: cochineal 1.46 0.48
XT: Prussian blue 0.96 0.84
XT: vermilion 0.92 0.66elpd elpd_diff dse p with products -110.6 0.0 0.0 100.0 pure loss -811.2 -700.6 38.3 71.5
fig, axs = plt.subplots(1, 4, figsize=(15, 4))
for ax, col in zip(axs, ["sappanwood", "cochineal", "yellowwood", "turmeric"]):
rows = fade[(fade.col == col) & (fade.inst == "XT")]
obs = np.stack(rows.lab)
_, path = fitted_path(idata_fade, col, "XT", products=True)
for p in path[::10]:
ax.plot(p[:, 1], p[:, 2], color="0.6", lw=0.6, alpha=0.6)
ax.scatter(obs[:, 1], obs[:, 2], c=lab_to_srgb(obs), edgecolor="k", s=45, zorder=3)
ax.annotate("", xy=obs[-1, 1:], xytext=obs[0, 1:], arrowprops=dict(arrowstyle="->", color="k", lw=0.8))
ax.set_title(col)
ax.set_xlabel("a*")
axs[0].set_ylabel("b*")

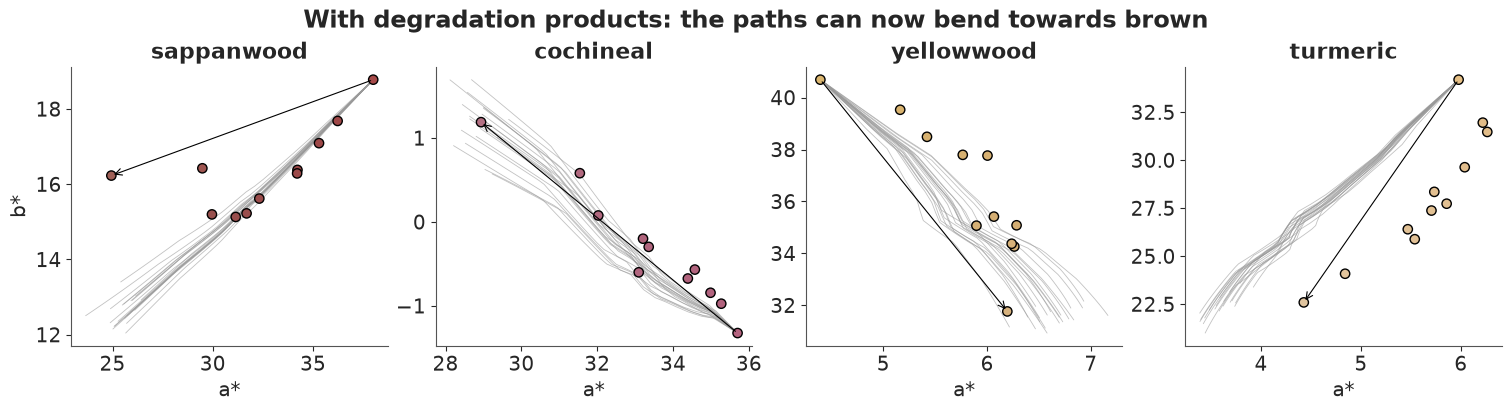

fig.suptitle("With degradation products: the paths can now bend towards brown");
The errors of the browning dyes drop by a factor of two to five (yellowwood from 2.4 to 0.5), and LOO prefers the product model by a margin many times its standard error. (LOO here leaves out one colour coordinate of one spectrum at a time; the measurements along a fading curve are correlated, so the margin is flattering, and several Pareto $k$ values above 0.7 say the same; its direction is not in doubt.) Two misfits remain and are worth saying out loud: orpiment, an arsenic sulfide that darkens on its own terms rather than bleaching, is still off by about 2 units; and turmeric's path runs 1-2 units of $a^*$ to one side of the data.
The fitted fading parameters, as rates in the xenon chamber:
post_fade = idata_fade.posterior
def q90(x, dims=("chain", "draw")):
return x.quantile([0.05, 0.5, 0.95], dim=dims)
k_q = q90(np.exp(post_fade["logk"]))
b_q = q90(np.exp(post_fade["logbeta"]))
half = q90((np.log(2) ** (1 / np.exp(post_fade["logbeta"]))) / np.exp(post_fade["logk"]))
tab_rates = pd.DataFrame({
"k per Mlxh (median)": k_q.sel(quantile=0.5).values,
"beta (median)": b_q.sel(quantile=0.5).values,
"half-life Mlxh 5%": half.sel(quantile=0.05).values,
"half-life Mlxh 50%": half.sel(quantile=0.5).values,
"half-life Mlxh 95%": half.sel(quantile=0.95).values,
"rho xenon": post_fade["rho"].sel(inst="XT").median(("chain", "draw")).values,
"rho microfading": post_fade["rho"].sel(inst="MFT").median(("chain", "draw")).values,
}, index=SINGLE)
print(tab_rates.sort_values("half-life Mlxh 50%").round(3))
k per Mlxh (median) beta (median) half-life Mlxh 5% half-life Mlxh 50% half-life Mlxh 95% rho xenon rho microfading turmeric 1.166 0.566 0.308 0.448 0.685 0.869 0.552 yellowwood 0.839 0.596 0.445 0.645 1.030 3.155 1.767 safflower 0.675 0.723 0.834 0.893 0.966 0.147 0.165 dayflower 0.274 0.787 2.034 2.287 2.512 0.224 0.057 sappanwood 0.126 0.548 2.809 4.071 6.754 2.010 1.287 orpiment 0.056 0.492 3.263 8.378 37.992 1.458 0.898 cochineal 0.052 0.652 8.332 11.026 14.894 2.065 0.677 vermilion 0.030 0.756 11.830 20.725 42.888 1.031 1.517 Prussian blue 0.005 0.389 19.913 75.310 623.482 0.744 0.376 indigo 0.004 0.782 17.362 164.894 6046.852 0.440 0.282 ochre 0.003 0.553 36.951 166.934 1257.430 0.820 0.304 red lead 0.001 0.712 87.385 811.060 19549.558 0.302 0.471 iron oxide 0.001 0.830 75.706 837.040 50785.835 0.338 0.339
The half-life (dose at which half the dye is gone, $(\ln 2)^{1/\beta}/k$) summarises each curve: turmeric, yellowwood, safflower, dayflower and sappanwood lose half their (remaining) dye within 0.4-4 xenon Mlxh. Cochineal and orpiment take about ten; the mineral pigments tens to hundreds, with upper limits in the thousands, which is to say the data only bound them from below. All shapes are below 1: stretched, heterogeneous fading. The chamber makes more coloured product than the LED for most dyes (cochineal about three times as much): UV light browns.
C. Does a microfading test predict a long exposure?
Microfading is attractive because it is fast and practically non-destructive: a museum can test an object in 20 minutes on a spot smaller than a millimetre. But its light is 40 times more intense than the xenon chamber's, has no UV, and hits a tiny spot. Is a microfading Mlxh worth a xenon Mlxh? The model's transfer factor $\tau$ answers: under microfading the dye fades as if it had received $\tau$ times the dose.
tau = np.exp(post_fade["logtau"])
tau_q = q90(tau)
order = np.argsort(tau_q.sel(quantile=0.5).values)
mu_t = post_fade["mu_logtau"].values.reshape(-1)
sd_t = post_fade["sd_logtau"].values.reshape(-1)
tau_new = np.exp(mu_t + sd_t * rng.standard_normal(mu_t.size))
fig, ax = plt.subplots(figsize=(8, 5.5))
for y, i in enumerate(order):
lo, md, hi = tau_q.isel(col=i).values
rgb = lab_to_srgb(spectra_to_lab(spectra_table("XT", SINGLE[i]).to_numpy()[0]))
ax.plot([lo, hi], [y, y], color="k", lw=1.2)
ax.scatter(md, y, s=90, color=rgb, edgecolor="k", zorder=3)
lo, md, hi = np.quantile(tau_new, [0.05, 0.5, 0.95])
ax.plot([lo, hi], [-1.5, -1.5], color="C3", lw=2)
ax.scatter(md, -1.5, s=90, color="white", edgecolor="C3", zorder=3)
ax.set_yticks(list(range(len(SINGLE))) + [-1.5])
ax.set_yticklabels([SINGLE[i] for i in order] + ["a new colourant\n(predictive)"])
ax.axvline(1, color="0.5", ls=":")
ax.set_xscale("log")
ax.set_xlabel("transfer factor τ: microfading Mlxh worth this many xenon Mlxh (median, 90% interval)")
ax.set_title("How much a microfading dose is worth, dye by dye");
print(f"pooled median tau: {np.exp(np.median(mu_t)):.2f}; spread between dyes (sd of log tau): "
f"{np.median(sd_t):.2f}; a new colourant's 90% predictive interval: {lo:.3f} - {hi:.2f}")
pooled median tau: 0.10; spread between dyes (sd of log tau): 1.05; a new colourant's 90% predictive interval: 0.016 - 0.79
For the dyes that actually fade (and therefore carry information), a microfading Mlxh is worth between about a fiftieth (sappanwood) and a quarter (yellowwood) of a xenon Mlxh, and the dyes differ well beyond their uncertainty: dayflower and sappanwood fade far more slowly under the LED spot than in the chamber, safflower and yellowwood less so. For the stable minerals the factor is barely identified: little faded in either instrument. A single conversion factor does not exist, and the predictive interval for a new colourant spans a factor of about fifty.
Why? Some of it is the missing UV (the chamber's filtered xenon light contains some; the LED has none), some the intensity (photochemistry need not scale with the product intensity x time, the "reciprocity" assumption), some the tiny spot (heat, oxygen supply). The data cannot separate these, since every dye saw the same two conditions: all they identify is the product.
Does microfading at least rank the dyes correctly? Compare the order of the rates under the two instruments, draw by draw.
fugitive = ["dayflower", "safflower", "turmeric", "sappanwood", "cochineal", "yellowwood", "orpiment"]
sel = [SINGLE.index(c) for c in fugitive]
lk = post_fade["logk"].values.reshape(-1, len(SINGLE))[:, sel]
lt = post_fade["logtau"].values.reshape(-1, len(SINGLE))[:, sel]
rho_s = np.array([spearmanr(lk[i], lk[i] + lt[i]).statistic for i in range(0, len(lk), 4)])
print(f"rank correlation between xenon and microfading rates of the {len(fugitive)} fading dyes: "
f"median {np.median(rho_s):.2f}, 90% interval {np.quantile(rho_s, 0.05):.2f} - {np.quantile(rho_s, 0.95):.2f}")
rank correlation between xenon and microfading rates of the 7 fading dyes: median 0.79, 90% interval 0.64 - 0.93
Roughly yes, with reordering among neighbours: microfading tells you which colourants are sensitive, not how fast they fade under other light. The practical consequence for Part G: a display-time calculation needs an assumption about which instrument the gallery lighting resembles, and the answer depends on it.
D. Do mixtures fade like their parts?
Greens and purples were printed as mixtures (or overprints) of two colourants. Kubelka-Munk says the K/S of a mixture is the sum of its parts, so a mixture's fading should be predictable from the single-colourant fits, with no new fitting: find how much of each component the mixture contains from its first spectrum (non-negative least squares in K/S), then fade each component by its own posterior. Any mismatch is a failure of the assumption that components fade independently.
def mixture_prediction(mix, parts, draws=300):
tab = spectra_table("XT", mix)
H = tab.index.to_numpy()
Kp = np.stack([np.interp(H, paper_xt.index, ks(paper_xt[w].to_numpy())) for w in WL], 1)
epss = [ks(spectra_table("XT", p).to_numpy()[0]) - ks(paper_xt.to_numpy()[0]) for p in parts]
amounts, _ = nnls(np.stack(epss, 1), ks(tab.to_numpy()[0]) - Kp[0])
post = az.extract(idata_fade, num_samples=draws, random_seed=2)
K = np.broadcast_to(Kp, (draws, *Kp.shape)).copy()
for a, p, e in zip(amounts, parts, epss):
c = SINGLE.index(p)
k, b = np.exp(post["logk"].values[c]), np.exp(post["logbeta"].values[c])
q = np.exp(-((k[:, None] * H[None]) ** b[:, None]))
shape = np.exp(-(WL[None, :] - 380) / post["ell"].sel(inst="XT").values[c][:, None])
rho_ = post["rho"].sel(inst="XT").values[c]
K += a * (q[..., None] * e + (rho_[:, None] * (1 - q))[..., None] * shape[:, None, :])
pred = spectra_to_lab(km_reflectance(K))
obs = spectra_to_lab(tab.to_numpy())
return H, amounts, de2000(pred[:, :1], pred), de2000(obs[:1], obs), pred, obs

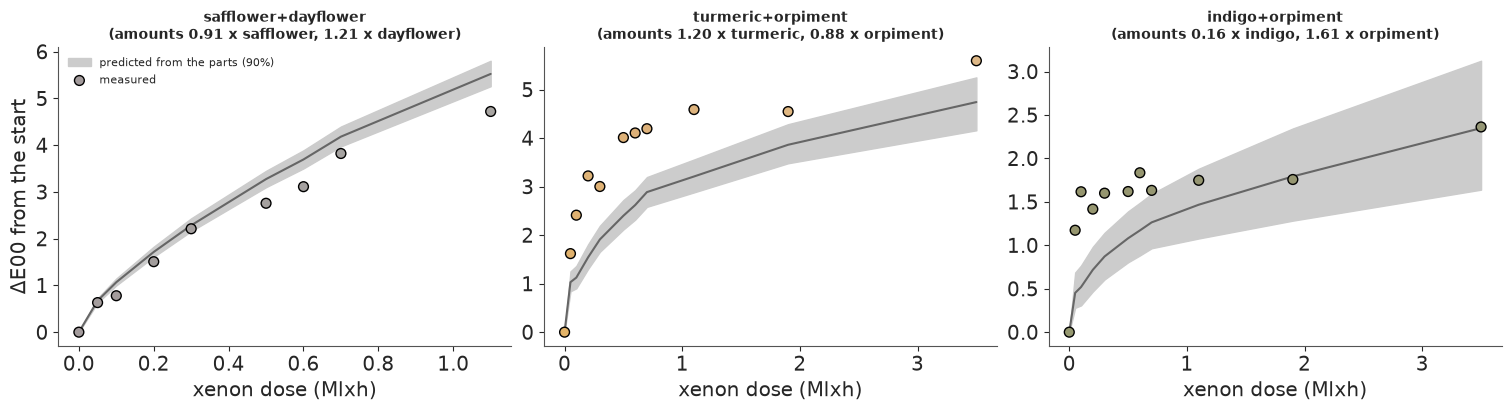

fig, axs = plt.subplots(1, 3, figsize=(15, 4))
for ax, (mix, parts) in zip(axs, MIXES.items()):
H, amounts, de_pred, de_obs, pred, obs = mixture_prediction(mix, parts)
lo, md, hi = np.quantile(de_pred, [0.05, 0.5, 0.95], axis=0)
ax.fill_between(H, lo, hi, color="0.8", label="predicted from the parts (90%)")
ax.plot(H, md, color="0.4")
ax.scatter(H, de_obs, c=lab_to_srgb(obs), edgecolor="k", s=50, zorder=3, label="measured")
ax.set_title(f"{mix}\n(amounts {amounts[0]:.2f} x {parts[0]}, {amounts[1]:.2f} x {parts[1]})", fontsize=10)
ax.set_xlabel("xenon dose (Mlxh)")
gap = de2000(np.median(pred, 0), obs)
print(f"{mix:22s} largest ΔE00 between predicted (median) and measured colour: {gap.max():.1f}")
axs[0].set_ylabel("ΔE00 from the start")
axs[0].legend(fontsize=8);
safflower+dayflower largest ΔE00 between predicted (median) and measured colour: 2.5 turmeric+orpiment largest ΔE00 between predicted (median) and measured colour: 3.2 indigo+orpiment largest ΔE00 between predicted (median) and measured colour: 1.1
Without fitting anything to the mixtures, the prediction gets the size of the change right to within 1-3 ΔE00, but not all of its timing. The purple (safflower over dayflower) is tracked closely to 0.3 Mlxh and then over-predicted by about 1 ΔE00. Both orpiment mixtures change faster at first than their parts predict: most of their change happens in the first 0.1-0.5 Mlxh, a jump that neither single colourant shows, and then the prediction catches up. So components do not fade quite independently when orpiment is involved. For the dayflower greens of the print below (dayflower with an organic yellow) the purple's behaviour is the better guide, and it supports independence as a working assumption.
E. What did Harunobu's print look like?
Two impressions of the same design
The Art Institute of Chicago owns two impressions of Descending Geese of the Koto Bridges (Kotoji no rakugan), from Suzuki Harunobu's series Eight Views of the Parlor, c. 1766. The same blocks printed both. Two and a half centuries later they look different: the leaves at top left are green in one and yellow in the other, the paper is cream in one and pink-beige in the other. Some of that is fading, some the paper, some the photography, and some possibly a different choice of colours at the printer's (the second impression also carries the artist's seal, which the first lacks).
data.describe("harunobu_impressions")
prints = np.load(data.path("harunobu_impressions"))
imgs = prints["images"].astype(float) / 255
print(prints["aic_id"], prints["design"])
IMP = ["AIC 20814", "AIC 88966"]
# The two photographs differ in scale and framing: register the second onto the first with a scale
# and a shift, found by maximising the correlation of edge maps (FFT cross-correlation over shifts,
# grid over scale).
def edges(img):
g = ndimage.gaussian_filter(img.mean(-1), 1.5)
return np.hypot(ndimage.sobel(g, 0), ndimage.sobel(g, 1))
def register(a, b, scales=np.arange(0.85, 1.2, 0.005)):
ea, eb = edges(a), edges(b)
best = (-np.inf, None, None)
for s in scales:
zb = ndimage.zoom(eb, 1 / s, order=1)
H, W = max(ea.shape[0], zb.shape[0]) + 60, max(ea.shape[1], zb.shape[1]) + 60
fa = np.fft.rfft2(ea - ea.mean(), (H, W))
fb = np.fft.rfft2(zb - zb.mean(), (H, W))
cc = np.fft.irfft2(fa * np.conj(fb), (H, W))
i = np.unravel_index(np.argmax(cc), cc.shape)
v = cc[i] / (np.linalg.norm(ea - ea.mean()) * np.linalg.norm(zb - zb.mean()))
if v > best[0]:
dy, dx = [x if x < n // 2 else x - n for x, n in zip(i, (H, W))]
best = (v, s, (dy, dx))
return best
corr, scale, (sh_y, sh_x) = register(imgs[0], imgs[1])
print(f"edge correlation {corr:.2f}, scale {scale:.3f}, shift ({sh_y}, {sh_x}) px")
yy, xx = np.mgrid[0:imgs.shape[1], 0:imgs.shape[2]]
by, bx = scale * (yy - sh_y), scale * (xx - sh_x)
img1_on_0 = np.stack([ndimage.map_coordinates(imgs[1][..., c], [by, bx], order=1, cval=1.0) for c in range(3)], -1)
inside = (by > 3) & (by < imgs.shape[1] - 4) & (bx > 3) & (bx < imgs.shape[2] - 4)
inside[:10] = inside[-10:] = False
inside[:, :10] = inside[:, -10:] = False
LAB0 = srgb_to_lab(imgs[0])
LAB1 = srgb_to_lab(img1_on_0)
harunobu_impressions: NumPy .npz (open data.path(...) with np.load): images (4 x 528 x 400 x 3 uint8 sRGB; the 400-px-wide IIIF JPEGs trimmed top and bottom to a common height), aic_id, design ('geese', 'lamp'), title.
source: Suzuki Harunobu (c. 1766), two impressions each of two designs from the series Eight Views of the Parlor (Zashiki hakkei): Descending Geese of the Koto Bridges (AIC 20814, 88966) and The Evening Glow of a Lamp (AIC 88968, 20817). Art Institute of Chicago, public domain, CC0 images via IIIF. Downloaded by tools/build_e74_fading.py.
url: https://api.artic.edu/api/v1/artworks/20814[20814 88966 88968 20817] ['geese' 'geese' 'lamp' 'lamp']
edge correlation 0.74, scale 0.925, shift (-26, -24) px
Where did the two impressions change differently?
Most of the difference between the photographs is common to the whole sheet: paper tone and the colour rendering of each photograph. Fit one smooth colour map from the first to the second (an affine map in CIELAB, by robust least squares over all pixels) and look at what it cannot explain. Whatever remains changed differently in different places: local fading, or different ink.
A = ndimage.gaussian_filter(LAB0, (2, 2, 0))[inside]
B = ndimage.gaussian_filter(LAB1, (2, 2, 0))[inside]
X = np.c_[A, np.ones(len(A))]
w = np.ones(len(A))
for _ in range(20): # iteratively reweighted least squares with Huber weights
M_aff = np.linalg.lstsq(X * w[:, None], B * w[:, None], rcond=None)[0]
r = np.linalg.norm(B - X @ M_aff, axis=1)
w = np.minimum(1, 3 / np.maximum(r, 1e-9))
resid = np.full(inside.shape, np.nan)
resid[inside] = r
print(f"after the sheet-wide colour map: median residual {np.median(r):.1f}, 95th percentile {np.quantile(r, 0.95):.1f} CIELAB units")

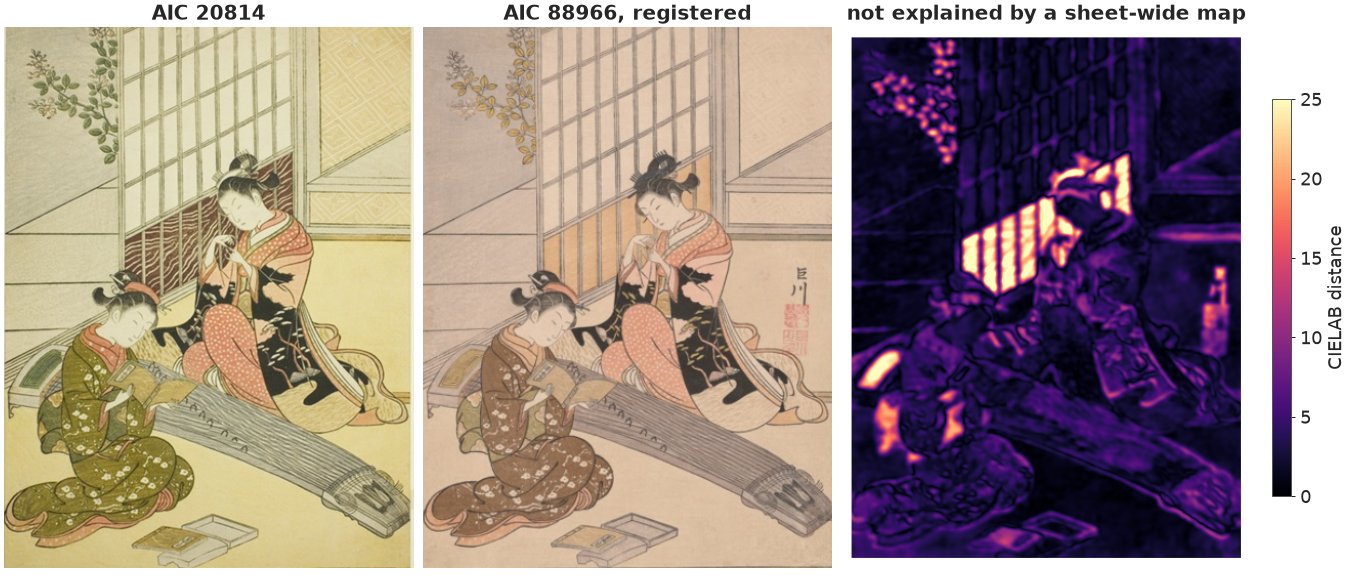

fig, axs = plt.subplots(1, 3, figsize=(15, 6.5))
axs[0].imshow(imgs[0])
axs[0].set_title(f"{IMP[0]}")
axs[1].imshow(np.clip(img1_on_0, 0, 1))
axs[1].set_title(f"{IMP[1]}, registered")
h = axs[2].imshow(resid, cmap="magma", vmin=0, vmax=25)
axs[2].set_title("not explained by a sheet-wide map")
plt.colorbar(h, ax=axs[2], shrink=0.7, label="CIELAB distance")
for ax in axs:
ax.axis("off")
show_jpeg(fig)
after the sheet-wide colour map: median residual 2.6, 95th percentile 12.4 CIELAB units
Three places stand out. The artist's seal at right, present only in the second impression: a positive control, the method finds a real difference. The window lattice, dark red-brown in one and orange in the other: too different to be fading of the same ink (one is darker and redder), most likely a different colour choice. And the leaves at top left: green in the first, yellow in the second. That is exactly what a green made of dayflower blue and a yellow does as the blue goes. The rest of the sheet, robes and floor included, changed together, in the way paper and photography change a whole sheet.
Calibrating the photographs against things that do not fade
A museum photograph is not a spectrophotometer. The two photographs render the same paper differently (the second is about 8 units redder in $a^*$ everywhere). To compare them, each image needs its own calibration, and that needs reference areas whose true colour is shared: the bare paper (the white panes of the paper window, shoji) and sumi, the carbon-black ink of the outlines and hair, which is chemically inert and does not fade. The leaves are measured relative to these anchors inside the same photograph.
def box(y0, y1, x0, x1, cond):
m = np.zeros(LAB0.shape[:2], bool)
m[y0:y1, x0:x1] = True
return m & cond & inside
lattice_panes = box(20, 130, 175, 265, np.ones(LAB0.shape[:2], bool))
REGIONS = {
"leaves": box(20, 170, 20, 150, (LAB0[..., 1] < -5) & (LAB0[..., 0] < 82)),
"paper (shoji)": box(20, 130, 175, 265, LAB0[..., 0] > np.quantile(LAB0[lattice_panes][:, 0], 0.6)),
"sumi, solid": box(140, 420, 150, 360, LAB0[..., 0] < 30),
"sumi, grey": box(360, 470, 200, 330, (LAB0[..., 0] > 45) & (LAB0[..., 0] < 65)
& (np.abs(LAB0[..., 1]) < 6) & (LAB0[..., 2] < 22)),
}
Y_reg = np.stack([[LAB0[m].mean(0), LAB1[m].mean(0)] for m in REGIONS.values()], 1) # impression x region x Lab
print(pd.DataFrame({(imp, c): Y_reg[i, :, j] for i, imp in enumerate(IMP) for j, c in enumerate("Lab")},
index=list(REGIONS)).round(1))
print("pixels per region:", {k: int(m.sum()) for k, m in REGIONS.items()})

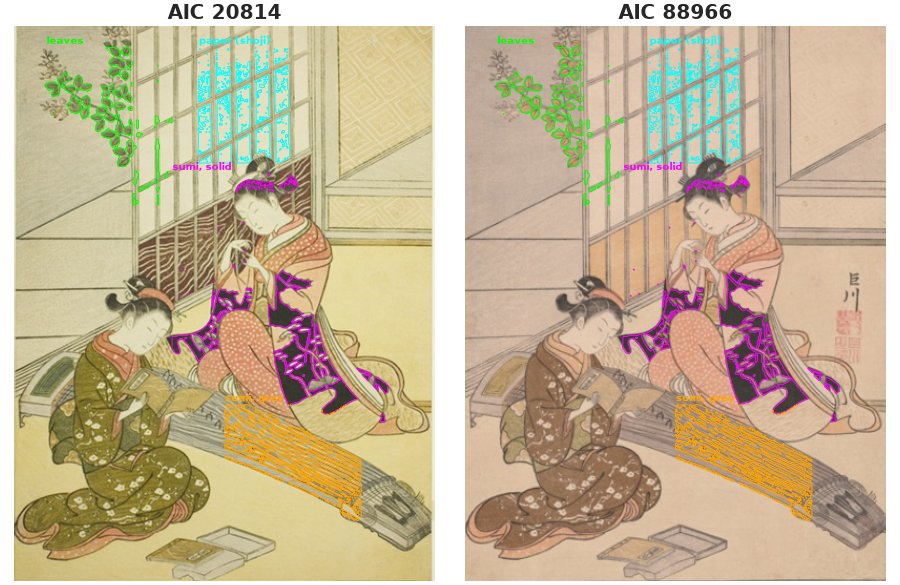

fig, axs = plt.subplots(1, 2, figsize=(10, 6.5))
for ax, img in zip(axs, [imgs[0], img1_on_0]):
ax.imshow(np.clip(img, 0, 1))
for (name, m), color in zip(REGIONS.items(), ["lime", "cyan", "magenta", "orange"]):
ax.contour(m, levels=[0.5], colors=color, linewidths=0.8)
ys, xs = np.nonzero(m)
ax.text(xs.min(), ys.min() - 4, name, color=color, fontsize=8, fontweight="bold")
ax.axis("off")
axs[0].set_title(IMP[0])
axs[1].set_title(IMP[1])
show_jpeg(fig)
AIC 20814 AIC 88966
L a b L a b
leaves 59.3 -7.0 23.6 63.8 5.0 20.6
paper (shoji) 88.8 -3.2 16.1 82.2 5.3 14.5
sumi, solid 24.5 -2.0 9.6 28.2 2.4 5.8
sumi, grey 58.7 -3.3 17.0 58.5 5.8 9.7
pixels per region: {'leaves': 2539, 'paper (shoji)': 3901, 'sumi, solid': 4419, 'sumi, grey': 2972}
The two-impression model
For each impression $i$ and each region the model predicts a spectrum, renders it to CIELAB and passes it through that photograph's calibration:
- paper: the measured paper spectrum plus a yellowing term $\gamma_i\,e^{-(\lambda-380)/60}$;
- sumi: paper plus a flat (grey) absorber, one amount for solid and one for grey areas, shared by both impressions (same blocks, inert carbon);
- leaves: paper plus a yellow and a blue colourant, $a_y\,\text{dye}_y(D_i) + a_b\,\text{dye}_b(D_i)$, where $\text{dye}(D)$ is the faded K/S of Part B at dose $D_i$. The amounts are shared by the two impressions (same blocks, same printing); the doses differ;
- photograph: $L \to s_L L + o_L$, $(a, b) \to s_C (a, b) + (o_a, o_b)$. The first photograph is assumed close to right (tight priors), the second gets loose ones;
- a common Gaussian error $\sigma$ in CIELAB units.
Which colourants? Harunobu's greens could be dayflower or indigo with turmeric, yellowwood or orpiment. That is a discrete choice, a recipe, with six options. PyMC cannot sample a discrete variable with NUTS, so it is summed out: each recipe has its own amounts, the likelihood is $\log \sum_r \tfrac16\, p(\text{data} \mid r, \ldots)$, and the posterior probability of each recipe is recovered afterwards from the per-recipe likelihoods.
Doses are in xenon-equivalent Mlxh, with a wide prior: median 1, 95% below about 20.
Fading parameters come from Part B, but not by refitting them here: the prints should not be allowed to pull the laboratory rates around to explain a photograph (they would, freely, since a photograph is a far weaker measurement). Instead each colourant's posterior (log rate, log shape, log product amount, log product scale) is summarised by a multivariate normal and used as the prior. This one-way flow of information is called cut inference. Rates are in xenon units, so the doses are too.
YELLOWS, BLUES = ["turmeric", "yellowwood", "orpiment"], ["dayflower", "indigo"]
LEAF_COLS = YELLOWS + BLUES
RECIPES = [(y, b) for y in YELLOWS for b in BLUES]
x0 = spec[(spec.instrument == "XT") & (spec.dose_Mlxh == 0)].pivot(index="colourant", columns="wavelength", values="reflectance")
Kp0 = ks(x0.loc["paper"].to_numpy())
EPS = {c: ks(x0.loc[c].to_numpy()) - Kp0 for c in SINGLE}
YELLOW_SHAPE = np.exp(-(WL - 380) / 60)
def fade_params(idata, cols):
"""Stack (log k, log beta, log rho, log ell) draws per colourant: col x draw x 4 (xenon products:
rates are in xenon units, and historical light was daylight)."""
p = az.extract(idata)
return np.stack([np.stack([p["logk"].sel(col=c).values, p["logbeta"].sel(col=c).values,
np.log(p["rho"].sel(inst="XT", col=c).values),
np.log(p["ell"].sel(inst="XT", col=c).values)], -1)
for c in cols])
par = fade_params(idata_fade, LEAF_COLS)
fp_mu = par.mean(1)
fp_chol = np.stack([np.linalg.cholesky(np.cov(p.T) + 1e-6 * np.eye(4)) for p in par])
coords = {"imp": IMP, "recipe": [f"{y} + {b}" for y, b in RECIPES], "leaf_col": LEAF_COLS,
"fpar": ["logk", "logbeta", "logrho", "logell"], "part": ["yellow", "blue"]}
with pm.Model(coords=coords) as m_print:
z = pm.Normal("z_fade", 0, 1, dims=("leaf_col", "fpar"))
th = pm.Deterministic("fade_par", fp_mu + pt.einsum("cij,cj->ci", fp_chol, z), dims=("leaf_col", "fpar"))
k, beta, rho, ell = (pt.exp(th[:, j]) for j in range(4))
dose = pm.LogNormal("dose", 0, 1.5, dims="imp")
q = pt.exp(-((k[None, :] * dose[:, None] + 1e-12) ** beta[None, :])) # imp x colourant
prod = pt.exp(-(WL[None, :] - 380) / ell[:, None]) # colourant x wl
eps = np.stack([EPS[c] for c in LEAF_COLS])
dye = q[..., None] * eps[None] + (rho[None, :] * (1 - q))[..., None] * prod[None] # imp x colourant x wl
gamma = pm.HalfNormal("paper_yellowing", 0.1, dims="imp")
K_paper = Kp0[None] + gamma[:, None] * YELLOW_SHAPE[None]
sumi = pm.LogNormal("sumi", np.log([3.0, 0.3]), 1.0, shape=2)
amount = pm.LogNormal("amount", 0, 0.7, dims=("recipe", "part"))
L_s = pm.Normal("L_scale", 1, np.array([0.03, 0.1]), dims="imp")
L_o = pm.Normal("L_offset", 0, np.array([2.0, 8.0]), dims="imp")
C_s = pm.LogNormal("chroma_scale", 0, np.array([0.05, 0.3]), dims="imp")
a_o = pm.Normal("a_offset", 0, np.array([2.0, 8.0]), dims="imp")
b_o = pm.Normal("b_offset", 0, np.array([2.0, 8.0]), dims="imp")
sigma = pm.HalfNormal("sigma", 3.0)
def photo(lab, i):
return pt.stack([L_s[i] * lab[..., 0] + L_o[i], C_s[i] * lab[..., 1] + a_o[i],
C_s[i] * lab[..., 2] + b_o[i]], -1)
anchors = 0
for i in range(2):
K_anchor = pt.stack([K_paper[i], K_paper[i] + sumi[0], K_paper[i] + sumi[1]])
anchors += pm.logp(pm.Normal.dist(photo(lab_pt(km_reflectance(K_anchor)), i), sigma), Y_reg[i, 1:]).sum()
per_recipe = []
for r, (yc, bc) in enumerate(RECIPES):
yi, bi = LEAF_COLS.index(yc), LEAF_COLS.index(bc)
ll = 0
for i in range(2):
K = K_paper[i] + amount[r, 0] * dye[i, yi] + amount[r, 1] * dye[i, bi]
ll += pm.logp(pm.Normal.dist(photo(lab_pt(km_reflectance(K)), i), sigma), Y_reg[i, 0]).sum()
per_recipe.append(ll)
per_recipe = pm.Deterministic("recipe_loglik", pt.stack(per_recipe), dims="recipe")
pm.Potential("likelihood", anchors + pt.logsumexp(per_recipe) - np.log(len(RECIPES)))
t0 = time.time()
idata_print = pm.sample(random_seed=RANDOM_SEED, progressbar=False, target_accept=0.9)
print(f"sampled in {time.time() - t0:.0f} s; divergences: {int(idata_print.sample_stats['diverging'].sum())}")
print(az.summary(idata_print, var_names=["dose", "paper_yellowing", "sumi", "L_scale", "chroma_scale",
"a_offset", "b_offset", "sigma"], round_to=2)
[["mean", "sd", "eti89_lb", "eti89_ub", "ess_bulk", "r_hat"]])
sampled in 11 s; divergences: 2
mean sd eti89_lb eti89_ub ess_bulk r_hat
dose[AIC 20814] 0.76 0.99 0.06 2.44 5416.16 1.0
dose[AIC 88966] 2.97 5.48 0.15 8.27 3592.31 1.0
paper_yellowing[AIC 20814] 0.08 0.06 0.01 0.19 3020.16 1.0
paper_yellowing[AIC 88966] 0.08 0.06 0.01 0.19 3203.15 1.0
sumi[0] 8.47 2.31 5.39 12.37 2247.23 1.0
sumi[1] 0.72 0.19 0.44 1.03 3165.40 1.0
L_scale[AIC 20814] 1.00 0.02 0.96 1.03 5560.62 1.0
L_scale[AIC 88966] 0.95 0.06 0.85 1.05 1483.08 1.0
chroma_scale[AIC 20814] 1.00 0.05 0.92 1.08 7556.12 1.0
chroma_scale[AIC 88966] 0.79 0.16 0.56 1.07 3378.43 1.0
a_offset[AIC 20814] -1.54 1.40 -3.72 0.67 7450.42 1.0
a_offset[AIC 88966] 4.78 1.89 1.77 7.75 5192.90 1.0
b_offset[AIC 20814] 3.78 1.65 1.12 6.38 3937.61 1.0
b_offset[AIC 88966] 4.44 2.43 0.29 8.21 4242.29 1.0
sigma 3.66 0.78 2.61 5.07 2204.52 1.0ll_r = idata_print.posterior["recipe_loglik"].values.reshape(-1, len(RECIPES))
w_r = np.exp(ll_r - ll_r.max(1, keepdims=True))
w_r /= w_r.sum(1, keepdims=True)
recipe_prob = pd.Series(w_r.mean(0), index=coords["recipe"])
print("posterior probability of each recipe for the green of the leaves:")
print(recipe_prob.sort_values(ascending=False).round(3))
dose_draws = idata_print.posterior["dose"].values.reshape(-1, 2)
print("\nxenon-equivalent dose (Mlxh), 5% / 50% / 95%:")
print(pd.DataFrame(np.quantile(dose_draws, [0.05, 0.5, 0.95], 0).T, index=IMP, columns=["5%", "50%", "95%"]).round(2))
print(f"P(the second impression has seen more light) = {(dose_draws[:, 1] > dose_draws[:, 0]).mean():.2f}")
posterior probability of each recipe for the green of the leaves:
yellowwood + dayflower 0.464
turmeric + dayflower 0.304
orpiment + dayflower 0.218
orpiment + indigo 0.007
yellowwood + indigo 0.005
turmeric + indigo 0.002
dtype: float64
xenon-equivalent dose (Mlxh), 5% / 50% / 95%:
5% 50% 95%
AIC 20814 0.06 0.45 2.53
AIC 88966 0.14 1.75 8.72
P(the second impression has seen more light) = 0.79The blue of the leaves is almost certainly dayflower, not indigo: indigo is so light-fast that no plausible dose turns the first impression's green into the second's yellow. That is also what the history of the period says (dayflower was the common blue of the 1760s prints), but the model got there from colour alone. Which yellow it cannot say: turmeric, yellowwood and orpiment all explain the data, because once the blue is accounted for, the yellow part hardly changes between the two impressions.
The doses are uncertain in absolute terms (90% intervals span one to two orders of magnitude) but the second impression has probably seen more light. Why so vague? A photograph measures the colour today, which fixes roughly the product "amount of blue x fraction of it left". It does not say how strong the print was to begin with: a strong print that lost much or a weak print that lost little look alike, so the prior on the amounts does much of the work. What the two impressions add is a comparison (same amounts, different doses), and that is better determined: the fraction of the blue that is left in each impression, and the ratio of their doses.
post_p = idata_print.posterior
best = int(recipe_prob.values.argmax())
th_d = post_p["fade_par"].sel(leaf_col="dayflower")
k_d, b_d = np.exp(th_d.sel(fpar="logk")), np.exp(th_d.sel(fpar="logbeta"))
q_blue = np.exp(-((k_d * post_p["dose"]) ** b_d)).values.reshape(-1, 2)
fig, axs = plt.subplots(1, 2, figsize=(12, 4.2))
bins = np.linspace(0, 1, 50)
for i, c in enumerate(["C0", "C1"]):
axs[0].hist(q_blue[:, i], bins=bins, color=c, alpha=0.6, label=IMP[i])
axs[0].set_xlabel("fraction of the dayflower blue still there")
axs[0].legend()
axs[0].set_title("How much blue is left")

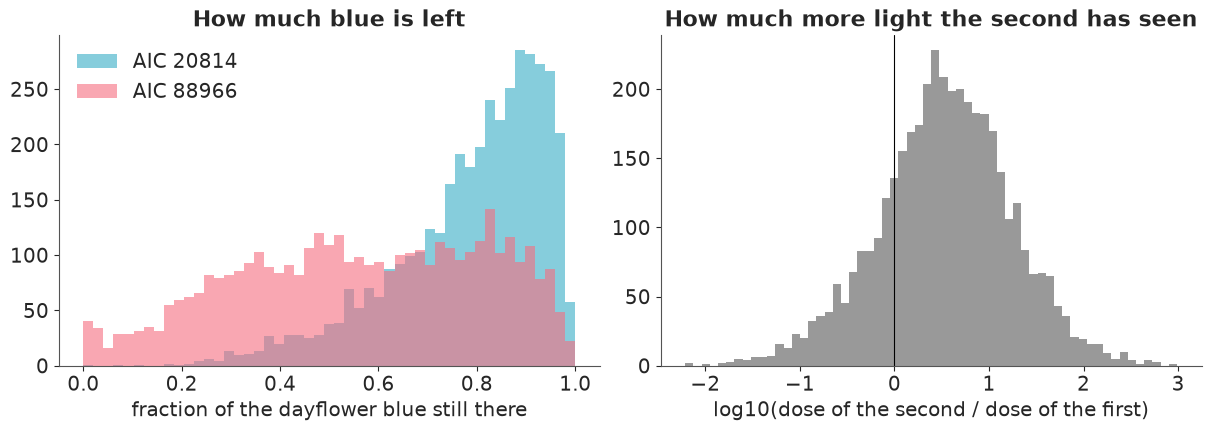

ratio = dose_draws[:, 1] / dose_draws[:, 0]
axs[1].hist(np.log10(ratio), bins=60, color="0.6")
axs[1].axvline(0, color="k", lw=0.8)
axs[1].set_xlabel("log10(dose of the second / dose of the first)")
axs[1].set_title("How much more light the second has seen");
print("fraction of dayflower left, median (90%):",
{IMP[i]: f"{np.median(q_blue[:, i]):.2f} ({np.quantile(q_blue[:, i], 0.05):.2f}-{np.quantile(q_blue[:, i], 0.95):.2f})" for i in range(2)})
print(f"dose ratio, median {np.median(ratio):.1f}; P(ratio > 2) = {(ratio > 2).mean():.2f}")
fraction of dayflower left, median (90%): {'AIC 20814': '0.82 (0.47-0.96)', 'AIC 88966': '0.57 (0.13-0.93)'}
dose ratio, median 3.5; P(ratio > 2) = 0.65
The first impression keeps most of its blue (about four-fifths of the dayflower is left), the second a bit over half, both with wide intervals; the second has seen about 3.5 times the light (median), though the probability that it is more than twice is only about two in three.
From the leaves to the whole print: a grid posterior per colour area
To restore the whole print, divide it into colour areas (k-means on the first impression's CIELAB, 10 clusters; the registered second impression has the same geometry, so the same areas apply to it) and ask of each area what the leaves model asked: which colourant(s), how much, given the doses. Both impressions are used, with the same recipe and amounts in both (same blocks, same printing). For the doses, the photographs' calibrations and the paper, take draws from the two-impression posterior; for the fading parameters, draws from Part B.
Each area has a discrete recipe (bare paper, sumi, any of the 13 colourants alone, the six greens, safflower over dayflower for purple) and one or two amounts. That space is tiny but badly multimodal (a pink could be a little safflower or much faded cochineal), which is exactly where NUTS struggles and a grid is exact: for every posterior draw of the shared quantities, evaluate the likelihood on a grid of amounts for every recipe, normalise, and sample a recipe and an amount from it. The result is a posterior draw of every area's original colour: the colour the recipe renders to with no fading, on unyellowed paper, seen by the standard observer in daylight.
lab0_s = ndimage.gaussian_filter(LAB0, (1.5, 1.5, 0))
flat = lab0_s[inside]
centres, _ = kmeans2(flat[rng.choice(len(flat), 20000, replace=False)], 10, seed=RANDOM_SEED, minit="++")
labels = np.argmin(((lab0_s.reshape(-1, 3)[:, None, :] - centres[None]) ** 2).sum(-1), 1).reshape(LAB0.shape[:2])
cluster_lab = np.stack([[L[(labels == j) & inside].mean(0) for j in range(10)] for L in (LAB0, LAB1)]) # imp x area x Lab
cluster_share = np.array([((labels == j) & inside).mean() for j in range(10)])
order_c = np.argsort(-cluster_lab[0, :, 0]) # light to dark
print(pd.DataFrame(np.c_[cluster_lab[0], cluster_lab[1], 100 * cluster_share],
columns=["L 1st", "a 1st", "b 1st", "L 2nd", "a 2nd", "b 2nd", "% of image"]).iloc[order_c].round(1))
L 1st a 1st b 1st L 2nd a 2nd b 2nd % of image 0 84.1 -3.4 29.6 79.4 6.0 17.7 15.7 2 82.9 -3.2 18.4 76.7 5.3 13.2 24.0 4 78.8 -2.5 32.4 76.6 6.1 17.6 7.9 5 70.0 -3.5 19.9 64.5 5.3 11.5 16.4 7 66.8 14.5 29.7 69.2 15.4 21.8 4.2 3 64.9 -0.7 32.5 65.0 7.1 17.9 5.1 8 52.3 0.0 20.1 60.4 6.8 17.4 7.4 1 51.5 -3.8 39.5 51.1 9.5 19.6 5.0 6 45.3 -3.3 31.3 51.2 7.0 19.1 2.7 9 28.6 -1.6 10.3 31.7 2.8 6.6 2.9
GRID1 = np.exp(np.linspace(np.log(0.03), np.log(6), 40)) # one amount
G2 = np.exp(np.linspace(np.log(0.05), np.log(5), 16))
GRID2 = np.stack(np.meshgrid(G2, G2, indexing="ij"), -1).reshape(-1, 2) # two amounts
SUMI_GRID = np.exp(np.linspace(np.log(0.01), np.log(30), 60))
CANDIDATES = ([("bare paper", ())] + [("sumi", ("sumi",))] + [(c, (c,)) for c in SINGLE]
+ [(f"{y} + {b}", (y, b)) for y, b in RECIPES] + [("safflower + dayflower", ("safflower", "dayflower"))])
rec_names = [n for n, _ in CANDIDATES]
def log_prior_amount(a, sd=0.7):
return -0.5 * (np.log(a) / sd) ** 2 # log-normal(0, sd) on a log-spaced grid (the Jacobian cancels)
def render(K):
return spectra_to_lab(km_reflectance(np.maximum(K, 1e-6)))
def grid_posterior(n_draws=200, seed=3):
"""Per shared posterior draw, sample (recipe, amounts) for every area from its exact grid posterior
given both impressions. Returns the original colour (true CIELAB), today's modelled colour in each
photograph, the original seen through each photograph, and the recipe index."""
g = np.random.default_rng(seed)
pp = az.extract(idata_print, num_samples=n_draws, random_seed=seed)
pf = az.extract(idata_fade, num_samples=n_draws, random_seed=seed + 1)
out = {"orig": np.zeros((n_draws, 10, 3)), "now_photo": np.zeros((n_draws, 2, 10, 3)),
"orig_photo": np.zeros((n_draws, 2, 10, 3)), "recipe": np.zeros((n_draws, 10), int)}
for d in range(n_draws):
def photo(lab, i):
return np.stack([pp["L_scale"].values[i, d] * lab[..., 0] + pp["L_offset"].values[i, d],
pp["chroma_scale"].values[i, d] * lab[..., 1] + pp["a_offset"].values[i, d],
pp["chroma_scale"].values[i, d] * lab[..., 2] + pp["b_offset"].values[i, d]], -1)
faded = [] # per impression: colourant -> faded K/S
for i in range(2):
D = pp["dose"].values[i, d]
f_i = {}
for j, c in enumerate(SINGLE):
k, b = np.exp(pf["logk"].values[j, d]), np.exp(pf["logbeta"].values[j, d])
qq = np.exp(-((k * D) ** b))
prod = np.exp(-(WL - 380) / pf["ell"].sel(inst="XT").values[j, d])
f_i[c] = qq * EPS[c] + pf["rho"].sel(inst="XT").values[j, d] * (1 - qq) * prod
faded.append(f_i)
paper_now = [Kp0 + pp["paper_yellowing"].values[i, d] * YELLOW_SHAPE for i in range(2)]
now, orig, lp, rid = [[], []], [], [], []
for r, (name, parts) in enumerate(CANDIDATES):
if not parts:
A, prior_lp = np.zeros((1, 0)), np.zeros(1)
elif parts == ("sumi",):
A, prior_lp = SUMI_GRID[:, None], log_prior_amount(SUMI_GRID, 1.5)
elif len(parts) == 1:
A, prior_lp = GRID1[:, None], log_prior_amount(GRID1)
else:
A, prior_lp = GRID2, log_prior_amount(GRID2[:, 0]) + log_prior_amount(GRID2[:, 1])
def mix(base, dyes):
K = np.broadcast_to(base, (len(A), len(WL))).copy()
for m, part in enumerate(parts):
K += A[:, m:m + 1] * (np.ones(len(WL)) if part == "sumi" else dyes[part])
return K
for i in range(2):
now[i].append(photo(render(mix(paper_now[i], faded[i])), i))
orig.append(render(mix(Kp0, EPS)))
lp.append(prior_lp - np.log(len(prior_lp)) - np.log(len(CANDIDATES))) # uniform over recipes
rid.append(np.full(len(prior_lp), r))
now = [np.concatenate(n) for n in now]
orig, lp, rid = np.concatenate(orig), np.concatenate(lp), np.concatenate(rid)
sig = pp["sigma"].values[d]
logits = lp[None] + sum(-0.5 * (((cluster_lab[i][:, None, :] - now[i][None]) / sig) ** 2).sum(-1)
for i in range(2)) # area x grid
p = np.exp(logits - logits.max(1, keepdims=True))
p /= p.sum(1, keepdims=True)
pick = np.array([g.choice(len(lp), p=p[j]) for j in range(10)])
out["orig"][d], out["recipe"][d] = orig[pick], rid[pick]
for i in range(2):
out["now_photo"][d, i] = now[i][pick]
out["orig_photo"][d, i] = photo(orig[pick], i)
return out
t0 = time.time()
gp = grid_posterior()
print(f"grid posterior: {time.time() - t0:.0f} s")
shift = gp["orig_photo"] - gp["now_photo"] # draw x impression x area x Lab
summary_rows = []
for j in order_c:
counts = pd.Series(gp["recipe"][:, j]).value_counts(normalize=True)
top = ", ".join(f"{rec_names[i]} {v:.2f}" for i, v in counts.head(3).items())
fit = [de2000(np.median(gp["now_photo"][:, i, j], 0), cluster_lab[i, j]) for i in range(2)]
rest = [np.median(de2000(gp["now_photo"][:, i, j], gp["orig_photo"][:, i, j])) for i in range(2)]
summary_rows.append((j, f"{100 * cluster_share[j]:.0f}%", f"{fit[0]:.1f} / {fit[1]:.1f}",
f"{rest[0]:.1f} / {rest[1]:.1f}", top))
print(pd.DataFrame(summary_rows, columns=["area", "share", "fit ΔE00 (1st / 2nd)",
"restoration ΔE00 (1st / 2nd)", "most probable recipes"]).to_string(index=False))
grid posterior: 2 s
area share fit ΔE00 (1st / 2nd) restoration ΔE00 (1st / 2nd) most probable recipes
0 16% 3.2 / 1.7 0.9 / 1.0 turmeric 0.31, bare paper 0.28, ochre 0.20
2 24% 1.3 / 3.5 0.7 / 0.6 bare paper 0.67, sumi 0.15, dayflower 0.14
4 8% 3.0 / 2.8 1.5 / 2.4 turmeric 0.54, yellowwood 0.15, ochre 0.10
5 16% 2.4 / 4.5 1.3 / 1.8 turmeric + dayflower 0.46, sumi 0.32, yellowwood + dayflower 0.09
7 4% 5.8 / 3.7 0.4 / 0.3 red lead 0.67, vermilion 0.18, turmeric 0.07
3 5% 1.5 / 3.5 2.1 / 3.6 turmeric + dayflower 0.53, yellowwood + dayflower 0.37, orpiment + dayflower 0.05
8 7% 6.6 / 3.6 2.3 / 4.9 turmeric + dayflower 0.66, yellowwood + dayflower 0.26, yellowwood + indigo 0.04
1 5% 3.8 / 5.2 2.4 / 4.2 yellowwood + dayflower 0.68, yellowwood + indigo 0.19, turmeric + dayflower 0.04
6 3% 4.4 / 3.6 2.2 / 4.0 yellowwood + dayflower 0.49, yellowwood + indigo 0.36, turmeric + dayflower 0.07
9 3% 4.6 / 2.7 0.1 / 0.1 sumi 0.80, yellowwood + indigo 0.18, turmeric + indigo 0.01Reading the table (areas from light to dark):
- The paper-coloured areas (0, 2) are most probably bare paper, but not certainly: the cream of area 0 could also be a faint yellow. The yellow floor (area 4) is most probably turmeric.
- The olive, khaki and brown areas (5, 3, 8, 1, 6: robes, window frames, the lattice, leaves) are dayflower greens, with turmeric or yellowwood as the yellow; which yellow stays open.
- The pink (area 7) comes out as red lead or vermilion, stable minerals, so it barely changes. Safflower was a candidate, but its pink is bluer than this orange-pink today.
- The black (area 9) is sumi.
The "fit" column is a warning light. Several areas are off by 4-7 ΔE00 in one impression or the other: k-means areas mix pixels of different inks (the lattice and the robe patterns share an area), and the lattice was not printed the same way in both impressions. The restorations are largest for the dayflower greens of the second impression (3-4 ΔE00) and about half that in the first, which kept more of its blue.
def restored(d, i):
img_lab = LAB0 if i == 0 else LAB1
return lab_to_srgb(img_lab + shift[d, i][labels])
F. Showing uncertainty when the estimate is a colour
The obvious uncertainty displays all use colour to encode uncertainty, and colour is taken. Five displays that work anyway, then the dose itself:
1. Split swatches
One swatch per area, cut into three: the least, the median and the most restored of the posterior draws of its original colour (ordered by how far each is from today's), between the area's colour today in each impression (calibrated to true colour, so the three are comparable). The fan of colours inside each swatch is the uncertainty, shown as colour, which is what a viewer needs to judge.
def calibrated(lab, i, pp=idata_print.posterior):
Ls, Lo = float(pp["L_scale"].isel(imp=i).mean()), float(pp["L_offset"].isel(imp=i).mean())
Cs = float(pp["chroma_scale"].isel(imp=i).mean())
ao, bo = float(pp["a_offset"].isel(imp=i).mean()), float(pp["b_offset"].isel(imp=i).mean())
return np.stack([(lab[..., 0] - Lo) / Ls, (lab[..., 1] - ao) / Cs, (lab[..., 2] - bo) / Cs], -1)
fig, ax = plt.subplots(figsize=(12, 5.8))
for row, j in enumerate(order_c):
today = [calibrated(cluster_lab[i, j], i) for i in range(2)]
de_now = de2000(today[1], gp["orig"][:, j])
idx = np.argsort(de_now)
picks = [idx[int(0.05 * len(idx))], idx[len(idx) // 2], idx[int(0.95 * len(idx))]]
y = -row
ax.add_patch(plt.Rectangle((0, y), 1, 0.85, color=lab_to_srgb(today[0])))
for s_, pk in enumerate(picks):
ax.add_patch(plt.Rectangle((1.3 + s_, y), 1, 0.85, color=lab_to_srgb(gp["orig"][pk, j])))
ax.add_patch(plt.Rectangle((4.6, y), 1, 0.85, color=lab_to_srgb(today[1])))
counts = pd.Series(gp["recipe"][:, j]).value_counts(normalize=True)
ax.text(5.9, y + 0.42, f"{rec_names[counts.index[0]]} ({counts.iloc[0]:.0%})", va="center", fontsize=9)
for x, t in zip([0.5, 1.8, 2.8, 3.8, 5.1], [f"{IMP[0]}\ntoday", "original:\nleast", "\nmedian", "\nmost",
f"{IMP[1]}\ntoday"]):
ax.text(x, 1.05, t, ha="center", fontsize=9)
ax.set_xlim(-0.2, 9.5)
ax.set_ylim(-len(order_c) + 0.7, 1.8)
ax.axis("off")

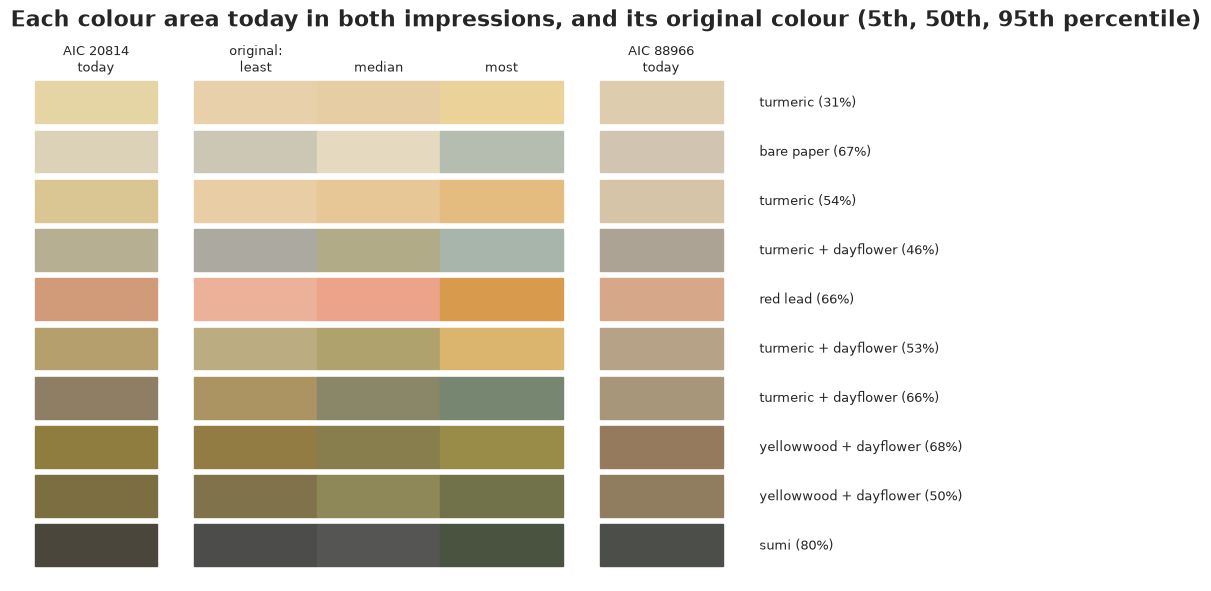

ax.set_title("Each colour area today in both impressions, and its original colour (5th, 50th, 95th percentile)");
2. Restorations as hypothetical outcomes
"The print as it might have looked", several times over, each a posterior draw applied to each impression's photograph. Viewers judge the range of plausible originals directly, without having to read an interval: what is the same in every panel is certain, the rest is not. Each draw restores both impressions, which should then look alike where they were printed alike. The animated version cycles through forty draws of the more faded impression; stable areas stand still and uncertain ones flicker.
picks = rng.choice(len(shift), 5, replace=False)
fig, axs = plt.subplots(2, 6, figsize=(16, 6.6))
for i in range(2):
axs[i, 0].imshow(imgs[0] if i == 0 else np.clip(img1_on_0, 0, 1))
axs[i, 0].set_title(f"{IMP[i]} today", fontsize=10)
for ax, d in zip(axs[i, 1:], picks):
ax.imshow(restored(d, i))
ax.set_title(f"draw {d}", fontsize=9)
for ax in axs.ravel():
ax.axis("off")
fig.suptitle("Five plausible originals, each shown on both impressions")
show_jpeg(fig)

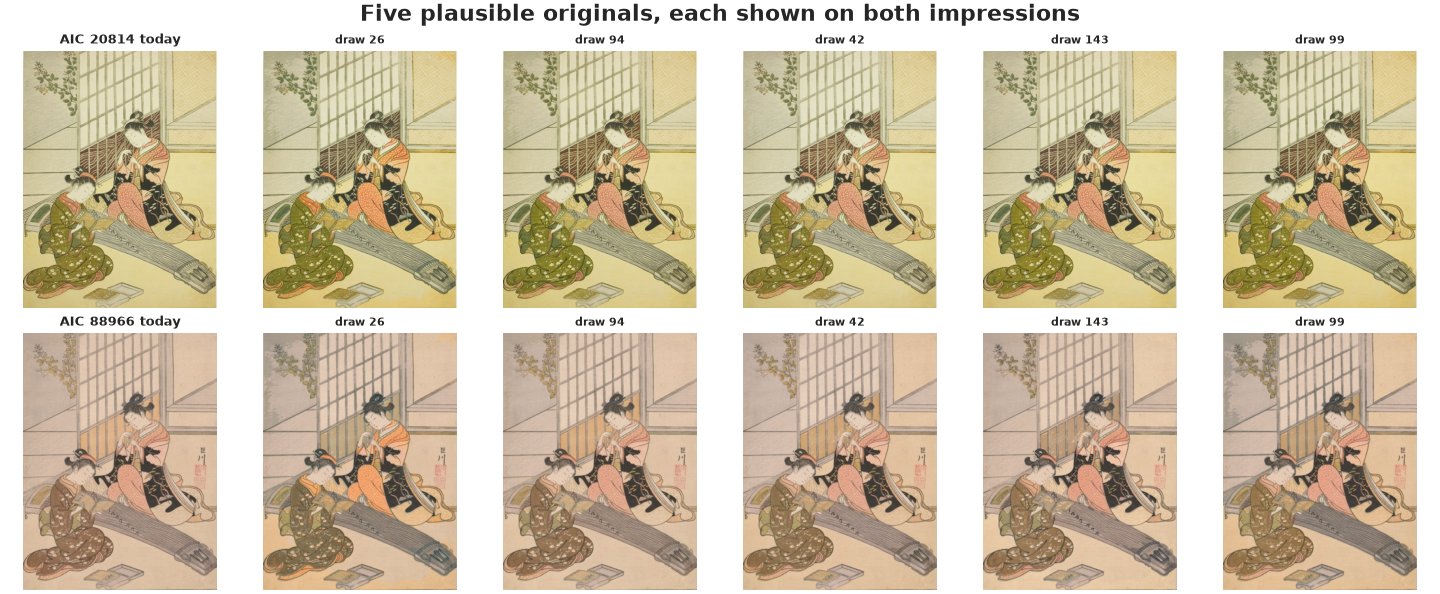

small = ndimage.zoom(LAB1, (0.5, 0.5, 1), order=1)
labels_small = labels[::2, ::2][: small.shape[0], : small.shape[1]]
fig, axs = plt.subplots(1, 2, figsize=(5.6, 3.9), dpi=72)
axs[0].imshow(lab_to_srgb(small))
axs[0].set_title("today", fontsize=8)
frame = axs[1].imshow(lab_to_srgb(small))
for ax in axs:
ax.axis("off")
def update(k):
frame.set_data(lab_to_srgb(small + shift[k, 1][labels_small]))
axs[1].set_title(f"restored, posterior draw {k}", fontsize=8)
return (frame,)
anim = animation.FuncAnimation(fig, update, frames=range(40), interval=400)
plt.close(fig)
with plt.rc_context({"animation.frame_format": "jpeg"}): # photographs: JPEG frames are far smaller
display(HTML(anim.to_jshtml(default_mode="loop")))
3. Trajectory tubes
For the leaves, where the two-impression model is richest, show the whole path from the original colour towards today's, one faint line per posterior draw, in the $a^*b^*$ plane (true colour). The spread of the paths is the uncertainty; where they bundle, the model is sure. The large markers are the two impressions' leaves today, with each photograph's calibration undone.
pp = az.extract(idata_print, num_samples=300, random_seed=5)
yi, bi = LEAF_COLS.index(RECIPES[best][0]), LEAF_COLS.index(RECIPES[best][1])
fig, ax = plt.subplots(figsize=(7, 6))
originals = []
for d in range(300):
th = pp["fade_par"].values[..., d]
Hs = np.linspace(0, pp["dose"].values[:, d].max(), 60)
a_y, a_b = pp["amount"].values[best, :, d]
Kpap = Kp0 + pp["paper_yellowing"].values[0, d] * YELLOW_SHAPE
K = np.broadcast_to(Kpap, (len(Hs), len(WL))).copy()
for c_i, a in [(yi, a_y), (bi, a_b)]:
k, b, rho_, ell_ = np.exp(th[c_i])
qq = np.exp(-((k * Hs) ** b))[:, None]
K += a * (qq * EPS[LEAF_COLS[c_i]] + rho_ * (1 - qq) * np.exp(-(WL - 380) / ell_))
path = render(K)
ax.plot(path[:, 1], path[:, 2], color="0.3", alpha=0.05, lw=1)
originals.append(path[0])
originals = np.array(originals)
ax.scatter(originals[:, 1], originals[:, 2], s=6, c=lab_to_srgb(originals), label="original (posterior draws)")
for i, mk in enumerate(["o", "s"]):
cal = calibrated(Y_reg[i, 0], i)
ax.scatter(cal[1], cal[2], marker=mk, s=160, color=lab_to_srgb(cal), edgecolor="k", zorder=4,
label=f"{IMP[i]} today (calibrated)")
ax.set_xlabel("a* (green <-> red)")
ax.set_ylabel("b* (blue <-> yellow)")
ax.legend(fontsize=8, loc="lower right")
ax.set_title(f"Leaves: fading paths from the original ({RECIPES[best][0]} + {RECIPES[best][1]})");

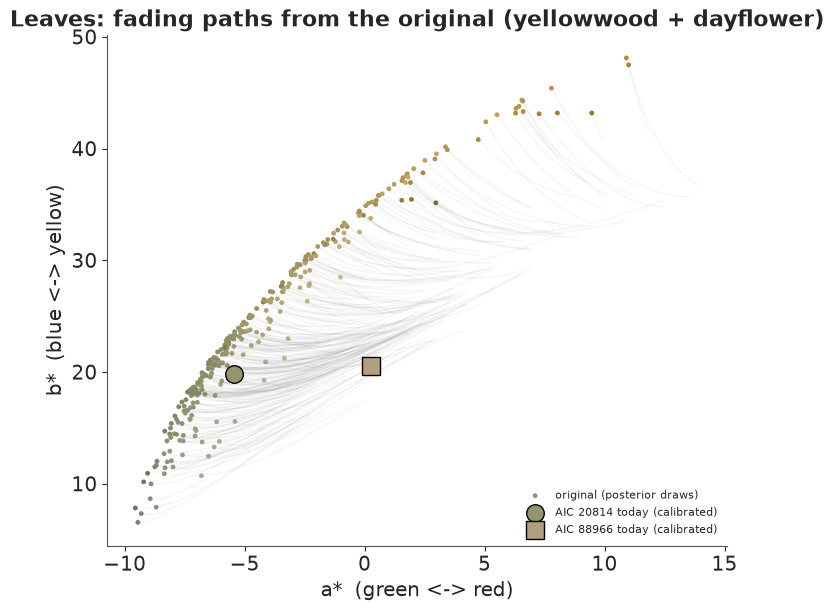

The plausible originals (small dots, each in its own colour) lie along a curve from a blue-green to an ochre: the photographs fix today's colour but not the balance of blue and yellow in the new print, so the prior on the amounts keeps that range open. Every path moves the same way, to the right (losing blue), and the first impression sits close to the originals while the second is far along. What is certain is the direction of change, not the starting shade.
4. A visibility map
How different are the plausible originals from each other, area by area? Measure it in the unit that matters: ΔE00 between pairs of posterior draws of the original colour. Where the typical difference is below 1, no viewer could tell the draws apart, so the uncertainty is invisible and is shown as flat grey. Above 1 a sequential scale shows how much the originals disagree. Because this map shows a difference, not a colour, colour is free to encode it again.
pairs = rng.choice(len(gp["orig"]), (150, 2))
de_pair = np.array([de2000(gp["orig"][i], gp["orig"][j]) for i, j in pairs]) # pair x area
spread = np.median(de_pair, 0)
vis = np.where(inside, spread[labels], np.nan)
fig, axs = plt.subplots(1, 2, figsize=(11, 6.5))
axs[0].imshow(lab_to_srgb(LAB1 + np.median(shift[:, 1], 0)[labels]))
axs[0].set_title(f"{IMP[1]}, median restoration")
masked = np.ma.masked_where(~(vis >= 1), vis)
axs[1].imshow(np.full(vis.shape, 0.85), cmap="gray", vmin=0, vmax=1)
h = axs[1].imshow(masked, cmap="viridis", vmin=1, vmax=max(2, float(np.quantile(spread, 0.95))))
plt.colorbar(h, ax=axs[1], shrink=0.7, label="median ΔE00 between two plausible originals")
axs[1].set_title("where the originals visibly disagree (grey: < 1)")
for ax in axs:
ax.axis("off")
show_jpeg(fig)

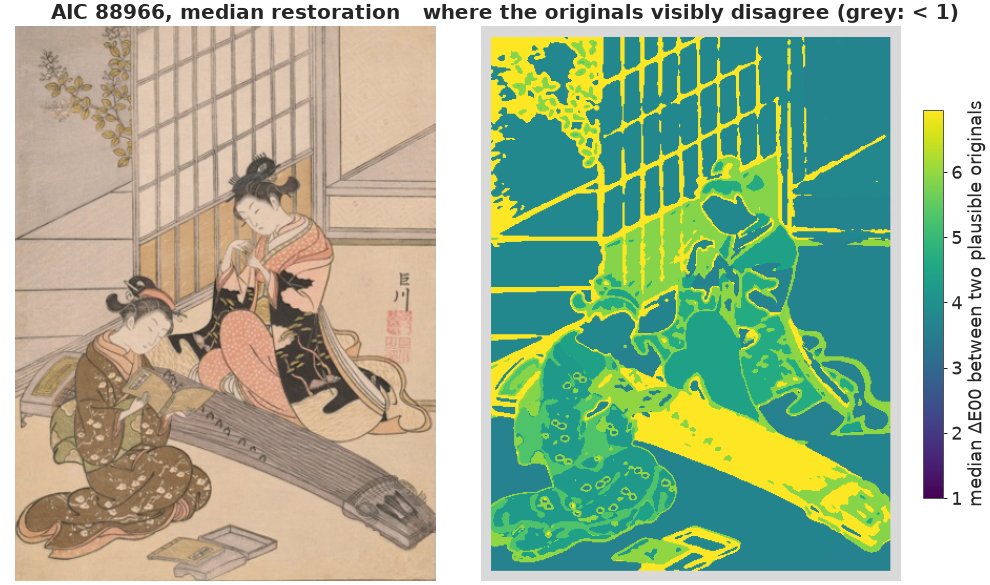

print(pd.Series(spread[order_c], index=[f"area {j}" for j in order_c]).round(1).to_string())
area 0 3.7 area 2 3.8 area 4 3.7 area 5 7.8 area 7 4.4 area 3 6.0 area 8 5.9 area 1 4.2 area 6 5.3 area 9 4.7
No area is below 1: the plausible originals disagree visibly everywhere, by about 3.5 (paper, the pink) to 8 (area 5) ΔE00. Two sources: which recipe (area 5 is a dayflower green in some draws and sumi grey in others), and how much of it (the photographs cannot pin down the amounts). A map that is uniformly "visibly uncertain" is still informative: the model says what kind of colour each area was, not its exact shade, and a restorer should not paint one.
5. Recipe probabilities without colour
Which colourant is where is a categorical uncertainty. Drawn as colour it would clash with the picture, so draw each area as a silhouette and give the recipe probabilities as bars: position and length, not hue.
fig, axs = plt.subplots(4, 5, figsize=(16, 11), layout="none",
gridspec_kw={"height_ratios": [3, 1.2, 3, 1.2], "hspace": 0.15, "wspace": 0.05})
for n, j in enumerate(order_c):
ax_img, ax_bar = axs[2 * (n // 5), n % 5], axs[2 * (n // 5) + 1, n % 5]
ax_img.imshow(np.where((labels == j) & inside, 0.15, 0.93), cmap="gray", vmin=0, vmax=1)
ax_img.set_title(f"area {j} ({100 * cluster_share[j]:.0f}% of the print)", fontsize=9)
counts = pd.Series(gp["recipe"][:, j]).value_counts(normalize=True).head(3)[::-1]
ax_bar.barh(range(len(counts)), counts.values, color="0.35", height=0.6)
for r, (i, v) in enumerate(counts.items()):
ax_bar.text(v + 0.03, r, f"{rec_names[i]} {v:.0%}", va="center", fontsize=8)
ax_bar.set_xlim(0, 2.3)
for ax in (ax_img, ax_bar):
ax.axis("off")
fig.suptitle("Where each colour area is (dark), and what it is probably printed with", y=0.93);

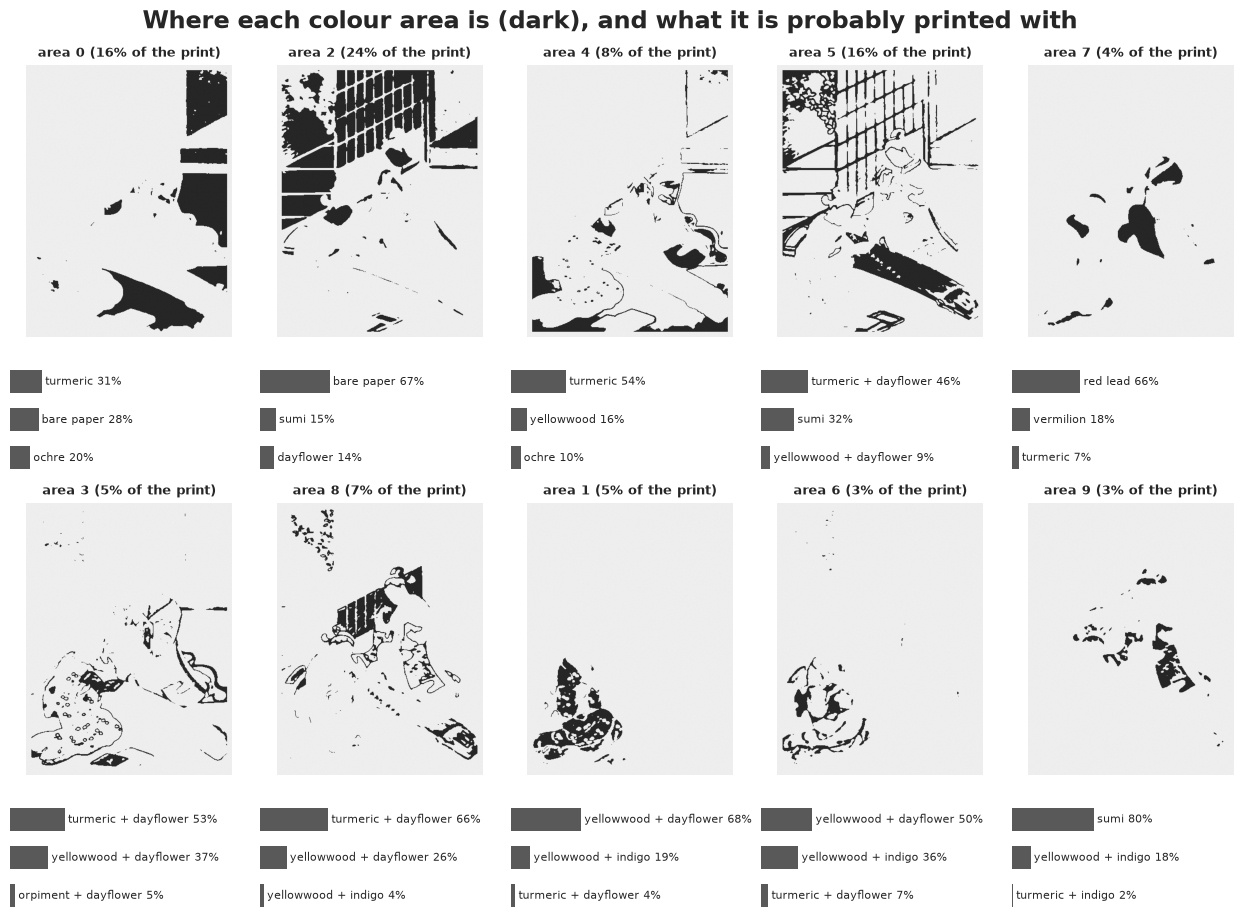

6. How much light has the print seen?
The dose posterior is in xenon-equivalent Mlxh. Turned into years on display at 50 lux, 8 hours a day, 300 days a year (0.12 Mlxh per year), it needs the transfer question of Part C: is a gallery lux-hour as damaging as a xenon one (daylight through glass, with its UV), or as mild as a microfading one (UV-free LED)? The two answers bracket the truth for modern, UV-filtered lighting.
tau_day = np.exp(post_fade["logtau"].sel(col="dayflower").values.reshape(-1))
per_year = 50 * 8 * 300 / 1e6
years_xenon = dose_draws / per_year
years_led = dose_draws / (per_year * rng.choice(tau_day, len(dose_draws))[:, None])
fig, ax = plt.subplots(figsize=(9, 4))
bins = np.linspace(-1, 5, 70)
for i, c in enumerate(["C0", "C1"]):
ax.hist(np.log10(years_xenon[:, i]), bins=bins, histtype="step", color=c, lw=2, label=f"{IMP[i]}, as daylight through glass")
ax.hist(np.log10(years_led[:, i]), bins=bins, histtype="step", color=c, lw=1, ls="--", label=f"{IMP[i]}, as UV-free LED")
ax.set_xticks(range(-1, 6))
ax.set_xticklabels(["0.1", "1", "10", "100", "1,000", "10,000", "100,000"])
ax.set_xlabel("equivalent years on display at 50 lux")
ax.legend(fontsize=8)
ax.set_title("The light dose of each impression, in exhibition years");

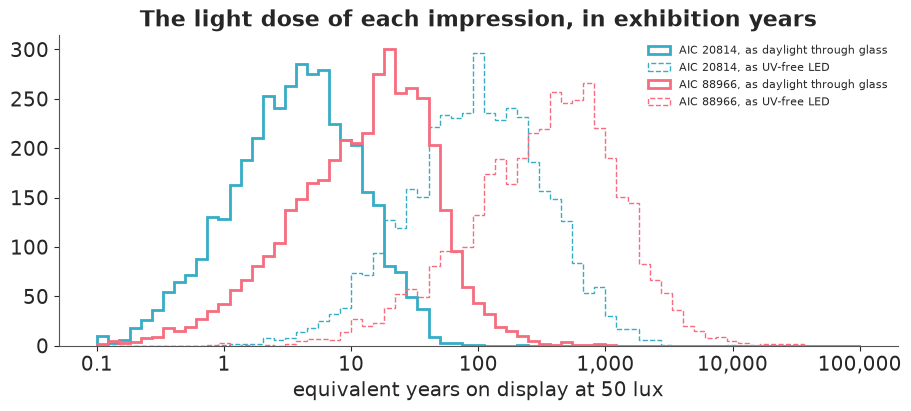

print(pd.DataFrame({"as daylight (median years)": np.median(years_xenon, 0),
"as UV-free LED (median years)": np.median(years_led, 0)}, index=IMP).round(0))
as daylight (median years) as UV-free LED (median years) AIC 20814 4.0 100.0 AIC 88966 15.0 377.0
Under the daylight reading, the first impression has had the equivalent of about 4 years of exhibition and the second about 14 (each with a range of more than a factor of ten); under the LED reading about 25 times more. Both prints are 260 years old, and historical light (daylight in a room, before glass filters and dim galleries) was far more damaging per lux-hour than anything a modern gallery uses, so the first reading is the plausible one. The honest summary is a range of more than a factor of ten, and it says why.
G. How long can a print be displayed?
The forward question. For each colourant, starting from the reference samples' colour, how long at 50 lux (8 h a day, 25 days a month) until the colour has changed by ΔE00 = 1? Per posterior draw, find the dye fraction $q$ at which the rendered colour is 1 ΔE00 from the start, convert it to a dose with the fading curve, and to months. Do it under both readings of the gallery light: as daylight through glass (xenon rates and xenon degradation products) and as UV-free LED (rates times the microfading transfer factor, microfading products).
def months_to_jnd(col, n_draws=400, reading="daylight"):
j = SINGLE.index(col)
post = az.extract(idata_fade, num_samples=n_draws, random_seed=7)
k, b = np.exp(post["logk"].values[j]), np.exp(post["logbeta"].values[j])
inst = "XT" if reading == "daylight" else "MFT" # which light's degradation products
rho_, ell_ = post["rho"].sel(inst=inst).values[j], post["ell"].sel(inst=inst).values[j]
qs = np.concatenate([1 - np.logspace(-5, -0.01, 300)]) # fraction of dye left, descending from 1
K = (Kp0[None, None] + qs[None, :, None] * EPS[col][None, None]
+ (rho_[:, None] * (1 - qs[None]))[..., None] * np.exp(-(WL - 380) / ell_[:, None])[:, None, :])
lab = spectra_to_lab(km_reflectance(K))
de = de2000(spectra_to_lab(km_reflectance(Kp0 + EPS[col])), lab) # draw x q
idx = np.argmax(de >= 1, axis=1)
reached = de[np.arange(n_draws), idx] >= 1
q_jnd = np.where(reached, qs[idx], np.nan)
H = (-np.log(q_jnd)) ** (1 / b) / k # xenon-equivalent Mlxh
if reading == "LED":
H = H / np.exp(post["logtau"].values[j])
return H / (50 * 8 * 25 / 1e6) # months at 50 lux
fig, ax = plt.subplots(figsize=(9, 5.5))
rows_g = []
for y, col in enumerate(fugitive + ["Prussian blue", "vermilion", "indigo"]):
for reading, off, mk in [("daylight", 0.15, "o"), ("LED", -0.15, "s")]:
mth = months_to_jnd(col, reading=reading)
ok = mth[np.isfinite(mth)]
lo, md, hi = np.quantile(ok, [0.1, 0.5, 0.9])
rgb = lab_to_srgb(spectra_to_lab(km_reflectance(Kp0 + EPS[col])))
ax.plot([lo, hi], [y + off, y + off], color="k", lw=1)
ax.scatter(md, y + off, marker=mk, s=60, color=rgb, edgecolor="k", zorder=3)
rows_g.append((col, reading, lo, md))
ax.set_yticks(range(len(fugitive) + 3))
ax.set_yticklabels(fugitive + ["Prussian blue", "vermilion", "indigo"])
ax.set_xscale("log")
ax.set_xlabel("months at 50 lux until a just-noticeable change (median, 80% interval)")
ax.scatter([], [], marker="o", color="w", edgecolor="k", label="gallery light ~ daylight through glass")
ax.scatter([], [], marker="s", color="w", edgecolor="k", label="gallery light ~ UV-free LED")
ax.legend(fontsize=8, loc="lower right")
ax.set_title("A fade clock for each colourant");
g = pd.DataFrame(rows_g, columns=["colourant", "reading", "risk-based (10% quantile)", "plug-in (median)"])
print(g.pivot(index="colourant", columns="reading").round(1).to_string())
risk-based (10% quantile) plug-in (median) reading LED daylight LED daylight colourant Prussian blue 114.6 13.9 154.6 28.9 cochineal 593.3 38.7 675.9 44.9 dayflower 455.1 19.5 664.4 23.0 indigo 4197.8 261.6 21783.5 984.9 orpiment 11.1 4.7 37.3 13.0 safflower 49.7 6.9 50.3 7.5 sappanwood 577.2 8.5 675.7 11.0 turmeric 106.1 5.5 115.5 7.1 vermilion 130.8 76.0 138.2 94.3 yellowwood 58.7 7.0 61.1 8.3
Under the daylight reading, the sensitive colourants reach a just-noticeable change within 7 months to 2 years at 50 lux (safflower and turmeric first, dayflower last of them); under the LED reading the same dyes last 5 to 60 times longer. The two readings differ more than the uncertainty within either, which is the lesson of Part C made practical.
A museum setting a display rule faces two choices, and the posterior makes both explicit:
- Plug-in vs risk. The median time is the plug-in answer: display that long and there is a 50% chance the change is already visible. A rule such as "at most a 10% chance of a noticeable change" uses the 10% quantile instead: shorter, by a factor that is itself a property of the posterior (wider posteriors cost more display time).
- Which reading of the light. Until the gallery light itself is characterised against the xenon chamber (or the objects are tested under it), a cautious rule takes the daylight reading; the LED reading is the optimistic bound.
The same arithmetic applied to a print that is already faded gives a different answer: a dayflower green whose blue is mostly gone has little left to lose, and the next ΔE00 takes longer. The Part E posterior over how much dye remains is what makes that calculation possible for a real object.
Summary
- A physical model makes colour data go further. Kubelka-Munk turns "the colour changed" into "a fraction $q$ of the dye is left", and the rank check says, before fitting, for which colourants that is enough. Browning dyes need a second absorber, and posterior predictive errors plus LOO show the fix works.
- Accelerated tests transfer badly. A microfading dose is worth between a fiftieth and a quarter of a xenon dose depending on the dye, so microfading ranks sensitivities but does not give absolute times without an assumption about the light.
- Running the model backwards is weakly identified, and the posterior says where. From two photographs, the blue of the leaves is dayflower with near certainty, the yellow is unknown, and the light dose is known to within a factor of ten or more, because a photograph fixes today's colour but not the strength of the new print. Anchors that do not fade (paper, carbon ink) are what make photographs comparable, and the restored originals are uncertain by several ΔE00 everywhere: the kind of colour, not the exact shade.
- Discrete choices need the right tool. A handful of recipes: sum them out inside PyMC. Many small multimodal problems (one per colour area): an exact grid posterior per draw.
- When the estimate is a colour, show colours. Split swatches, hypothetical restorations and trajectory tubes show uncertainty as a spread of colours; a ΔE00 map and bar charts of recipes show it in units that leave colour free.
Try it yourself
- The other pair. The file also holds two impressions of The Evening Glow of a Lamp
(
design == "lamp"). Register them and draw the residual map. The maple leaves are red in one and yellow-green in the other, and the floor is peach in one and green in the other: can any fading of any recipe connect them, or is this a different colourway? Add a "same printing" indicator per area to the two-impression model and let the posterior decide. - Reciprocity. Microfading was run at 4.2 Mlx and the chamber at 0.1 Mlx. Replace the free transfer factor by $\tau = (E_{\text{MFT}}/E_{\text{XT}})^{p-1}\,u_c$ with a reciprocity exponent $p$ shared by all dyes and a UV factor $u_c$. Is $p$ identified with only two intensities? What would a third condition have to be to identify it?
- Spectral likelihood. Fit Part B to the reflectance spectra instead of to CIELAB, with a Gaussian process over wavelength for the residuals (neighbouring wavelengths err together). Do the half-lives change? Which likelihood gives better-calibrated predictions of the xenon colour at the last dose when that dose is held out?
