A gravitational lens, pixel by pixel

#The setting

Mass bends light. A galaxy sitting almost exactly in front of a more distant one acts as a lens: light from the background galaxy reaches us along several paths around the foreground one, and if the alignment is close enough the background galaxy is smeared into a ring, an Einstein ring. Einstein (1936) thought such rings would never be seen. The Sloan Lens ACS Survey (SLACS) found about seventy of them: it searched the spectra of a million galaxies in the Sloan Digital Sky Survey for emission lines at a second, higher redshift - a background galaxy hiding in the same fibre - and imaged the candidates with the Hubble Space Telescope.

SDSS J1627-0053 is one of the cleanest. The lens is a massive elliptical galaxy at redshift $z_l = 0.2076$ (light travel time about 2.5 billion years); the ring is a star-forming galaxy at $z_s = 0.5241$ behind it (5.2 billion years). The ring's radius measures the mass of the lens galaxy inside it - dark matter included - without any assumption about its stars.

The usual way to "measure" a lens is to reduce the image to a few numbers (positions of bright spots, a radius) and fit those. Here we do what professional lens modellers do: predict every pixel of the image - the lens galaxy's light, the lensed background galaxy, blurred by the telescope, with the right noise - and let the posterior over the lens's mass and the background galaxy's shape follow from all 6,561 pixels at once. The questions:

1. How much mass is inside the ring, and how sure are we?
2. What does the background galaxy look like unlensed?
3. What can an image not tell us, however good it is?

part	question	tool
A	What is in the image?	exposure-time map, photon noise, correlated noise from drizzling, a PSF from stars
B	How does a lens bend light?	the lens equation, an isothermal ellipsoid with shear, autodiff unit tests, critical curves and caustics, a prior predictive check

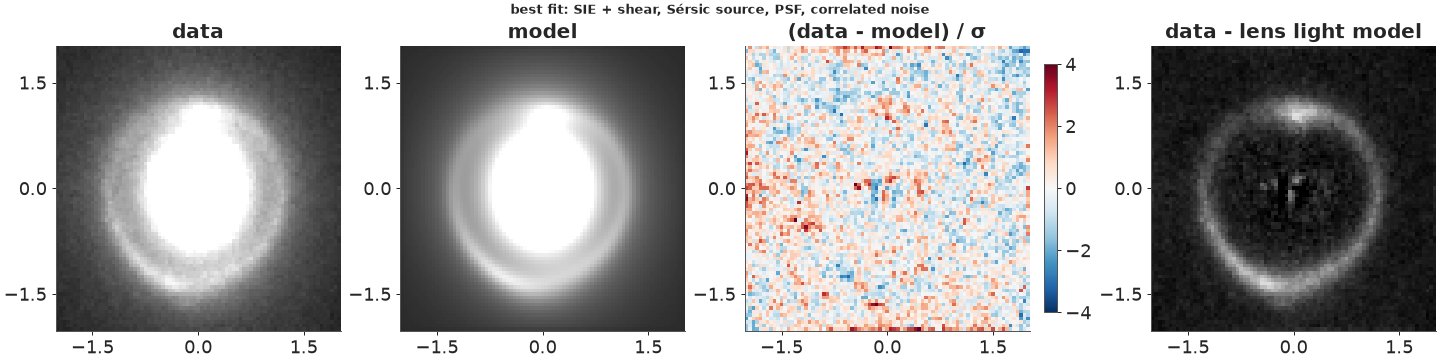

C	Can we predict every pixel?	a forward model with the lens galaxy's light, linear amplitudes integrated out, multi-start optimisation, two failures (no PSF, independent noise), NUTS in PyMC

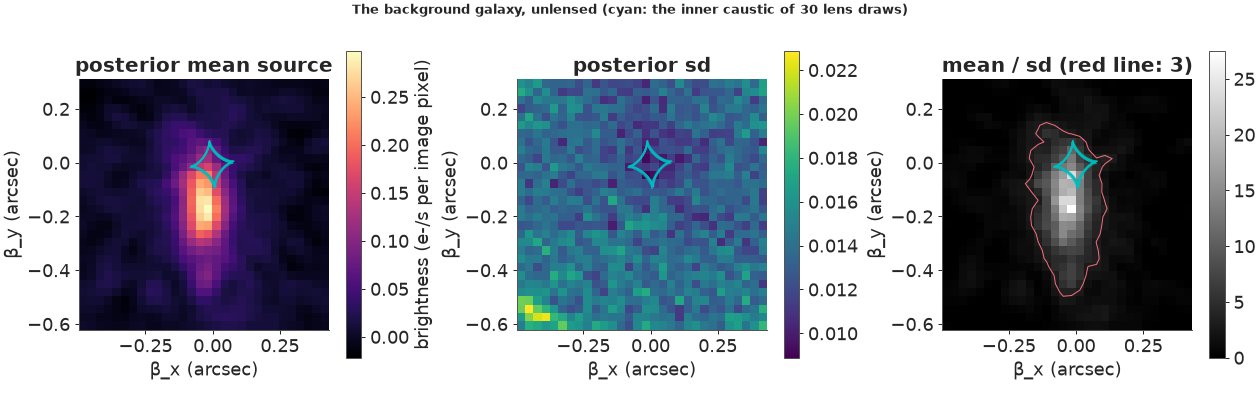

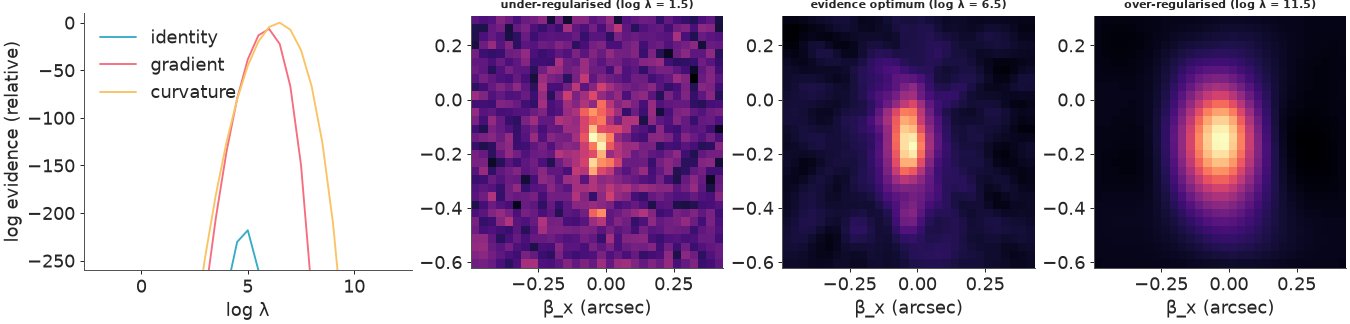

D	What does the background galaxy look like?	a pixelated source with a Gaussian prior solved exactly, the evidence for the regularisation, a lens refit, the source with its uncertainty, an animation

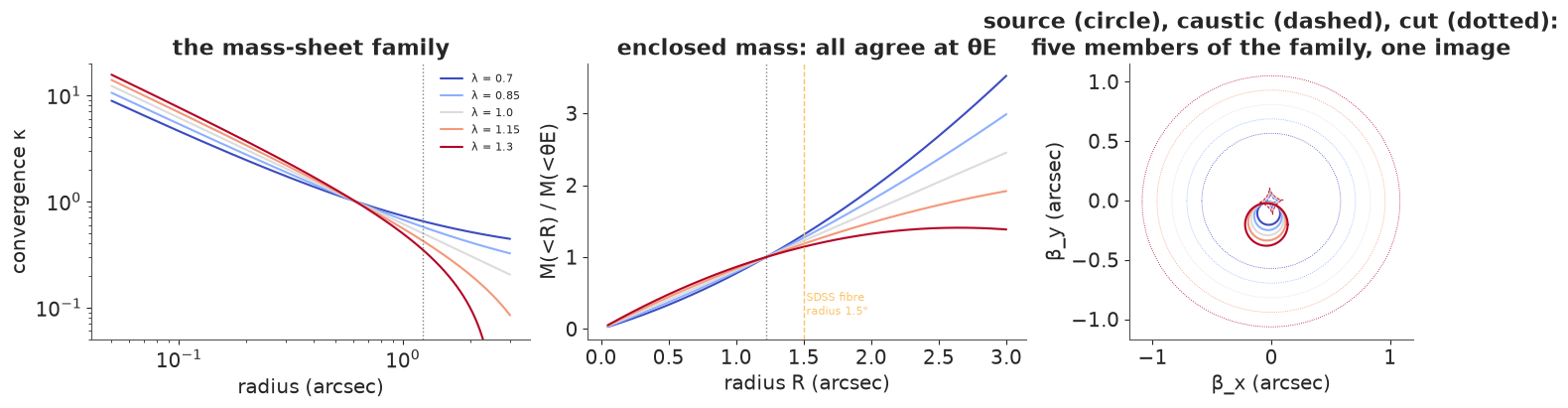

E	What can the image not tell us?	the mass-sheet degeneracy, demonstrated exactly; what breaks it
F	How much mass is in the ring?	angular-diameter distances, the critical density, comparison with published models, caustic spaghetti

Everything uses NumPy, SciPy, JAX and PyMC - no astronomy packages. The HST image was cut out of the 215 MB pipeline product once by tools/build_e80_lens.py.

import io
import logging
import time
import warnings

import arviz as az
import contourpy
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
import pymc as pm
import pytensor.tensor as pt
from IPython.display import HTML, Image, display
from matplotlib import animation
from pytensor import wrap_jax
from scipy import integrate, ndimage, optimize

from pymc_challenges import data

jax.config.update("jax_enable_x64", True)
RANDOM_SEED = 80
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
logging.getLogger("pymc").setLevel(logging.WARNING)
warnings.filterwarnings("ignore", category=RuntimeWarning, module="arviz")
warnings.filterwarnings("ignore", message=".*object mode.*")
pd.set_option("display.width", 170)
pd.set_option("display.max_columns", 20)
T_START = time.time()


def show_jpeg(fig, quality=85):
    """Images of the sky compress badly as PNG: show them as JPEG."""
    buf = io.BytesIO()
    fig.savefig(buf, format="jpeg", dpi=90, pil_kwargs={"quality": quality})
    plt.close(fig)
    display(Image(buf.getvalue()))

#A. The image

The Advanced Camera for Surveys took four 556-second exposures through the F814W filter (a broad band around 800 nm, near-infrared). The pipeline removed cosmic rays, corrected the camera's geometric distortion and the charge-transfer losses of the ageing detector, subtracted the sky, and combined the exposures onto a 0.05" grid ("drizzling"). The units are electrons per second. The weight map records, for every output pixel, how many seconds of exposure went into it.

The build script turned the cutouts by a multiple of 90 degrees so that north is up and east is left (to within the small angle printed below).

data.describe("slacs_j1627")
raw = np.load(data.path("slacs_j1627"))
PIX = float(raw["pixel_scale"])
NORTH = float(raw["north_residual_deg"])
print(f"{raw['filter']}, {float(raw['exptime']):.0f} s, observed {raw['date_obs']}, programme {raw['proposal']}; "
      f"pixel {PIX:.3f}\"; north is {NORTH:+.1f} deg from the +y axis")
N, SUB = 81, 2                       # 81 x 81 pixels (4.05"), rays traced on a 2 x 2 sub-grid
c, h = 60, N // 2
sci = raw["sci"][c - h:c + h + 1, c - h:c + h + 1].astype(float)
wht = raw["wht"][c - h:c + h + 1, c - h:c + h + 1].astype(float)
EXT = [-(N / 2) * PIX, (N / 2) * PIX] * 2          # image extent in arcsec, lens galaxy at (0, 0)
print(f"cutout {N} x {N}; brightest pixel {sci.max():.1f} e-/s; exposure map {wht.min():.0f}-{wht.max():.0f} s")

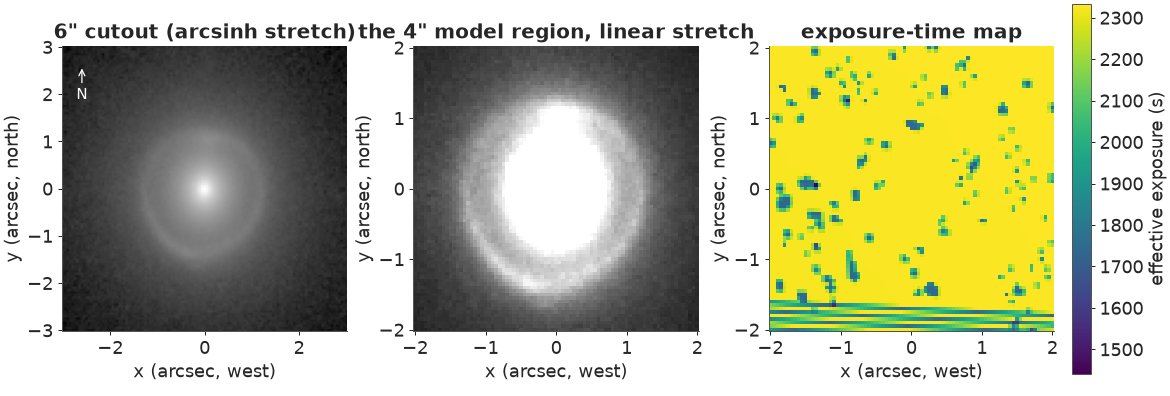

fig, axs = plt.subplots(1, 3, figsize=(13, 4.4))
axs[0].imshow(np.arcsinh(raw["sci"] / 0.02), origin="lower", cmap="gray",
              extent=[-3.025, 3.025, -3.025, 3.025])
axs[0].set_title("6\" cutout (arcsinh stretch)")
axs[1].imshow(sci, origin="lower", cmap="gray", vmin=-0.02, vmax=0.5, extent=EXT)
axs[1].set_title("the 4\" model region, linear stretch")
im = axs[2].imshow(wht, origin="lower", cmap="viridis", extent=EXT)
fig.colorbar(im, ax=axs[2], label="effective exposure (s)")
axs[2].set_title("exposure-time map")
for ax in axs:
    ax.set(xlabel="x (arcsec, west)", ylabel="y (arcsec, north)")
axs[0].annotate("N", xy=(-2.6, 2.6), xytext=(-2.6, 1.9), color="w", ha="center",
                arrowprops=dict(arrowstyle="->", color="w"))
show_jpeg(fig)

slacs_j1627: NumPy .npz (open data.path(...) with np.load), all arrays turned by a multiple of 90 degrees so that north is up and east left (north_residual_deg: the remaining angle of north from +y, towards -x): sci (121 x 121 cutout centred on the lens galaxy, electrons/s, sky subtracted by the pipeline), wht (the same, effective exposure time in s), blank_sci / blank_wht (128 x 128 empty sky nearby), star_stamps (10 x 41 x 41 isolated stars within 70" of the lens, for the PSF) and star_xy (their positions in the original frame), pixel_scale (0.05 arcsec), exptime, photflam, photplam, ra_dec, lens_xy_full, date_obs, proposal, rootname, filter.
  source: NASA/ESA Hubble Space Telescope, ACS/WFC F814W, programme 10494 (PI L. Koopmans; SLACS follow-up), observed 2006-03-12, 4 exposures, 2,224 s; pipeline-drizzled, CTE-corrected product j9c701020_drc.fits from the Mikulski Archive for Space Telescopes (MAST, STScI). HST archival data are public; MAST asks for the acknowledgement 'Based on observations made with the NASA/ESA Hubble Space Telescope, obtained from the data archive at the Space Telescope Science Institute. STScI is operated by the Association of Universities for Research in Astronomy, Inc. under NASA contract NAS 5-26555.' The lens is SDSS J162746.44-005357.5 (Bolton et al. 2008, ApJ 682, 964). A SMALL EXTRACT BUILT by tools/build_e80_lens.py from the 215 MB FITS file (the URL) - keep the cached file.
  url:    https://mast.stsci.edu/api/v0.1/Download/file?uri=mast:HST/product/j9c701020_drc.fits
F814W, 2224 s, observed 2006-03-12, programme 10494; pixel 0.050"; north is -3.7 deg from the +y axis
cutout 81 x 81; brightest pixel 11.6 e-/s; exposure map 1441-2334 s

The ring is obvious in the arcsinh stretch: radius about 1.2", brighter to the north and to the south-east. It sits on top of the lens galaxy, whose light dominates every pixel inside the ring and much of the ring itself. The exposure map is nearly flat (about 2,330 s, a little above the 2,224 s total: the weights are exposure times scaled by how much of each distortion-corrected input pixel overlaps the output pixel), with small dips where one exposure's pixel was rejected - cosmic rays or bad pixels - and a striped band along the bottom edge, most likely where some of the dithered exposures fell into the gap between the camera's two CCDs. The noise model below uses this map pixel by pixel.

#The noise in every pixel

A pixel's value is a count of electrons divided by the exposure time $t$. Two sources of noise:

• the sky and the detector: background photons plus read noise, the same everywhere. We measure its standard deviation $\sigma_\text{sky}$ in an empty patch of sky from the same image (after masking the few faint objects in it);
• the photons from the galaxies themselves: Poisson, so the variance of the count is the count, and the variance of the rate is $d/t$.

$$\sigma_i^2 = \sigma_\text{sky}^2 + \frac{\max(\tilde d_i, 0)}{t_i},$$

with $\tilde d$ the image smoothed over 3 x 3 pixels (so the noise map does not follow the noise).

Drizzling adds a complication. Each output pixel is a weighted average of the input pixels that overlap it, so neighbouring pixels share noise. We measure the correlation in the blank patch.

blank = raw["blank_sci"].astype(float)
bres = blank - ndimage.median_filter(blank, 25)               # remove any smooth background
s0 = 1.4826 * np.median(np.abs(bres))
bmask = ndimage.binary_dilation(np.abs(ndimage.uniform_filter(bres, 3)) > 1.5 * s0, iterations=3)
SKY_SD = bres[~bmask].std()
r0, w0 = np.where(bmask, 0, bres), (~bmask).astype(float)
F2, IF2 = np.fft.fft2, np.fft.ifft2
acf = np.real(IF2(np.abs(F2(r0, s=(256, 256)))**2)) / np.maximum(np.real(IF2(np.abs(F2(w0, s=(256, 256)))**2)), 1)
acf = np.fft.fftshift(acf / acf[0, 0])[127:130, 127:130]
acf = (acf + acf[::-1, ::-1]) / 2                             # the correlation is symmetric
print(f"blank patch: {bmask.mean():.1%} masked, sky sd = {SKY_SD:.4f} e-/s per pixel")
print("correlation with the neighbours (3 x 3 lags):\n", np.round(acf, 3))
print(f"sum of correlations: {acf.sum():.2f} - the variance of a sum of many pixels is this many times "
      "what independent pixels would give")

sig = np.sqrt(SKY_SD**2 + np.clip(ndimage.uniform_filter(sci, 3), 0, None) / wht)
print(f"noise map: {sig.min():.4f} e-/s in the cutout's corners (sky + the galaxy's faint halo) to "
      f"{sig.max():.3f} e-/s at the galaxy's centre; the sky term alone is {SKY_SD:.4f}")

blank patch: 4.6% masked, sky sd = 0.0059 e-/s per pixel
correlation with the neighbours (3 x 3 lags):
 [[0.055 0.238 0.056]
 [0.221 1.    0.221]
 [0.056 0.238 0.055]]
sum of correlations: 2.14 - the variance of a sum of many pixels is this many times what independent pixels would give
noise map: 0.0075 e-/s in the cutout's corners (sky + the galaxy's faint halo) to 0.064 e-/s at the galaxy's centre; the sky term alone is 0.0059

Adjacent pixels are correlated by about 0.2 horizontally and vertically and about 0.05 diagonally; beyond one pixel the correlation is zero within the noise. The sum over all lags, about 2.1, is the factor by which a likelihood that treats pixels as independent overstates the information about anything that depends on sums over many pixels - which is everything we want. We will see the consequence in Part C.

The fix is to whiten the residuals. If the correlation is stationary with power spectrum $P(k)$ (the Fourier transform of the 3 x 3 kernel above), then dividing the Fourier transform of the normalised residual image $r/\sigma$ by $\sqrt{P(k)}$ gives independent unit-variance residuals. The kernel's power spectrum must be positive everywhere for this to work:

KER = np.zeros((N, N))
for dy in (-1, 0, 1):
    for dx in (-1, 0, 1):
        KER[dy % N, dx % N] = acf[dy + 1, dx + 1]
PSPEC = np.real(np.fft.fft2(KER))
print(f"power spectrum of the noise correlation: min {PSPEC.min():.2f}, max {PSPEC.max():.2f} (all > 0)")


def whiten_np(r):
    """Whitened version of a normalised residual image (periodic boundaries)."""
    return np.real(np.fft.ifft2(np.fft.fft2(r) / np.sqrt(PSPEC)))


# check on the blank patch: whitened sky noise should be uncorrelated
bw = whiten_np(np.where(bmask, 0, bres)[:N, :N] / SKY_SD)
lag1 = np.mean(bw[:, 1:] * bw[:, :-1]) / np.mean(bw**2)
print(f"blank sky after whitening: sd {bw[~bmask[:N, :N]].std():.2f}, lag-1 correlation {lag1:+.3f}")

power spectrum of the noise correlation: min 0.30, max 2.14 (all > 0)
blank sky after whitening: sd 0.99, lag-1 correlation -0.003

After whitening, the blank sky is uncorrelated with unit variance (the masked objects bias it slightly). The periodic boundary of the FFT is an approximation at the edges of the cutout.

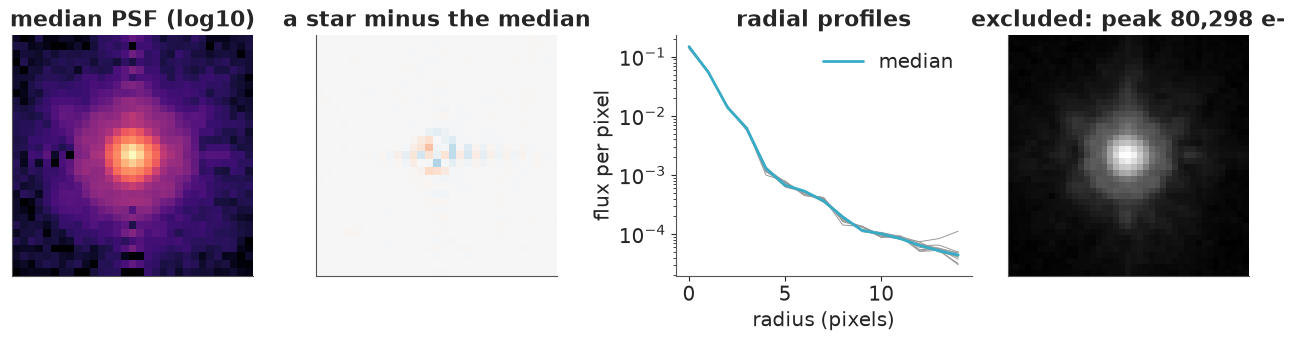

#The point-spread function

A telescope blurs every point of light into a small pattern, the point-spread function (PSF). Stars are points, so a star's image is the PSF. The build script picked the ten isolated compact sources nearest the lens (all within 70"); we look at them, drop any that are saturated, recentre the rest to a common centre by a sub-pixel Fourier shift, normalise each to unit flux and take the median.

stars = raw["star_stamps"].astype(float)
peak_e = stars.max(axis=(1, 2)) * float(raw["exptime"]) / 4
print("peak pixel of each star, electrons per exposure:", np.round(peak_e, -2).astype(int))


def recentre(st, half=15):
    yy, xx = np.indices(st.shape) - st.shape[0] // 2
    w = np.clip(st, 0, None) * (np.hypot(xx, yy) < 4)
    cx, cy = (w * xx).sum() / w.sum(), (w * yy).sum() / w.sum()
    sh = np.real(np.fft.ifft2(ndimage.fourier_shift(np.fft.fft2(st), (-cy, -cx))))
    m = st.shape[0] // 2
    sh = sh[m - half:m + half + 1, m - half:m + half + 1]
    return sh / sh.sum()


keep_star = peak_e < 60000                     # the WFC full well is about 80,000 electrons
stack = np.array([recentre(s) for s in stars[keep_star]])
PSF = np.clip(np.median(stack, axis=0), 0, None)
PSF /= PSF.sum()
rr = np.hypot(*(np.indices(PSF.shape) - 15))
ee = [PSF[rr <= r].sum() for r in (1, 2, 4, 8)]
print(f"{keep_star.sum()} stars used; PSF peak {PSF.max():.3f} of the flux; enclosed flux within 1, 2, 4, 8 pixels: "
      + ", ".join(f"{e:.2f}" for e in ee))
dev = np.abs(stack - PSF).sum(axis=(1, 2)) / 2
print("each star's total |difference| from the median PSF (fraction of flux):", np.round(dev, 3))

fig, axs = plt.subplots(1, 4, figsize=(13, 3.3))
axs[0].imshow(np.log10(np.clip(PSF, 1e-5, None)), origin="lower", cmap="magma", vmin=-5, vmax=-0.8)
axs[0].set_title("median PSF (log10)")
axs[1].imshow(stack[1] - PSF, origin="lower", cmap="RdBu_r", vmin=-0.01, vmax=0.01)
axs[1].set_title("a star minus the median")
prof = [PSF[(rr >= r - 0.5) & (rr < r + 0.5)].mean() for r in range(15)]
for s in stack:
    axs[2].semilogy(range(15), [s[(rr >= r - 0.5) & (rr < r + 0.5)].mean() for r in range(15)],
                    color="0.6", lw=0.7)
axs[2].semilogy(range(15), prof, color="C0", lw=2, label="median")
axs[2].set(xlabel="radius (pixels)", ylabel="flux per pixel", title="radial profiles")
axs[2].legend()
axs[3].imshow(np.arcsinh(stars[0] / 0.1), origin="lower", cmap="gray")
axs[3].set_title(f"excluded: peak {peak_e[0]:,.0f} e-")
for ax in axs[[0, 1, 3]]:
    ax.set_xticks([])
    ax.set_yticks([])
plt.show()

peak pixel of each star, electrons per exposure: [80300 25900  8900 15300 27300 16400 26800 33900 38000 14500]
9 stars used; PSF peak 0.147 of the flux; enclosed flux within 1, 2, 4, 8 pixels: 0.43, 0.65, 0.88, 0.95
each star's total |difference| from the median PSF (fraction of flux): [0.042 0.045 0.054 0.064 0.034 0.052 0.054 0.053 0.072]

The brightest star's peak pixel collected nearly as many electrons as a pixel can hold, so its core may be flattened; it is dropped. The remaining nine agree to within the differences printed (half the summed absolute difference: the fraction of the flux that would have to move). The core is sharp - a seventh of the light falls in the brightest pixel - but an eighth of it lies beyond 4 pixels (0.2"), in the wings and diffraction spikes (the radial profiles of all nine stars agree down to a ten-thousandth of the peak). The PSF varies across the ACS field and with the focus of the telescope; stars 17-67" from the lens are an approximation that professional analyses refine (TinyTim models, or fitting PSF corrections jointly).

#B. Bending light

#The lens equation

A light ray from the source at angular position $\boldsymbol\beta$ (where we would see it without the lens) is deflected by the angle $\boldsymbol\alpha$ and reaches us from direction $\boldsymbol\theta$:

$$\boldsymbol\beta = \boldsymbol\theta - \boldsymbol\alpha(\boldsymbol\theta).$$

Given the lens, this maps each image-plane position back to the source plane in one step - ray tracing - even though the inverse (where are the images of a given source point?) can have several answers. So to predict the image, we trace every pixel back to the source and read off the source's surface brightness there. Surface brightness is conserved by lensing; what changes is the area, which is where the magnification comes from.

The deflection is the gradient of a potential, $\boldsymbol\alpha = \nabla\psi$, with $\nabla^2\psi = 2\kappa$, where $\kappa = \Sigma/\Sigma_\text{cr}$ is the surface mass density in units of the critical density $\Sigma_\text{cr} = \frac{c^2}{4\pi G}\frac{D_s}{D_l D_{ls}}$ (the $D$'s are angular-diameter distances to the lens, to the source, and between them).

#An isothermal ellipsoid with external shear

Massive ellipticals are close to isothermal: density $\rho\propto r^{-2}$, which in projection is $\kappa\propto 1/R$ - the profile that gives flat rotation curves. With elliptical contours of axis ratio $q$, in coordinates aligned with the major axis, the singular isothermal ellipsoid (SIE) has

$$\kappa(x, y) = \frac{\theta_E}{2\sqrt{q x^2 + y^2/q}},$$

normalised on the intermediate axis (Kormann, Schneider & Bartelmann 1994) so that the mass inside a given contour does not change with $q$ - the convention of the SLACS papers. The deflection is in closed form (Kormann et al. 1994; Keeton 2001):

$$\alpha_x = \frac{\theta_E\sqrt q}{f}\arctan\frac{f\,x}{\psi},\qquad \alpha_y = \frac{\theta_E\sqrt q}{f}\,\text{artanh}\frac{f\,y}{\psi},\qquad f = \sqrt{1-q^2},\quad \psi = \sqrt{q^2x^2 + y^2}.$$

Galaxies around the lens and along the line of sight add a tidal distortion, approximated by an external shear $(\gamma_1, \gamma_2)$: $\boldsymbol\alpha_\gamma = (\gamma_1 x + \gamma_2 y,\; \gamma_2 x - \gamma_1 y)$. The ellipticity enters through the components $e_1 = \frac{1-q}{1+q}\cos 2\phi$, $e_2 = \frac{1-q}{1+q}\sin 2\phi$ rather than $(q, \phi)$: the angle $\phi$ is undefined for a round lens and wraps around, both bad for a sampler.

def sie_deflection(x, y, theta_e, e1, e2, x0, y0):
    """Deflection (arcsec) of a singular isothermal ellipsoid, intermediate-axis normalisation."""
    e = jnp.sqrt(e1**2 + e2**2 + 1e-14)
    q, phi = (1 - e) / (1 + e), 0.5 * jnp.arctan2(e2, e1)
    c, s = jnp.cos(phi), jnp.sin(phi)
    xr = c * (x - x0) + s * (y - y0)
    yr = -s * (x - x0) + c * (y - y0)
    f = jnp.sqrt(jnp.maximum(1 - q**2, 1e-8))
    psi = jnp.sqrt(q**2 * xr**2 + yr**2 + 1e-12)
    pre = theta_e * jnp.sqrt(q) / f
    ax, ay = pre * jnp.arctan(f * xr / psi), pre * jnp.arctanh(f * yr / psi)
    return c * ax - s * ay, s * ax + c * ay


def sie_kappa(x, y, theta_e, e1, e2, x0, y0):
    e = np.sqrt(e1**2 + e2**2)
    q, phi = (1 - e) / (1 + e), 0.5 * np.arctan2(e2, e1)
    xr = np.cos(phi) * (x - x0) + np.sin(phi) * (y - y0)
    yr = -np.sin(phi) * (x - x0) + np.cos(phi) * (y - y0)
    return theta_e / (2 * np.sqrt(q * xr**2 + yr**2 / q))


def deflection(x, y, mass):
    """SIE + external shear. mass = (theta_E, e1, e2, x0, y0, gamma1, gamma2)."""
    te, e1, e2, x0, y0, g1, g2 = mass
    ax, ay = sie_deflection(x, y, te, e1, e2, x0, y0)
    return ax + g1 * x + g2 * y, ay + g2 * x - g1 * y

A closed-form deflection copied from a paper is a classic place for a sign error or a wrong factor of $\sqrt q$. Three tests with exact answers, using JAX's automatic derivatives of $\boldsymbol\alpha$:

1. the divergence of $\boldsymbol\alpha$ must be $2\kappa$ (the Poisson equation above),
2. its curl must vanish (it is a gradient),
3. a nearly round SIE must deflect every ray by $\theta_E$ towards the centre.

test = (1.2, 0.15, -0.08, 0.05, -0.03)                       # theta_E, e1, e2, x0, y0 (q = 0.74)
pts = rng.uniform(-2, 2, size=(200, 2))
jac = jax.vmap(jax.jacfwd(lambda p: jnp.stack(sie_deflection(p[0], p[1], *test))))(jnp.asarray(pts))
jac = np.asarray(jac)
div, curl = jac[:, 0, 0] + jac[:, 1, 1], jac[:, 1, 0] - jac[:, 0, 1]
kap = sie_kappa(pts[:, 0], pts[:, 1], *test)
print(f"max |div(alpha)/2 - kappa| / kappa = {np.max(np.abs(div / 2 - kap) / kap):.1e}")
print(f"max |curl(alpha)| = {np.max(np.abs(curl)):.1e}")
ax_, ay_ = sie_deflection(pts[:, 0], pts[:, 1], 1.2, 1e-5, 0.0, 0.0, 0.0)
print(f"nearly round SIE: |alpha| = {np.min(np.hypot(ax_, ay_)):.5f} to {np.max(np.hypot(ax_, ay_)):.5f} (theta_E = 1.2)")

max |div(alpha)/2 - kappa| / kappa = 5.1e-11
max |curl(alpha)| = 2.3e-10
nearly round SIE: |alpha| = 1.20000 to 1.20000 (theta_E = 1.2)

All three hold to rounding error, so the deflection is right (and so is the normalisation: the divergence test would fail with a wrong power of $q$).

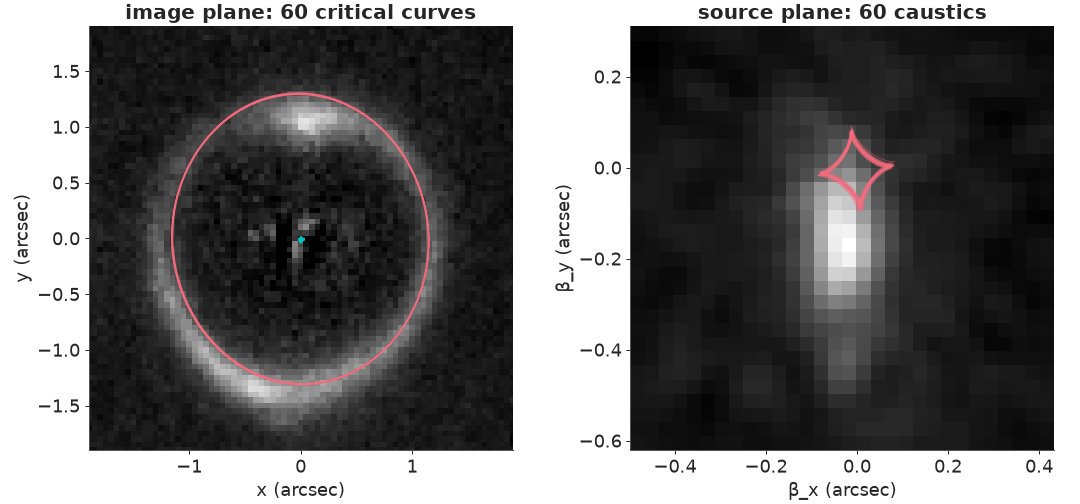

#Critical curves and caustics

The lens equation maps the image plane to the source plane with Jacobian $A = \partial\boldsymbol\beta/\partial\boldsymbol\theta$. Where $\det A = 0$ the magnification $1/\det A$ is infinite: these image-plane lines are the critical curves, and their images in the source plane are the caustics. A source inside the diamond-shaped inner caustic of an elliptical lens has four bright images (plus a faint fifth for a non-singular lens); a source crossing it is drawn out into a ring. For the singular isothermal lens the inner (radial) critical curve shrinks to the centre, and its caustic becomes a "cut": the image of an infinitesimal circle around the centre, $\boldsymbol\beta = -\boldsymbol\alpha(\epsilon\,\hat{\mathbf n})$.

CC_GRID = np.linspace(-1.9, 1.9, 381)
CX_, CY_ = np.meshgrid(CC_GRID, CC_GRID)


def critical_and_caustics(mass):
    """Tangential critical curve (image plane), its caustic and the cut (source plane), as lists of arrays."""
    ax, ay = (np.asarray(a) for a in deflection(CX_, CY_, mass))
    d = CC_GRID[1] - CC_GRID[0]
    daxdy, daxdx = np.gradient(ax, d)
    daydy, daydx = np.gradient(ay, d)
    det = (1 - daxdx) * (1 - daydy) - daxdy * daydx
    lines = contourpy.contour_generator(CC_GRID, CC_GRID, det).lines(0.0)
    # keep the tangential curve; drop grid artefacts next to the singular centre
    crit = [ln for ln in lines if len(ln) > 20 and np.hypot(ln[:, 0] - mass[3], ln[:, 1] - mass[4]).mean() > 0.3]
    caus = []
    for ln in crit:
        a1, a2 = deflection(ln[:, 0], ln[:, 1], mass)
        caus.append(np.c_[ln[:, 0] - np.asarray(a1), ln[:, 1] - np.asarray(a2)])
    t = np.linspace(0, 2 * np.pi, 400)
    ex, ey = mass[3] + 1e-6 * np.cos(t), mass[4] + 1e-6 * np.sin(t)
    a1, a2 = deflection(ex, ey, mass)
    cut = np.c_[ex - np.asarray(a1), ey - np.asarray(a2)]
    return crit, caus, cut

#The rest of the forward model

Surface brightness. Both the lens galaxy's light and the source are described by elliptical Sérsic profiles, $I(r) \propto \exp\{-b_n[(r/R)^{1/n} - 1]\}$ with half-light radius $R$ and index $n$ ($n = 1$ exponential disc, $n = 4$ de Vaucouleurs elliptical, $n = 0.5$ Gaussian). We write the elliptical radius directly in $(e_1, e_2)$ - it is a quadratic form, so no angle and no singularity at $e = 0$:

$$r^2 = \frac{(1 + e^2 - 2e_1)\,x^2 - 4e_2\,xy + (1 + e^2 + 2e_1)\,y^2}{1 - e^2}.$$

One Sérsic is not enough for a big elliptical over 4": we use two concentric ones for the lens light, plus a constant for whatever the pipeline's sky subtraction left (and for the galaxy's faint outer halo, which fills the whole cutout). These are nuisance components: they only need to be good enough that the ring can be seen on top of them.

Pixels. A pixel integrates the brightness over its area, which matters where the ring is thin and the lens galaxy's centre is steep: we trace a 2 x 2 grid of rays per pixel and average (a 4 x 4 grid changed the best fit's log-likelihood by less than one unit). The result is convolved with the PSF by FFT, whitened, and compared with the data.

Linear parameters. The model is linear in the brightness amplitudes of the four components (two lens-light Sérsics, the source, the constant). Given the other parameters, the best amplitudes are a least-squares solve, and with flat priors they can be integrated out exactly: for whitened data $\mathbf b$ and whitened component images $\mathbf A$ (a pixels x 4 matrix),

$$\log p(\mathbf d\mid\boldsymbol\theta) = -\tfrac12\,\|\mathbf b - \mathbf A\hat{\mathbf a}\|^2 - \tfrac12\log\det(\mathbf A^\top\mathbf A) + \text{const},\qquad \hat{\mathbf a} = (\mathbf A^\top\mathbf A)^{-1}\mathbf A^\top\mathbf b.$$

That removes four parameters with strong correlations (brightness vs size) from the sampler. We also let the data rescale the noise map by a factor $s$ (it was estimated, after all). In Part D the same trick is scaled up from four amplitudes to 900.

def sersic(x, y, R, n, e1, e2, x0, y0):
    """Unit-amplitude elliptical Sersic profile (value 1 at the half-light ellipse)."""
    dx, dy = x - x0, y - y0
    ee = e1**2 + e2**2
    r2 = ((1 + ee - 2 * e1) * dx**2 - 4 * e2 * dx * dy + (1 + ee + 2 * e1) * dy**2) / (1 - ee)
    bn = 1.9992 * n - 0.3271                                  # Capaccioli (1989), good for 0.5 < n < 10
    return jnp.exp(-bn * ((jnp.sqrt(r2 + 1e-10) / R) ** (1 / n) - 1))


grid = (np.arange(N * SUB) - (N * SUB - 1) / 2) / SUB * PIX       # ray positions (arcsec)
XS, YS = (jnp.asarray(a) for a in np.meshgrid(grid, grid))
NPAD, HP = N + PSF.shape[0] - 1, PSF.shape[0] // 2
PSF_FT = jnp.fft.rfft2(jnp.asarray(np.pad(PSF, ((0, NPAD - PSF.shape[0]), (0, NPAD - PSF.shape[0])))))
D_J, SIG_J, PSPEC_J = jnp.asarray(sci), jnp.asarray(sig), jnp.asarray(PSPEC)
NAMES = ["x_light", "y_light", "R_light1", "R_light2", "n_light1", "n_light2", "e1_light1", "e2_light1",
         "e1_light2", "e2_light2", "theta_E", "e1_mass", "e2_mass", "x_mass", "y_mass", "gamma1", "gamma2",
         "R_src", "n_src", "e1_src", "e2_src", "x_src", "y_src"]
MASS = slice(10, 17)


def convolve(img):
    f = jnp.fft.irfft2(jnp.fft.rfft2(img, s=(NPAD, NPAD)) * PSF_FT, s=(NPAD, NPAD))
    return f[..., HP:HP + N, HP:HP + N]


def whiten(r):
    return jnp.real(jnp.fft.ifft2(jnp.fft.fft2(r) / jnp.sqrt(PSPEC_J)))


def to_pixels(a):
    return a.reshape(N, SUB, N, SUB).mean(axis=(1, 3))


def components(th, use_psf=True, mass_sheet=None):
    """The four unit-amplitude component images: lens light 1, lens light 2, lensed source, constant."""
    (lx, ly, R1, R2, n1, n2, e1a, e2a, e1b, e2b, te, me1, me2, mx, my, g1, g2, sR, sn, se1, se2, sx, sy) = th
    L1 = sersic(XS, YS, R1, n1, e1a, e2a, lx, ly)
    L2 = sersic(XS, YS, R2, n2, e1b, e2b, lx, ly)
    ax, ay = deflection(XS, YS, (te, me1, me2, mx, my, g1, g2))
    if mass_sheet is not None:                                # Part E: lambda * alpha + (1 - lambda) * theta
        ax, ay = mass_sheet * ax + (1 - mass_sheet) * XS, mass_sheet * ay + (1 - mass_sheet) * YS
    src = sersic(XS - ax, YS - ay, sR, sn, se1, se2, sx, sy)
    img = jnp.stack([to_pixels(L1), to_pixels(L2), to_pixels(src)])
    img = convolve(img) if use_psf else img
    return jnp.concatenate([img, jnp.ones((1, N, N))])


def make_loglik(use_psf=True, white=True):
    wfun = whiten if white else (lambda r: r)

    def loglik(th, s=1.0):
        """log p(image | nonlinear parameters, noise scale s), the 4 amplitudes integrated out; and the amplitudes."""
        B = components(th, use_psf)
        A = jax.vmap(wfun)(B / SIG_J).reshape(4, -1).T
        b = wfun(D_J / SIG_J).ravel()
        FtF = A.T @ A
        amp = jnp.linalg.solve(FtF, A.T @ b)
        r = b - A @ amp
        return -0.5 * (r @ r) / s**2 - (N * N - 4) * jnp.log(s) - 0.5 * jnp.linalg.slogdet(FtF)[1], amp

    return loglik


loglik = make_loglik()


def model_image(th, amp, use_psf=True):
    return np.asarray(jnp.tensordot(amp, components(th, use_psf), 1))

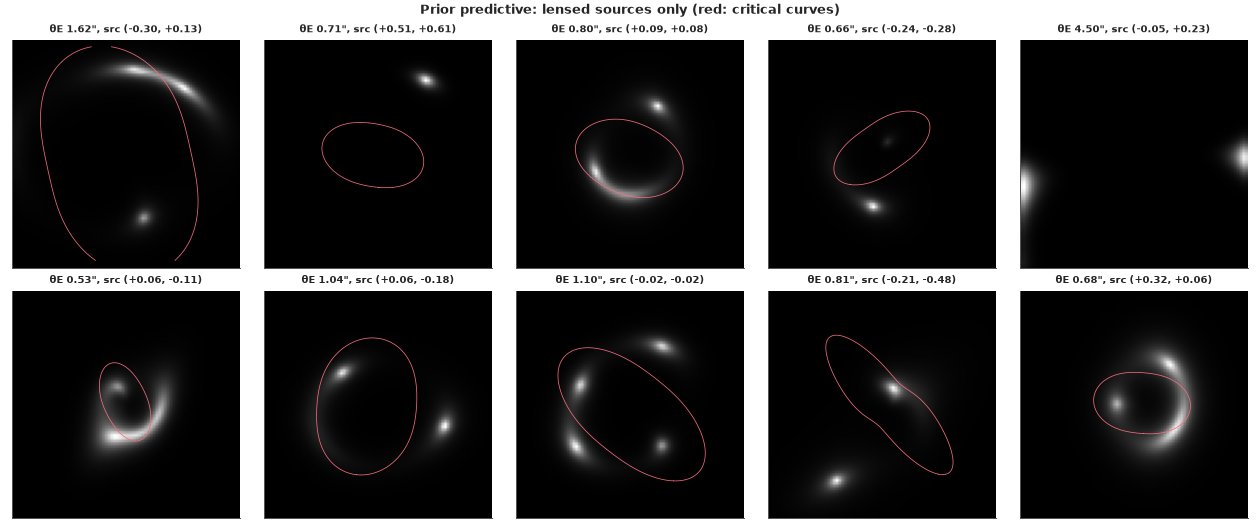

#Prior predictive check: what do the priors say an image looks like?

The priors (written out in the PyMC model below) say: the lens galaxy's light and mass are centred within about 0.1" of the brightest pixel; $\theta_E$ is log-normal around 1" with a factor of ~1.6 spread; mass ellipticity components have sd 0.2 and shear components 0.05; the source sits within about 0.3" of the lens axis (SLACS selected galaxies with a background galaxy in the same 3" spectroscopic fibre, so it is close), with a size around 0.2". Before fitting anything we draw lenses and sources from these priors and look at the lensed source alone:

def prior_draw(r):
    th = np.array([0, 0, 0.4, 1.2, 2.5, 0.6, -0.1, 0, -0.03, -0.02,
                   np.exp(r.normal(0, 0.5)), *r.normal(0, 0.2, 2), *r.normal(0, 0.1, 2), *r.normal(0, 0.05, 2),
                   np.exp(r.normal(np.log(0.2), 0.5)), r.uniform(0.5, 4), *r.normal(0, 0.2, 2), *r.normal(0, 0.3, 2)])
    th[11:13] = np.clip(th[11:13], -0.6, 0.6)
    return th


fig, axs = plt.subplots(2, 5, figsize=(14, 5.8))
r_prior = np.random.default_rng(RANDOM_SEED)
for ax in axs.flat:
    th = prior_draw(r_prior)
    img = np.asarray(components(jnp.asarray(th))[2])
    ax.imshow(img, origin="lower", cmap="gray", extent=EXT)
    crit, caus, cut = critical_and_caustics(th[MASS])
    for ln in crit:
        ax.plot(ln[:, 0], ln[:, 1], color="C1", lw=0.6)
    ax.set_title(f"θE {th[10]:.2f}\", src ({th[21]:+.2f}, {th[22]:+.2f})", fontsize=8)
    ax.set_xticks([])
    ax.set_yticks([])
fig.suptitle("Prior predictive: lensed sources only (red: critical curves)", fontsize=10)
show_jpeg(fig)

The prior allows everything from a single distorted image (a source far from the axis, or a lens too light to make multiple images) through arcs and pairs of images to near-complete rings, and Einstein radii from 0.5" to over 4". The data will have to pick. (The lens light and the amplitudes are not part of this picture; the amplitudes have flat priors and are integrated out.)

#C. A model for every pixel

#Finding the mode - and the wrong modes

A lens posterior has many local optima: the source can sit on the wrong side of a caustic, the lens centre can drift to put a ring through a different set of pixels, the lens light can absorb part of the ring. First, the naive approach: maximise the likelihood from six starting points - the lens light always from the same rough guess, the lens mass and the source drawn from the prior - with L-BFGS on JAX gradients (the optimiser's box bounds are wide versions of the priors).

BOUNDS = ([(-0.2, 0.2)] * 2 + [(0.02, 3.0), (0.3, 10.0), (0.5, 8.0), (0.5, 8.0)] + [(-0.5, 0.5)] * 4 + [(0.5, 2.5)]
          + [(-0.5, 0.5)] * 2 + [(-0.2, 0.2)] * 2 + [(-0.2, 0.2)] * 2 + [(0.01, 1.0), (0.5, 8.0)] + [(-0.6, 0.6)] * 4)


def fd_hessian(value_grad, x, rel=1e-4):
    """Hessian by central differences of an exact (JAX) gradient: one gradient's memory, not 2n of them."""
    x = np.asarray(x, float)
    Hm = np.zeros((len(x), len(x)))
    for i in range(len(x)):
        e = np.zeros_like(x)
        e[i] = rel * max(abs(x[i]), 1.0)
        Hm[i] = (np.asarray(value_grad(x + e)[1]) - np.asarray(value_grad(x - e)[1])) / (2 * e[i])
    return (Hm + Hm.T) / 2


def maximise(fun_value_grad, th0):
    return optimize.minimize(lambda p: tuple(np.asarray(v) for v in fun_value_grad(p)), th0, jac=True,
                             method="L-BFGS-B", bounds=BOUNDS, options={"maxiter": 3000})


neg_ll = jax.jit(jax.value_and_grad(lambda p: -loglik(p)[0]))
tic = time.time()
starts, fits = [], []
r_start = np.random.default_rng(RANDOM_SEED + 1)
for k in range(6):
    th0 = prior_draw(r_start)
    th0[:10] = [0.0, 0.0, 0.4, 1.5, 2.0, 1.0, -0.05, 0.01, -0.05, 0.01]
    th0 = np.clip(th0, [b[0] + 1e-3 for b in BOUNDS], [b[1] - 1e-3 for b in BOUNDS])
    starts.append(th0)
    fits.append(maximise(neg_ll, th0))


def start_table(starts, fits):
    tab = pd.DataFrame({"start θE": [s[10] for s in starts], "start src x": [s[21] for s in starts],
                        "start src y": [s[22] for s in starts], "θE": [f.x[10] for f in fits],
                        "mass x": [f.x[13] for f in fits], "mass y": [f.x[14] for f in fits],
                        "src x": [f.x[21] for f in fits], "src y": [f.x[22] for f in fits],
                        "src R": [f.x[17] for f in fits], "-log L": [f.fun for f in fits]})
    return tab


tab_random = start_table(starts, fits)
print(tab_random.round(3).to_string())
print(f"six optimisations from random starts: {time.time() - tic:.0f} s")

   start θE  start src x  start src y     θE  mass x  mass y  src x  src y  src R     -log L
0     1.327        0.412        0.096  1.529   0.015   0.196  0.000  0.320  0.083   5740.265
1     0.501        0.169       -0.177  0.672   0.041   0.023  0.002  0.003  0.911   7679.905
2     2.499        0.174        0.285  1.973   0.200   0.200  0.374  0.600  0.162   6518.964
3     1.614       -0.072       -0.103  1.758   0.016   0.200 -0.016 -0.159  0.281   7919.264
4     0.501        0.445        0.035  0.588   0.065  -0.037  0.379 -0.015  0.676  10067.867
5     1.629        0.082       -0.231  1.216  -0.064  -0.200 -0.041 -0.117  1.000   3365.993
six optimisations from random starts: 19 s

Every random start ends in a wrong optimum, 780 to 7,500 log-likelihood units below the best fit we find next. The closest (start 5) has about the right Einstein radius, but its mass centre ran into the edge of the allowed box (0.2" south of the light) and its "source" is a huge, faint blob (the upper bound on its size). The others found rings of the wrong size or put the lens far off-centre. A factor $e^{-780}$ is not a competing explanation - but an optimiser, or a sampler chain, that starts there never finds out.

#A staged start

Lens modellers do not start blind. They build the starting point in stages, each an easy problem:

1. Fit the lens galaxy's light alone, with the ring's annulus (0.8-1.7" from the centre) masked out - here by giving those pixels a huge noise.
2. Read the Einstein radius off the ring: in the image with that light model subtracted, the azimuthally averaged brightness peaks at the ring's radius, which for an isothermal lens is close to $\theta_E$.
3. Start the lens mass at the light's centre, round, with that $\theta_E$ and no shear, and the source small, near the axis - from a handful of positions, to see whether they agree.

tic = time.time()
in_ring = (np.hypot(*(np.indices((N, N)) - h)) * PIX > 0.8) & (np.hypot(*(np.indices((N, N)) - h)) * PIX < 1.7)
SIG_MASKED = jnp.asarray(np.where(in_ring, 1e3, sig))


def light_only_loglik(p):
    th = jnp.concatenate([p, jnp.asarray(TH_DUMMY_REST)])
    B = components(th)[jnp.array([0, 1, 3])]
    A = jax.vmap(whiten)(B / SIG_MASKED).reshape(3, -1).T
    b = whiten(D_J / SIG_MASKED).ravel()
    amp = jnp.linalg.solve(A.T @ A, A.T @ b)
    r = b - A @ amp
    return -0.5 * (r @ r), amp


TH_DUMMY_REST = np.array([1.0, 0.01, 0.01, 0, 0, 0, 0, 0.1, 1.0, 0.01, 0.01, 0, 0])   # mass/source: unused
vg_light = jax.jit(jax.value_and_grad(lambda p: -light_only_loglik(p)[0]))
fit_light = optimize.minimize(lambda p: tuple(np.asarray(v) for v in vg_light(p)),
                              np.array([0.0, 0.0, 0.4, 1.5, 2.0, 1.0, -0.05, 0.01, -0.05, 0.01]), jac=True,
                              method="L-BFGS-B", bounds=BOUNDS[:10])
LIGHT0 = fit_light.x
amp_l = np.asarray(light_only_loglik(jnp.asarray(LIGHT0))[1])
B_l = np.asarray(components(jnp.asarray(np.r_[LIGHT0, TH_DUMMY_REST])))[[0, 1, 3]]
sub0 = sci - np.tensordot(amp_l, B_l, 1)
rbin = np.arange(0.5, 1.9, 0.05)
rpix = np.hypot(*(np.indices((N, N)) - h)) * PIX
prof = np.array([sub0[(rpix >= r) & (rpix < r + 0.05)].mean() for r in rbin])
TE0 = rbin[np.argmax(prof)] + 0.025
print(f"stage 1-2: light fitted in {time.time() - tic:.0f} s; the ring's mean brightness peaks at r = {TE0:.3f}\"")

staged_starts, staged_fits = [], []
for sx, sy in [(0.0, 0.0), (0.15, 0.0), (-0.15, 0.0), (0.0, 0.15), (0.0, -0.15)]:
    th0 = np.r_[LIGHT0, TE0, 0.01, 0.01, LIGHT0[0], LIGHT0[1], 0.0, 0.0, 0.1, 1.0, 0.01, 0.01, sx, sy]
    staged_starts.append(th0)
    staged_fits.append(maximise(neg_ll, th0))
tab_staged = start_table(staged_starts, staged_fits)
best_all = min(tab_random["-log L"].min(), tab_staged["-log L"].min())
for t_ in (tab_random, tab_staged):
    t_["Δ(-log L) vs best"] = t_["-log L"] - best_all
print(tab_staged.round(3).to_string())
print(f"random starts, Δ(-log L) vs the best staged fit: {np.round(tab_random['Δ(-log L) vs best'].to_numpy(), 0)}")
print(f"stage 3: five optimisations, {time.time() - tic:.0f} s in all")
TH_ML = staged_fits[int(np.argmin([f.fun for f in staged_fits]))].x

stage 1-2: light fitted in 1 s; the ring's mean brightness peaks at r = 1.225"

   start θE  start src x  start src y     θE  mass x  mass y  src x  src y  src R    -log L  Δ(-log L) vs best
0     1.225         0.00         0.00  1.219  -0.062  -0.200 -0.037 -0.110  0.346  3395.599            809.625
1     1.225         0.15         0.00  1.223  -0.002  -0.006 -0.032 -0.156  0.136  2585.975              0.000
2     1.225        -0.15         0.00  1.223  -0.002  -0.006 -0.032 -0.156  0.136  2585.975              0.000
3     1.225         0.00         0.15  1.223  -0.002  -0.006 -0.032 -0.156  0.136  2585.975              0.000
4     1.225         0.00        -0.15  1.223  -0.002  -0.006 -0.032 -0.156  0.136  2585.976              0.002
random starts, Δ(-log L) vs the best staged fit: [3154. 5094. 3933. 5333. 7482.  780.]
stage 3: five optimisations, 7 s in all

The light fit and the ring's radius (1.225", from the azimuthal profile) put the start in the right neighbourhood, and four of the five source positions converge to the same optimum, with $\theta_E = 1.223"$ and the mass centred on the light. The fifth - the source started exactly on the lens axis - slid into a wrong mode much like the best random start's (mass centre at the box edge), 810 units worse. Even a good staged start needs a few restarts, and the one with the highest likelihood is the one to keep; every sampler chain below starts there.

Let us look at the best fit, and at the image with the model of the lens galaxy's light subtracted.

ll_ml, amp_ml = loglik(jnp.asarray(TH_ML))
amp_ml = np.asarray(amp_ml)
B_ml = np.asarray(components(jnp.asarray(TH_ML)))
light_ml = amp_ml[0] * B_ml[0] + amp_ml[1] * B_ml[1] + amp_ml[3] * B_ml[3]
model_ml = light_ml + amp_ml[2] * B_ml[2]
print("amplitudes (e-/s at the half-light radius; constant in e-/s):",
      ", ".join(f"{k} {v:.4f}" for k, v in zip(["light1", "light2", "source", "constant"], amp_ml)))


def panels(d, m, s, title, light=None):
    ncol = 4 if light is not None else 3
    fig, axs = plt.subplots(1, ncol, figsize=(4 * ncol, 4))
    kw = dict(origin="lower", extent=EXT)
    axs[0].imshow(d, cmap="gray", vmin=-0.02, vmax=0.5, **kw)
    axs[0].set_title("data")
    axs[1].imshow(m, cmap="gray", vmin=-0.02, vmax=0.5, **kw)
    axs[1].set_title("model")
    im = axs[2].imshow((d - m) / s, cmap="RdBu_r", vmin=-4, vmax=4, **kw)
    axs[2].set_title("(data - model) / σ")
    fig.colorbar(im, ax=axs[2], shrink=0.8)
    if light is not None:
        axs[3].imshow(d - light, cmap="gray", vmin=-0.03, vmax=0.3, **kw)
        axs[3].set_title("data - lens light model")
    for ax in axs:
        ax.set_xticks([-1.5, 0, 1.5])
        ax.set_yticks([-1.5, 0, 1.5])
    fig.suptitle(title, fontsize=10)
    return fig


show_jpeg(panels(sci, model_ml, sig, "best fit: SIE + shear, Sérsic source, PSF, correlated noise", light_ml))

amplitudes (e-/s at the half-light radius; constant in e-/s): light1 1.0165, light2 0.1261, source 0.0918, constant 0.0605

The model reproduces the ring - including its brighter northern knot and the south-eastern arc - and the residuals are close to noise, with a little structure left at the centre of the lens galaxy (two Sérsics are not a perfect description of a giant elliptical's core) and faint arcs along the ring (a real galaxy is not a smooth Sérsic; Part D relaxes that). The lens-subtracted image (right) shows the ring clean: note how much of it was hidden under the lens galaxy's light.

#Failure 1: forgetting the telescope

What if we skip the PSF convolution - the model image is the sharp one?

loglik_nopsf = make_loglik(use_psf=False)
fit_nopsf = maximise(jax.jit(jax.value_and_grad(lambda p: -loglik_nopsf(p)[0])), TH_ML)
TH_NOPSF = fit_nopsf.x
amp_np = np.asarray(loglik_nopsf(jnp.asarray(TH_NOPSF))[1])
model_np = model_image(TH_NOPSF, amp_np, use_psf=False)
print(f"no PSF: -log L = {fit_nopsf.fun:.0f} vs {-float(ll_ml):.0f} with the PSF "
      f"(worse by {fit_nopsf.fun + float(ll_ml):.0f})")
print(f"theta_E {TH_NOPSF[10]:.3f} vs {TH_ML[10]:.3f}\"; source half-light radius {TH_NOPSF[17]:.3f} vs {TH_ML[17]:.3f}\"; "
      f"source Sersic n {TH_NOPSF[18]:.2f} vs {TH_ML[18]:.2f}")

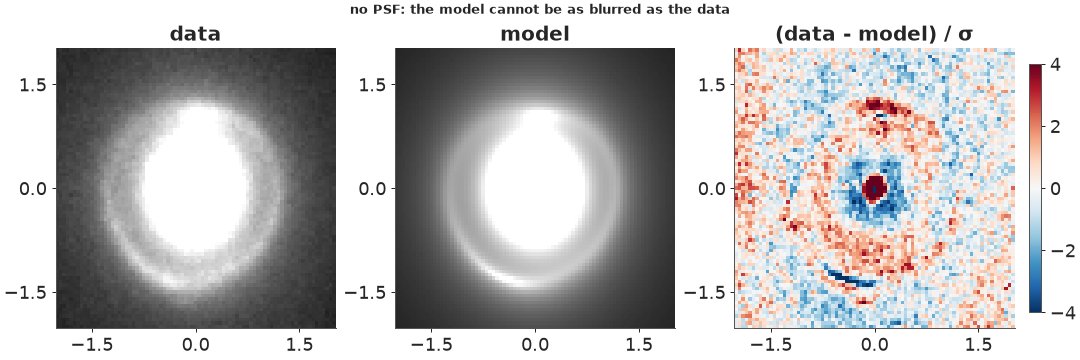

show_jpeg(panels(sci, model_np, sig, "no PSF: the model cannot be as blurred as the data"))

no PSF: -log L = 4658 vs 2586 with the PSF (worse by 2072)
theta_E 1.212 vs 1.223"; source half-light radius 0.472 vs 0.136"; source Sersic n 1.79 vs 0.86

Without the PSF the fit is worse by about 2,000 log-likelihood units, and it shows: the centre of the lens galaxy leaves a strong positive core ringed by negative residuals (a sharp model cannot match a blurred core and its surroundings at once), and the ring leaves paired residuals along its edges. The fit compensates by making the source three to four times larger (to blur the ring the way the PSF would) - a badly biased picture of the background galaxy. The Einstein radius moves far less, by 1% (0.011"): it is set mainly by where the ring is, and a symmetric blur hardly moves that. But 1% is about nine times the posterior sd we find below, so it is a bias, not noise. That pattern - robust $\theta_E$, fragile everything else - will come back.

#Failure 2: independent pixels

The likelihood above whitens the correlated noise. Treating pixels as independent is a one-word change. Here we compare the two by the curvature of the log-likelihood at the optimum (a Laplace approximation), which is cheap and good enough for the question "how wide":

loglik_indep = make_loglik(white=False)
fit_indep = maximise(jax.jit(jax.value_and_grad(lambda p: -loglik_indep(p)[0])), TH_ML)
sds = {}
for lab, f, x in [("whitened (correlated noise)", loglik, TH_ML), ("independent pixels", loglik_indep, fit_indep.x)]:
    Hs = fd_hessian(jax.jit(jax.value_and_grad(lambda p: -f(p)[0])), x)
    sds[lab] = np.sqrt(np.diag(np.linalg.inv(Hs)))
sd_tab = pd.DataFrame(sds, index=NAMES).loc[["theta_E", "e1_mass", "e2_mass", "gamma1", "gamma2", "x_mass", "R_src"]]
sd_tab["ratio"] = sd_tab.iloc[:, 0] / sd_tab.iloc[:, 1]
print(sd_tab.round(4))

         whitened (correlated noise)  independent pixels   ratio
theta_E                       0.0014              0.0009  1.4241
e1_mass                       0.0045              0.0031  1.4240
e2_mass                       0.0049              0.0034  1.4248
gamma1                        0.0026              0.0018  1.4185
gamma2                        0.0031              0.0022  1.4244
x_mass                        0.0022              0.0016  1.4310
R_src                         0.0042              0.0030  1.4082

Treating the pixels as independent gives error bars that are too small by a factor of about 1.4 - close to $\sqrt{2.1}$, the square root of the summed noise correlation measured in Part A. The best fit hardly changes. This is a failure that no residual plot shows: the model fits equally well; only its uncertainty is wrong.

#The posterior with NUTS

Now the full model in PyMC. The likelihood is the JAX function above, wrapped with pytensor.wrap_jax so PyMC gets values and gradients from JAX; the priors are ordinary PyMC distributions. Sampling runs through nutpie with the model compiled to JAX. Lens models have strongly correlated parameters (the ellipticity of the mass trades off against the external shear; the lens centre against the source position; the source's size against its Sérsic index), so we use nutpie's low-rank mass-matrix adaptation, which learns the main correlation directions during warm-up. All chains start at the best optimum, with nutpie's random start jitter switched off: one unit of jitter on the unconstrained scale would throw a chain into a wrong mode.

@wrap_jax
def image_loglik(th, s):
    return loglik(th, s)[0]


with pm.Model() as lens_model:
    xy_light = pm.Normal("xy_light", 0.0, 0.1, shape=2)
    R_light = pm.LogNormal("R_light", np.log([0.5, 1.5]), 1.0, shape=2)
    n_light = pm.Uniform("n_light", 0.5, 8.0, shape=2)
    e_light = pm.Normal("e_light", 0.0, 0.2, shape=(2, 2))
    theta_E = pm.LogNormal("theta_E", 0.0, 0.5)
    e_mass = pm.Normal("e_mass", 0.0, 0.2, shape=2)
    xy_mass = pm.Normal("xy_mass", 0.0, 0.1, shape=2)
    shear = pm.Normal("shear", 0.0, 0.05, shape=2)
    R_src = pm.LogNormal("R_src", np.log(0.2), 0.5)
    n_src = pm.Uniform("n_src", 0.5, 8.0)
    e_src = pm.Normal("e_src", 0.0, 0.2, shape=2)
    xy_src = pm.Normal("xy_src", 0.0, 0.3, shape=2)
    noise_scale = pm.LogNormal("noise_scale", 0.0, 0.2)
    th = pt.stack([xy_light[0], xy_light[1], R_light[0], R_light[1], n_light[0], n_light[1], e_light[0, 0],
                   e_light[0, 1], e_light[1, 0], e_light[1, 1], theta_E, e_mass[0], e_mass[1], xy_mass[0],
                   xy_mass[1], shear[0], shear[1], R_src, n_src, e_src[0], e_src[1], xy_src[0], xy_src[1]])
    pm.Potential("image", image_loglik(pt.specify_shape(th, (23,)), noise_scale))


def as_initvals(x):
    x = np.asarray(x, float).copy()
    x[4:6] = np.clip(x[4:6], 0.52, 7.9)
    x[18] = np.clip(x[18], 0.52, 7.9)
    return {"xy_light": x[0:2], "R_light": x[2:4], "n_light": x[4:6], "e_light": x[6:10].reshape(2, 2),
            "theta_E": x[10], "e_mass": x[11:13], "xy_mass": x[13:15], "shear": x[15:17], "R_src": x[17],
            "n_src": x[18], "e_src": x[19:21], "xy_src": x[21:23], "noise_scale": 0.9}


tic = time.time()
with lens_model:
    idata = pm.sample(draws=600, tune=400, chains=4, initvals=as_initvals(TH_ML), random_seed=RANDOM_SEED,
                      progressbar=False, nuts={"adaptation": "low_rank"}, target_accept=0.9,
                      compile_kwargs={"backend": "jax", "gradient_backend": "jax", "jitter_rvs": set()})
print(f"NUTS: {time.time() - tic:.0f} s; warm-up {idata.posterior.attrs.get('tuning_steps')} steps")
ss = idata.sample_stats
div = ss["diverging"].values.ravel()
n2 = idata.posterior["n_light"].values[..., 1].ravel()
print(f"divergences {int(div.sum())}; tree depth counts {np.bincount(ss['depth'].values.ravel())}")
print(f"n_light[1] at divergent draws: {np.round(n2[div], 3)}; its 5% quantile over all draws: {np.quantile(n2, 0.05):.3f}")
summ = pd.concat([az.summary(idata, var_names=[v], round_to=4) for v in
                  ["theta_E", "e_mass", "shear", "xy_mass", "xy_light", "R_src", "n_src", "xy_src", "n_light",
                   "noise_scale"]])
print(summ[["mean", "sd", "ess_bulk", "ess_tail", "r_hat"]])
rh = az.rhat(idata).to_dataset().to_dataarray().max().item()
print(f"largest r_hat over all parameters: {rh:.3f}")

NUTS: 146 s; warm-up 400 steps
divergences 1; tree depth counts [   0    0    0  671 1728    1]
n_light[1] at divergent draws: [0.568]; its 5% quantile over all draws: 0.501
               mean      sd   ess_bulk   ess_tail   r_hat
theta_E      1.2231  0.0012  3869.6304  1431.4952  0.9995
e_mass[0]   -0.0874  0.0041  3599.3346  1434.5374  1.0014
e_mass[1]   -0.0043  0.0041  3785.4264  1977.9496  1.0036
shear[0]    -0.0256  0.0023  3740.9273  1697.2749  1.0012
shear[1]     0.0049  0.0026  3735.2629  2034.1129  1.0022
xy_mass[0]  -0.0022  0.0020  4541.0701  2045.8072  1.0022
xy_mass[1]  -0.0056  0.0029  2921.6762  1690.7274  1.0041
xy_light[0] -0.0045  0.0002  3735.7114  1945.0228  1.0006
xy_light[1] -0.0153  0.0003  3359.8493  1945.1408  1.0003
R_src        0.1380  0.0036  2778.7756  1713.5132  0.9999
n_src        0.8728  0.0390  3305.6225  1504.6831  1.0002
xy_src[0]   -0.0324  0.0020  3902.4052  1537.4665  1.0019
xy_src[1]   -0.1554  0.0019  3746.7820  1664.7318  1.0037
n_light[0]   2.4375  0.0390  2624.0216  1726.4767  1.0054
n_light[1]   0.5185  0.0156   689.7566   546.7532  1.0024
noise_scale  0.8850  0.0079  3864.9382  1791.6890  1.0026
largest r_hat over all parameters: 1.007

The sampler is healthy. We raised target_accept to 0.9 after a first run at the default 0.8 gave a handful of divergences; now there is a single divergence in 2,400 draws, at an unremarkable point (not at the Sérsic-index bound we first suspected: the check is printed). Trees have depth 3-4 (7-15 gradient evaluations per draw: the low-rank mass matrix has absorbed most of the correlations), $\hat R \le 1.01$ everywhere, and effective sample sizes are in the thousands - except the second light component's index, which still has several hundred. Some things to read off:

• $\theta_E = 1.2231"$ with a posterior sd of 0.0012" - a 0.1% measurement from one image. That is the statistical uncertainty given this model; Part D shows a different source model moving it by twice that.
• The mass is flattened ($e_1 \approx -0.087$, i.e. axis ratio $q \approx 0.84$) with a small external shear (about 0.026); the mass centre is within 0.01" (a fifth of a pixel) of the light centre - we did not force them to coincide.
• The noise scale is 0.885: our noise map overestimated the noise by about 13%. The likely culprit is the photon term: drizzling averages each output pixel over several input pixels, which lowers its own photon noise just as it lowered the sky's.
• The source is compact (half-light radius 0.14", Sérsic $n \approx 0.87$, close to an exponential disc) and sits 0.15" south of the lens centre.
• The second lens-light component sits at the lower bound of its Sérsic index ($n = 0.5$, a Gaussian): it acts as a broad, flat-topped halo. It is a nuisance description, and the bound is harmless.

#Posterior predictive check

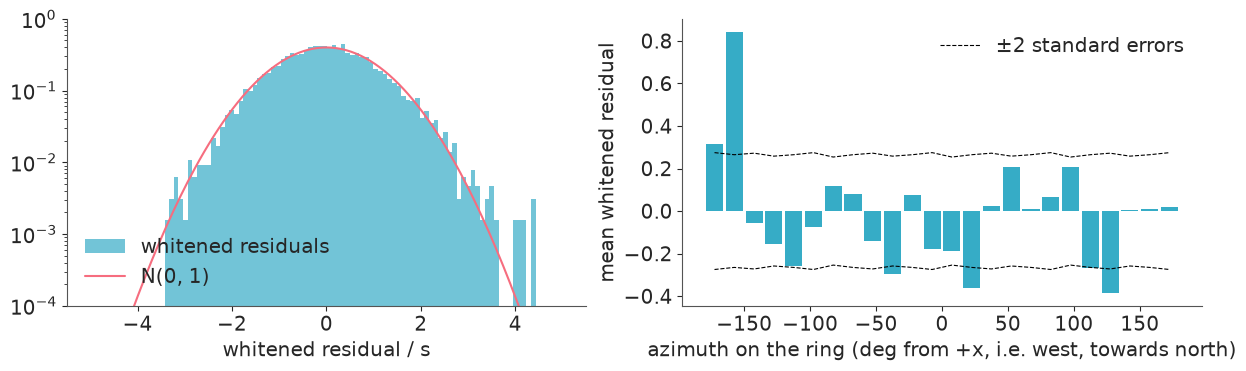

In a whitened, correctly specified model, the whitened residuals are independent $N(0, s^2)$. We check their distribution and look for structure by azimuthal sector along the ring, where a wrong lens would leave systematic residuals.

def draws_matrix(idata, n=None, seed=RANDOM_SEED):
    """Posterior draws as an (n, 23) matrix in the order of NAMES (plus the noise scale)."""
    p = idata.posterior
    stack = lambda v: p[v].values.reshape(p.sizes["chain"] * p.sizes["draw"], -1)
    M = np.column_stack([stack("xy_light"), stack("R_light"), stack("n_light"), stack("e_light"), stack("theta_E"),
                         stack("e_mass"), stack("xy_mass"), stack("shear"), stack("R_src"), stack("n_src"),
                         stack("e_src"), stack("xy_src")])
    s = stack("noise_scale")[:, 0]
    if n is not None:
        idx = np.random.default_rng(seed).choice(len(M), n, replace=False)
        M, s = M[idx], s[idx]
    return M, s


TH_ALL, S_ALL = draws_matrix(idata)
TH_MEAN = TH_ALL.mean(axis=0)
S_MED = float(np.median(S_ALL))
amp_mean = np.asarray(loglik(jnp.asarray(TH_MEAN), S_MED)[1])
model_mean = model_image(TH_MEAN, amp_mean)
B_mean = np.asarray(components(jnp.asarray(TH_MEAN)))
light_mean = amp_mean[0] * B_mean[0] + amp_mean[1] * B_mean[1] + amp_mean[3] * B_mean[3]
wres = whiten_np((sci - model_mean) / sig) / S_MED
yy, xx = (np.indices((N, N)) - h) * PIX
rad, azi = np.hypot(xx, yy), np.degrees(np.arctan2(yy, xx))
on_ring = (rad > 1.0) & (rad < 1.45)

fig, axs = plt.subplots(1, 2, figsize=(12, 3.6))
axs[0].hist(wres.ravel(), bins=80, density=True, color="C0", alpha=0.7, label="whitened residuals")
z = np.linspace(-5, 5, 200)
axs[0].plot(z, np.exp(-z**2 / 2) / np.sqrt(2 * np.pi), color="C1", label="N(0, 1)")
axs[0].set(yscale="log", ylim=(1e-4, 1), xlabel="whitened residual / s")
axs[0].legend()
sect = np.arange(-180, 181, 15)
mres = [wres[on_ring & (azi >= a) & (azi < a + 15)].mean() for a in sect[:-1]]
nsec = [np.sum(on_ring & (azi >= a) & (azi < a + 15)) for a in sect[:-1]]
axs[1].bar(sect[:-1] + 7.5, mres, width=13, color="C0")
axs[1].plot(sect[:-1] + 7.5, 2 / np.sqrt(nsec), "k--", lw=0.8)
axs[1].plot(sect[:-1] + 7.5, -2 / np.sqrt(nsec), "k--", lw=0.8, label="±2 standard errors")
axs[1].set(xlabel="azimuth on the ring (deg from +x, i.e. west, towards north)", ylabel="mean whitened residual")
axs[1].legend()
plt.show()
print(f"whitened residuals: sd {wres.std():.3f}, fraction beyond ±4: {np.mean(np.abs(wres) > 4):.4f} "
      f"(normal: {2 * 3.17e-5:.4f}); ring sectors outside ±2 SE: {np.sum(np.abs(mres) > 2 / np.sqrt(nsec))} of {len(mres)}")

whitened residuals: sd 0.998, fraction beyond ±4: 0.0006 (normal: 0.0001); ring sectors outside ±2 SE: 6 of 24

The whitened residuals have unit spread and a normal core; their tails are heavier than normal (0.06% of pixels beyond ±4 against 0.006% expected) - a few pixels at the lens galaxy's centre and on the ring. Along the ring, 6 of 24 sectors are more than two standard errors from zero where about one would be by chance: the east side (azimuths -150 to -180 degrees) is brighter than the model, and sectors to the north-east, west-north-west and south-west are fainter. The lens may be fine; the source is not a smooth Sérsic ellipse. That is the next part.

#D. What does the background galaxy look like? A pixelated source

A Sérsic profile is a smooth, symmetric blob. The residual arcs along the ring say the real source has more structure. The standard remedy (Warren & Dye 2003; Suyu et al. 2006) is to describe the source by the brightness in each pixel of a grid in the source plane - here 30 x 30 pixels of 0.031" over a 0.9" box around the source - and let the data decide.

For a fixed lens, each source pixel maps to a fixed pattern of image pixels (ray tracing, bilinear interpolation, PSF, whitening): the image is linear in the source, $\mathbf d = \mathbf F\mathbf s + \text{noise}$. With 900 source pixels and a few thousand image pixels on the ring, the least-squares solution would fit the noise, so the source gets a Gaussian prior that prefers smoothness,

$$p(\mathbf s\mid\lambda) \propto \exp\left(-\tfrac{\lambda}{2}\,\mathbf s^\top\mathbf H\,\mathbf s\right),$$

where $\mathbf s^\top\mathbf H\mathbf s$ is a sum of squared differences between neighbouring pixels ("gradient" regularisation) or of squared discrete Laplacians ("curvature"). Prior and likelihood are both Gaussian, so everything is exact:

• the source posterior is Gaussian, with precision $\mathbf A = \mathbf F^\top\mathbf F + \lambda\mathbf H$ and mean $\hat{\mathbf s} = \mathbf A^{-1}\mathbf F^\top\mathbf d$;
• the source can be integrated out, giving the marginal likelihood - the evidence - of the lens parameters and $\lambda$:

$$\log p(\mathbf d\mid\text{lens}, \lambda) = -\tfrac12\|\mathbf d - \mathbf F\hat{\mathbf s}\|^2 - \tfrac{\lambda}{2}\hat{\mathbf s}^\top\mathbf H\hat{\mathbf s} - \tfrac12\log\det\mathbf A + \tfrac12\log\det(\lambda\mathbf H) + \text{const}.$$

The evidence balances fit against the prior volume, and so chooses $\lambda$ - and the form of $\mathbf H$ - without any held-out data. It is also a smooth function of the lens parameters, so the lens can be refitted with the source marginalised: that is "using the full image" in its purest form. We keep the lens light fixed at the posterior mean from Part C and use the image pixels in an annulus 0.6-1.9" from the centre (after whitening; the whitened residuals are independent, so a subset of them is still a proper likelihood). The noise map is scaled by the posterior median of $s$.

G, HW = 30, 0.45                                     # source grid: G x G pixels over +-HW arcsec
SRC_C = TH_MEAN[21:23].copy()                        # centred on the Sersic source
DP = 2 * HW / (G - 1)
SRC_AX = SRC_C[0] - HW + DP * np.arange(G), SRC_C[1] - HW + DP * np.arange(G)
ANNULUS = (rad > 0.6) & (rad < 1.9)
MI = np.nonzero(ANNULUS.ravel())[0]
PIX_OF_RAY = jnp.asarray(((np.arange(N * SUB)[:, None] // SUB) * N + (np.arange(N * SUB)[None, :] // SUB)).ravel())
SIG_S = jnp.asarray(sig * S_MED)


def reg_matrix(kind):
    I = np.eye(G)
    if kind == "gradient":                   # differences to the right/up neighbour (zero outside the grid)
        Dm = np.eye(G) - np.eye(G, k=1)
    elif kind == "curvature":                # discrete second differences
        Dm = 2 * np.eye(G) - np.eye(G, k=1) - np.eye(G, k=-1)
    else:
        return np.eye(G * G)
    Dx, Dy = np.kron(I, Dm), np.kron(Dm, I)
    return Dx.T @ Dx + Dy.T @ Dy


def response(mass):
    """F: whitened image-pixel response (annulus pixels x G*G) to each source pixel, for a given lens."""
    ax, ay = deflection(XS, YS, mass)
    u = ((XS - ax).ravel() - SRC_AX[0][0]) / DP
    v = ((YS - ay).ravel() - SRC_AX[1][0]) / DP
    i0, j0 = jnp.floor(u), jnp.floor(v)
    fu, fv = u - i0, v - j0
    i0, j0 = i0.astype(int), j0.astype(int)
    M = jnp.zeros((N * N, G * G))
    for di, dj, w in [(0, 0, (1 - fu) * (1 - fv)), (1, 0, fu * (1 - fv)), (0, 1, (1 - fu) * fv), (1, 1, fu * fv)]:
        ii, jj = i0 + di, j0 + dj
        ok = (ii >= 0) & (ii < G) & (jj >= 0) & (jj < G)
        M = M.at[PIX_OF_RAY, jnp.where(ok, jj * G + ii, 0)].add(jnp.where(ok, w, 0.0) / SUB**2)
    cols = convolve(M.T.reshape(G * G, N, N)) / SIG_S
    return jax.vmap(whiten)(cols).reshape(G * G, N * N)[:, MI].T


def data_vector(light):
    return jnp.asarray(whiten_np((sci - light) / (sig * S_MED)).ravel()[MI])


def evidence(mass, log_lam, H, dvec):
    F = response(mass)
    lam = jnp.exp(log_lam)
    A = F.T @ F + lam * H
    L = jnp.linalg.cholesky(A)
    s = jax.scipy.linalg.cho_solve((L, True), F.T @ dvec)
    r = dvec - F @ s
    logdet_A = 2 * jnp.sum(jnp.log(jnp.diag(L)))
    logdet_lH = jnp.linalg.slogdet(H)[1] + H.shape[0] * log_lam
    return -0.5 * (r @ r) - 0.5 * lam * (s @ H @ s) - 0.5 * logdet_A + 0.5 * logdet_lH, s, L


evidence_j = jax.jit(evidence)
D_VEC = data_vector(light_mean)
MASS_MEAN = TH_MEAN[MASS]
HS = {k: jnp.asarray(reg_matrix(k)) for k in ["identity", "gradient", "curvature"]}
LOG_LAMS = np.arange(-2, 12.1, 0.5)
tic = time.time()
ev_curves = {k: np.array([float(evidence_j(MASS_MEAN, ll_, H, D_VEC)[0]) for ll_ in LOG_LAMS]) for k, H in HS.items()}
print(f"evidence on a grid of lambda, three regularisations: {time.time() - tic:.0f} s")
best_reg = {k: (LOG_LAMS[np.argmax(v)], v.max()) for k, v in ev_curves.items()}
for k, (l_, e_) in best_reg.items():
    print(f"{k:>9}: best log lambda {l_:4.1f}, log evidence {e_:9.1f}  ({e_ - best_reg['curvature'][1]:+.1f} vs curvature)")
