Part A · Is the Earth's seismicity switching between regimes?¶

#1 · Question and data

Zucchini, MacDonald & Langrock's textbook on HMMs opens with the yearly number of major (magnitude 7+) earthquakes worldwide from 1900 to 2006. That series is too variable for a Poisson distribution and strongly autocorrelated: busy years come in runs. Their answer is a Poisson HMM with two or three "activity regimes". Catalogues are revised, though. We rebuild the series from today's USGS ComCat catalogue - whose 20th-century magnitudes have since been recomputed (mostly as moment magnitudes, by the ISC-GEM project) - and extend it to 2024.

data.describe("world_quakes_m7")
quakes = data.load("world_quakes_m7")
years = np.arange(1900, 2025)
counts = quakes.time.dt.year.value_counts().reindex(years, fill_value=0).rename("quakes")
y = counts.to_numpy()
T = len(y)
print(f"{len(quakes)} events, {T} years; mean {y.mean():.1f} per year, variance {y.var(ddof=1):.1f}")
print("magnitude types:", quakes.magType.value_counts().head(4).to_dict())


def acf(x, max_lag):
    x = np.asarray(x, float) - np.mean(x)
    return np.array([1.0] + [np.sum(x[:-k] * x[k:]) / np.sum(x * x) for k in range(1, max_lag + 1)])

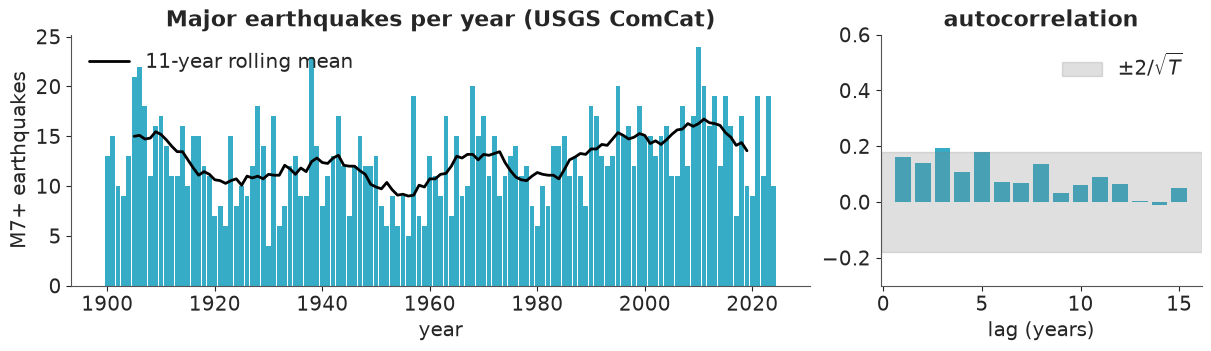

fig, axes = plt.subplots(1, 2, figsize=(12, 3.4), width_ratios=[2.3, 1])
axes[0].bar(years, y, width=0.9, color="C0")
axes[0].plot(years, counts.rolling(11, center=True).mean(), color="k", lw=2, label="11-year rolling mean")
axes[0].set(xlabel="year", ylabel="M7+ earthquakes", title="Major earthquakes per year (USGS ComCat)")
axes[0].legend(loc="upper left")
axes[1].bar(np.arange(1, 16), acf(y, 15)[1:], color="C0")
axes[1].axhspan(-2 / np.sqrt(T), 2 / np.sqrt(T), color="grey", alpha=0.25, label=r"$\pm 2/\sqrt{T}$")
axes[1].set(xlabel="lag (years)", title="autocorrelation", ylim=(-0.3, 0.6))
axes[1].legend();

world_quakes_m7: Every magnitude 7+ earthquake worldwide, 1900-2024 (1591 events): time, location, depth, magnitude and magnitude type.
  source: USGS ComCat earthquake catalogue (FDSN event web service); pre-1976 events come from the ISC-GEM / Centennial catalogues. The classic Poisson-HMM series of Zucchini, MacDonald & Langrock (2016) is the 1900-2006 count of this catalogue as it stood then.
  url:    https://earthquake.usgs.gov/fdsnws/event/1/query?format=csv&starttime=1900-01-01&endtime=2025-01-01&minmagnitude=7&orderby=time-asc
1591 events, 125 years; mean 12.7 per year, variance 17.4
magnitude types: {'mw': 989, 'mww': 202, 'mwc': 185, 'ms': 114}

The first surprise is honest and worth stating up front: the modern catalogue is much tamer than the textbook series. In the book (1900-2006) the mean is about 19 a year and the variance well over twice that, with a lag-1 autocorrelation around 0.6. Here the mean is 12.7, the variance only 17 (a Poisson variable would have 12.7), and every autocorrelation sits around 0.1-0.2, just at the edge of the white-noise band - though it stays positive for twelve lags in a row, which is what slowly switching regimes would produce. Recomputing old magnitudes moved many events below 7 and removed much of the "regime" structure. Whether any is left is exactly the kind of question a model with honest uncertainty should answer.

#2 · The model and the forward algorithm

A $K$-state Poisson HMM:

$$ \begin{aligned} s_1 &\sim \text{Categorical}(\delta), \qquad s_t \mid s_{t-1} \sim \text{Categorical}(\Gamma_{s_{t-1}, \cdot}) \\ y_t \mid s_t &\sim \text{Poisson}(\lambda_{s_t}) \end{aligned} $$

$\Gamma$ is the transition matrix (row $i$: where you go from state $i$), $\delta$ the distribution of the first state. The likelihood of the continuous parameters sums over all state paths. Define the forward variable $\alpha_t(k) = p(y_1, \dots, y_t, s_t = k)$. It obeys

$$ \alpha_1(k) = \delta_k\, p(y_1 \mid k), \qquad \alpha_t(k) = p(y_t \mid k) \sum_j \alpha_{t-1}(j)\, \Gamma_{jk}, \qquad p(y_{1:T}) = \sum_k \alpha_T(k). $$

The $\alpha$'s underflow after a few dozen steps (each is a product of $t$ probabilities), so everything is done on the log scale, where the sum over $j$ is a logsumexp. The loop over time is a pytensor.scan: sequences are sliced along their first axis (one emission row per step), outputs_info is the carried state ($\log\alpha_{t-1}$), and non_sequences are passed unchanged. The function below works for any number of leading "batch" axes (several sequences at once - we need that in Part B) and, optionally, a different transition matrix at every step.

def hmm_loglik(log_emis, log_Gamma, log_delta, time_varying=False):
    """log p(y_1..T) with the hidden states summed out (forward algorithm on the log scale).

    log_emis:  (T, ..., K)  log p(y_t | s_t = k)
    log_Gamma: (..., K, K), or (T-1, ..., K, K) with time_varying=True: row = from, column = to
    log_delta: (..., K)     log p(s_1 = k)
    returns:   (...)        one log-likelihood per sequence
    """
    def step(*args):
        if time_varying:
            log_e_t, log_G_t, log_alpha = args
        else:
            log_e_t, log_alpha, log_G_t = args
        # log alpha_t(k) = log p(y_t | k) + logsumexp_j [log alpha_{t-1}(j) + log Gamma_jk]
        return log_e_t + pt.logsumexp(log_alpha[..., :, None] + log_G_t, axis=-2)

    log_alpha_1 = log_delta + log_emis[0]
    log_alpha = pytensor.scan(
        step,
        sequences=[log_emis[1:], log_Gamma] if time_varying else [log_emis[1:]],
        outputs_info=[log_alpha_1],
        non_sequences=[] if time_varying else [log_Gamma],
        return_updates=False,
    )
    return pt.logsumexp(log_alpha[-1], axis=-1)


def poisson_hmm(K, counts, ordered=True, stay=4.0):
    """K-state Poisson HMM with the states marginalised by hmm_loglik."""
    with pm.Model(coords={"state": np.arange(K), "to": np.arange(K), "year": years[: len(counts)]}) as model:
        transform = {"transform": pm.distributions.transforms.ordered} if ordered else {}
        lam = pm.Gamma("lam", alpha=3, beta=0.2, dims="state", **transform)
        Gamma = pm.Dirichlet("Gamma", a=np.ones((K, K)) + stay * np.eye(K), dims=("state", "to"))
        delta = pm.Dirichlet("delta", a=np.ones(K), dims="state")
        log_emis = pm.logp(pm.Poisson.dist(lam), counts[:, None])  # (T, K)
        pm.Potential("hmm_loglik", hmm_loglik(log_emis, pt.log(Gamma), pt.log(delta)))
    return model

#Priors

• $\lambda_k \sim \text{Gamma}(3, 0.2)$: mean 15 a year, 94% of the mass between about 3 and 33 - wide on the scale of "tens of big earthquakes a year".
• Each row of $\Gamma$ is Dirichlet with weight $1 + 4$ on staying and 1 on each move. For $K=2$ that is a Beta(5, 1) prior on the probability of staying: mean 0.83, i.e. regimes that last about six years on average, but it keeps plenty of mass below 0.5. Regimes that flip every year would be indistinguishable from a plain mixture, so a mild preference for persistence is what "regime" means. We will check what this prior does in section 7.
• $\delta \sim$ Dirichlet(1, ..., 1): the first year's state is informed by one observation only; its posterior will stay close to this prior.

The Potential is invisible to pm.sample_prior_predictive, which therefore gives us draws of the parameters; the series we simulate ourselves (a dozen lines of NumPy that we reuse for posterior predictive checks). Note that prior draws ignore the ordered transform (see the Gotchas in AUTHORING.md), so we sort them.

def simulate_hmm(lam, Gamma, delta, T, rng):
    """One Poisson-HMM series per parameter draw. lam (S, K), Gamma (S, K, K), delta (S, K)."""
    S, K = lam.shape
    rows = np.arange(S)
    pick = lambda p: np.minimum((rng.random(S)[:, None] > np.cumsum(p, axis=1)).sum(1), K - 1)
    s = np.empty((S, T), dtype=int)
    s[:, 0] = pick(delta)
    for t in range(1, T):
        s[:, t] = pick(Gamma[rows, s[:, t - 1]])
    return rng.poisson(lam[rows[:, None], s]), s


def dispersion_and_acf1(sims):
    """Variance/mean ratio and lag-1 autocorrelation of each simulated series (rows)."""
    centred = sims - sims.mean(1, keepdims=True)
    ratio = sims.var(1, ddof=1) / np.maximum(sims.mean(1), 1e-9)
    ac1 = (centred[:, 1:] * centred[:, :-1]).sum(1) / np.maximum((centred**2).sum(1), 1e-9)
    return ratio, ac1


with poisson_hmm(2, y):
    prior = pm.sample_prior_predictive(1000, random_seed=RANDOM_SEED)
prior_draw = lambda v: prior.prior[v].values.reshape(-1, *prior.prior[v].shape[2:])
prior_lam = np.sort(prior_draw("lam"), axis=1)  # prior draws ignore the ordered transform
prior_sims, _ = simulate_hmm(prior_lam, prior_draw("Gamma"), prior_draw("delta"), T, rng)
obs_ratio, obs_ac1 = dispersion_and_acf1(y[None])

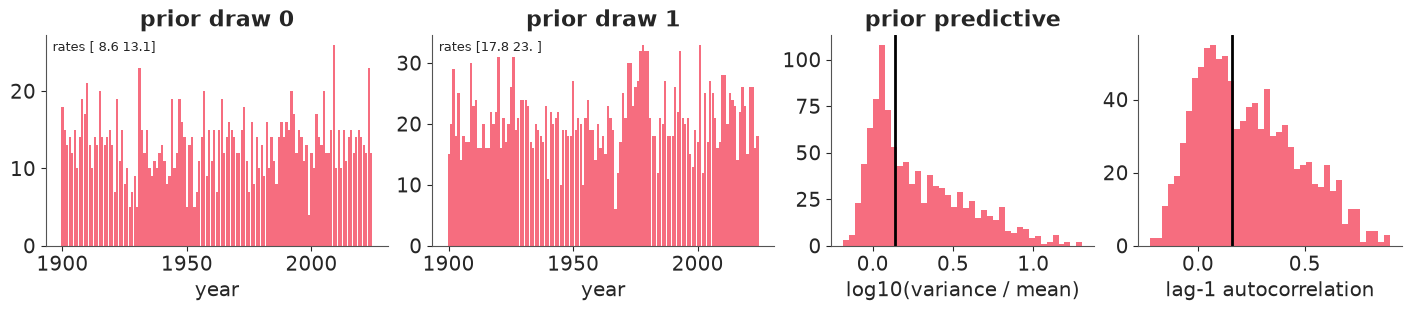

fig, axes = plt.subplots(1, 4, figsize=(14, 3), width_ratios=[1.3, 1.3, 1, 1])
for ax, i in zip(axes[:2], [0, 1]):
    ax.bar(years, prior_sims[i], width=0.9, color="C1")
    ax.set(title=f"prior draw {i}", xlabel="year")
    ax.text(0.02, 0.97, f"rates {prior_lam[i].round(1)}", transform=ax.transAxes, va="top", fontsize=9)
ratio, ac1 = dispersion_and_acf1(prior_sims)
axes[2].hist(np.log10(ratio), bins=40, color="C1")
axes[2].axvline(np.log10(obs_ratio[0]), color="k", lw=2)
axes[2].set(xlabel="log10(variance / mean)", title="prior predictive")
axes[3].hist(ac1, bins=40, color="C1")
axes[3].axvline(obs_ac1[0], color="k", lw=2)
axes[3].set(xlabel="lag-1 autocorrelation");

Prior simulations switch between two rates at a believable scale, from nearly equal to far apart; the observed dispersion and autocorrelation (black lines) are well inside what the prior allows, and so is "no regimes at all" (ratio near 1, autocorrelation near 0).

#3 · A failure first: label switching

Nothing in the likelihood says which state is "state 0". Swap the two rates, swap the rows and columns of $\Gamma$ and the entries of $\delta$, and the likelihood is identical, so the posterior has $K!$ identical modes. With unconstrained rates, each chain picks one:

unordered_idata = fit(poisson_hmm(2, y, ordered=False), "2 states, unordered rates")
print(unordered_idata.posterior["lam"].mean("draw").round(1).to_pandas())

2 states, unordered rates: 4 s, divergences = 0, max r_hat = 1.35, min ess_bulk = 9
state     0     1
chain
0      13.0  12.6
1      13.2  12.5
2      14.8  10.9
3      14.8  10.9

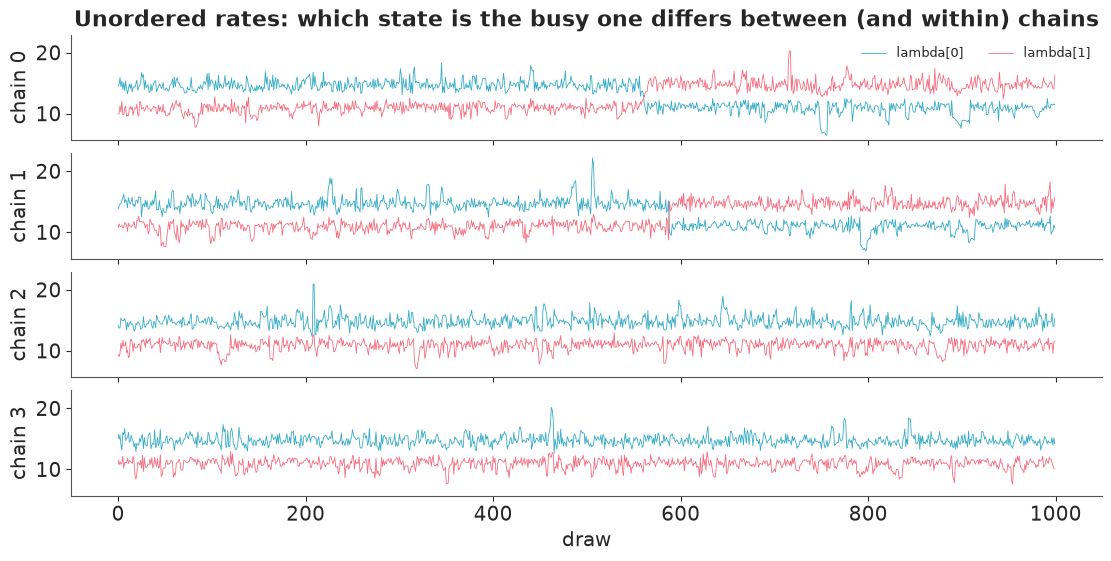

fig, axes = plt.subplots(4, 1, figsize=(11, 5.5), sharex=True, sharey=True)
for ax, c in zip(axes, unordered_idata.posterior.chain.values):
    for k in [0, 1]:
        ax.plot(unordered_idata.posterior["lam"].sel(chain=c, state=k), color=f"C{k}", lw=0.6,
                label=f"lambda[{k}]")
    ax.set_ylabel(f"chain {c}")
axes[0].set_title("Unordered rates: which state is the busy one differs between (and within) chains")
axes[0].legend(ncols=2, fontsize=9, loc="upper right")
axes[-1].set_xlabel("draw");

The two rates are the same two numbers in every chain - about 11 and 15 - but which of them is called lam[0] differs between chains, and a chain can even swap labels mid-run when the sampler crosses the region where the two rates are close. (nutpie is not bit-reproducible, so which chains swap changes from run to run; r_hat for lam came out between about 1.3 and 1.5, with single-digit ESS, in every run we tried.) Nothing is wrong with any individual chain's picture of the physics - the labels are unidentified, and r_hat correctly reports that the chains did not sample the same distribution. (The transition probabilities look fine only because this $\Gamma$ happens to be nearly symmetric under the swap.)

The fix is to break the symmetry: require $\lambda_0 < \lambda_1$ with the ordered transform, which leaves exactly one of the $K!$ modes. Ordered variables need starting values that respect the order; as noted in AUTHORING.md we pass them to pm.sample(initvals=...) rather than as initval= on the variable.

INIT2 = {"lam": np.array([10.0, 15.0])}
hmm2 = poisson_hmm(2, y)
hmm2_idata = fit(hmm2, "2 states, ordered rates", initvals=INIT2)
az.summary(hmm2_idata, var_names=["lam", "Gamma", "delta"], ci_kind="hdi", ci_prob=0.94, round_to=2)

2 states, ordered rates: 4 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 969

All r_hat at 1.00, no divergences. A quiet regime of about 11 M7+ earthquakes a year and a busy one of about 15, each persisting with a probability of about 0.89 per year. The posterior of $\delta$ is the Dirichlet(1, 1) prior shifted a little, as expected from one observation.

(An ordering constraint is not always the right cure. It works when the states differ clearly in the ordered parameter; if two rates overlap, the constraint just cuts a multimodal posterior in an arbitrary place. Section 7 shows that.)

#4 · The same model from pymc_extras

pymc_extras has a DiscreteMarkovChain distribution for the state path, so the HMM can be written generatively - states and all - and marginalize rewrites it into a model without the states (it recognises the chain and uses a forward algorithm), exactly as it did for the changepoint in E04.

with pm.Model(coords={"state": np.arange(2), "to": np.arange(2), "year": years}) as generative_hmm:
    lam = pm.Gamma("lam", alpha=3, beta=0.2, dims="state", transform=pm.distributions.transforms.ordered)
    Gamma = pm.Dirichlet("Gamma", a=np.ones((2, 2)) + 4 * np.eye(2), dims=("state", "to"))
    delta = pm.Dirichlet("delta", a=np.ones(2), dims="state")
    regime = DiscreteMarkovChain("regime", P=Gamma, init_dist=pm.Categorical.dist(p=delta), dims="year")
    pm.Poisson("quakes", lam[regime], observed=y, dims="year")

marginal_hmm = marginalize(generative_hmm, ["regime"])

# Compare the two log-densities at one point. The default initial point puts both rates at 15,
# where `ordered` gives -inf, so move them apart - on the unconstrained scale, via the model's
# own transform (for a positive variable PyMC chains log + ordered: the value is "lam_chain__").
point = hmm2.initial_point()
lam_rv = hmm2["lam"]
point[hmm2.rvs_to_values[lam_rv].name] = hmm2.rvs_to_transforms[lam_rv].forward(
    pt.as_tensor([9.0, 16.0]), *lam_rv.owner.inputs).eval()
point["Gamma_simplex__"] = point["Gamma_simplex__"] + np.array([[0.3], [-0.5]])
print("log-density at the same point: hand-written", round(float(hmm2.compile_logp()(point)), 6),
      " pymc_extras", round(float(marginal_hmm.compile_logp()(point)), 6))

extras_idata = fit(marginal_hmm, "pymc_extras marginalize", initvals=INIT2)
t0 = time.perf_counter()
recover(extras_idata, model=marginal_hmm, random_seed=RANDOM_SEED)
print(f"recover: {time.perf_counter() - t0:.1f} s; new posterior variable 'regime' with shape",
      dict(extras_idata.posterior["regime"].sizes))
az.summary(extras_idata, var_names=["lam", "Gamma"], ci_kind="hdi", ci_prob=0.94, round_to=2)

log-density at the same point: hand-written -364.95362  pymc_extras -364.95362

pymc_extras marginalize: 5 s, divergences = 0, max r_hat = 1.01, min ess_bulk = 892

recover: 0.6 s; new posterior variable 'regime' with shape {'chain': 4, 'draw': 1000, 'year': 125}

The two log-densities agree to six decimals, so the two models are the same distribution - which is the check that matters for the hand-written scan. Their posteriors agree within Monte Carlo error. (The draws differ, unlike E04 where both versions produced identical draws: the two graphs are different, so nutpie's random initialisation differs.) Both fits take a few seconds. recover added one sampled state path per posterior draw, which gives us the states for free.

Why write the scan by hand at all? Because it is the version you can bend: several sequences of different lengths, missing observations, two emission distributions at once, transition probabilities that depend on covariates - all of which Part B needs - are a line each in the hand-written likelihood. (DiscreteMarkovChain does accept time-varying $P$ via time_varying_P=True.)

#5 · Recovering the states

Sampled paths from recover are one option. The exact alternative, as in E04, is to compute the state probabilities given each draw of the parameters and average them (Rao-Blackwellisation). The backward variable $\beta_t(k) = p(y_{t+1:T} \mid s_t = k)$ obeys a mirror-image recursion, and

$$ p(s_t = k \mid y_{1:T}, \theta) = \frac{\alpha_t(k)\, \beta_t(k)}{p(y_{1:T} \mid \theta)}. $$

This is forward-backward smoothing: the discrete counterpart of the Kalman smoother in E13. We run it in NumPy on all posterior draws at once (loop over time, vectorised over draws), because the per-draw results are needed only after sampling. Separately, the Viterbi algorithm finds the single most probable path $\arg\max_{s_{1:T}} p(s_{1:T} \mid y, \theta)$ - replace the sum in the forward recursion by a max and trace back. Smoothed probabilities answer "which state was year $t$ in?"; Viterbi answers "what is the best joint story?". They usually agree, but not always.

def forward_backward(log_emis, log_Gamma, log_delta):
    """Log forward and backward variables for every draw.

    log_emis (S, T, ..., K); log_Gamma (S, T-1, ..., K, K) (broadcast views are fine); log_delta (S, ..., K).
    """
    S, T = log_emis.shape[:2]
    log_a = np.empty_like(log_emis)
    log_b = np.zeros_like(log_emis)
    log_a[:, 0] = log_delta + log_emis[:, 0]
    for t in range(1, T):
        log_a[:, t] = log_emis[:, t] + logsumexp(log_a[:, t - 1][..., :, None] + log_Gamma[:, t - 1], axis=-2)
    for t in range(T - 2, -1, -1):
        log_b[:, t] = logsumexp(log_Gamma[:, t] + (log_emis[:, t + 1] + log_b[:, t + 1])[..., None, :], axis=-1)
    return log_a, log_b


def viterbi(log_emis, log_Gamma, log_delta):
    """Most probable state path for every draw (same shapes as forward_backward)."""
    S, T = log_emis.shape[:2]
    score = log_delta + log_emis[:, 0]
    back = np.empty(log_emis.shape, dtype=int)
    for t in range(1, T):
        cand = score[..., :, None] + log_Gamma[:, t - 1]  # (..., from, to)
        back[:, t] = cand.argmax(axis=-2)
        score = log_emis[:, t] + cand.max(axis=-2)
    path = np.empty(log_emis.shape[:-1], dtype=int)
    path[:, -1] = score.argmax(-1)
    for t in range(T - 2, -1, -1):
        path[:, t] = np.take_along_axis(back[:, t + 1], path[:, t + 1][..., None], axis=-1)[..., 0]
    return path


def poisson_hmm_arrays(idata, counts, thin=1):
    lam, Gamma, delta = (draws(idata, v, thin) for v in ["lam", "Gamma", "delta"])
    log_emis = stats.poisson.logpmf(counts[None, :, None], lam[:, None, :])  # (S, T, K)
    log_G = np.broadcast_to(np.log(Gamma)[:, None], (len(lam), len(counts) - 1, *Gamma.shape[1:]))
    return lam, log_emis, log_G, np.log(delta)


lam2, log_emis2, log_G2, log_delta2 = poisson_hmm_arrays(hmm2_idata, y)
G2, delta2 = draws(hmm2_idata, "Gamma"), draws(hmm2_idata, "delta")
log_a2, log_b2 = forward_backward(log_emis2, log_G2, log_delta2)
log_lik2 = logsumexp(log_a2[:, -1], axis=-1)  # (S,) = p(y | theta), same as the Potential
p_busy = np.exp(log_a2 + log_b2 - log_lik2[:, None, None])[..., 1]  # (S, T): P(busy regime | y, theta)
paths2 = viterbi(log_emis2, log_G2, log_delta2)
print("forward-backward on 4000 draws done; P(busy) from recover() vs forward-backward, max difference:",
      np.abs(extras_idata.posterior["regime"].mean(("chain", "draw")).values - p_busy.mean(0)).max().round(3))

forward-backward on 4000 draws done; P(busy) from recover() vs forward-backward, max difference: 0.011

rate_path = lam2[np.arange(len(lam2))[:, None], paths2]  # the rate along each draw's Viterbi path
fig, axes = plt.subplots(2, 1, figsize=(12, 6), sharex=True, height_ratios=[1.4, 1])
axes[0].bar(years, y, width=0.9, color="grey", alpha=0.5)
lo, hi = np.quantile(rate_path, [0.05, 0.95], axis=0)
axes[0].fill_between(years, lo, hi, color="C0", alpha=0.3, step="mid", label="rate on Viterbi path, 90% over draws")
lam_mean = lam2.mean(0)  # Viterbi once more, at the posterior-mean parameters (a single "draw")
path_at_mean = viterbi(stats.poisson.logpmf(y[None, :, None], lam_mean[None, None, :]),
                       np.log(G2.mean(0))[None, None].repeat(T - 1, axis=1), np.log(delta2.mean(0))[None])[0]
axes[0].step(years, lam_mean[path_at_mean], where="mid", color="C0", lw=2, label="Viterbi path at the posterior mean")
axes[0].set(ylabel="M7+ earthquakes")
axes[0].legend(loc="upper left", fontsize=9, ncols=2)
lo, hi = np.quantile(p_busy, [0.05, 0.95], axis=0)
axes[1].fill_between(years, lo, hi, color="C1", alpha=0.3, label="90% over parameter draws")
axes[1].plot(years, p_busy.mean(0), color="C1", lw=2, label="posterior P(busy regime)")
axes[1].plot(years, (paths2 == 1).mean(0), color="k", lw=1, ls="--", label="share of draws whose Viterbi path is busy")
axes[1].set(xlabel="year", ylabel="P(busy regime)", ylim=(0, 1))
axes[1].legend(loc="lower left", fontsize=9);

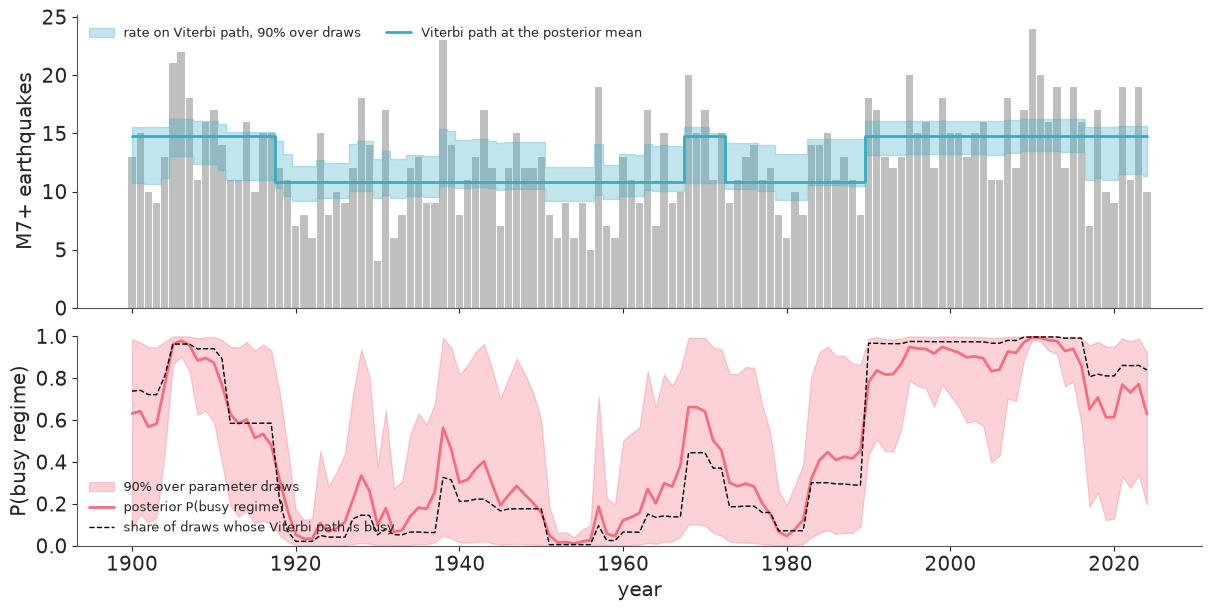

The smoothed probabilities from forward-backward and the frequencies of recover's sampled paths agree up to Monte Carlo noise (maximum difference printed above). The story they tell: a busy stretch around 1905-1915, brief bumps in the late 1930s and around 1970, and a long busy period from about 1990 to the mid-2010s, with quieter decades in between (the early 1950s are the most confidently quiet years). But look at the band: for most years the probability of the busy regime ranges over half the unit interval across parameter draws. When the two rates are only four quakes a year apart and a Poisson count has a standard deviation of about 3.5, one year cannot tell them apart; the regime assignment is driven by runs of years. The share of draws whose Viterbi path is busy (dashed) is pushed further towards 0 or 1 than the smoothed probability: Viterbi commits every year to one state, and the most probable path can disagree with the most probable state of a single year.

#Stationary distribution and dwell times

Two summaries of $\Gamma$ are more interpretable than its entries. The stationary distribution $\pi$ solves $\pi\Gamma = \pi$: the long-run share of time in each regime. The time spent in state $k$ once entered is geometric with mean dwell time $1 / (1 - \Gamma_{kk})$. Both are functions of the parameters, so they get posteriors for free.

def stationary(Gamma):
    """Stationary distribution of each (K, K) transition matrix in a stack (..., K, K)."""
    K = Gamma.shape[-1]
    A = np.swapaxes(Gamma, -1, -2) - np.eye(K)
    A[..., -1, :] = 1.0  # replace one equation by sum(pi) = 1
    b = np.zeros(Gamma.shape[:-1])
    b[..., -1] = 1.0
    return np.linalg.solve(A, b[..., None])[..., 0]


pi2 = stationary(G2)
dwell2 = 1 / (1 - np.diagonal(G2, axis1=1, axis2=2))
for k, name in enumerate(["quiet", "busy"]):
    print(f"{name:5s}: long-run share {pi2[:, k].mean():.2f} (94% HDI {az.hdi(pi2[:, k], prob=0.94).round(2)}), "
          f"dwell time median {np.median(dwell2[:, k]):.0f} years (94% HDI {az.hdi(dwell2[:, k], prob=0.94).round(0)})")

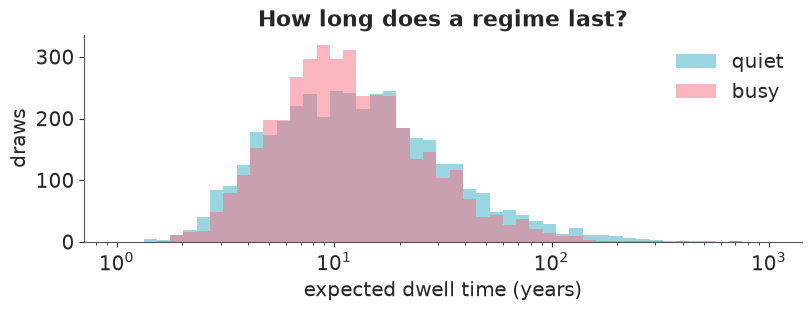

fig, ax = plt.subplots(figsize=(8, 3))
bins = np.geomspace(1, 1000, 50)
for k, name in enumerate(["quiet", "busy"]):
    ax.hist(dwell2[:, k], bins=bins, alpha=0.5, color=f"C{k}", label=name)
ax.set(xscale="log", xlabel="expected dwell time (years)", ylabel="draws", title="How long does a regime last?")
ax.legend();

quiet: long-run share 0.52 (94% HDI [0.19 0.89]), dwell time median 12 years (94% HDI [ 2. 60.])
busy : long-run share 0.48 (94% HDI [0.11 0.81]), dwell time median 11 years (94% HDI [ 2. 43.])

About half the time in each regime, and a typical regime lasts roughly a decade - but the dwell-time posteriors are wide and right-skewed: a few years to several decades are all compatible with 125 years of data containing only a handful of switches. You cannot learn much about persistence from few transitions, which is why the prior on $\Gamma$ matters (section 7).

#6 · Posterior predictive checks: pseudo-residuals

For an HMM the natural residual is a forecast pseudo-residual (Zucchini et al., ch. 6). Take the one-step-ahead predictive distribution $F_t(y) = P(Y_t \le y \mid y_{1:t-1})$, a mixture over the predicted state, and transform the observation: if the model is right, $u_t = F_t(y_t)$ is uniform and $z_t = \Phi^{-1}(u_t)$ is standard normal and independent over time. For counts, $F_t$ jumps, so we use the mid-pseudo-residual $\Phi^{-1}\big((F_t(y_t - 1) + F_t(y_t)) / 2\big)$. The Bayesian version averages $F_t$ over posterior draws (the posterior predictive CDF). The predicted state distribution comes from the forward variables: $p(s_t \mid y_{1:t-1}) \propto \sum_j \alpha_{t-1}(j)\Gamma_{jk}$.

The baseline is the model without regimes, a single Poisson rate, whose "forecast" ignores the past.

def predicted_state_logprob(log_a, log_Gamma, log_delta):
    """log p(s_t = k, y_{1:t-1}) for every t (unnormalised one-step-ahead state probabilities)."""
    pred = np.empty_like(log_a)
    pred[:, 0] = log_delta
    pred[:, 1:] = logsumexp(log_a[:, :-1][..., :, None] + log_Gamma, axis=-2)
    return pred


def mid_pseudo_residuals(weights, lam, counts):
    """weights (S, T, K) one-step-ahead state probabilities, lam (S, K)."""
    cdf = lambda v: (weights * stats.poisson.cdf(v[None, :, None], lam[:, None, :])).sum(-1).mean(0)
    return stats.norm.ppf((cdf(counts - 1) + cdf(counts)) / 2)


with pm.Model() as poisson1:
    rate = pm.Gamma("lam", alpha=3, beta=0.2)
    pm.Poisson("quakes", rate, observed=y)
poisson1_idata = fit(poisson1, "1 state (plain Poisson)")
lam1 = draws(poisson1_idata, "lam")[:, None]

pred2 = predicted_state_logprob(log_a2, log_G2, log_delta2)
w2 = np.exp(pred2 - logsumexp(pred2, axis=-1, keepdims=True))
z = {"1 state": mid_pseudo_residuals(np.ones((len(lam1), T, 1)), lam1, y),
     "2-state HMM": mid_pseudo_residuals(w2, lam2, y)}

fig, axes = plt.subplots(1, 3, figsize=(14, 3.4), width_ratios=[2, 1, 1])
for i, (name, zz) in enumerate(z.items()):
    axes[0].plot(years, zz, "o-" if i else "o", ms=3, lw=0.8, color=f"C{i}", alpha=0.8, label=name)
    q = stats.norm.ppf((np.arange(T) + 0.5) / T)
    axes[1].plot(q, np.sort(zz), "o", ms=3, color=f"C{i}", label=name)
    axes[2].plot(np.arange(1, 11), acf(zz, 10)[1:], "o-", color=f"C{i}", label=name)
    print(f"{name}: sd {zz.std():.2f}, lag-1..3 autocorrelation {acf(zz, 3)[1:].round(2)}")
axes[0].axhline(0, color="k", lw=0.8)
axes[0].set(xlabel="year", ylabel="mid-pseudo-residual", title="forecast pseudo-residuals")
axes[1].plot([-3, 3], [-3, 3], color="k", lw=0.8)
axes[1].set(xlabel="normal quantile", title="QQ")
axes[2].axhspan(-2 / np.sqrt(T), 2 / np.sqrt(T), color="grey", alpha=0.25)
axes[2].set(xlabel="lag", title="residual autocorrelation")
axes[0].legend(fontsize=9);

1 state (plain Poisson): 0 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 1699

1 state: sd 1.15, lag-1..3 autocorrelation [0.16 0.16 0.2 ]
2-state HMM: sd 1.01, lag-1..3 autocorrelation [-0.02  0.02  0.1 ]

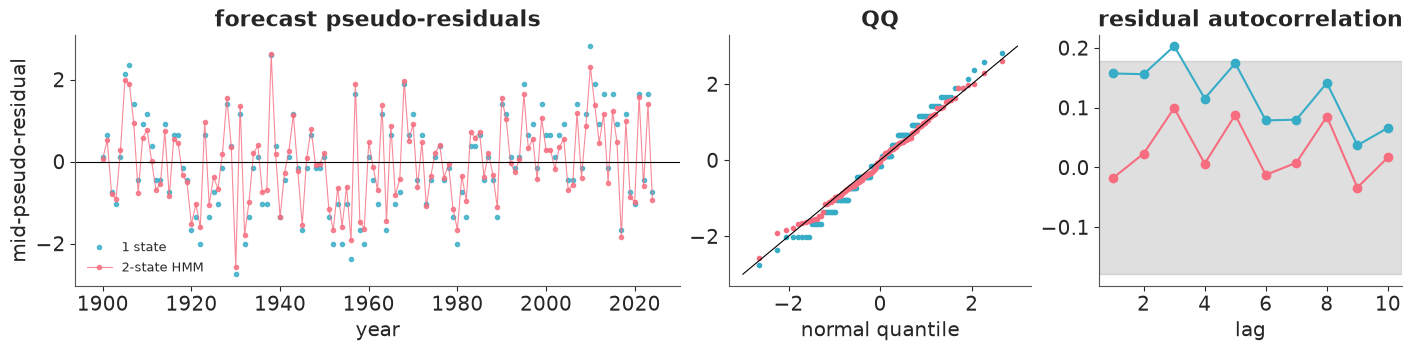

Both sets of residuals are roughly normal: the marginal distribution was never the problem. The difference is in the autocorrelation panel: the plain Poisson residuals inherit the series' positive autocorrelation at every lag, while the HMM's one-step-ahead forecasts absorb most of it - what is left sits inside the white-noise band. That is what the hidden state is for: carrying information from recent years into the forecast.

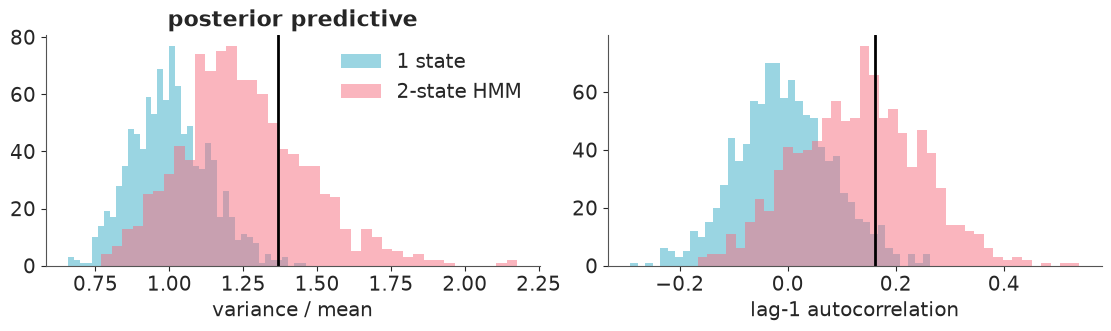

The same point from simulated data: replicate the whole series from each posterior draw and compare the statistics a regime model must reproduce.

sub = rng.choice(len(lam2), 1000, replace=False)
sims2, _ = simulate_hmm(lam2[sub], G2[sub], delta2[sub], T, rng)
sims1 = rng.poisson(np.broadcast_to(lam1[sub], (1000, T)))
fig, axes = plt.subplots(1, 2, figsize=(11, 3.2))
for i, (name, sims) in enumerate({"1 state": sims1, "2-state HMM": sims2}.items()):
    ratio, ac1 = dispersion_and_acf1(sims)
    axes[0].hist(ratio, bins=40, alpha=0.5, color=f"C{i}", label=name)
    axes[1].hist(ac1, bins=40, alpha=0.5, color=f"C{i}", label=name)
    print(f"{name}: P(sim >= observed): variance/mean {np.mean(ratio >= obs_ratio[0]):.3f}, "
          f"lag-1 autocorrelation {np.mean(ac1 >= obs_ac1[0]):.3f}")
axes[0].axvline(obs_ratio[0], color="k", lw=2)
axes[1].axvline(obs_ac1[0], color="k", lw=2)
axes[0].set(xlabel="variance / mean", title="posterior predictive")
axes[1].set(xlabel="lag-1 autocorrelation")
axes[0].legend();

1 state: P(sim >= observed): variance/mean 0.007, lag-1 autocorrelation 0.035
2-state HMM: P(sim >= observed): variance/mean 0.266, lag-1 autocorrelation 0.393

The plain Poisson model essentially never produces the observed dispersion (and rarely the autocorrelation); the HMM reproduces both comfortably. So the data do contain something beyond Poisson noise. Whether "two regimes" is the best description of it is the next question.

#7 · How many states?

#A second failure: more states than the data support

Zucchini et al. preferred three states for the old catalogue. Here, three and four:

hmm3_idata = fit(poisson_hmm(3, y), "3 states", initvals={"lam": np.array([9.0, 12.0, 16.0])})
hmm4_idata = fit(poisson_hmm(4, y), "4 states", initvals={"lam": np.array([9.0, 11.5, 14.0, 16.0])})
az.summary(hmm4_idata, var_names=["lam"], ci_kind="hdi", ci_prob=0.94, round_to=2)

3 states: 6 s, divergences = 5, max r_hat = 1.01, min ess_bulk = 759

4 states: 7 s, divergences = 32, max r_hat = 1.01, min ess_bulk = 773

fig, axes = plt.subplots(1, 3, figsize=(15, 3.3))
for ax, idata, K in [(axes[0], hmm3_idata, 3), (axes[1], hmm4_idata, 4)]:
    for k in range(K):
        for c in idata.posterior.chain.values:
            ax.hist(idata.posterior["lam"].sel(chain=c, state=k).values, bins=np.linspace(4, 22, 70),
                    histtype="step", color=f"C{k}", alpha=0.8)
    ax.set(xlabel="lambda (one outline per chain and state)", title=f"{K}-state rates")
div = hmm4_idata.sample_stats["diverging"].values.ravel()
l1, l2 = (hmm4_idata.posterior["lam"].sel(state=k).values.ravel() for k in (1, 2))
axes[2].plot(l1[~div], l2[~div], ".", ms=2, alpha=0.3, color="grey")
axes[2].plot(l1[div], l2[div], "o", ms=4, color="C3", label="divergent")
axes[2].plot([8, 17], [8, 17], color="k", lw=0.8, ls=":")
axes[2].set(xlabel="lambda[1]", ylabel="lambda[2]", title="4 states: where the divergences are")
axes[2].legend();

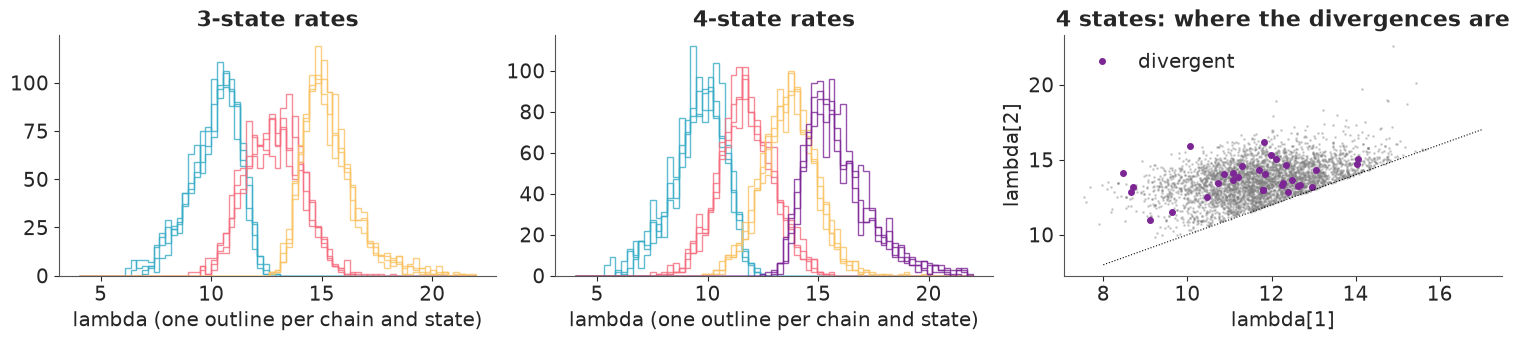

Nothing as dramatic as label switching, but the symptoms are all there. Divergences appear (a handful for three states, dozens for four; across the seeds we tried, 8-22 and 40-55), and the rate posteriors of neighbouring states overlap over most of their mass: the "extra" states are not distinct regimes but slices of the same two. Adjacent rates sit against the ordering boundary $\lambda_1 < \lambda_2$ (dotted diagonal), and when a state is rarely visited its rate is pinned only by the prior - ridges and funnels that NUTS reports as divergences. This is what "too many states" looks like, and it is a modelling result, not a sampler setting to tune: raising target_accept would hide the divergences without making the extra states real.

#Comparing models when the observations are not exchangeable

PSIS-LOO needs $\log p(y_t \mid \theta)$ for each observation, but in an HMM the $y_t$ are not independent given $\theta$ - they are linked through the hidden chain. Two honest options:

1. LOO with the states integrated out (the E04 trick). Leaving out $y_t$ means replacing its emission probability by 1: $p(y_t \mid y_{-t}, \theta) = p(y_{1:T} \mid \theta) / p(y_{-t} \mid \theta)$, and $p(y_{-t} \mid \theta) = \sum_k p(s_t = k, y_{1:t-1})\,\beta_t(k)$ - the same forward and backward variables again, no refit. This measures how well a year is predicted from both its past and its future: interpolation.
2. Leave-future-out (LFO). Forecasting is the harder and often the relevant task: fit on 1900-1989 only, then score each later year by its one-step-ahead density $p(y_t \mid y_{1:t-1})$, running the filter on through the test years. (Here the parameters stay at their 1900-1989 posterior; exact LFO would refit every year, PSIS-LFO of Bürkner, Gabry & Vehtari (2020) approximates that.)

The competitors: one Poisson rate; an i.i.d. Negative Binomial, which absorbs the overdispersion without any time structure; and the HMMs.

def loo_integrated(log_a, log_b, log_Gamma, log_delta):
    """log p(y_t | y_-t, theta) with the hidden states summed out: (S, T, ...)."""
    log_lik = logsumexp(log_a[:, -1], axis=-1)
    pred = predicted_state_logprob(log_a, log_Gamma, log_delta)
    return log_lik[:, None] - logsumexp(pred + log_b, axis=-1)


def with_log_lik(idata, ll, dim="year", coord=years):
    """Attach a hand-computed pointwise log-likelihood (S, n) to a copy of idata."""
    out = idata.copy()
    n_chain = idata.posterior.sizes["chain"]
    out["log_likelihood"] = xr.DataTree(xr.Dataset(
        {"y": (("chain", "draw", dim), ll.reshape(n_chain, -1, ll.shape[-1]))}, coords={dim: coord}))
    return out


with pm.Model() as negbin:
    mu = pm.Gamma("mu", alpha=3, beta=0.2)
    alpha = pm.Gamma("alpha", alpha=2, beta=0.05)
    pm.NegativeBinomial("quakes", mu=mu, alpha=alpha, observed=y)
negbin_idata = fit(negbin, "i.i.d. Negative Binomial")

def integrated_loo_poisson_hmm(idata):
    _, log_emis, log_G, log_delta = poisson_hmm_arrays(idata, y)
    log_a, log_b = forward_backward(log_emis, log_G, log_delta)
    return az.loo(with_log_lik(idata, loo_integrated(log_a, log_b, log_G, log_delta)))


nb_mu, nb_alpha = draws(negbin_idata, "mu")[:, None], draws(negbin_idata, "alpha")[:, None]
nb_logpmf = lambda v: stats.nbinom.logpmf(v, nb_alpha, nb_alpha / (nb_alpha + nb_mu))

loos = {
    "1 state": az.loo(with_log_lik(poisson1_idata, stats.poisson.logpmf(y[None], lam1))),
    "Negative Binomial": az.loo(with_log_lik(negbin_idata, nb_logpmf(y[None]))),
    "2-state HMM": integrated_loo_poisson_hmm(hmm2_idata),
    "3-state HMM": integrated_loo_poisson_hmm(hmm3_idata),
    "4-state HMM": integrated_loo_poisson_hmm(hmm4_idata),
}
for name, lo in loos.items():
    print(f"{name:18s} max Pareto k = {float(lo.pareto_k.max()):.2f}")
comparison = az.compare(loos, round_to=1)
comparison

i.i.d. Negative Binomial: 1 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 3725

1 state            max Pareto k = 0.07
Negative Binomial  max Pareto k = 0.02
2-state HMM        max Pareto k = 0.35
3-state HMM        max Pareto k = 0.32
4-state HMM        max Pareto k = 0.28

All Pareto $k$ values are fine, so the integrated LOO estimates are trustworthy. The 2-state HMM beats the single Poisson rate by about 6 units of elpd (difference standard error around 4) and the Negative Binomial by about 3 (standard error around 3). Extra states add nothing. That is weak evidence for regimes: better than no structure, not decisively better than "more variable than Poisson, full stop". Now the forecasting view.

SPLIT = 1990
train = years < SPLIT
hmm2_train = fit(poisson_hmm(2, y[train]), f"2 states, fitted on 1900-{SPLIT - 1}", initvals=INIT2)
with pm.Model() as poisson1_train:
    pm.Poisson("quakes", pm.Gamma("lam", alpha=3, beta=0.2), observed=y[train])
p1_train = fit(poisson1_train, "1 state, train")
with pm.Model() as negbin_train:
    mu = pm.Gamma("mu", alpha=3, beta=0.2)
    alpha = pm.Gamma("alpha", alpha=2, beta=0.05)
    pm.NegativeBinomial("quakes", mu=mu, alpha=alpha, observed=y[train])
nb_train = fit(negbin_train, "Negative Binomial, train")


def log_mean_exp(a, axis=0):
    return logsumexp(a, axis=axis) - np.log(a.shape[axis])


# one-step-ahead: filter through ALL years with the training posterior, score the test years
_, le, lG, ld = poisson_hmm_arrays(hmm2_train, y)
la, _ = forward_backward(le, lG, ld)
one_step = np.diff(logsumexp(la, axis=-1), axis=1)[:, ~train[1:]]  # log p(y_t | y_{1:t-1}, theta)
nb_mu, nb_alpha = draws(nb_train, "mu")[:, None], draws(nb_train, "alpha")[:, None]
lfo = pd.DataFrame({
    "1 state": log_mean_exp(stats.poisson.logpmf(y[None, ~train], draws(p1_train, "lam")[:, None])),
    "Negative Binomial": log_mean_exp(nb_logpmf(y[None, ~train])),
    "2-state HMM": log_mean_exp(one_step),
}, index=years[~train])
diff = lfo.sub(lfo["1 state"], axis=0)
print(f"log predictive density of {(~train).sum()} test years (1990-2024), one step ahead:")
print(pd.DataFrame({"elpd": lfo.sum(), "vs 1 state": diff.sum(), "se of difference": diff.std() * np.sqrt(len(diff))}).round(1))

2 states, fitted on 1900-1989: 3 s, divergences = 1, max r_hat = 1.01, min ess_bulk = 227

1 state, train: 1 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 1808

Negative Binomial, train: 1 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 3916

log predictive density of 35 test years (1990-2024), one step ahead:
                    elpd  vs 1 state  se of difference
1 state           -109.1         0.0               0.0
Negative Binomial -107.0         2.0               1.5
2-state HMM       -103.7         5.4               2.3

Forecasting 1990-2024 from models trained on 1900-1989 favours the HMM too, by a margin in the same range - about 5 units ahead of the single rate (standard error about 2) and 3 ahead of the Negative Binomial - again only a couple of standard errors. (The training fit had one divergence; with a single one and clean r_hat we accept it here.) The mechanism is visible in section 5: the 1990s-2000s were a long busy stretch, and a filter that has seen a few busy years raises its forecast, while an i.i.d. model keeps forecasting the 20th-century average.

#How much does the transition prior matter?

flat_idata = fit(poisson_hmm(2, y, stay=0.0), "2 states, flat Dirichlet(1, 1) rows", initvals=INIT2)
for name, idata in {"Dirichlet(5, 1) rows (used above)": hmm2_idata, "Dirichlet(1, 1) rows": flat_idata}.items():
    G = draws(idata, "Gamma")
    print(f"{name:34s} P(stay): quiet {G[:, 0, 0].mean():.2f}, busy {G[:, 1, 1].mean():.2f}; "
          f"rates {draws(idata, 'lam').mean(0).round(1)}")

2 states, flat Dirichlet(1, 1) rows: 4 s, divergences = 0, max r_hat = 1.01, min ess_bulk = 844
Dirichlet(5, 1) rows (used above)  P(stay): quiet 0.89, busy 0.89; rates [10.9 14.8]
Dirichlet(1, 1) rows               P(stay): quiet 0.75, busy 0.77; rates [10.6 14.8]

With a flat prior the persistence estimates drop from about 0.89 to about 0.76 and the rates barely change: a handful of observed switches cannot pin down how sticky the regimes are, so the prior visibly moves the answer. Report persistence with its prior.

Part A verdict. On today's catalogue, yearly M7+ counts are more variable and more persistent than Poisson noise, and a two-regime HMM describes that better than no structure - but only modestly (elpd differences of a few units, standard errors of a few units), the two regimes differ by only about four quakes a year, and a third regime is not supported. The strong three-regime story of the textbook series presumably owed much to the older magnitudes. (Nothing here is a physical claim: global M7+ counts are usually modelled as a Poisson process plus aftershock clustering, and residual inhomogeneity in a catalogue that mixes magnitude types over a century can mimic regimes.)

Part B · Animal movement: several sequences, two observations per step, covariates¶

The canonical modern use of HMMs in ecology is to infer behavioural states from GPS tracks. Between consecutive fixes an animal moves a step length in some direction; the turning angle is the change of direction. An animal that is foraging or resting makes short steps and turns often ("encamped"); one that is travelling makes long, straight steps ("exploring"). Morales et al. (2004) introduced exactly this model with elk, and the R package moveHMM ships their four tracks.

#8 · Data

The file is an R data file (.RData). As in E23 we read R's serialisation format directly; this is the same minimal reader, enough for a data frame of numbers.

def read_rdata(path):
    """Minimal reader for R's XDR serialisation: named lists, vectors, strings (see E23)."""
    buf = gzip.open(path).read()
    assert buf[:7] in (b"RDX2\nX\n", b"RDX3\nX\n"), "not an XDR .RData file"
    pos, refs = 7, []

    def i32():
        nonlocal pos
        pos += 4
        return struct.unpack(">i", buf[pos - 4:pos])[0]

    def item():
        nonlocal pos
        flags = i32()
        kind, has_attr, has_tag = flags & 0xFF, flags & (1 << 9), flags & (1 << 10)
        if kind == 254:                                     # NULL
            return None
        if kind == 255:                                     # reference to an earlier symbol
            return refs[(flags >> 8) - 1]
        if kind == 1:                                       # symbol
            refs.append(item())
            return refs[-1]
        if kind == 9:                                       # string
            n = i32()
            pos += max(n, 0)
            return None if n == -1 else buf[pos - n:pos].decode()
        if kind == 2:                                       # pairlist -> dict
            out = {}
            while kind == 2:
                _ = item() if has_attr else None
                tag = item() if has_tag else None
                out[tag] = item()
                flags = i32()
                kind, has_attr, has_tag = flags & 0xFF, flags & (1 << 9), flags & (1 << 10)
            return out
        n = i32()
        if kind in (10, 13):                                # logical / integer (factor codes too)
            value, pos = np.frombuffer(buf, ">i4", n, pos).astype(int), pos + 4 * n
        elif kind == 14:                                    # double
            value, pos = np.frombuffer(buf, ">f8", n, pos).astype(float), pos + 8 * n
        elif kind in (16, 19):                              # character vector / list
            value = [item() for _ in range(n)]
        else:
            raise NotImplementedError(f"R type {kind}")
        attrs = item() if has_attr else None
        if kind == 19 and attrs and "names" in attrs:
            value = dict(zip(attrs["names"], value))
        return value

    version = i32()
    pos += 8
    if version == 3:
        pos += 4 + struct.unpack(">i", buf[pos:pos + 4])[0]
    return item()


data.describe("elk")
elk = pd.DataFrame(read_rdata(data.path("elk"))["elk_data"])
print(elk.groupby("ID").size().rename("fixes").to_dict())
elk.head()

elk: 735 locations of 4 elk (ID 1-4): UTM Easting/Northing (m) and dist_water, the distance (m) to the nearest water. Not a table: an R serialisation (gzip XDR) - parse data.path() (see E24).
  source: Morales, Haydon, Frair, Holsinger & Fryxell (2004, Ecology 85:2436), GPS tracks of four elk released in east-central Ontario, as shipped with the R package `moveHMM` (Michelot, Langrock & Patterson 2016).
  url:    https://raw.githubusercontent.com/TheoMichelot/moveHMM/master/data/elk_data.RData
{1: 194, 2: 159, 3: 164, 4: 218}

Steps and turning angles are computed per animal (never across the gap between two animals' tracks). Coordinates are UTM metres; we work in km. Each fix's distance to water is attached to the step that starts there. The first step of a track has no turning angle.

parts = []
for animal, g in elk.groupby("ID"):
    x, yk = g.Easting.to_numpy() / 1000, g.Northing.to_numpy() / 1000
    dx, dy = np.diff(x), np.diff(yk)
    heading = np.arctan2(dy, dx)
    parts.append(pd.DataFrame({
        "animal": animal, "x": x[:-1], "y": yk[:-1], "step": np.hypot(dx, dy),
        "angle": np.r_[np.nan, np.angle(np.exp(1j * np.diff(heading)))],  # wrapped to (-pi, pi]
        "water": g.dist_water.to_numpy()[:-1] / 1000,
    }))
moves = pd.concat(parts, ignore_index=True)
animals = np.sort(moves.animal.unique())
print(moves.groupby("animal").size().rename("steps").to_dict())
print(moves[["step", "angle", "water"]].describe().round(2).loc[["min", "25%", "50%", "75%", "max"]])
print("steps of exactly zero:", int((moves.step == 0).sum()))

{1: 193, 2: 158, 3: 163, 4: 217}
      step  angle  water
min   0.00  -3.13   0.00
25%   0.11  -1.93   0.21
50%   0.31  -0.01   0.48
75%   0.92   1.96   1.07
max  20.84   3.14   3.78
steps of exactly zero: 1

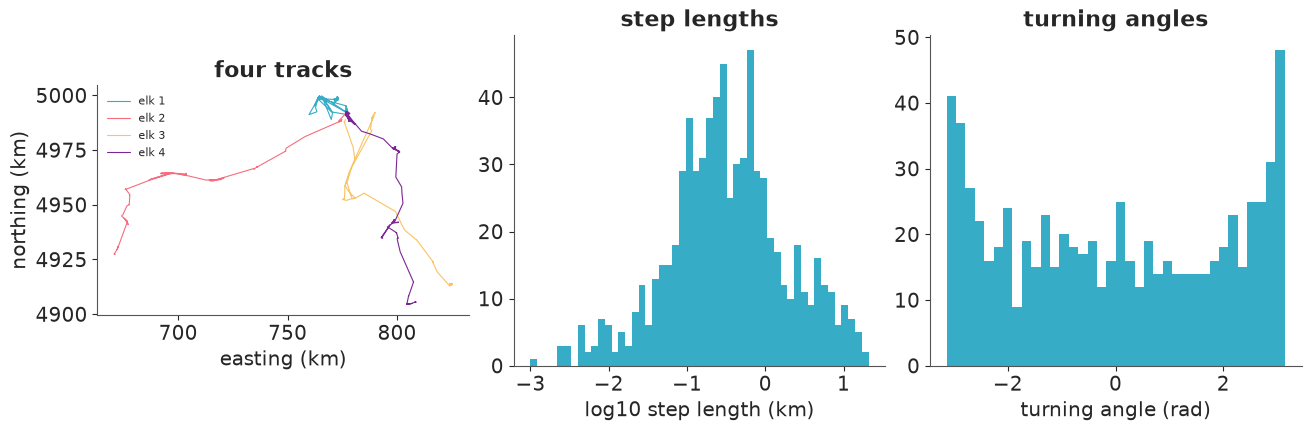

fig = plt.figure(figsize=(13, 4.2))
ax_map = fig.add_subplot(1, 3, 1)
for i, (animal, g) in enumerate(moves.groupby("animal")):
    ax_map.plot(g.x, g.y, "-", lw=0.8, color=f"C{i}", label=f"elk {animal}")
ax_map.set(aspect="equal", xlabel="easting (km)", ylabel="northing (km)", title="four tracks")
ax_map.legend(fontsize=8)
ax = fig.add_subplot(1, 3, 2)
ax.hist(np.log10(moves.step[moves.step > 0]), bins=50, color="C0")
ax.set(xlabel="log10 step length (km)", title="step lengths")
ax = fig.add_subplot(1, 3, 3)
ax.hist(moves.angle.dropna(), bins=36, color="C0")
ax.set(xlabel="turning angle (rad)", title="turning angles");

Step lengths span four orders of magnitude, from metres to 20 km; the histogram on the log scale has a main hump near 0.3 km and a long right shoulder. The turning angles are concentrated near $\pm\pi$ (reversals) more than near 0 - the signature of an animal that goes back and forth within a patch.

One step is exactly zero. A Gamma density cannot take a zero (moveHMM adds a zero-mass parameter for this); for one step out of 731 we simply treat that step length as missing, which the forward algorithm handles for free, as explained next.

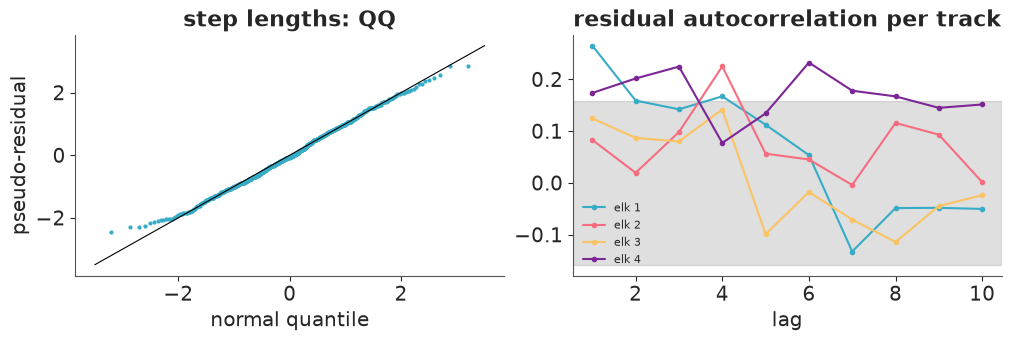

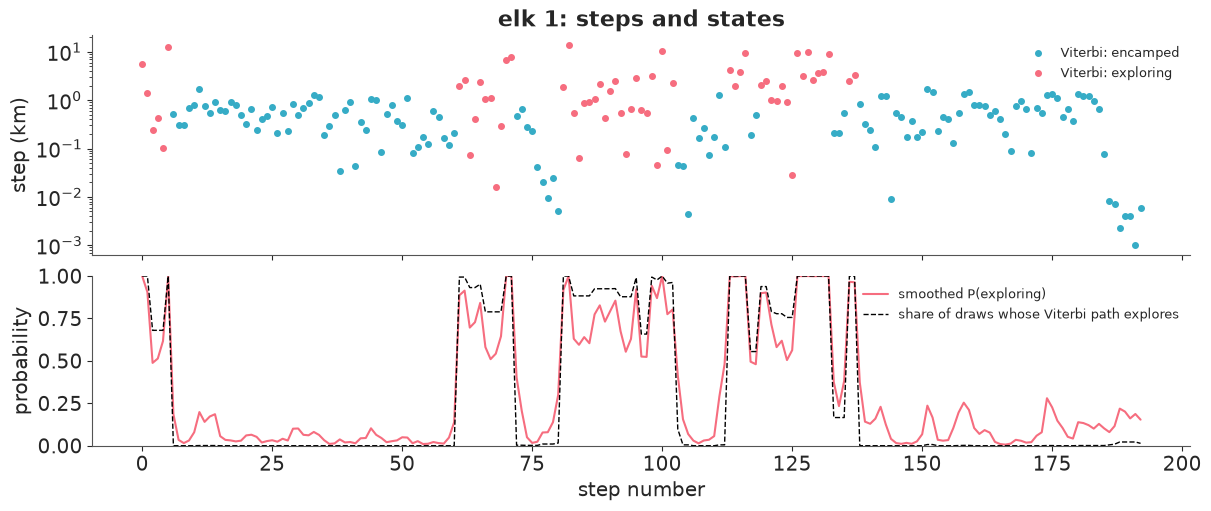

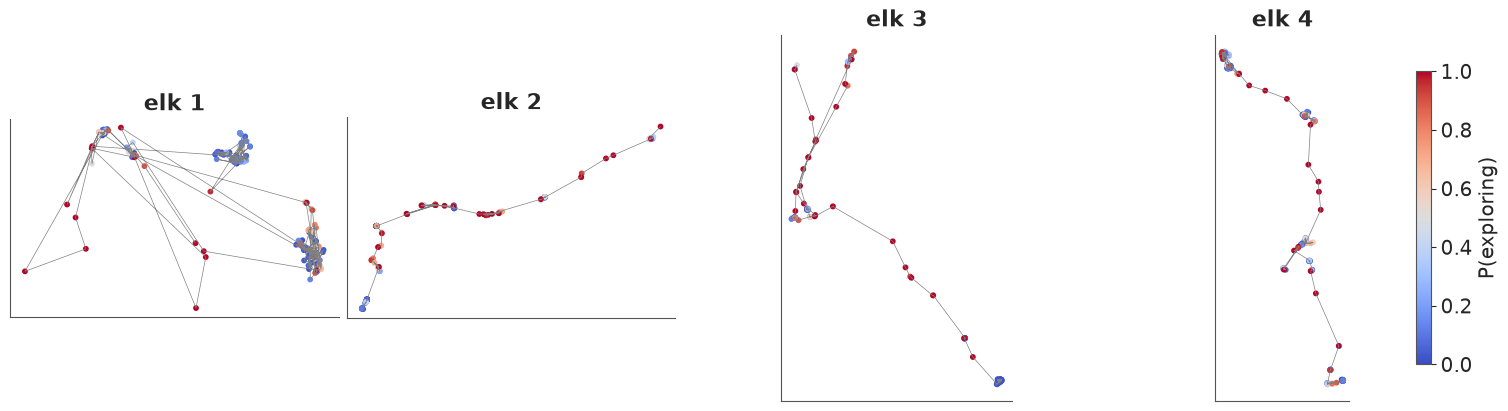

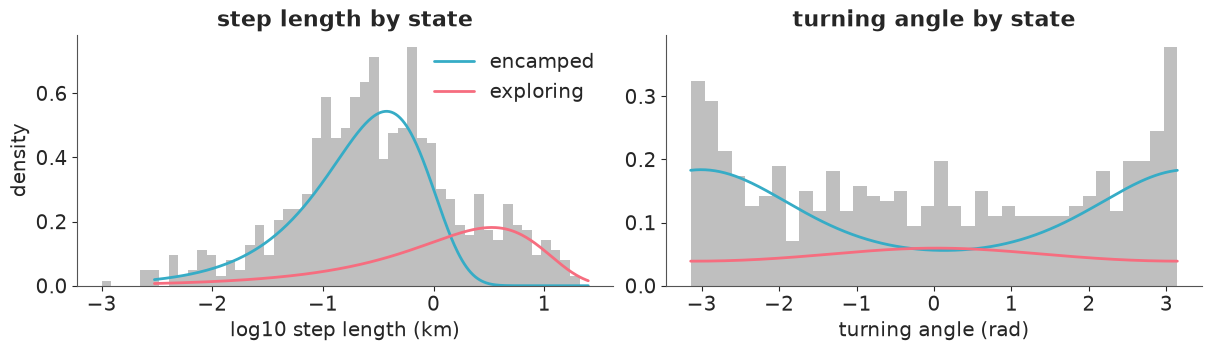

#9 · The model: two emissions, four sequences, one scan

In state $k$, step length $\sim \text{Gamma}(\text{mean } \mu_k, \text{sd } \mu_k c_k)$ and turning angle $\sim \text{von Mises}(m_k, \kappa_k)$, independent given the state. Three implementation details, each a single line:

• Several sequences are a batch axis in the scan: emissions are an array (time, animal, state), padded to the longest track.
• Missing values and padding get a log-emission of 0 (probability 1). In the forward recursion that means "no information at this step": the state still evolves through $\Gamma$, and since each row of $\Gamma$ sums to 1, padding at the end of a track leaves its likelihood unchanged. The same zero handles the missing first angle and the zero step.
• Circular mean without a wrapped parameter. A free mean angle $m_k \in (-\pi, \pi]$ is the wrapped-phase trap of E10 (r_hat ~ 2 at zero divergences). The von Mises log-density $\kappa \cos(\theta - m) - \log(2\pi I_0(\kappa))$ equals $a\cos\theta + b\sin\theta - \log(2\pi I_0(\sqrt{a^2+b^2}))$ with $a = \kappa\cos m$, $b = \kappa\sin m$: Normal priors on $(a, b)$ and no wrapping anywhere.

Priors: mean steps with prior means 0.3 and 3 km, ordered (this is the label-switching fix of section 3: state 0 is the one with shorter steps); a coefficient of variation with prior mean 1; $(a_k, b_k) \sim$ Normal(0, 1), which allows anything from uniform angles to moderately concentrated ones; the same Dirichlet rows for $\Gamma$ as in Part A; one shared $\delta$ for the four first states.

N, T_max = len(animals), moves.groupby("animal").size().max()


def padded(column):
    """(time, animal) array, NaN after the end of each track."""
    out = np.full((T_max, N), np.nan)
    for j, a in enumerate(animals):
        v = moves.loc[moves.animal == a, column].to_numpy()
        out[: len(v), j] = v
    return out


STEP, ANGLE, WATER = padded("step"), padded("angle"), padded("water")
STEP[STEP == 0] = np.nan                         # the single zero step: treated as missing
has_step, has_angle = ~np.isnan(STEP), ~np.isnan(ANGLE)
step_filled, angle_filled = np.where(has_step, STEP, 1.0), np.where(has_angle, ANGLE, 0.0)
water_z = (np.nan_to_num(WATER) - moves.water.mean()) / moves.water.std()  # padding: irrelevant values
print(f"(time, animal) = {STEP.shape}; step lengths used {has_step.sum()}, angles used {has_angle.sum()}")

STATES = ["encamped", "exploring"]


def elk_emissions(mu, cv, ang_cos, ang_sin):
    """log p(step, angle | state): (time, animal, state), 0 where missing or padded."""
    log_step = pm.logp(pm.Gamma.dist(mu=mu, sigma=mu * cv), step_filled[..., None])
    theta = angle_filled[..., None]
    kappa = pt.sqrt(ang_cos**2 + ang_sin**2)
    log_angle = ang_cos * pt.cos(theta) + ang_sin * pt.sin(theta) - pt.log(2 * np.pi * pt.i0(kappa))
    return log_step * has_step[..., None] + log_angle * has_angle[..., None]


def elk_hmm(water_covariate=False):
    coords = {"state": STATES, "to": STATES, "animal": animals}
    with pm.Model(coords=coords) as model:
        mu = pm.Gamma("mu", mu=np.array([0.3, 3.0]), sigma=np.array([0.3, 3.0]), dims="state",
                      transform=pm.distributions.transforms.ordered)
        cv = pm.Gamma("cv", alpha=2, beta=2, dims="state")
        ang_cos = pm.Normal("ang_cos", 0, 1, dims="state")
        ang_sin = pm.Normal("ang_sin", 0, 1, dims="state")
        pm.Deterministic("kappa", pt.sqrt(ang_cos**2 + ang_sin**2), dims="state")
        pm.Deterministic("mean_angle", pt.arctan2(ang_sin, ang_cos), dims="state")
        delta = pm.Dirichlet("delta", a=np.ones(2), dims="state")
        log_emis = elk_emissions(mu, cv, ang_cos, ang_sin)
        if not water_covariate:
            Gamma = pm.Dirichlet("Gamma", a=np.ones((2, 2)) + 4 * np.eye(2), dims=("state", "to"))
            loglik = hmm_loglik(log_emis, pt.log(Gamma), pt.log(delta))
        else:

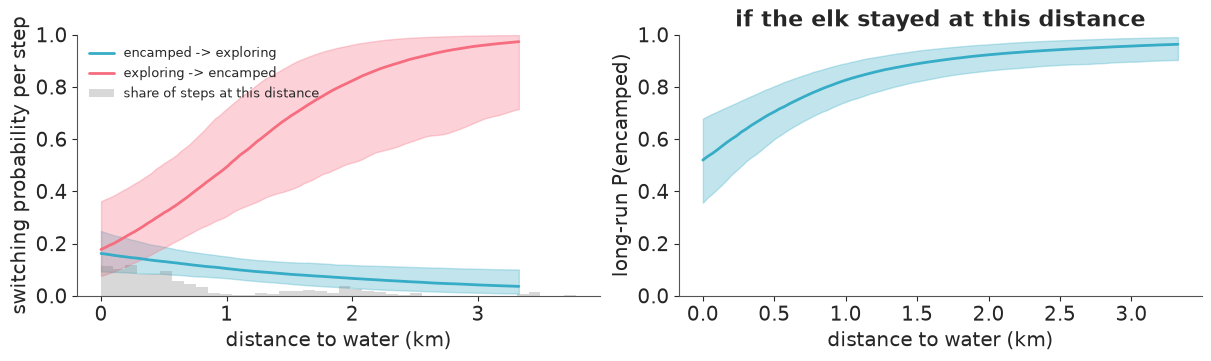

            # logit P(leave state k) = b0_k + b1_k * standardised distance to water, per step
            b0 = pm.Normal("b0", -1.5, 1.5, dims="state")
            b1 = pm.Normal("b1", 0, 1, dims="state")
            eta = b0 + b1 * water_z[:-1, :, None]                    # (time-1, animal, state)
            log_leave, log_stay = -pt.softplus(-eta), -pt.softplus(eta)
            log_Gamma = pt.stack([pt.stack([log_stay[..., 0], log_leave[..., 0]], -1),
                                  pt.stack([log_leave[..., 1], log_stay[..., 1]], -1)], -2)
            loglik = hmm_loglik(log_emis, log_Gamma, pt.log(delta), time_varying=True)
        pm.Potential("hmm_loglik", loglik.sum())  # one term per animal, summed
    return model


INIT_ELK = {"mu": np.array([0.3, 3.0])}
elk_idata = fit(elk_hmm(), "elk, 2 states", initvals=INIT_ELK)
az.summary(elk_idata, var_names=["mu", "cv", "kappa", "mean_angle", "Gamma"], ci_kind="hdi", ci_prob=0.94, round_to=2)

(time, animal) = (217, 4); step lengths used 730, angles used 727

elk, 2 states: 6 s, divergences = 0, max r_hat = 1.00, min ess_bulk = 1414
