Why a neuron fires: Bayesian inference of a conductance-based model from patch-clamp recordings

#A neuron's electrical life, in one paragraph

A neuron is a bag of salty water wrapped in a thin fatty membrane. Pumps keep more sodium outside and more potassium inside, so each ion "wants" to flow one way, and the inside sits at about -65 mV relative to the outside. The membrane itself is an insulator and stores charge like a capacitor. What lets current through are ion channels: proteins that open a pore for one kind of ion. A few are always open (the leak), which makes the membrane a leaky capacitor, an RC circuit. Others open and close with the voltage. When the membrane is pushed up past a threshold, sodium channels snap open within a fraction of a millisecond, sodium rushes in and pushes the voltage up further: a positive feedback that makes the action potential (the spike). The sodium channels then close themselves (inactivation) and slower potassium channels open, letting potassium out and bringing the voltage back down, a little below where it started (the after-hyperpolarisation, AHP). Even slower potassium channels (the M-current) build up over many spikes and make the cell fire more slowly as a stimulus goes on (adaptation). Hodgkin & Huxley (1952) wrote this down as differential equations for the squid giant axon. Every "conductance-based" model since has the same shape: a capacitor, batteries (the reversal potentials), and conductances that open and close.

In this notebook we fit such a model to real recordings from the Allen Cell Types Database, and learn three things that hold for almost any model of an excitable system: fit what the data can actually tell you (the passive membrane is easy; spikes are hard), do not try to match a spike train point by point, and expect many parameter combinations to explain the same behaviour.

#The plan

1. The recordings
2. The membrane at rest: an RC circuit fitted to small current steps
3. A conductance-based model, and how to integrate it
4. Why matching the voltage trace fails
5. A likelihood on spike features, sampled with SMC
6. Sloppiness: what the spikes pin down and what they do not
7. Predicting currents the model has not seen

import logging
import time
import warnings

import arviz as az
import matplotlib.pyplot as plt
import numba as nb
import numpy as np
import pymc as pm
import pytensor
import pytensor.tensor as pt
from scipy import stats

from pymc_challenges import data

RANDOM_SEED = 54
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
logging.getLogger("pymc").setLevel(logging.WARNING)
warnings.filterwarnings("ignore", category=FutureWarning)
warnings.filterwarnings("ignore", message=".*object mode.*")
BLUE, ORANGE, AQUA, GREY, PURPLE, RED, INK = (
    "#2a78d6", "#eb6834", "#1baf7a", "#8a8a86", "#8c5ac8", "#c8384e", "#222222")
print(f"PyMC {pm.__version__}, ArviZ {az.__version__}")

PyMC 6.3.2, ArviZ 1.3.0

#1 · The recordings

The Allen Institute's Cell Types Database publishes standardised whole-cell recordings from thousands of mouse and human neurons (Gouwens et al. 2019). In current clamp, an electrode inside the cell injects a known current and records the membrane potential. The core protocol is a family of one-second "long square" steps. We took one cell, an Sst-expressing interneuron from mouse primary visual cortex (the cell used in the Allen SDK's own examples), downloaded its 62 MB NWB file directly from the Allen API (an HDF5 file, read with h5py), and kept only the 21 long square sweeps, a 1.3 s window around each step, every tenth sample (20 kHz). That file is 450 KB.

data.describe("allen_sst_464212183")
rec = np.load(data.path("allen_sst_464212183"))
V_ALL = rec["v_mv"].astype(float)          # sweeps x samples, mV
AMP = rec["amp_pa"]                        # step amplitude of each sweep, pA
DT = 1e3 / float(rec["fs_hz"])             # 0.05 ms
T = np.arange(V_ALL.shape[1]) * DT         # ms; the step runs from 100 to 1100 ms
T_ON, T_DUR = 1e3 * float(rec["t_on_s"]), 1e3 * (float(rec["t_off_s"]) - float(rec["t_on_s"]))
V_LEVEL = -10.0                            # spikes are upward crossings of -10 mV


def sweep(amp, k=0):
    """Voltage trace of the k-th sweep with step amplitude `amp` (two sweeps exist at 70 pA)."""
    return V_ALL[np.where(AMP == amp)[0][k]]


def n_spikes(v):
    up = np.nonzero((v[1:] > V_LEVEL) & (v[:-1] <= V_LEVEL))[0] * DT
    return int(np.sum((up >= T_ON) & (up < T_ON + T_DUR)))


counts = np.array([n_spikes(v) for v in V_ALL])
print(f"{len(AMP)} sweeps, {V_ALL.shape[1]} samples each at {1 / DT:.0f} kHz; step {T_ON:.0f}-{T_ON + T_DUR:.0f} ms")
print("amplitude (pA) : spikes in 1 s")
print(", ".join(f"{a:.0f}: {c}" for a, c in zip(AMP, counts)))

allen_sst_464212183: NumPy .npz (open data.path(...) with np.load): whole-cell current-clamp recordings of one Sst-IRES-Cre;Ai14 aspiny interneuron in mouse primary visual cortex (specimen 464212183, male, P53). v_mv: 21 sweeps x 26,000 samples of membrane potential (mV, float32) at fs_hz = 20 kHz (downsampled from 200 kHz), a 1.3 s window with the 1 s square current step from t_on_s = 0.1 to t_off_s = 1.1 s; amp_pa: step amplitude (pA, -110 to +230, sorted); sweep: original sweep number; specimen_id.
  source: Allen Institute for Brain Science (2015), Allen Cell Types Database [dataset], available from celltypes.brain-map.org (cell page: celltypes.brain-map.org/experiment/electrophysiology/464212183); methods in Gouwens et al. (2019), Classification of electrophysiological and morphological neuron types in the mouse visual cortex, Nature Neuroscience 22:1182-1195. Used under the Allen Institute Terms of Use (alleninstitute.org/terms-of-use: research / noncommercial use with citation). EXTRACTED from the 62 MB NWB file at the URL (sweeps 19-36 and 44-46, the 'Long Square' current steps, every 10th sample), so keep the cached file in data/.
  url:    https://api.brain-map.org/api/v2/well_known_file_download/491202878
21 sweeps, 26000 samples each at 20 kHz; step 100-1100 ms
amplitude (pA) : spikes in 1 s
-110: 0, -90: 0, -70: 0, -50: 0, -30: 0, -10: 0, 10: 0, 30: 0, 50: 0, 60: 0, 70: 1, 70: 0, 80: 2, 90: 9, 110: 19, 130: 27, 150: 34, 170: 42, 190: 48, 210: 55, 230: 61

fig, axes = plt.subplot_mosaic([["sub", "sub", "fi"], ["sup", "sup", "zoom"]], figsize=(13, 7.5))
ax = axes["sub"]
cmap = plt.get_cmap("coolwarm")
for a in [-110, -90, -70, -50, -30, -10, 10, 30, 50]:
    ax.plot(T, sweep(a), color=cmap((a + 110) / 160), lw=0.8, label=f"{a:+.0f} pA")
ax.set(xlabel="time (ms)", ylabel="membrane potential (mV)",
       title="Subthreshold steps: the membrane charges like an RC circuit")
ax.legend(ncol=3, fontsize=7, loc="lower right")
ax = axes["sup"]
for i, a in enumerate([90, 150, 230]):
    ax.plot(T, sweep(a) + 90 * (2 - i), color=[BLUE, PURPLE, RED][i], lw=0.6)
    ax.text(1150, sweep(a)[0] + 90 * (2 - i), f"{a} pA", color=[BLUE, PURPLE, RED][i], va="center")
ax.set(xlabel="time (ms)", ylabel="mV (traces offset by 90 mV)", yticks=[],
       title="Suprathreshold steps: regular firing that speeds up with the current")
ax = axes["fi"]
ax.plot(AMP[AMP > 0], counts[AMP > 0], "o-", color=INK, ms=4)
ax.set(xlabel="step current (pA)", ylabel="spikes in 1 s (Hz)", title="The f-I curve")
ax = axes["zoom"]
ax.plot(T - T_ON, sweep(150), color=PURPLE, lw=1.2)
ax.axhline(V_LEVEL, color=GREY, ls=":", lw=1)
ax.set(xlim=(10, 50), xlabel="time from step onset (ms)", ylabel="mV", title="Two spikes at 150 pA");

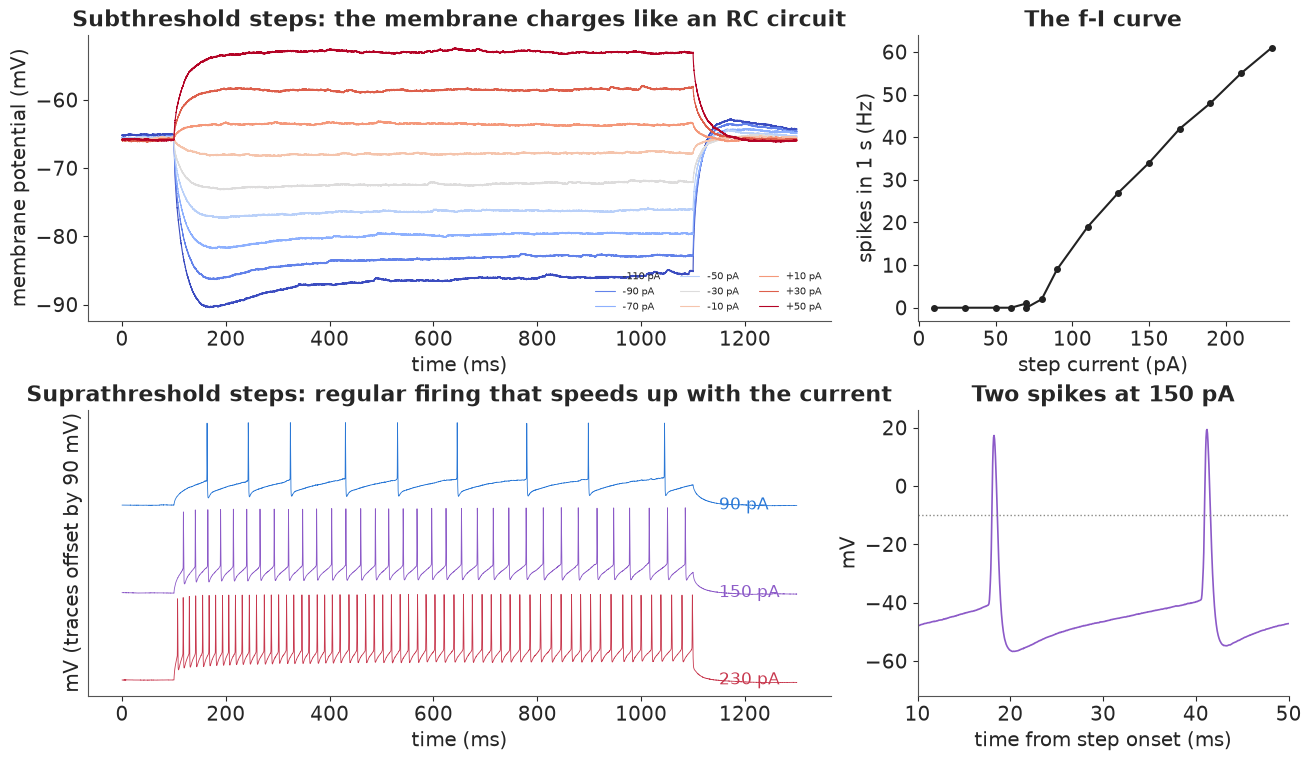

Top left: small steps move the voltage smoothly, a first-order charging curve that settles in a few tens of milliseconds, with a size roughly proportional to the current (about 2 mV per 10 pA, an input resistance near 200 MΩ). Two things are not RC: the largest hyperpolarising steps (-90, -110 pA) overshoot and sag back, and after the step ends they rebound above rest. That is the signature of a hyperpolarisation-activated current ($I_h$), a channel that opens when the cell is pushed down. And the depolarising steps give a little more than their share (+50 pA moves the voltage 12.8 mV, -50 pA only 10.6 mV). Bottom left: above about 70-80 pA the cell fires regularly, and faster with more current; the first spike comes earlier and the intervals lengthen a little during the step (adaptation). Top right: the f-I curve rises almost linearly from 9 Hz at 90 pA to 61 Hz at 230 pA; at 70 pA one sweep fired once and its repeat did not, so rheobase (the smallest current that fires) is about 70-80 pA. Bottom right: the spikes are narrow (under 1 ms at -10 mV), peak at about +20 mV and are followed by an AHP to about -55 mV.

#2 · The membrane at rest: an RC circuit fitted to small current steps

Below threshold, the voltage-gated channels are nearly all closed and the membrane is a capacitor $C$ in parallel with a leak conductance $g_L$ (a resistor $R = 1/g_L$) and a battery $E_L$:

$$C\,\frac{dV}{dt} = -g_L\,(V - E_L) + I(t).$$

For a step of size $I$ starting at $t_0$ the solution is $V(t) = V_{\text{rest}} + R\,I\,(1 - e^{-(t - t_0)/\tau})$ with time constant $\tau = RC$. So three numbers, $R$, $\tau$ and the resting potential, describe the subthreshold response, and $C = \tau / R$ and $g_L = 1/R$ follow.

Two refinements make this fit the real recordings honestly. First, a real neuron is not a single isopotential sphere: charge spreads from the soma into the dendrites, which adds a fast component of a millisecond or so at the start of each step (the electrode's imperfect bridge balance adds to it). The textbook approach (Rall's "peeling" of exponentials) is to fit a sum of exponentials and take the slowest time constant as the membrane time constant; the total capacitance is then $\tau / R$. So the response is $R\,I\,[1 - (1 - a)\,e^{-s/\tau} - a\,e^{-s/\tau_f}]$ with a fast weight $a$ and $\tau_f < \tau$. Second, recording noise at 1 ms spacing is strongly correlated (slow drifts, synaptic noise), so the residuals get a stationary AR(1) model: each residual is $\rho$ times the previous one plus fresh noise, and the first one has the stationary variance $\sigma^2 / (1 - \rho^2)$. (A version that conditions on the first point instead drove $\rho$ to 1, a random walk that no longer cares where the curve is, and returned nonsense; so did the single-exponential model with independent noise, whose intervals were tiny because it treated 1,200 strongly correlated residuals as independent.) The AR(1) terms go in as a pm.Potential.

We fit the four smallest steps (-50, -30, -10, +10 pA) on a 1 ms grid, from 100 ms before the step to 300 ms after its onset. Held out: the -110 pA step (to see the sag) and the +50 pA step.

PAS_AMPS = np.array([-50.0, -30.0, -10.0, 10.0])
SUB = 20                                              # 20 samples = 1 ms
win = T < T_ON + 300
t_pas = T[win][::SUB]
Y_PAS = np.array([sweep(a)[win][::SUB] for a in PAS_AMPS])
S_PAS = np.maximum(t_pas - T_ON, 0.0)                 # time since step onset (0 before it)


def step_response(s, tau, tau_f, a, lib=np):
    return 1.0 - (1.0 - a) * lib.exp(-s / tau) - a * lib.exp(-s / tau_f)


with pm.Model(coords={"sweep": [f"{a:+.0f} pA" for a in PAS_AMPS]}) as passive:
    v_rest = pm.Normal("v_rest", -65.0, 10.0, dims="sweep")
    R = pm.LogNormal("R", np.log(200.0), 1.0)         # input resistance, MOhm
    tau = pm.LogNormal("tau", np.log(20.0), 0.5)      # membrane (slow) time constant, ms
    tau_f = pm.LogNormal("tau_f", np.log(1.0), 0.7)   # fast (dendritic / electrode) component, ms
    a_f = pm.Beta("a_f", 2.0, 5.0)                    # its weight
    rho = pm.Uniform("rho", -1.0, 1.0)                # AR(1) coefficient of the residuals
    sigma = pm.HalfNormal("sigma", 1.0)               # innovation sd, mV
    mu = v_rest[:, None] + 1e-3 * R * PAS_AMPS[:, None] * step_response(S_PAS[None, :], tau, tau_f, a_f, pt)
    e = Y_PAS - mu
    pm.Potential("ar1", pm.logp(pm.Normal.dist(0.0, sigma / pt.sqrt(1.0 - rho**2)), e[:, 0]).sum()
                 + pm.logp(pm.Normal.dist(rho * e[:, :-1], sigma), e[:, 1:]).sum())
    pm.Deterministic("C", 1e3 * tau / R)              # pF   (ms / MOhm = nF)
    pm.Deterministic("gL", 1e3 / R)                   # nS
    t0 = time.time()
    idata_pas = pm.sample(random_seed=RANDOM_SEED, progressbar=False)
print(f"sampled in {time.time() - t0:.0f} s, divergences: {int(idata_pas.sample_stats['diverging'].sum())}")
az.summary(idata_pas, var_names=["R", "tau", "C", "gL", "tau_f", "a_f", "rho", "sigma", "v_rest"], round_to=3)

sampled in 4 s, divergences: 0

post_pas = az.extract(idata_pas)
pp = {k: post_pas[k].values for k in ["R", "tau", "tau_f", "a_f"]}
idx = rng.choice(pp["R"].size, 200, replace=False)


def passive_pred(s, a):
    return 1e-3 * pp["R"][idx, None] * a * step_response(s[None, :], pp["tau"][idx, None],
                                                        pp["tau_f"][idx, None], pp["a_f"][idx, None])


fig, axes = plt.subplots(1, 3, figsize=(13, 4.2))
ax = axes[0]
for j, a in enumerate(PAS_AMPS):
    ax.plot(t_pas, Y_PAS[j], color=GREY, lw=1)
    ax.plot(t_pas, (post_pas["v_rest"].values[j][idx, None] + passive_pred(S_PAS, a)).mean(0), color=BLUE, lw=1.5)
ax.set(xlabel="time (ms)", ylabel="mV", title="Fitted steps (grey data, blue posterior mean)")
for ax, a in zip(axes[1:], [-110.0, 50.0]):
    v = sweep(a)[: int((T_ON + 600) / DT)]
    tt = T[: v.size]
    pred = v[: int(T_ON / DT)].mean() + passive_pred(np.maximum(tt - T_ON, 0.0), a)  # rest from the pre-step 100 ms
    ax.plot(tt, v, color=GREY, lw=1, label="recorded")
    ax.fill_between(tt, *np.quantile(pred, [0.03, 0.97], axis=0), color=ORANGE, alpha=0.5, lw=0,
                    label="passive model, 94% band")
    ax.set(xlabel="time (ms)", title=f"Held out: {a:+.0f} pA")
    ax.legend(fontsize=8)
    print(f"{a:+.0f} pA: recorded change at 150-200 ms after onset {v[int((T_ON + 150) / DT):int((T_ON + 200) / DT)].mean() - v[:int(T_ON / DT)].mean():+.1f} mV, "
          f"at the end of the window {v[-int(50 / DT):].mean() - v[:int(T_ON / DT)].mean():+.1f} mV; "
          f"passive prediction {np.median(pred[:, -1]) - v[:int(T_ON / DT)].mean():+.1f} mV")
print(f"R = {np.median(pp['R']):.0f} MOhm, tau = {np.median(pp['tau']):.1f} ms, "
      f"C = {np.median(post_pas['C']):.0f} pF, gL = {np.median(post_pas['gL']):.2f} nS")

-110 pA: recorded change at 150-200 ms after onset -23.3 mV, at the end of the window -21.0 mV; passive prediction -25.2 mV
+50 pA: recorded change at 150-200 ms after onset +12.8 mV, at the end of the window +13.1 mV; passive prediction +11.4 mV
R = 229 MOhm, tau = 17.0 ms, C = 74 pF, gL = 4.37 nS

The sampler (nutpie) has no divergences, r_hat is at most 1.002 and every ESS is above 1,800. The passive properties are pinned down tightly: input resistance 229 ± 2 MΩ, membrane time constant 17.0 ± 0.7 ms, hence a capacitance of 74 ± 3 pF and a leak conductance of 4.37 nS. At the usual 1 µF/cm², 74 pF is about 7,400 µm² of membrane: a small interneuron, soma plus the dendrites that charge with it. The fast component carries 17% of the response with a time constant of 1.1 ms. The residuals are strongly correlated ($\rho = 0.95$ at 1 ms spacing); in prototypes that ignored this, the intervals for $R$ were four to six times narrower.

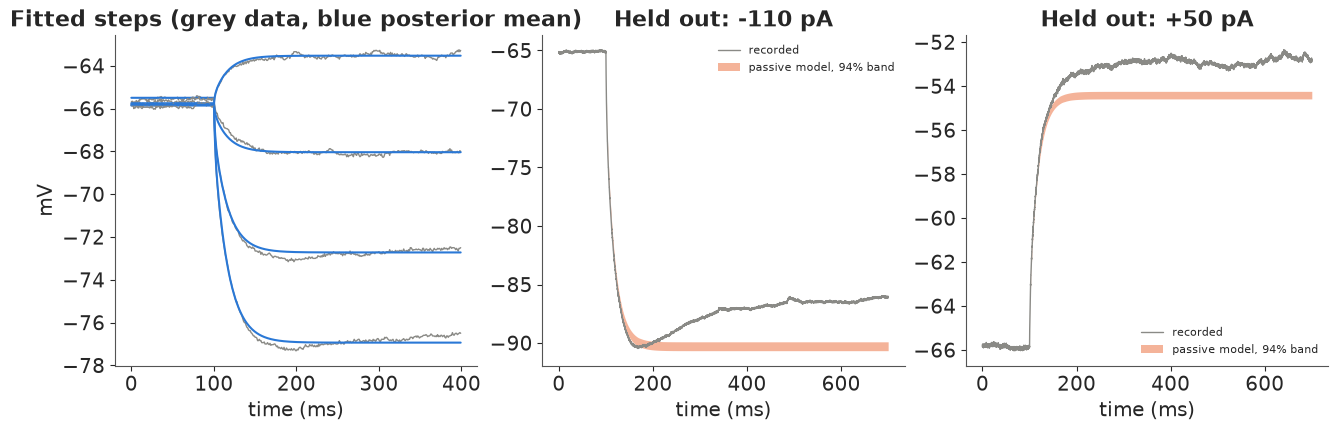

The fitted curves (left) follow the four steps. The held-out steps are the more interesting part. At -110 pA the passive model predicts a drop of 25 mV that stays there; the cell does reach that within about 70 ms, then sags back by about 4 mV (to -21 mV at the end of the window). At +50 pA the cell goes about 1.5 mV higher than the model (+12.8 vs +11.4 mV). Neither is noise: both are channels that a leak-only membrane does not have ($I_h$ opening below rest; a persistent sodium current or potassium channels closing above it). The passive fit is still the right tool for $C$ and $g_L$, because near rest these currents are small, but we now know its limits: the single-compartment model we build next has no $I_h$ and will not reproduce the sag. Its $C$, $g_L$ and $E_L$ inherit the passive posterior as a prior.

#3 · A conductance-based model, and how to integrate it

We use the single-compartment model of Pospischil et al. (2008), a Hodgkin-Huxley-type model built to describe cortical neuron classes with few parameters:

$$C\,\frac{dV}{dt} = -g_L (V - E_L) - \bar g_{Na}\, m^3 h\, (V - E_{Na}) - \bar g_K\, n^4 (V - E_K) - \bar g_M\, p\, (V - E_K) + I(t).$$

Each gating variable $x \in \{m, h, n, p\}$ is the fraction of gates of one kind that are open, and relaxes towards a voltage-dependent target: $dx/dt = \alpha_x(V)(1 - x) - \beta_x(V)\,x$, i.e. $x \to x_\infty(V)$ with time constant $\tau_x(V) = 1/(\alpha_x + \beta_x)$.

symbol	what it is	in plain terms
$\bar g_{Na}$, $m$, $h$	sodium conductance, activation (fast), inactivation (slower)	the spike's upstroke; $h$ shuts the channel again
$\bar g_K$, $n$	delayed-rectifier potassium conductance	brings the voltage back down; sets spike width and AHP
$\bar g_M$, $p$, $\tau_{\max}$	slow, non-inactivating M-type potassium	builds up over spikes: adaptation
$V_T$	shifts all Na and K rate curves	the effective spike threshold
$E_K$	potassium reversal potential	how far the AHP can go
$C$, $g_L$, $E_L$	capacitance, leak, leak reversal	from section 2

The rate functions ($\alpha$, $\beta$ for $m$, $h$, $n$; $p_\infty$ and $\tau_p$) are those of Pospischil et al. (2008), with $E_{Na} = 53$ mV. We work with whole-cell conductances in nS and capacitance in pF, so the injected current in pA enters directly.

Integration. The equations are stiff: $m$ changes in 0.05 ms during a spike, $p$ over hundreds of ms. An explicit Euler step would need a tiny $\Delta t$. The standard fix in cardiac and neural simulation is the Rush-Larsen method (Rush & Larsen 1978), also called exponential Euler: over one step, freeze the voltage, and each gate obeys a linear ODE with an exact solution $x_{t+\Delta t} = x_\infty + (x_t - x_\infty)\,e^{-\Delta t/\tau_x}$; with the gates frozen, $V$ also obeys a linear ODE, $V_{t+\Delta t} = V_\infty + (V_t - V_\infty)\,e^{-\Delta t\, g_{\text{tot}}/C}$, where $g_{\text{tot}}$ is the total conductance and $V_\infty$ the conductance-weighted mean of the reversal potentials. This is unconditionally stable and accurate enough at $\Delta t = 0.05$ ms, the sampling interval of the data. One second of simulated time is 20,000 steps; in Numba that takes about 1.5 ms.

ENA = 53.0
T_PRE = T_ON                                  # 100 ms before the step, as in the recordings
T_SIM = T_PRE + 1000.0 + 40.0                 # simulate 40 ms past the step so late spikes complete
PARAMS = ["C", "gL", "EL", "gNa", "gK", "gM", "VT", "tau_max", "EK"]


@nb.njit(fastmath=True)
def _rates(V, VT):
    """Pospischil et al. (2008) rate functions (1/ms); the removable 0/0 points are patched."""
    x = V - VT - 13.0
    am = 1.28 if abs(x) < 1e-6 else -0.32 * x / (np.exp(-x / 4.0) - 1.0)
    x = V - VT - 40.0
    bm = 1.4 if abs(x) < 1e-6 else 0.28 * x / (np.exp(x / 5.0) - 1.0)
    ah = 0.128 * np.exp(-(V - VT - 17.0) / 18.0)
    bh = 4.0 / (1.0 + np.exp(-(V - VT - 40.0) / 5.0))
    x = V - VT - 15.0
    an = 0.16 if abs(x) < 1e-6 else -0.032 * x / (np.exp(-x / 5.0) - 1.0)
    bn = 0.5 * np.exp(-(V - VT - 10.0) / 40.0)
    return am, bm, ah, bh, an, bn


@nb.njit(fastmath=True)
def simulate(theta, amp, t_total, gates=False):
    """Rush-Larsen integration. theta = C (pF), gL (nS), EL (mV), gNa, gK, gM (nS), VT (mV),
    tau_max (ms), EK (mV); a step of `amp` pA from T_PRE for 1000 ms. Starts with the gates at
    their steady state at V = EL. Returns V (and m, h, n, p if gates=True) every DT."""
    C, gL, EL, gNa, gK, gM, VT, tmax, EK = theta
    n_steps = int(t_total / DT)
    V = EL
    am, bm, ah, bh, an, bn = _rates(V, VT)
    m, h, n = am / (am + bm), ah / (ah + bh), an / (an + bn)
    p = 1.0 / (1.0 + np.exp(-(V + 35.0) / 10.0))
    out = np.empty((n_steps, 5 if gates else 1))
    for k in range(n_steps):
        t = k * DT
        I = amp if (t >= T_PRE and t < T_PRE + 1000.0) else 0.0
        am, bm, ah, bh, an, bn = _rates(V, VT)
        sm, sh, sn = am + bm, ah + bh, an + bn
        m = am / sm + (m - am / sm) * np.exp(-DT * sm)
        h = ah / sh + (h - ah / sh) * np.exp(-DT * sh)
        n = an / sn + (n - an / sn) * np.exp(-DT * sn)
        pinf = 1.0 / (1.0 + np.exp(-(V + 35.0) / 10.0))
        tp = tmax / (3.3 * np.exp((V + 35.0) / 20.0) + np.exp(-(V + 35.0) / 20.0))
        p = pinf + (p - pinf) * np.exp(-DT / tp)
        gna = gNa * m * m * m * h
        gk = gK * n * n * n * n + gM * p
        gtot = gL + gna + gk
        vinf = (gL * EL + gna * ENA + gk * EK + I) / gtot
        V = vinf + (V - vinf) * np.exp(-DT * gtot / C)
        out[k, 0] = V
        if gates:
            out[k, 1] = m
            out[k, 2] = h
            out[k, 3] = n
            out[k, 4] = p
    return out


# A reference parameter set: roughly the posterior mean of the feature fit in section 5
THETA_REF = np.array([79.0, 4.37, -65.1, 690.0, 220.0, 4.7, -56.7, 900.0, -94.0])
sim_ref = simulate(THETA_REF, 150.0, T_PRE + 1000.0, True)
simulate(THETA_REF, 150.0, T_PRE + 1000.0)             # compile the gates=False version
t0 = time.time()
for _ in range(10):
    simulate(THETA_REF, 150.0, T_PRE + 1000.0)
print(f"one 1.1 s simulation: {(time.time() - t0) / 10 * 1e3:.1f} ms")

one 1.1 s simulation: 1.7 ms

fig, axes = plt.subplots(2, 1, figsize=(11, 6), sharex=True, height_ratios=[1.3, 1])
tt = T[: sim_ref.shape[0]] - T_ON
ax = axes[0]
ax.plot(tt, sweep(150)[: tt.size], color=GREY, lw=1.2, label="recorded, 150 pA")
ax.plot(tt, sim_ref[:, 0], color=PURPLE, lw=1.2, label="model, reference parameters")

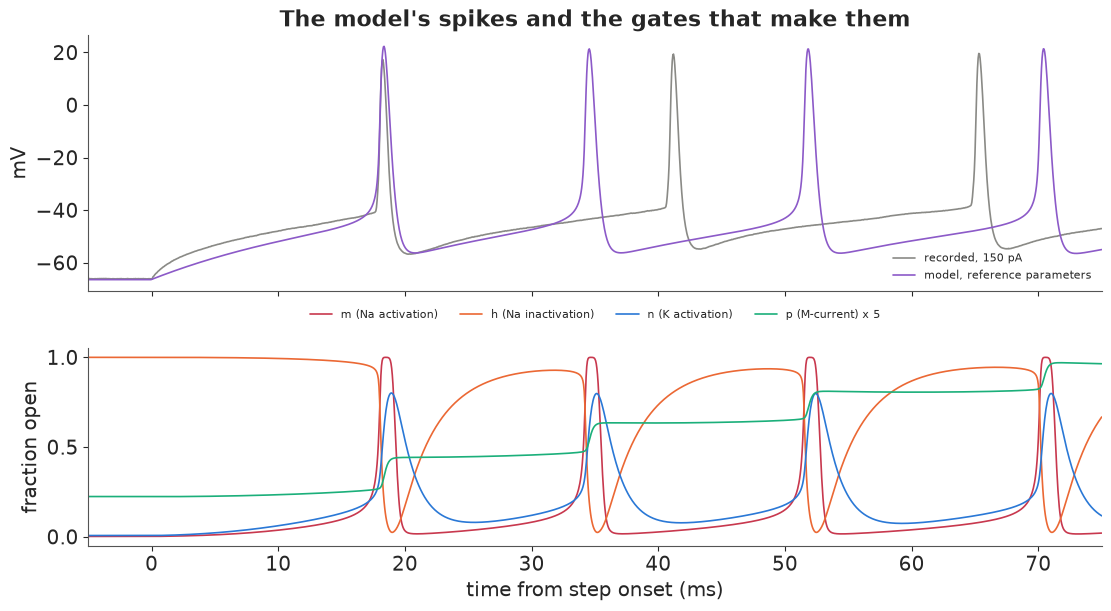

ax.set(ylabel="mV", xlim=(-5, 75), title="The model's spikes and the gates that make them")
ax.legend(fontsize=8, loc="lower right")
ax = axes[1]
for j, (lab, c) in enumerate(zip(["m (Na activation)", "h (Na inactivation)", "n (K activation)",
                                  "p (M-current) x 5"], [RED, ORANGE, BLUE, AQUA])):
    ax.plot(tt, sim_ref[:, j + 1] * (5 if j == 3 else 1), color=c, lw=1.2, label=lab)
ax.set(xlabel="time from step onset (ms)", ylabel="fraction open", ylim=(-0.05, 1.05))
ax.legend(fontsize=8, ncol=4, loc="upper center", bbox_to_anchor=(0.5, 1.25), frameon=False)
print(f"p (M-current gate): {sim_ref[int(T_ON / DT) - 1, 4]:.3f} at rest, {sim_ref[int((T_ON + 75) / DT), 4]:.3f} after 75 ms, "
      f"{sim_ref[-1, 4]:.3f} at the end of the step");

p (M-current gate): 0.045 at rest, 0.193 after 75 ms, 0.357 at the end of the step

The model makes spikes of the right height and width, and its first spike comes at the right time, but the next ones come too early: its first intervals are about 17 ms against the cell's 23-24 ms. (Over the whole second this parameter set still fires about as many spikes as the cell, because its adaptation is stronger; we come back to that in section 7.) The gates show the mechanism. When the voltage reaches threshold, $m$ (red) jumps from near 0 to near 1 in a fraction of a millisecond: sodium rushes in. $h$ (orange) falls a little later and switches the sodium channels off; $n$ (blue) rises and potassium pulls the voltage down into the AHP. Between spikes $h$ recovers and $n$ decays, and the injected current charges the membrane to the next threshold crossing. $p$ (green, multiplied by 5) steps up with every spike and barely decays in between: it goes from 0.045 at rest to 0.19 after 75 ms and 0.36 by the end of the step. That slowly growing potassium current is what lengthens the later intervals.

#4 · Why matching the voltage trace fails

The obvious likelihood treats the recorded trace as the model trace plus noise: $V^{\text{obs}}_t \sim \text{Normal}(V_t(\theta), \sigma)$. Below threshold this works (section 2). With spikes it breaks. A spike is 1 ms wide and the intervals are 20-30 ms. Change a conductance by a few percent and the spike train shifts in time; once a model spike is half a millisecond from the recorded one, the residual contains two full spikes instead of none. The likelihood then depends on how many spikes happen to line up, which jumps up and down as the parameter changes.

Below: a one-dimensional profile over $\bar g_K$ (every other parameter at the reference values), comparing the Gaussian trace log-likelihood over the full 150 pA sweep ($\sigma$ = 2 mV, every 0.25 ms) with the feature-based log-likelihood of section 5.

@nb.njit
def detect(v, dt, t_on, t_dur):
    """Spikes = upward crossings of V_LEVEL that start during the step. Returns spike times (ms from
    step onset), peaks, troughs (minimum in the 30 ms after the down-crossing, or until the next
    spike) and widths (time above V_LEVEL)."""
    nmax = 400
    ts, pk, tr, wd = np.zeros(nmax), np.zeros(nmax), np.zeros(nmax), np.zeros(nmax)
    ns, k, n = 0, 1, v.shape[0]
    while k < n and ns < nmax:
        if v[k] > V_LEVEL and v[k - 1] <= V_LEVEL:
            j, vmax = k, v[k]
            while j < n and v[j] >= V_LEVEL:
                vmax = max(vmax, v[j])
                j += 1
            if k * dt >= t_on and k * dt < t_on + t_dur:
                ts[ns], pk[ns], wd[ns] = k * dt - t_on, vmax, (j - k) * dt
                vmin, q = 1e9, j
                while q < n and (q - j) * dt < 30.0 and v[q] <= V_LEVEL:
                    vmin = min(vmin, v[q])
                    q += 1
                tr[ns] = vmin if vmin < 1e8 else v[n - 1]    # a spike at the very end of the record
                ns += 1
            k = j
        k += 1
    return ts[:ns], pk[:ns], tr[:ns], wd[:ns]


@nb.njit
def summarize(v, dt):
    """Six spike features of one 1 s step: spike count, log first-spike latency (ms), mean peak (mV),
    mean trough (mV), mean width at -10 mV (ms), log(last ISI / first ISI). Without spikes: count 0,
    latency 1000 ms, and the maximum voltage reached (minus 20 mV) stands in for the trough."""
    ts, pk, tr, wd = detect(v, dt, T_ON, 1000.0)
    f = np.zeros(6)
    n = ts.shape[0]
    if n == 0:
        f[1] = np.log(1000.0)
        f[2] = V_LEVEL
        f[3] = v[int(T_ON / dt):int((T_ON + 1000.0) / dt)].max() - 20.0
        return f
    f[0], f[1] = n, np.log(max(ts[0], 0.5))
    f[2], f[3], f[4] = pk.mean(), tr.mean(), wd.mean()
    if n >= 3:
        f[5] = np.log((ts[n - 1] - ts[n - 2]) / (ts[1] - ts[0]))
    return f


@nb.njit
def features(theta, amps):
    out = np.zeros((amps.shape[0], 6))
    for i in range(amps.shape[0]):
        out[i] = summarize(simulate(theta, amps[i], T_SIM)[:, 0], DT)
    return out


FEATS = ["spike count", "log latency", "peak (mV)", "trough (mV)", "width (ms)", "log ISI ratio"]
FEAT_SD = np.array([2.0, 0.15, 3.0, 2.0, 0.1, 0.15])
FIT_AMPS = np.array([90.0, 150.0, 210.0])
F_OBS = np.array([summarize(sweep(a), DT) for a in FIT_AMPS])


def feature_loglik(theta):
    return -0.5 * np.sum(((features(theta, FIT_AMPS) - F_OBS) / FEAT_SD) ** 2)


v150 = sweep(150)[: int((T_PRE + 1000) / DT)]
gk_mult = np.exp(np.linspace(np.log(0.6), np.log(1.6), 241))
ll_trace, ll_feat = np.zeros(gk_mult.size), np.zeros(gk_mult.size)
t0 = time.time()
for i, mlt in enumerate(gk_mult):
    th = THETA_REF.copy()
    th[4] *= mlt
    v = simulate(th, 150.0, T_PRE + 1000.0)[:, 0]
    ll_trace[i] = stats.norm.logpdf(v150[::5], v[::5], 2.0).sum()
    ll_feat[i] = feature_loglik(th)
print(f"{gk_mult.size} x 4 simulations in {time.time() - t0:.1f} s")
n_local = np.sum((ll_trace[1:-1] > ll_trace[:-2]) & (ll_trace[1:-1] > ll_trace[2:]))
print(f"trace log-likelihood: {n_local} local maxima on the grid, range {ll_trace.min():.0f} to {ll_trace.max():.0f}")
print(f"feature log-likelihood: maximum at gK x {gk_mult[ll_feat.argmax()]:.2f}")

241 x 4 simulations in 3.5 s
trace log-likelihood: 12 local maxima on the grid, range -155511 to -122350
feature log-likelihood: maximum at gK x 1.01

fig, axes = plt.subplots(1, 2, figsize=(13, 4.2))
ax = axes[0]
ax.plot(THETA_REF[4] * gk_mult, ll_trace - ll_trace.max(), color=RED, lw=1, label="voltage trace")
ax.set(xscale="log", xlabel="g_K (nS)", ylabel="log-likelihood (max = 0)",
       title="Trace likelihood: rugged")
ax2 = axes[1]
ax2.plot(THETA_REF[4] * gk_mult, ll_feat - ll_feat.max(), color=BLUE, lw=1.5, label="spike features")
ax2.set(xscale="log", xlabel="g_K (nS)", ylabel="log-likelihood (max = 0)",
        title="Feature likelihood: smooth", ylim=(-60, 3));

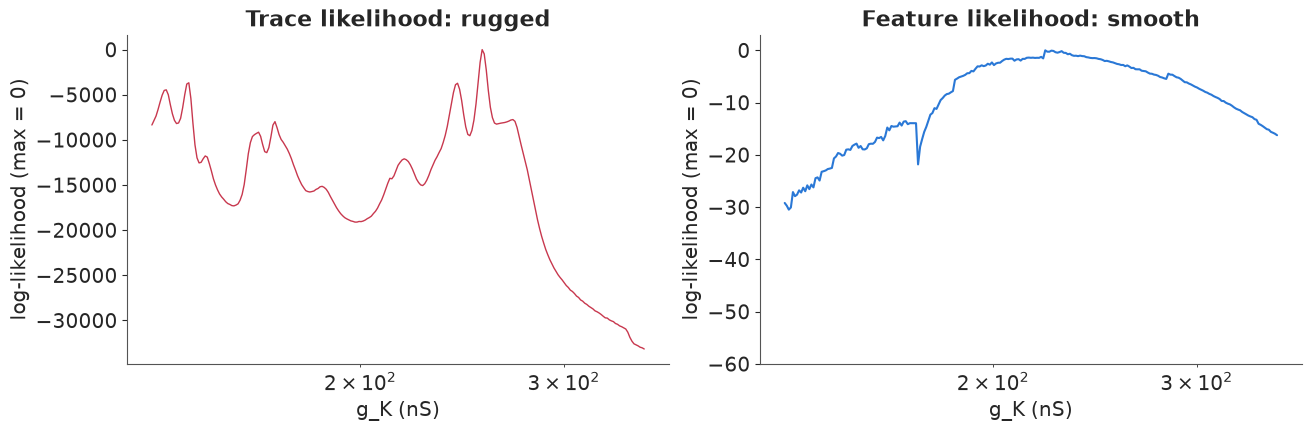

The trace log-likelihood (left) has a dozen local maxima on this grid of 241 points and varies over more than 30,000 log-units; most of that variation says only whether spikes happen to coincide. A gradient-based sampler started anywhere on this landscape climbs the nearest peak. The feature log-likelihood (right, same parameter, a scale 500 times smaller) is a single broad bump with its maximum within 1% of the reference $\bar g_K$. It is not perfectly smooth: it has small steps wherever a spike count changes by one (worth little against a tolerance of 2 spikes) and one notch near 165 nS, but nothing that would trap a sampler.

To see what that does to MCMC, here is trace matching done inside PyMC: the same Rush-Larsen step written in PyTensor and iterated with scan over the first 80 ms of the 150 pA step (1,600 steps, three spikes), with $\log \bar g_{Na}$, $\log \bar g_K$ and $V_T$ free and the rest fixed. Gradients flow through scan, so NUTS can run. Four chains, 300 warm-up and 300 draws each.

N_WIN = int(80 / DT)
v_win = sweep(150)[int(T_ON / DT):int(T_ON / DT) + N_WIN]
C0, GL0, EL0, _, _, GM0, _, TMAX0, EK0 = THETA_REF


def rates_pt(V, VT):
    x = V - VT - 13.0
    am = -0.32 * x / pt.expm1(-x / 4.0)
    x = V - VT - 40.0
    bm = 0.28 * x / pt.expm1(x / 5.0)
    ah = 0.128 * pt.exp(-(V - VT - 17.0) / 18.0)
    bh = 4.0 / (1.0 + pt.exp(-(V - VT - 40.0) / 5.0))
    x = V - VT - 15.0
    an = -0.032 * x / pt.expm1(-x / 5.0)
    bn = 0.5 * pt.exp(-(V - VT - 10.0) / 40.0)
    return am, bm, ah, bh, an, bn


def rush_larsen_step(V, m, h, n, p, gNa, gK, VT):
    am, bm, ah, bh, an, bn = rates_pt(V, VT)
    sm, sh, sn = am + bm, ah + bh, an + bn
    m = am / sm + (m - am / sm) * pt.exp(-DT * sm)
    h = ah / sh + (h - ah / sh) * pt.exp(-DT * sh)
    n = an / sn + (n - an / sn) * pt.exp(-DT * sn)
    pinf = pt.sigmoid((V + 35.0) / 10.0)
    tp = TMAX0 / (3.3 * pt.exp((V + 35.0) / 20.0) + pt.exp(-(V + 35.0) / 20.0))
    p = pinf + (p - pinf) * pt.exp(-DT / tp)
    gna, gk = gNa * m**3 * h, gK * n**4 + GM0 * p
    gtot = GL0 + gna + gk
    vinf = (GL0 * EL0 + gna * ENA + gk * EK0 + 150.0) / gtot
    return vinf + (V - vinf) * pt.exp(-DT * gtot / C0), m, h, n, p


with pm.Model() as trace_model:
    log_gNa = pm.Normal("log_gNa", np.log(2000.0), 1.0)
    log_gK = pm.Normal("log_gK", np.log(400.0), 1.0)
    VT = pm.Normal("VT", -60.0, 5.0)
    V0 = pt.as_tensor(v_win[0])
    am, bm, ah, bh, an, bn = rates_pt(V0, VT)
    init = [V0, am / (am + bm), ah / (ah + bh), an / (an + bn), pt.sigmoid((V0 + 35.0) / 10.0)]
    states = pytensor.scan(rush_larsen_step, outputs_info=init, non_sequences=[pt.exp(log_gNa), pt.exp(log_gK), VT],
                           n_steps=N_WIN - 1, return_updates=False)
    v_model = pm.Deterministic("v_model", pt.concatenate([V0[None], states[0]])[::5])
    pm.Normal("v", v_model, 2.0, observed=v_win[::5])
    t0 = time.time()
    idata_tr = pm.sample(tune=300, draws=300, random_seed=RANDOM_SEED, progressbar=False)
print(f"sampled in {time.time() - t0:.0f} s, divergences: {int(idata_tr.sample_stats['diverging'].sum())}")
print(az.summary(idata_tr, var_names=["log_gNa", "log_gK", "VT"], round_to=3)[["mean", "sd", "ess_bulk", "r_hat"]])
for c in range(4):
    p = idata_tr.posterior
    print(f"chain {c}: gNa = {np.exp(p['log_gNa'].values[c].mean()):7.0f} nS, gK = "
          f"{np.exp(p['log_gK'].values[c].mean()):5.0f} nS, VT = {p['VT'].values[c].mean():6.1f} mV, "
          f"mean log-lik = {idata_tr.sample_stats['logp'].values[c].mean():8.0f}")

sampled in 44 s, divergences: 0
           mean     sd  ess_bulk  r_hat
log_gNa   5.637  1.244     7.464  1.554
log_gK    5.558  0.007   433.309  1.270
VT      -61.753  0.641     7.480  1.557
chain 0: gNa =     137 nS, gK =   259 nS, VT =  -62.1 mV, mean log-lik =    -4012
chain 1: gNa =     137 nS, gK =   259 nS, VT =  -62.1 mV, mean log-lik =    -4012
chain 2: gNa =    2422 nS, gK =   260 nS, VT =  -60.6 mV, mean log-lik =   -23407
chain 3: gNa =     137 nS, gK =   259 nS, VT =  -62.1 mV, mean log-lik =    -4012

fig, ax = plt.subplots(figsize=(11, 4))
tw = np.arange(N_WIN)[::5] * DT
ax.plot(tw, v_win[::5], color=GREY, lw=2.5, label="recorded, 150 pA")
for c, col in enumerate([BLUE, ORANGE, AQUA, PURPLE]):
    ax.plot(tw, idata_tr.posterior["v_model"].values[c, -1], color=col, lw=1, label=f"chain {c}, last draw")
ax.set(xlabel="time from step onset (ms)", ylabel="mV", title="Trace matching with NUTS: chains in different modes")
ax.legend(fontsize=8, ncol=5, loc="lower right");

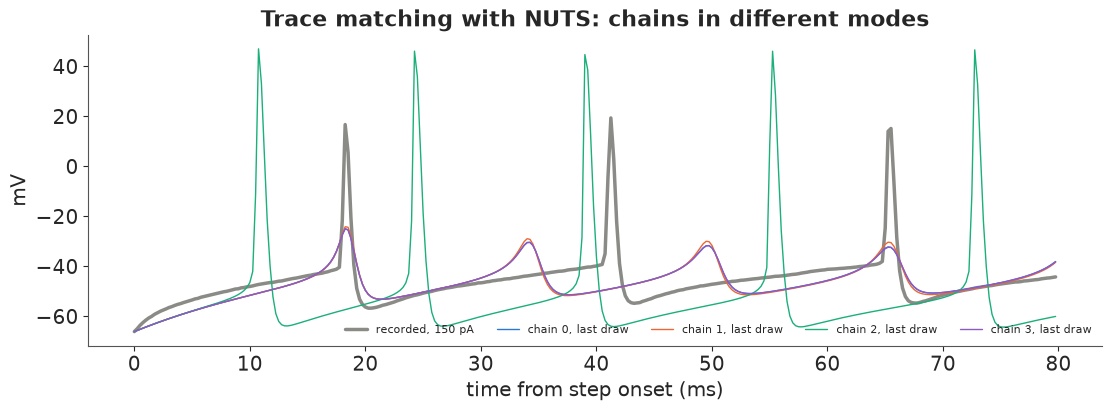

The chains disagree about the answer, and the diagnostics report it only through r_hat (about 1.55) and a bulk ESS of 7, with zero divergences: every chain samples happily around its own local optimum. The traces show what the modes are. Three chains settled on $\bar g_{Na} \approx 140$ nS, a model that makes no real spikes at all, only small bumps to about -30 mV that roughly track the recorded rhythm. The fourth found $\bar g_{Na} \approx 2{,}400$ nS and fires proper, too-tall spikes, five instead of three, at the wrong times. And the likelihood prefers the spikeless model (mean log-likelihood about -4,000 against -23,000): a missing spike costs the squared error of one spike, a misplaced spike costs it twice (once where the model spikes, once where the cell does). This is the general failure of pointwise matching for oscillating or spiking signals, and more warm-up would not help (E46 found the same for a chaotic map). This window has only three spikes; a full second has 34, and the comb in the profile above gets finer.

There are cures: fit the spike times (a point-process likelihood), align spikes before comparing shapes, or use multiple shooting (E47). The common practice, used below, is to reduce each sweep to features that vary smoothly with the parameters.

#5 · A likelihood on spike features, sampled with SMC

For each fitted current step we compute six features (the summarize function above): the spike count in the 1 s step (the firing rate), the log latency of the first spike, mean spike peak, mean AHP trough, mean spike width at -10 mV, and an adaptation index, the log ratio of the last to the first interspike interval. We fit three steps (90, 150, 210 pA) and hold out the other nine steps from 60 pA up (including the repeat at 70 pA) for section 7.

The likelihood is Gaussian on the features, $f^{\text{obs}}_{jk} \sim \text{Normal}(f_{jk}(\theta), s_k)$, with scales $s_k$ = 2 spikes, 0.15 (15% on latency), 3 mV, 2 mV, 0.1 ms, 0.15. These are tolerances, not measurement errors. Repeated sweeps differ by a few spikes (the Allen metadata for this cell lists 2 s repeats at 110 pA with 33, 37 and 37 spikes), but the larger part is model error: a one-compartment model with three channels will not reproduce this cell exactly, and the scales say how closely we ask it to. The posterior width scales with them (exercise 1).

The features are not differentiable functions of $\theta$ (spike counts are integers, thresholds are crossings), so NUTS is out. PyMC's pm.Simulator takes any Python function that returns simulated summaries; with distance="gaussian", epsilon=1 and standardised features, its "ABC kernel" is exactly our Gaussian feature likelihood. Sequential Monte Carlo (pm.sample_smc) samples it by tempering from the prior to the posterior through a sequence of intermediate distributions, moving a population of particles with Metropolis steps; it needs only likelihood evaluations. Each evaluation is three 1.1 s simulations, about 5 ms.

Priors. $C$, $g_L$ and $E_L$ come from the passive posterior (log-normal / normal with its mean and sd). The conductances are log-normal around typical values of the Pospischil et al. (2008) cortical models scaled to about 75 pF of membrane (50 mS/cm² of Na, 5 mS/cm² of K, 0.07 mS/cm² of M), with a factor $e$ of spread; $V_T \sim \text{Normal}(-60, 5)$ mV; $E_K \sim \text{Normal}(-95, 7)$ mV; $\tau_{\max} \sim \text{LogNormal}(\log 1000, 0.7)$ ms.

log_C, log_gL = np.log(post_pas["C"].values), np.log(post_pas["gL"].values)
vr_all = post_pas["v_rest"].values.mean(axis=0)
PRIOR = {  # name: (distribution, location, scale); lognormal ones on the log scale
    "C": ("lognormal", log_C.mean(), log_C.std()),
    "gL": ("lognormal", log_gL.mean(), log_gL.std()),
    "EL": ("normal", vr_all.mean(), 1.0),
    "gNa": ("lognormal", np.log(4000.0), 1.0),
    "gK": ("lognormal", np.log(400.0), 1.0),
    "gM": ("lognormal", np.log(5.0), 1.0),
    "VT": ("normal", -60.0, 5.0),
    "tau_max": ("lognormal", np.log(1000.0), 0.7),
    "EK": ("normal", -95.0, 7.0),
}
for k, (d, loc, sc) in PRIOR.items():
    print(f"{k:8s} {d:9s} median {np.exp(loc) if d == 'lognormal' else loc:8.2f}, sd {sc:.3f}")


def simulator(rng, C, gL, EL, gNa, gK, gM, VT, tau_max, EK, size=None):
    th = np.array([C[0], gL[0], EL[0], gNa[0], gK[0], gM[0], VT[0], tau_max[0], EK[0]], dtype=float)
    return (features(th, FIT_AMPS) / FEAT_SD).ravel()


with pm.Model() as feature_model:
    theta = [pm.LogNormal(k, loc, sc) if d == "lognormal" else pm.Normal(k, loc, sc)
             for k, (d, loc, sc) in PRIOR.items()]
    pm.Simulator("features", simulator, *theta, epsilon=1.0, distance="gaussian", sum_stat="identity",
                 observed=(F_OBS / FEAT_SD).ravel())
    t0 = time.time()
    idata_smc = pm.sample_smc(draws=500, chains=2, cores=2, random_seed=RANDOM_SEED, progressbar=False)
print(f"SMC: {time.time() - t0:.0f} s")
for c in range(2):
    beta = idata_smc.sample_stats["beta"].values[c]
    acc = idata_smc.sample_stats["accept_rate"].values[c]
    print(f"chain {c}: {len(beta)} tempering stages, acceptance first/last stage {acc[0]:.2f} / {acc[-1]:.2f}")
summ_smc = az.summary(idata_smc, var_names=PARAMS, round_to=3)
summ_smc[["mean", "sd", "eti89_lb", "eti89_ub", "ess_bulk", "r_hat"]]

C        lognormal median    74.29, sd 0.041
gL       lognormal median     4.37, sd 0.008
EL       normal    median   -65.73, sd 1.000
gNa      lognormal median  4000.00, sd 1.000
gK       lognormal median   400.00, sd 1.000
gM       lognormal median     5.00, sd 1.000
VT       normal    median   -60.00, sd 5.000
tau_max  lognormal median  1000.00, sd 0.700
EK       normal    median   -95.00, sd 7.000

SMC: 164 s
chain 0: 10 tempering stages, acceptance first/last stage 0.73 / 0.13
chain 1: 10 tempering stages, acceptance first/last stage 0.72 / 0.13

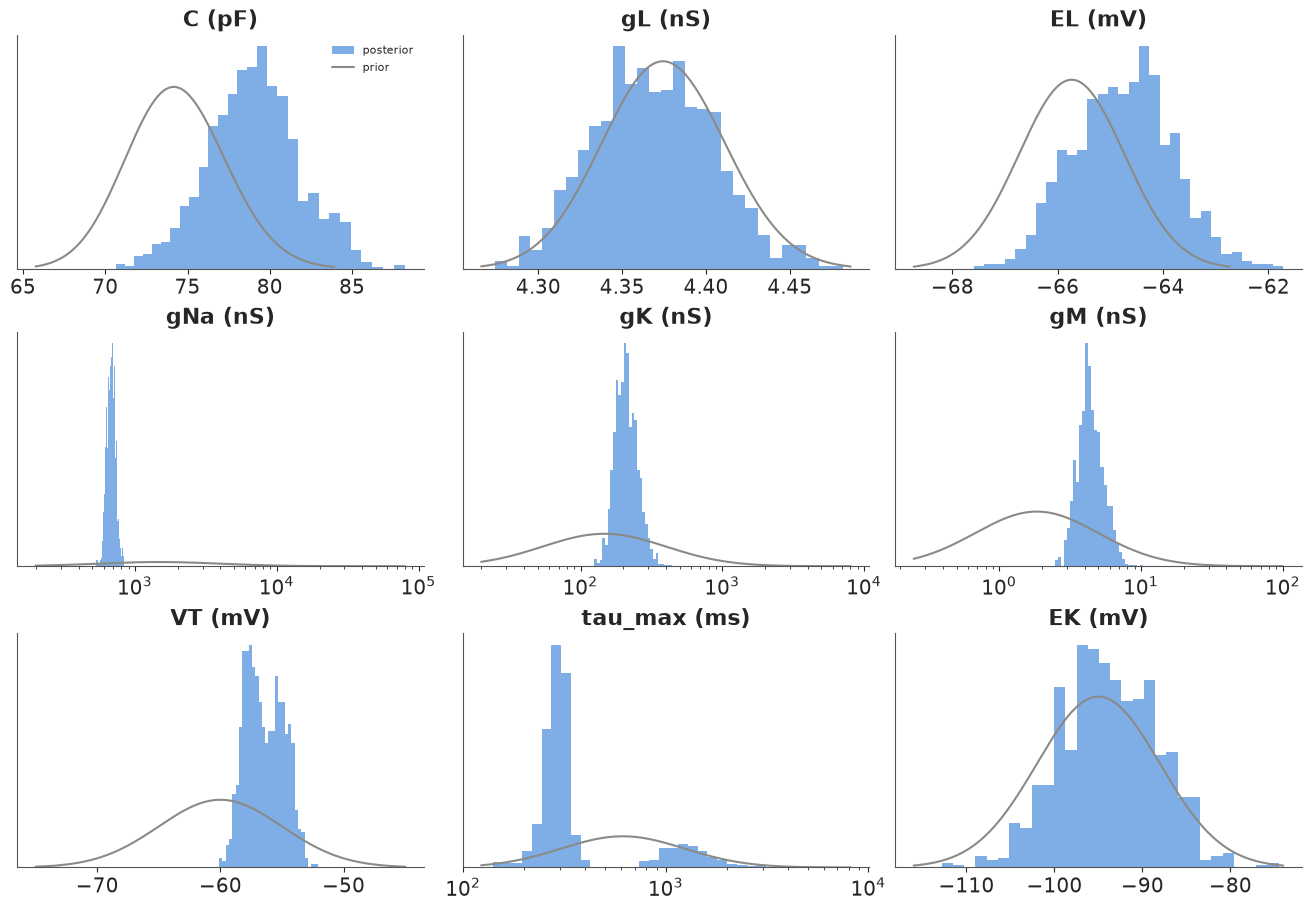

post = az.extract(idata_smc)
draws = np.column_stack([post[k].values for k in PARAMS])            # (1000, 9)
units = ["pF", "nS", "mV", "nS", "nS", "nS", "mV", "ms", "mV"]
fig, axes = plt.subplots(3, 3, figsize=(13, 9))
for ax, k, u, j in zip(axes.ravel(), PARAMS, units, range(9)):
    d, loc, sc = PRIOR[k]
    x = draws[:, j]
    if d == "lognormal":
        grid = np.exp(np.linspace(loc - 3 * sc, loc + 3 * sc, 300))
        dens = stats.lognorm.pdf(grid, sc, scale=np.exp(loc))
        bins = np.exp(np.linspace(np.log(x.min()), np.log(x.max()), 30))
        if sc > 0.3:
            ax.set_xscale("log")
    else:
        grid = np.linspace(loc - 3 * sc, loc + 3 * sc, 300)
        dens = stats.norm.pdf(grid, loc, sc)
        bins = 30
    ax.hist(x, bins=bins, density=True, color=BLUE, alpha=0.6, label="posterior")
    ax.plot(grid, dens, color=GREY, lw=1.5, label="prior")
    ax.set(title=f"{k} ({u})", yticks=[])
axes[0, 0].legend(fontsize=8)
short = draws[:, PARAMS.index("tau_max")] < 500
print("share of draws with tau_max < 500 ms, per SMC chain: "
      + ", ".join(f"{np.mean(idata_smc.posterior['tau_max'].values[c] < 500):.2f}" for c in range(2)))
for lab, msk in [("tau_max < 500 ms", short), ("tau_max > 500 ms", ~short)]:
    print(f"  {lab}: median tau_max {np.median(draws[msk, 7]):5.0f} ms, VT {np.median(draws[msk, 6]):.1f} mV, "
          f"gM {np.median(draws[msk, 5]):.1f} nS, gK {np.median(draws[msk, 4]):.0f} nS")

share of draws with tau_max < 500 ms, per SMC chain: 0.50, 0.50
  tau_max < 500 ms: median tau_max   292 ms, VT -57.7 mV, gM 4.9 nS, gK 198 nS
  tau_max > 500 ms: median tau_max  1351 ms, VT -55.2 mV, gM 4.2 nS, gK 236 nS

Both SMC chains ran 10 tempering stages and ended at a final-stage acceptance of 13%, well above the ~2% at which an SMC population degenerates (AUTHORING's E14 note); r_hat is at most 1.01 and the bulk ESS is 500-1,000 for every parameter. SMC's "chains" are independent particle populations, so their agreement is a real check.

What the spikes taught us (blue against the grey priors; the x axes of the widely spread log-normal parameters are logarithmic):

• $\bar g_{Na}$ is sharply identified, to about 7% (683 ± 50 nS): the spike height pins it.
• $\bar g_K$ and $\bar g_M$ are learned to about 20% (222 ± 43 and 4.7 ± 1.0 nS); the prior spread was a factor of $e$.
• $V_T$ and $\tau_{\max}$ have a bimodal posterior. There are two ways to produce this cell's adaptation: a fast M-current ($\tau_{\max} \approx 300$ ms) with a lower threshold shift ($V_T \approx -58$ mV), or a slow one ($\tau_{\max}$ of 1-2 s) with $V_T \approx -55$ mV (the printed medians). Both SMC chains found both modes in similar proportions, which is what SMC's particle population is good at; a gradient sampler started in one would likely have stayed there.
• $E_K$ is barely learned (sd 5.5 mV against the prior's 7).
• $C$, $g_L$ and $E_L$ stay near the passive-fit priors, except that $C$ moves up from 74 to 79 pF, about 1.5 prior sds: the spike timing wants a slightly larger capacitance than the subthreshold charging curve gave.

Note the posterior's sodium conductance, about 680 nS, is far below the prior median of 4,000 nS (Pospischil's 50 mS/cm² scaled by area). A one-compartment model with the Na kinetics of another cell type and spikes that only reach +20 mV wants much less sodium. That is a statement about this model, not a measurement of channel density in the cell.

How well are the fitted features reproduced? We simulate 200 posterior draws.

sub_idx = rng.choice(draws.shape[0], 200, replace=False)
F_pp = np.array([features(draws[i], FIT_AMPS) for i in sub_idx])      # (200, 3, 6)
fig, axes = plt.subplots(1, 6, figsize=(14, 3.2))
for k, ax in enumerate(axes):
    for j, a in enumerate(FIT_AMPS):
        lo, hi = np.quantile(F_pp[:, j, k], [0.03, 0.97])
        ax.plot([a, a], [lo, hi], color=BLUE, lw=6, alpha=0.5, solid_capstyle="butt")
        ax.errorbar(a + 12, F_OBS[j, k], yerr=FEAT_SD[k], fmt="o", color=INK, ms=4, capsize=2)
    ax.set(title=FEATS[k], xlabel="pA", xticks=FIT_AMPS)
axes[0].set_ylabel("value")

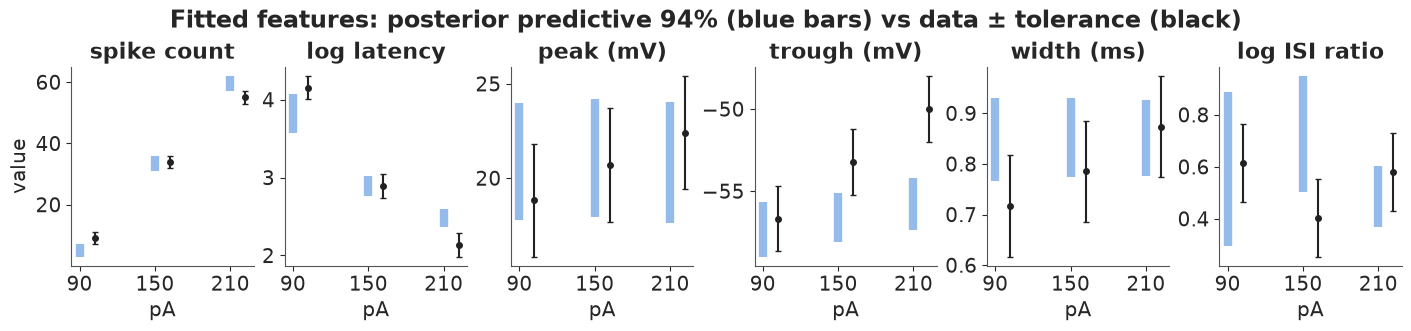

fig.suptitle("Fitted features: posterior predictive 94% (blue bars) vs data ± tolerance (black)");

Peak height, spike width, latency and spike count sit within their tolerances; the misses are systematic and belong to the model. The model's spike count rises more steeply with current than the cell's (3-8 spikes at 90 pA against 9; 57-62 at 210 pA against 55). Its adaptation index at 150 pA (0.5-0.95) is larger than the cell's 0.40: the model adapts more. And the recorded AHP troughs get shallower as the current grows (-57 to -50 mV) while the model's stay near -57 to -55 mV. A richer model (another potassium channel, a dendrite) would be needed to fix these; the feature likelihood makes such misfits visible one feature at a time, which the trace likelihood never could.

#6 · Sloppiness: what the spikes pin down and what they do not

Marginal posteriors hide the most important structure: combinations of parameters. Goldman et al. (2001) and Prinz, Bucher & Marder (2004) showed that very different sets of conductances can produce nearly the same activity, and Marder & Goaillard (2006) argued that real neurons of one type vary this way; Gutenkunst et al. (2007) found that most models in systems biology are "sloppy": their behaviour is controlled by a few stiff parameter combinations while many others barely matter.

To see this in our posterior, put every parameter on its unconstrained scale (log for the positive ones), divide by its prior sd, and eigen-decompose the posterior covariance. In these units the prior has covariance $I$. An eigenvalue $\lambda$ says how much the data shrank the posterior along that direction: $\sqrt{\lambda} = 1$ means nothing was learned, $\sqrt\lambda = 0.1$ means the data made it ten times narrower than the prior.

is_log = np.array([PRIOR[k][0] == "lognormal" for k in PARAMS])
prior_loc = np.array([PRIOR[k][1] for k in PARAMS])
prior_sd = np.array([PRIOR[k][2] for k in PARAMS])
U = draws.copy()
U[:, is_log] = np.log(draws[:, is_log])                              # unconstrained scale
Z = (U - prior_loc) / prior_sd
cov = np.cov(Z.T)
lam, vec = np.linalg.eigh(cov)                                         # ascending: stiffest first
vec = vec * np.sign(vec[np.abs(vec).argmax(axis=0), np.arange(9)])     # fix eigenvector signs
corr = np.corrcoef(U.T)
print("posterior sd / prior sd along eigen-directions:", np.round(np.sqrt(lam), 3))
print(f"stiffest / sloppiest direction: a factor {np.sqrt(lam[-1] / lam[0]):.0f} in sd")
print("largest posterior correlations (log scale for conductances):")
iu = np.triu_indices(9, 1)
for i in np.argsort(-np.abs(corr[iu]))[:5]:
    a, b = iu[0][i], iu[1][i]
    print(f"  {PARAMS[a]:7s} - {PARAMS[b]:7s}: {corr[a, b]:+.2f}")

posterior sd / prior sd along eigen-directions: [0.035 0.053 0.079 0.166 0.749 0.811 0.881 0.99  1.323]
stiffest / sloppiest direction: a factor 38 in sd
largest posterior correlations (log scale for conductances):
  VT      - tau_max: +0.83
  gM      - EK     : +0.77
  EL      - VT     : +0.62
  gM      - VT     : -0.62
  gK      - EK     : +0.57

fig, axes = plt.subplots(1, 3, figsize=(14, 4.6), width_ratios=[0.8, 1.3, 1])
ax = axes[0]
ax.semilogy(np.arange(1, 10), np.sqrt(lam), "o-", color=INK)
ax.axhline(1.0, color=GREY, ls=":")
ax.set(xlabel="eigen-direction (stiffest first)", ylabel="posterior sd / prior sd",
       title="How much each direction was learned")
ax = axes[1]
im = ax.imshow(vec.T, cmap="RdBu_r", vmin=-1, vmax=1, aspect="auto")
ax.set(xticks=range(9), xticklabels=[("log " if il else "") + k for k, il in zip(PARAMS, is_log)],
       yticks=range(9), yticklabels=[f"{i + 1}: {np.sqrt(l):.2f}" for i, l in enumerate(lam)],
       ylabel="direction: sd ratio", title="Eigen-directions (loadings)")
ax.tick_params(axis="x", rotation=60)
fig.colorbar(im, ax=ax, shrink=0.8)
ax = axes[2]
top = np.argmax(np.abs(corr[iu]))
j1, j2 = iu[0][top], iu[1][top]
ax.scatter(draws[:, j1], draws[:, j2], s=4, color=BLUE, alpha=0.5)
ax.set(xscale="log" if is_log[j1] else "linear", yscale="log" if is_log[j2] else "linear",
       xlabel=f"{PARAMS[j1]} ({units[j1]})", ylabel=f"{PARAMS[j2]} ({units[j2]})",
       title=f"{PARAMS[j1]} vs {PARAMS[j2]}: correlation {corr[j1, j2]:+.2f}");

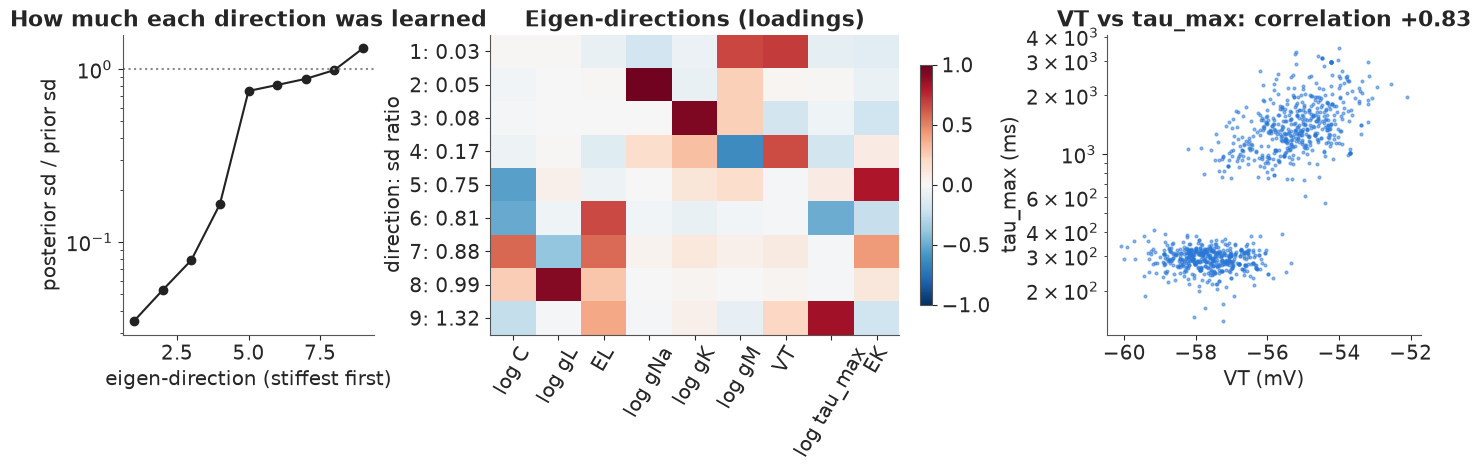

The eigen-spectrum (left) spans a factor of about 40: four directions were learned, narrowed 6- to 30-fold relative to the prior (sd ratios 0.03-0.17), and five were hardly learned at all (0.75-1.3). The loadings (middle) show which combinations these are:

• the stiffest direction is $\log \bar g_M$ and $V_T$ together. More M-current makes the cell less excitable and so does a higher (less negative) $V_T$; the data fix their sum, and one can be traded for the other (their correlation is -0.62);
• the next two are $\log \bar g_{Na}$ and $\log \bar g_K$ almost alone: spike height and repolarisation;
• the fourth, much less stiff, is the difference between $V_T$ and $\log \bar g_M$;
• the sloppy five are $E_K$, $E_L$, $C$, $g_L$ (the last three held by the passive-fit prior, not by the spikes) and $\log \tau_{\max}$, whose ratio is above 1 because its two posterior modes spread it wider than the prior.

The right panel shows the strongest pairwise correlation, $V_T$ against $\tau_{\max}$ (+0.83): it is not a ridge but the two separate modes. A covariance matrix summarises the posterior as one Gaussian blob and cannot say "two islands"; look at the pairs as well as the eigenvalues.

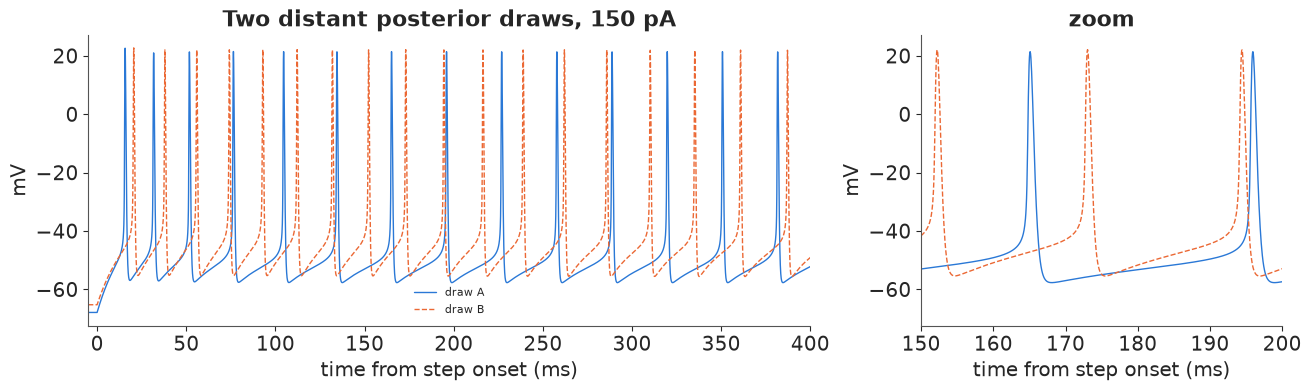

Degeneracy in action. Take the two posterior draws that are furthest apart (in prior-sd units) and simulate the 150 pA step with each.

Zs = Z[sub_idx]
dist = np.linalg.norm(Zs[:, None, :] - Zs[None, :, :], axis=-1)
ia, ib = np.unravel_index(dist.argmax(), dist.shape)
th_a, th_b = draws[sub_idx[ia]], draws[sub_idx[ib]]
print(f"distance {dist[ia, ib]:.1f} prior sds")
print(" " * 9 + "".join(f"{k:>9s}" for k in PARAMS))
for lab, th in [("draw A", th_a), ("draw B", th_b)]:
    print(f"{lab:9s}" + "".join(f"{x:9.1f}" for x in th))
print("ratio B/A" + "".join(f"{x:9.2f}" for x in th_b / th_a))
va = simulate(th_a, 150.0, T_PRE + 1000.0)[:, 0]
vb = simulate(th_b, 150.0, T_PRE + 1000.0)[:, 0]
fig, axes = plt.subplots(1, 2, figsize=(13, 3.8), width_ratios=[2, 1])
for ax, xl in zip(axes, [(-5, 400), (150, 200)]):
    ax.plot(T[: va.size] - T_ON, va, color=BLUE, lw=1, label="draw A")
    ax.plot(T[: vb.size] - T_ON, vb, color=ORANGE, lw=1, ls="--", label="draw B")
    ax.set(xlim=xl, xlabel="time from step onset (ms)", ylabel="mV")
axes[0].set_title("Two distant posterior draws, 150 pA")
axes[1].set_title("zoom")
axes[0].legend(fontsize=8)
for lab, th in [("A", th_a), ("B", th_b)]:
    f = features(th, FIT_AMPS)
    print(f"draw {lab}: spikes at 90/150/210 pA = {f[:, 0].astype(int)}, width at 150 pA = {f[1, 4]:.2f} ms, "
          f"trough = {f[1, 3]:.1f} mV")

distance 7.1 prior sds
                 C       gL       EL      gNa       gK       gM       VT  tau_max       EK
draw A        71.8      4.3    -66.7    632.1    163.5      5.2    -59.2    273.0    -95.7
draw B        81.0      4.5    -63.8    709.3    245.4      4.2    -54.4   2839.7    -94.0
ratio B/A     1.13     1.04     0.96     1.12     1.50     0.81     0.92    10.40     0.98
draw A: spikes at 90/150/210 pA = [ 7 33 60], width at 150 pA = 0.87 ms, trough = -57.6 mV
draw B: spikes at 90/150/210 pA = [ 4 36 62], width at 150 pA = 0.85 ms, trough = -55.6 mV

The two draws come from the two modes: B has a ten times slower M-current, a threshold shift 5 mV higher and 50% more delayed-rectifier conductance than A. They fire at the same rate (33 and 36 spikes at 150 pA), with the same spike width, and troughs 2 mV apart. The difference shows in the first 100 ms: A's fast M-current slows its firing within two or three spikes, B's builds up more gradually, so their spike times drift apart and stay out of step. That is exactly the difference a trace likelihood would punish and a feature likelihood tolerates. For the physiologist this is the point Marder and colleagues made: measuring the firing pattern does not determine the channel densities, and cells of one type can reach the same behaviour with different channel mixes. For the statistician it means: report and predict with the joint posterior, and never interpret one marginal (say $\bar g_K$) as if the others were known.

#7 · Predicting currents the model has not seen

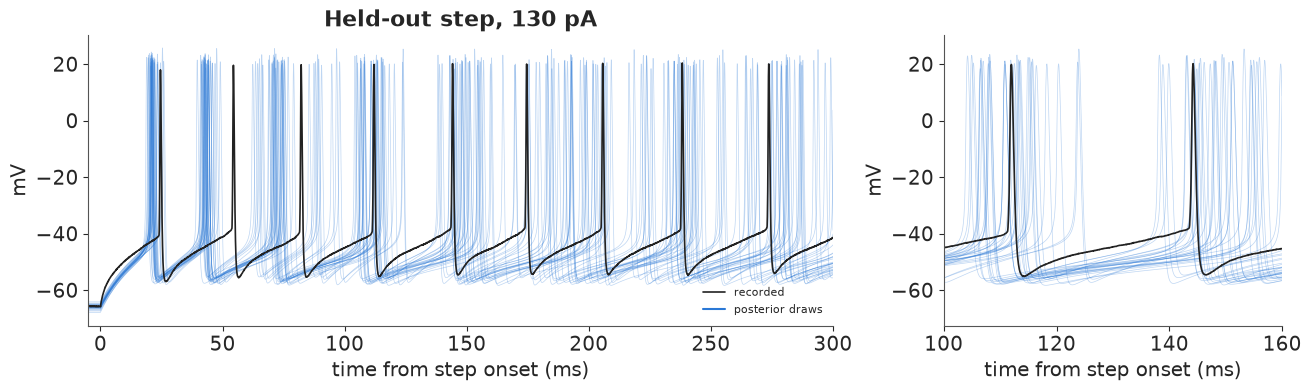

The model was fitted to three current steps. We now predict all depolarising steps from 60 to 240 pA (nine recorded steps held out, including the near-threshold 70 and 80 pA ones, plus 240 pA beyond the recorded range), with 200 posterior draws, and compare the f-I curve, the first-spike latency and the AHP trough with the recordings.

PRED_AMPS = np.arange(60.0, 250.0, 10.0)
t0 = time.time()
F_pred = np.array([features(draws[i], PRED_AMPS) for i in sub_idx])   # (200, 19, 6)
print(f"{F_pred.shape[0] * F_pred.shape[1]} simulations in {time.time() - t0:.1f} s")
rec_amps = AMP[AMP >= 60]
F_rec = np.array([summarize(v, DT) for v in V_ALL[AMP >= 60]])
held = ~np.isin(rec_amps, FIT_AMPS)
lo, hi = np.quantile(F_pred[:, :, 0], [0.03, 0.97], axis=0)
inside = [(lo[PRED_AMPS == a][0] - 0.5 <= c <= hi[PRED_AMPS == a][0] + 0.5)
          for a, c in zip(rec_amps[held], F_rec[held, 0])]
print(f"held-out spike counts inside the 94% predictive interval: {sum(inside)} of {held.sum()}")
for a, c, ok in zip(rec_amps[held], F_rec[held, 0], inside):
    m_ = np.median(F_pred[:, PRED_AMPS == a, 0])
    print(f"  {a:5.0f} pA: recorded {c:3.0f}, predicted median {m_:5.1f} {'' if ok else '  <- outside'}")

3800 simulations in 9.2 s
held-out spike counts inside the 94% predictive interval: 4 of 9
     60 pA: recorded   0, predicted median   0.0
     70 pA: recorded   1, predicted median   0.0   <- outside
     70 pA: recorded   0, predicted median   0.0
     80 pA: recorded   2, predicted median   1.0   <- outside
    110 pA: recorded  19, predicted median  14.0   <- outside
    130 pA: recorded  27, predicted median  24.0   <- outside
    170 pA: recorded  42, predicted median  42.0
    190 pA: recorded  48, predicted median  51.0
    230 pA: recorded  61, predicted median  68.0   <- outside

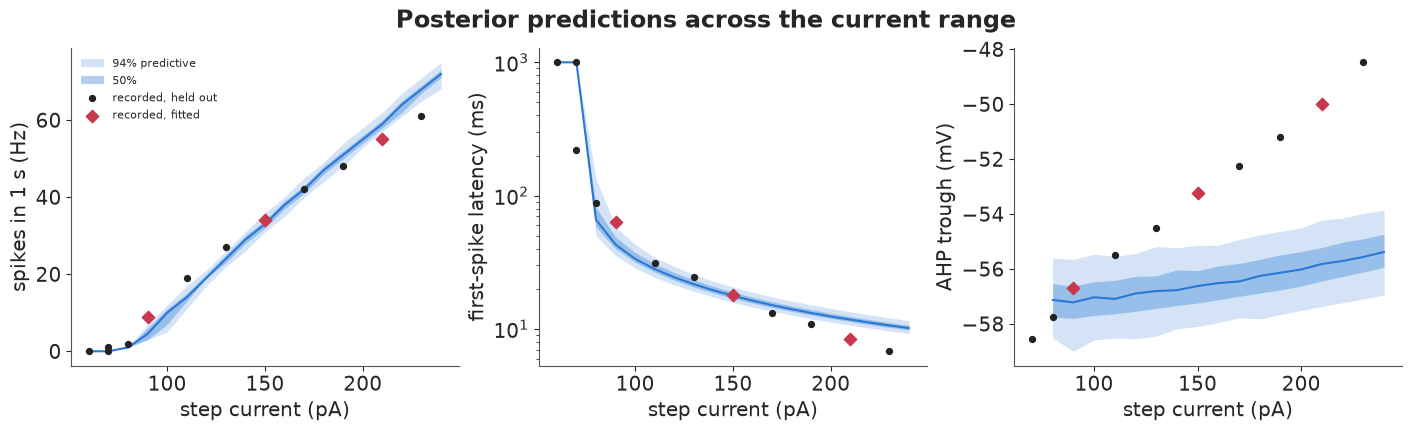

fig, axes = plt.subplots(1, 3, figsize=(14, 4.2))
for ax, k, lab in zip(axes, [0, 1, 3], ["spikes in 1 s (Hz)", "first-spike latency (ms)", "AHP trough (mV)"]):
    val = F_pred[:, :, k]
    rec_val = F_rec[:, k]
    if k == 1:
        val, rec_val = np.exp(val), np.exp(rec_val)
    ok = F_pred[:, :, 0] > 0 if k == 3 else np.ones_like(val, bool)
    qs = np.array([np.quantile(val[ok[:, i], i], [0.03, 0.25, 0.5, 0.75, 0.97]) if ok[:, i].sum() > 10
                   else [np.nan] * 5 for i in range(PRED_AMPS.size)]).T
    ax.fill_between(PRED_AMPS, qs[0], qs[4], color=BLUE, alpha=0.2, lw=0, label="94% predictive")
    ax.fill_between(PRED_AMPS, qs[1], qs[3], color=BLUE, alpha=0.35, lw=0, label="50%")
    ax.plot(PRED_AMPS, qs[2], color=BLUE, lw=1.5)
    has = F_rec[:, 0] > 0 if k == 3 else np.ones(len(rec_amps), bool)
    ax.scatter(rec_amps[held & has], rec_val[held & has], color=INK, s=18, zorder=3, label="recorded, held out")
    ax.scatter(rec_amps[~held & has], rec_val[~held & has], color=RED, s=40, marker="D", zorder=3,
               label="recorded, fitted")
    ax.set(xlabel="step current (pA)", ylabel=lab)
axes[1].set(yscale="log")
axes[0].legend(fontsize=8)
fig.suptitle("Posterior predictions across the current range");
