Transcriptional bursting: the telegraph model, a master-equation likelihood, and what snapshots of mRNA counts can tell you

#Noise in one paragraph

Take a dish of genetically identical cells, grown side by side in the same medium, and count the molecules of one messenger RNA in each cell (by single-molecule FISH or single-cell sequencing). The counts are not the same. They are not even close: one cell has none, its neighbour forty. Part of this is chemistry at low numbers - a gene is one or two copies of DNA, and every transcription event is a random encounter - and part of it is how genes are switched on: most genes are not transcribed steadily but in bursts, short periods when the promoter is ON and polymerases fire one after another, separated by long silent periods. This cell-to-cell variability ("gene expression noise") is not just a nuisance. It lets a clonal population hedge its bets: a few cells happen to express a stress or drug-efflux gene highly and survive a shock that kills the rest (bacterial persisters, drug-tolerant cancer cells), and noisy expression of a master regulator can tip otherwise identical cells into different fates. Measuring how a gene bursts - how often, how many molecules per burst, how long each burst lasts - is therefore a basic question, and the data are usually just snapshots: counts of mRNA in many cells at one moment. This notebook builds an exact likelihood for such data in PyMC and asks carefully which burst parameters a snapshot can and cannot tell us.

#The plan

1. The telegraph model, simulated
2. The chemical master equation: finite state projection, and a faster exact route
3. The negative binomial limit, and where it fails
4. The data: allele-resolved mRNA counts in fibroblasts
5. One gene, three likelihoods - and what the snapshot identifies
6. What would pin down the burst duration? Three simulated experiments
7. Twenty-four genes: a hierarchical model of burst frequency and size

import logging
import time
import warnings

import arviz as az
import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import mpmath
import numpy as np
import pandas as pd
import pymc as pm
import pytensor
import pytensor.tensor as pt
from jax.lax.linalg import tridiagonal_solve
from scipy import linalg, stats

from pymc_challenges import data

jax.config.update("jax_enable_x64", True)
RANDOM_SEED = 55
rng = np.random.default_rng(RANDOM_SEED)
az.style.use("arviz-variat")
logging.getLogger("pymc").setLevel(logging.WARNING)
warnings.filterwarnings("ignore", message=".*object mode.*")
BLUE, ORANGE, AQUA, GREY, PURPLE, RED, INK = (
    "#2a78d6", "#eb6834", "#1baf7a", "#8a8a86", "#8c5ac8", "#c8384e", "#222222")
print(f"PyMC {pm.__version__}, ArviZ {az.__version__}, PyTensor {pytensor.__version__}, JAX {jax.__version__}")

PyMC 6.3.2, ArviZ 1.3.0, PyTensor 3.3.2, JAX 0.11.2

#1 · The telegraph model, simulated

The simplest model of bursting has two gene states and four reactions (Peccoud & Ycart 1995):

reaction	rate	meaning
OFF $\to$ ON	$k_\text{on}$	the promoter opens (a burst starts)
ON $\to$ OFF	$k_\text{off}$	the promoter closes (the burst ends)
ON $\to$ ON + mRNA	$k_\text{syn}$	transcription while ON
mRNA $\to \varnothing$	$\delta$ per molecule	degradation

Only ratios to $\delta$ matter for the counts at steady state, so we measure time in mRNA lifetimes ($\delta = 1$). Two standard summaries:

• mean $= k_\text{syn}\,k_\text{on}/(k_\text{on}+k_\text{off})$ and Fano factor (variance/mean) $= 1 + k_\text{syn}k_\text{off}/\big((k_\text{on}+k_\text{off})(1+k_\text{on}+k_\text{off})\big)$;
• when bursts are short and rare ($k_\text{off} \gg k_\text{on}$, $k_\text{off} \gg 1$), the gene fires bursts at burst frequency $k_\text{on}$ (per lifetime), each making a geometric number of molecules with mean burst size $B = k_\text{syn}/k_\text{off}$.

The exact way to simulate this chemistry is Gillespie's stochastic simulation algorithm (Gillespie 1977): draw the waiting time to the next reaction from an exponential with the total rate, pick which reaction by its share of the rate, repeat. We run it for thousands of cells at once (one vectorised step moves every cell by one reaction) for three genes with the same mean of 5 molecules but very different switching.

def ssa(kon, koff, ksyn, times, n_cells, rng, g0=0, n0=0):
    """Gillespie SSA of the telegraph model for many independent cells (time in mRNA lifetimes).

    Returns counts n and gene states g at each of `times`, both (len(times), n_cells).
    """
    times = np.asarray(times, float)
    g = np.full(n_cells, g0, dtype=np.int64)
    n = np.full(n_cells, n0, dtype=np.int64)
    t = np.zeros(n_cells)
    j = np.zeros(n_cells, dtype=np.int64)                 # next observation time per cell
    out_n = np.zeros((len(times), n_cells), dtype=np.int64)
    out_g = np.zeros((len(times), n_cells), dtype=np.int64)
    idx = np.arange(n_cells)
    while len(idx):
        gi, ni = g[idx], n[idx]
        r_on, r_off, r_syn, r_deg = kon * (1 - gi), koff * gi, ksyn * gi, ni.astype(float)
        R = r_on + r_off + r_syn + r_deg
        t_new = t[idx] + rng.exponential(1.0 / R)
        while True:                                       # record every observation time passed
            jj = j[idx]
            rec = (jj < len(times)) & (t_new > times[np.minimum(jj, len(times) - 1)])
            if not rec.any():
                break
            c = idx[rec]
            out_n[j[c], c], out_g[j[c], c] = n[c], g[c]
            j[c] += 1
        u = rng.uniform(size=len(idx)) * R
        on, off = u < r_on, (u >= r_on) & (u < r_on + r_off)
        syn = (u >= r_on + r_off) & (u < r_on + r_off + r_syn)
        deg = u >= r_on + r_off + r_syn
        g[idx] = np.where(on, 1, np.where(off, 0, gi))
        n[idx] = ni + syn - deg
        t[idx] = t_new
        idx = idx[j[idx] < len(times)]
    return out_n, out_g


def ssa_path(kon, koff, ksyn, T, rng):
    """One cell's full trajectory: event times, counts and gene states."""
    t, g, n, path = 0.0, 0, 0, [(0.0, 0, 0)]
    while t < T:
        r = np.array([kon * (1 - g), koff * g, ksyn * g, n])
        t += rng.exponential(1 / r.sum())
        e = rng.choice(4, p=r / r.sum())
        g = 1 if e == 0 else (0 if e == 1 else g)
        n += (e == 2) - (e == 3)
        path.append((t, n, g))
    return np.array(path)


def tele_moments(kon, koff, ksyn):
    mean = ksyn * kon / (kon + koff)
    return mean, 1 + ksyn * koff / ((kon + koff) * (1 + kon + koff))


REGIMES = {"frequent switching (nearly Poisson)": (20.0, 2.0, 5.5),
           "bursty: rare, short bursts": (0.5, 10.0, 105.0),
           "slow switching: ON cells and OFF cells": (0.3, 0.3, 10.0)}
snapshots = {k: ssa(*v, [20.0], 4000, rng)[0][0] for k, v in REGIMES.items()}

fig, axes = plt.subplots(3, 2, figsize=(12, 8), width_ratios=[2, 1], sharex="col")
for row, (name, par) in enumerate(REGIMES.items()):
    path = ssa_path(*par, 8.0, np.random.default_rng(RANDOM_SEED + row))
    ax = axes[row, 0]
    ax.fill_between(path[:, 0], 0, path[:, 2] * 32, step="post", color=AQUA, alpha=0.25, lw=0,
                    label="gene ON")
    ax.step(path[:, 0], path[:, 1], where="post", color=INK, lw=1, label="mRNA molecules")
    ax.set(ylim=(0, 32), xlim=(0, 8), ylabel="molecules", title=name)
    x = snapshots[name]
    mean, fano = tele_moments(*par)
    ax = axes[row, 1]
    ax.hist(x, bins=np.arange(-0.5, 40), density=True, color=BLUE)
    ax.set(title=f"4,000 cells: mean {x.mean():.1f}, Fano {x.var() / x.mean():.1f} "
                 f"(theory {fano:.1f})", ylabel="share of cells")
    print(f"{name:40s} kon {par[0]:5.1f} koff {par[1]:5.1f} ksyn {par[2]:6.1f} | burst size "
          f"ksyn/koff {par[2] / par[1]:5.1f} | P(0) {np.mean(x == 0):.2f}")
axes[0, 0].legend(fontsize=8, loc="upper right")
axes[2, 0].set_xlabel("time (mRNA lifetimes)")
axes[2, 1].set_xlabel("mRNA molecules in a cell");

frequent switching (nearly Poisson)      kon  20.0 koff   2.0 ksyn    5.5 | burst size ksyn/koff   2.8 | P(0) 0.01
bursty: rare, short bursts               kon   0.5 koff  10.0 ksyn  105.0 | burst size ksyn/koff  10.5 | P(0) 0.28
slow switching: ON cells and OFF cells   kon   0.3 koff   0.3 ksyn   10.0 | burst size ksyn/koff  33.3 | P(0) 0.26

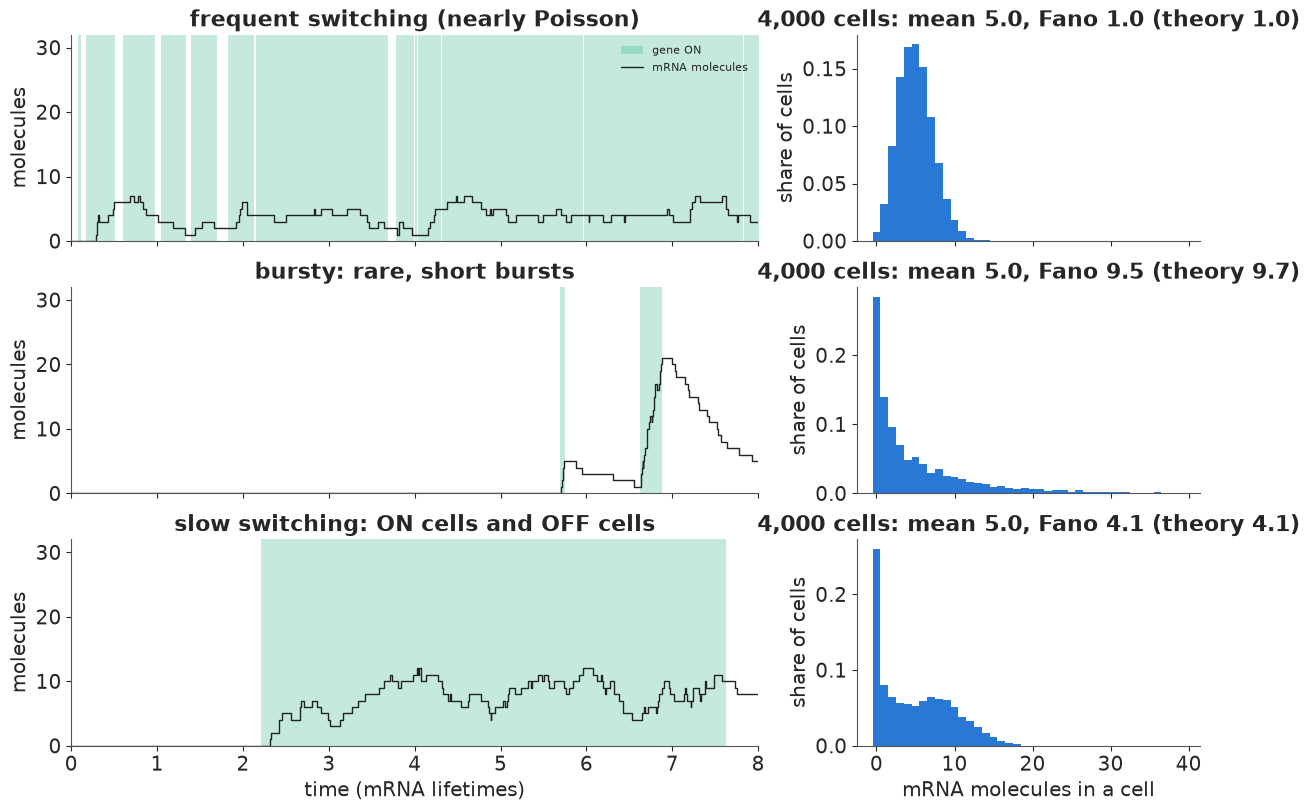

Three genes, the same average of 5 molecules per cell, three different worlds. Left: one cell's history (green = gene ON). Right: a snapshot of 4,000 cells, which is all an experiment usually sees; the simulated Fano factors match the formula.

• Frequent switching (top): the gene flickers ON and OFF many times per mRNA lifetime; the flicker averages out and the counts are almost Poisson (Fano 1).
• Bursty (middle): rare ON periods, each short but intense, dump about 10 molecules at once, which then decay. Most cells have few molecules, some have 20-30: Fano about 10.
• Slow switching (bottom): ON and OFF periods each last about three lifetimes, so the population splits into cells whose gene has been OFF for a while (near 0) and cells that have been ON (near 10). The snapshot is bimodal - no single "typical" cell.

#2 · The chemical master equation

The probability $P_g(n, t)$ that a cell has gene state $g$ and $n$ molecules obeys the chemical master equation (CME), one linear ODE per state:

$$\frac{d}{dt}P_0(n) = k_\text{off}P_1(n) - k_\text{on}P_0(n) + (n+1)P_0(n+1) - nP_0(n),$$ $$\frac{d}{dt}P_1(n) = k_\text{on}P_0(n) - k_\text{off}P_1(n) + k_\text{syn}\big(P_1(n-1) - P_1(n)\big) + (n+1)P_1(n+1) - nP_1(n).$$

Finite state projection (FSP; Munsky & Khammash 2006) keeps the states with $n \le N$: the CME becomes $\dot p = Q p$ with a $2(N+1)$-square generator $Q$. Then

• the steady state solves $Q p = 0$ with $\sum p = 1$: one linear solve (replace one of the dependent rows of $Q$ by the normalisation);
• the time course from a known start is $p(t) = e^{Qt}p(0)$, a matrix exponential (section 6).

There is also an exact formula: at steady state the telegraph distribution is a beta-Poisson mixture (Peccoud & Ycart 1995; Raj et al. 2006 used it for smFISH counts): the fraction of time ON behaves like $p \sim \text{Beta}(k_\text{on}, k_\text{off})$ and $n \sim \text{Poisson}(k_\text{syn} p)$, so $P(n) = \frac{k_\text{syn}^n}{n!}\frac{(k_\text{on})_n}{(k_\text{on}+k_\text{off})_n}\, {}_1F_1(k_\text{on}+n;\,k_\text{on}+k_\text{off}+n;\,-k_\text{syn})$. The confluent hypergeometric function at a large negative argument is an alternating, cancellation-prone series, so we use it only as a high-precision check (mpmath) and as a fast exact sampler (the mixture).

def fsp_generator(kon, koff, ksyn, N, xp=np):
    """Truncated CME generator: dp/dt = Q p, states (OFF, 0..N) then (ON, 0..N)."""
    n = np.arange(N + 1.0)
    I = np.eye(N + 1)
    deg = np.diag(n[1:], 1) - np.diag(n)                          # n -> n - 1 at rate n
    syn = np.eye(N + 1, k=-1) - np.diag(np.r_[np.ones(N), 0.0])   # n -> n + 1 while ON (none at N)
    top = xp.concatenate([deg - kon * I, koff * I], axis=1)
    bottom = xp.concatenate([kon * I, deg - koff * I + ksyn * syn], axis=1)
    return xp.concatenate([top, bottom], axis=0)


def fsp_steady(kon, koff, ksyn, N):
    """P(OFF, n) and P(ON, n), n = 0..N, by one dense linear solve."""
    A = fsp_generator(kon, koff, ksyn, N)
    A[0] = 1.0                                                     # normalisation replaces a row
    p = linalg.solve(A, np.eye(2 * (N + 1))[0])
    return p[:N + 1], p[N + 1:]


def beta_poisson_exact(kon, koff, ksyn, N):
    mpmath.mp.dps = 40
    return np.array([float(mpmath.power(ksyn, n) / mpmath.factorial(n) * mpmath.rf(kon, n)
                           / mpmath.rf(kon + koff, n) * mpmath.hyp1f1(kon + n, kon + koff + n, -ksyn))
                     for n in range(N + 1)])


N_CHECK = 150
for name, par in REGIMES.items():
    p_off, p_on = fsp_steady(*par, N_CHECK)
    exact = beta_poisson_exact(*par, 60)
    print(f"{name:40s} max |FSP - exact| {np.abs((p_off + p_on)[:61] - exact).max():.1e} | "
          f"mass at n = N: {(p_off + p_on)[-1]:.0e} | P(ON) {p_on.sum():.3f} "
          f"(kon/(kon+koff) = {par[0] / (par[0] + par[1]):.3f})")

frequent switching (nearly Poisson)      max |FSP - exact| 5.6e-17 | mass at n = N: 1e-156 | P(ON) 0.909 (kon/(kon+koff) = 0.909)
bursty: rare, short bursts               max |FSP - exact| 5.0e-16 | mass at n = N: 1e-17 | P(ON) 0.048 (kon/(kon+koff) = 0.048)
slow switching: ON cells and OFF cells   max |FSP - exact| 8.3e-16 | mass at n = N: 9e-119 | P(ON) 0.500 (kon/(kon+koff) = 0.500)

FSP agrees with the exact formula to rounding error in all three regimes, and the truncation at $N = 150$ throws away nothing measurable (the last state carries no mass). The time spent ON is $k_\text{on}/(k_\text{on}+k_\text{off})$, as it must be.

#A faster exact route: a three-term recurrence, solved the right way

The dense solve costs $O(N^3)$, which matters when a likelihood needs it for many genes and cells at every gradient step. The generating function $G(z) = \sum_n P(n)z^n$ of the beta-Poisson is ${}_1F_1(k_\text{on}; k_\text{on}+k_\text{off}; k_\text{syn}(z-1))$, which satisfies Kummer's differential equation. Matching powers of $z$ turns that ODE into a three-term recurrence for the probabilities themselves ($a = k_\text{on}$, $b = k_\text{on}+k_\text{off}$, $k = k_\text{syn}$):

$$k\,(m-1+a)\,P_{m-1} \;-\; m\,(m-1+b+k)\,P_m \;+\; m(m+1)\,P_{m+1} \;=\; 0, \qquad m \ge 1.$$

Running it forward from $P_0, P_1$ looks natural and is a disaster: the recurrence has a second, growing solution, and every rounding error excites it (the probabilities are the minimal solution, the one that decays; Gautschi 1967). Run as a boundary-value problem instead: fix $P_0 = 1$, set $P_{N+1} = 0$ far out in the tail, and solve the $N+1$ equations together. That is a tridiagonal linear system - $O(N)$ work - and normalising at the end gives the pmf. (This is Miller's and Olver's classic cure for minimal solutions.) We also get the joint distribution for free: the probability flux up across the cut between $n$ and $n+1$ (transcription, only when ON) equals the flux down (degradation), so

$$P(\text{ON}, n) = (n+1)\,P(n+1)/k_\text{syn},$$

which section 6 needs for transcription-site data.

def tele_pmf_np(kon, koff, ksyn, N):
    """Steady-state telegraph pmf on 0..N by the tridiagonal boundary-value solve (NumPy)."""
    a, b, k = kon, kon + koff, ksyn
    m = np.arange(1, N + 1.0)
    ab = np.zeros((3, N + 1))
    ab[0, 1:] = np.r_[0.0, m[:-1] + 1]            # super-diagonal: row m has m + 1 (row 0: none)
    ab[1] = np.r_[1.0, -(m - 1 + b + k)]          # diagonal (row m divided by m)
    ab[2, :-1] = k * (m - 1 + a) / m              # sub-diagonal
    x = linalg.solve_banded((1, 1), ab, np.eye(N + 1)[0])
    return x / x.sum()


def forward_recursion(kon, koff, ksyn, p0, p1, N):
    a, b, k = kon, kon + koff, ksyn
    P = [p0, p1]
    for n in range(N - 1):
        P.append(((n + 1) * (n + b + k) * P[n + 1] - k * (n + a) * P[n]) / ((n + 1) * (n + 2)))
    return np.array(P)


fig, axes = plt.subplots(1, 4, figsize=(14, 3.6))
for ax, (name, par), c in zip(axes, REGIMES.items(), [AQUA, BLUE, PURPLE]):
    p = tele_pmf_np(*par, N_CHECK)
    emp = np.bincount(snapshots[name], minlength=N_CHECK + 1)[:N_CHECK + 1] / len(snapshots[name])
    tv = 0.5 * np.abs(emp - p).sum()
    ref = np.mean([0.5 * np.abs(np.bincount(rng.choice(N_CHECK + 1, 4000, p=p / p.sum()),
                                            minlength=N_CHECK + 1) / 4000 - p).sum() for _ in range(20)])
    ax.plot(np.arange(N_CHECK + 1), emp, "o", color=GREY, ms=3, label="Gillespie, 4,000 cells")
    ax.plot(np.arange(N_CHECK + 1), p, color=c, lw=2, label="tridiagonal solve")
    ax.set(yscale="log", ylim=(1e-5, 1), xlim=(-1, 45), xlabel="molecules",
           title=name.split(":")[0].split(" (")[0])
    print(f"{name:40s} max |tridiagonal - dense FSP| "
          f"{np.abs(p - sum(fsp_steady(*par, N_CHECK))).max():.1e} | TV vs SSA {tv:.3f} "
          f"(sampling noise alone {ref:.3f})")
axes[0].legend(fontsize=7)
ax = axes[3]
for name, par in REGIMES.items():
    exact = beta_poisson_exact(*par, 60)
    fwd = forward_recursion(*par, exact[0], exact[1], 60)
    ax.semilogy(np.arange(61), np.abs(fwd / exact - 1) + 1e-17, lw=1.5, label=name.split(" (")[0].split(":")[0])
    ax.semilogy(np.arange(61), np.abs(tele_pmf_np(*par, N_CHECK)[:61] / exact - 1) + 1e-17, ls=":",
                color=ax.lines[-1].get_color())
ax.set(xlabel="n", ylabel="relative error", title="forward recursion (solid)\nvs tridiagonal (dotted)",
       ylim=(1e-17, 1e10))
ax.legend(fontsize=6)

A_dense = fsp_generator(0.5, 10.0, 105.0, 300)
t0 = time.perf_counter()
for _ in range(20):
    fsp_steady(0.5, 10.0, 105.0, 300)
t_dense = (time.perf_counter() - t0) / 20
t0 = time.perf_counter()
for _ in range(200):
    tele_pmf_np(0.5, 10.0, 105.0, 300)
t_tri = (time.perf_counter() - t0) / 200
print(f"N = 300: dense FSP {t_dense * 1e3:.1f} ms, tridiagonal {t_tri * 1e3:.3f} ms per pmf")

frequent switching (nearly Poisson)      max |tridiagonal - dense FSP| 5.6e-17 | TV vs SSA 0.017 (sampling noise alone 0.021)
bursty: rare, short bursts               max |tridiagonal - dense FSP| 5.0e-16 | TV vs SSA 0.035 (sampling noise alone 0.031)
slow switching: ON cells and OFF cells   max |tridiagonal - dense FSP| 5.0e-16 | TV vs SSA 0.018 (sampling noise alone 0.022)
N = 300: dense FSP 2.8 ms, tridiagonal 0.037 ms per pmf

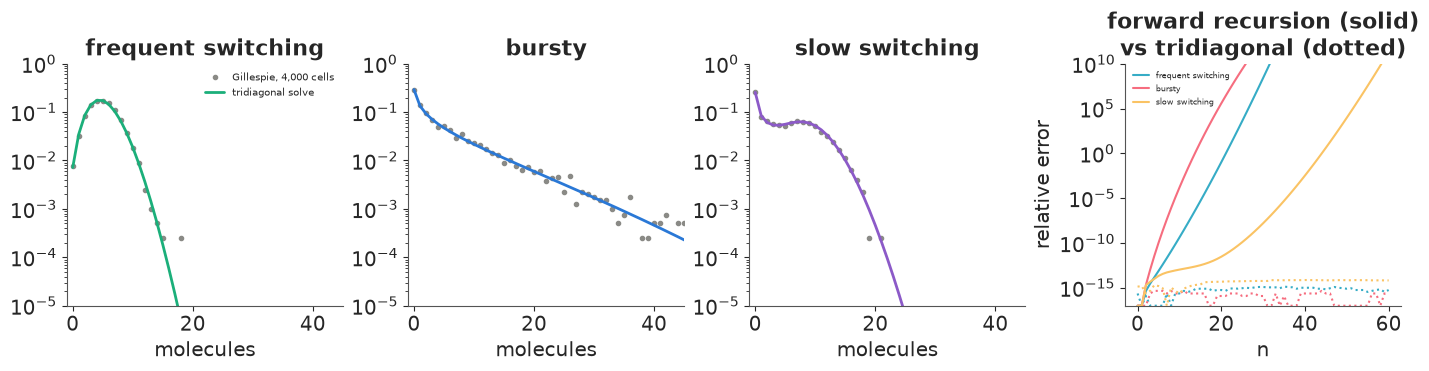

Three checks. The tridiagonal pmf equals the dense FSP to rounding error; it matches the Gillespie snapshots, with total-variation distances no larger than 4,000 samples from the pmf itself would give; and it is far cheaper (timings printed above). The right panel is the cautionary tale: started from the exact $P_0, P_1$, the forward recursion's relative error grows until the "probabilities" are garbage (and in the bursty regime within about ten steps), while the boundary-value solve (dotted) stays at rounding level everywhere. Same equation, different algorithm. (E53 met a related structure - a recursion written as a triangular solve - which was stable because every term added was positive; here the terms have both signs, and that is what makes the direction matter.)

In PyTensor the same solve is pt.linalg.solve(A, e0, assume_a="tridiagonal"), which is differentiable, so NUTS can use it.

def tele_logpmf(kon, koff, ksyn, N):
    """PyTensor: steady-state telegraph log-pmf on 0..N; parameters broadcast to a batch shape (...)."""
    a = pt.as_tensor(kon)[..., None]
    b = a + pt.as_tensor(koff)[..., None]
    k = pt.as_tensor(ksyn)[..., None]
    one = pt.ones_like(a + b + k)
    m = np.arange(1, N + 1.0)
    d = pt.concatenate([one, -(m - 1 + b + k)], axis=-1)
    lo = pt.concatenate([0 * one, k * (m - 1 + a) / m], axis=-1)
    up = np.eye(N + 1, k=1) * np.r_[0.0, m[:-1] + 1, 0.0][:, None]
    A = d[..., :, None] * np.eye(N + 1) + lo[..., :, None] * np.eye(N + 1, k=-1) + up
    x = pt.linalg.solve(A, pt.broadcast_to(np.eye(N + 1)[0], d.shape), assume_a="tridiagonal", b_ndim=1)
    return pt.log(x) - pt.log(pt.sum(x, axis=-1, keepdims=True))


_k = pt.dvector("k")
f_check = pytensor.function([_k], tele_logpmf(_k[0], _k[1], _k[2], 80))
print("max |PyTensor - NumPy| (log pmf):",
      f"{np.abs(f_check(np.array([0.5, 10.0, 105.0])) - np.log(tele_pmf_np(0.5, 10.0, 105.0, 80))).max():.1e}")

max |PyTensor - NumPy| (log pmf): 1.8e-15

#3 · The negative binomial limit, and where it fails

When bursts are short compared with an mRNA lifetime ($k_\text{off} \gg 1$) and rare ($k_\text{off} \gg k_\text{on}$), the Beta$(k_\text{on}, k_\text{off})$ fraction of time ON becomes a Gamma, and the beta-Poisson becomes a gamma-Poisson: a negative binomial with shape $r = k_\text{on}$ and mean $k_\text{on}B$. That is why the NB is the default model for scRNA-seq counts, and why its shape parameter is read as a burst frequency. How good is it elsewhere? For a grid of $(k_\text{on}, k_\text{off})$ with the mean fixed at 5 molecules, we compare the telegraph with the best NB - the one with the same mean and variance - and ask two things: how far apart the two distributions are (total variation), and whether the NB's shape $r$ still equals the burst frequency $k_\text{on}$.

grid = np.logspace(np.log10(0.05), np.log10(50), 41)
MEAN = 5.0
N_MAP = 1500
tv_map = np.zeros((len(grid), len(grid)))
r_map = np.zeros_like(tv_map)
nn = np.arange(N_MAP + 1)
for i, kon in enumerate(grid):
    for j, koff in enumerate(grid):
        ksyn = MEAN * (kon + koff) / kon
        p = tele_pmf_np(kon, koff, ksyn, N_MAP)
        _, fano = tele_moments(kon, koff, ksyn)
        r = MEAN / (fano - 1)                                    # moment-matched NB shape
        q = stats.nbinom.pmf(nn, r, r / (r + MEAN))
        tv_map[i, j] = 0.5 * np.abs(p - q).sum()
        r_map[i, j] = np.log2(r / kon)

EXAMPLES = {"slow switching": (0.3, 0.3), "switching once per lifetime": (1.0, 1.0), "bursty": (0.5, 10.0)}
fig, axes = plt.subplots(1, 4, figsize=(15, 3.8), width_ratios=[1.3, 1.3, 1, 1])
for ax, z, title, kw in [
        (axes[0], tv_map, "TV distance to the best NB", dict(cmap="magma_r", vmin=0, vmax=0.3)),
        (axes[1], r_map, "log2(NB shape / kon)", dict(cmap="RdBu_r", vmin=-4, vmax=4))]:
    im = ax.pcolormesh(grid, grid, z, shading="nearest", **kw)
    fig.colorbar(im, ax=ax)
    ax.contour(grid, grid, tv_map, levels=[0.05], colors=INK, linewidths=1)
    ax.set(xscale="log", yscale="log", xlabel="koff (per mRNA lifetime)", ylabel="kon", title=title)
    for (lab, (a_, b_)), c in zip(EXAMPLES.items(), [PURPLE, ORANGE, BLUE]):
        ax.plot(b_, a_, "o", color=c, mec="white", ms=8)
for ax, lab in zip(axes[2:], ["slow switching", "switching once per lifetime"]):
    kon, koff = EXAMPLES[lab]
    ksyn = MEAN * (kon + koff) / kon
    p = tele_pmf_np(kon, koff, ksyn, N_MAP)
    _, fano = tele_moments(kon, koff, ksyn)
    r = MEAN / (fano - 1)
    ax.bar(nn[:25], p[:25], color=PURPLE if lab.startswith("slow") else ORANGE, alpha=0.7, label="telegraph")
    ax.plot(nn[:25], stats.nbinom.pmf(nn[:25], r, r / (r + MEAN)), "o-", color=INK, ms=3, lw=1,
            label="NB, same mean and variance")
    ax.set(xlabel="molecules", title=f"{lab}\nkon {kon}, koff {koff}")
    ax.legend(fontsize=7)
for lab, (kon, koff) in EXAMPLES.items():
    i, j = np.argmin(np.abs(grid - kon)), np.argmin(np.abs(grid - koff))
    print(f"{lab:26s} TV {tv_map[i, j]:.3f}, NB shape / kon = {2 ** r_map[i, j]:.2f}")
print(f"share of the grid with TV < 0.05: {np.mean(tv_map < 0.05):.2f}");

slow switching             TV 0.274, NB shape / kon = 5.56
switching once per lifetime TV 0.107, NB shape / kon = 3.06
bursty                     TV 0.027, NB shape / kon = 1.14
share of the grid with TV < 0.05: 0.69

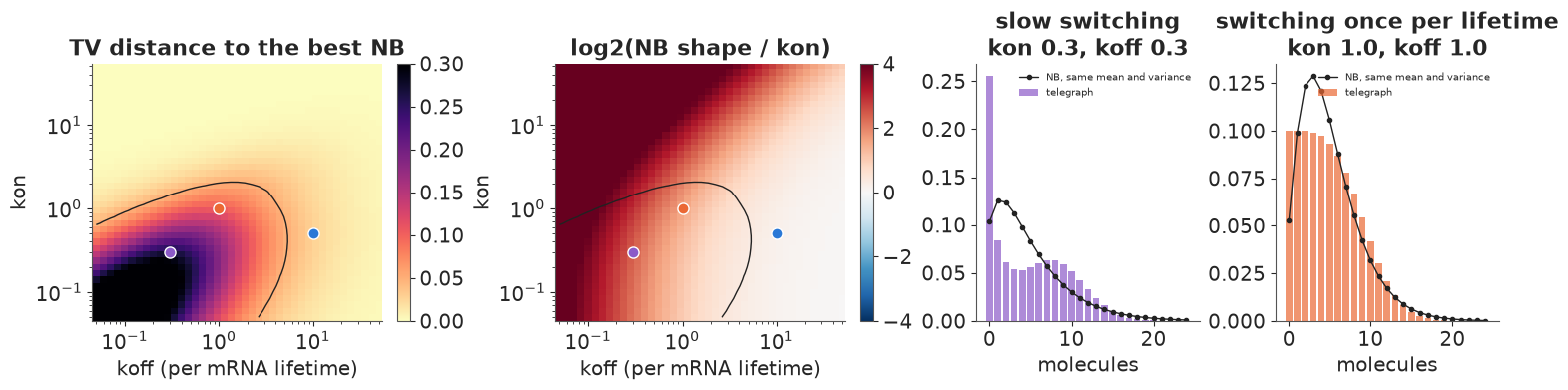

Left: the best NB is within 0.05 in total variation (black contour) over about two-thirds of the plane. It fails in the lower left, where both switching rates are below a few per mRNA lifetime: bursts last about as long as a molecule does, so the snapshot mixes cells that have been OFF for a while with cells that have been ON. The two examples on the right are inside that region: the bimodal slow-switching gene (a spike at zero plus a second mode, which the NB replaces by one skewed hump; TV 0.27), and a gene switching about once per lifetime in each direction (a flattened, too-wide hump with too many zeros for its mean; TV 0.11).

Middle: even where the NB fits, its shape parameter equals the burst frequency only in the bursty corner (lower right, white). Everywhere else the NB shape is larger than $k_\text{on}$ (red), by a factor of about 3 for the once-per-lifetime gene and 5.6 for the slow-switching one, and without bound in the frequent-switching region at the top, where the counts are nearly Poisson and the NB shape runs off to infinity. "NB shape = burst frequency" is a statement about a regime, not about the NB.

#4 · The data: allele-resolved mRNA counts in fibroblasts

Larsson et al. (2019) sequenced single primary fibroblasts from an F1 hybrid of two mouse strains (C57BL/6J x CAST/EiJ). Single-nucleotide differences between the strains let each sequenced molecule (UMI) be assigned to the maternal or paternal allele, so each gene gives two independent telegraph processes per cell - exactly the one-gene-copy unit the model describes. They fitted the telegraph model by maximum likelihood to thousands of genes. We take 24 of their genes, chosen across the range of their switching estimates and with SLAM-seq half-lives available, and model the C57 allele. Two data decisions:

• G1 cells only. After S phase every allele exists twice (sister chromatids), which is a different model. The repository's cell-cycle labels leave 165 of the 224 cells.
• Missing, not zero. An empty count means the gene was detected but no UMI carried an informative SNP; those cells are dropped for that gene (as the txburst README advises).

data.describe("larsson_bursting")
raw = data.load("larsson_bursting")
g1 = raw[raw.phase == "G1"].copy()
cells = g1.groupby("cell", sort=False).allelic_umis.first()
g1["s"] = g1.allelic_umis / cells.mean()                         # per-cell capture/size factor
obs = g1[g1.c57.notna()].copy()
obs["y"] = obs.c57.astype(int)
GENES = obs.groupby("gene", sort=False).y.mean().sort_values().index.tolist()
summary = obs.groupby("gene").agg(cells=("y", "size"), mean=("y", "mean"), var=("y", "var"),
                                  zeros=("y", lambda v: np.mean(v == 0)), max=("y", "max"),
                                  half_life_h=("half_life_h", "first")).loc[GENES]
summary["Fano"] = summary["var"] / summary["mean"]
both = g1[g1.c57.notna() & g1.cast.notna()]
summary["allele_corr"] = both.groupby("gene").apply(
    lambda d: np.corrcoef(d.c57.astype(float), d.cast.astype(float))[0, 1], include_groups=False)
print(f"{len(cells)} G1 cells; allele-assigned UMIs per cell: median {cells.median():,.0f}, "
      f"range {cells.min():,}-{cells.max():,} (CV {cells.std() / cells.mean():.2f})")
print(summary.drop(columns="var").round(2).to_string())

larsson_bursting: Allele-resolved single-cell RNA-seq UMI counts in 224 primary mouse fibroblasts from an F1 hybrid (C57BL/6J x CAST/EiJ), 24 genes, one row per cell x gene: cell; phase (G1, S, G2M, the repository's cell-cycle annotation); allelic_umis (all allele-assigned UMIs of the cell, both alleles, all 10,727 genes: a capture/size factor); gene; c57, cast (UMIs of that gene from each allele; empty = expressed but not assignable to an allele, i.e. missing); half_life_h (mRNA half-life in hours from the repository's SLAM-seq table); txburst_kon, txburst_koff, txburst_ksyn (the repository's published maximum-likelihood telegraph parameters for the C57 allele, in units of the mRNA degradation rate).
  source: Larsson, Johnsson, Hagemann-Jensen, Hartmanis, Faridani, Reinius, Segerstolpe, Rivera, Ren & Sandberg (2019), Genomic encoding of transcriptional burst kinetics, Nature 565:251-254; data files of the paper's GitHub repository sandberg-lab/txburst (data/: SS3_c57_UMIs_concat.csv, SS3_cast_UMIs_concat.csv, cell_cycle_annotation.csv, slam_seq.csv, SS3_c57_UMIs_concat_ML.pkl). EXTRACTED: 24 genes from five files (the URL is the full 10,727-gene C57 table), so keep the cached file in data/.
  url:    https://raw.githubusercontent.com/sandberg-lab/txburst/master/data/SS3_c57_UMIs_concat.csv
165 G1 cells; allele-assigned UMIs per cell: median 37,734, range 7,742-144,876 (CV 0.58)
         cells  mean  zeros  max  half_life_h  Fano  allele_corr
gene
Tnpo2      161  1.58   0.34    9         2.99  2.17         0.06
Fyttd1     156  1.58   0.40    9         4.26  2.32        -0.02
Dpf2       157  1.62   0.36   11         3.37  2.63         0.03
Prpf38b    159  1.63   0.42   12         1.63  2.68         0.10
Sqle       157  1.64   0.35   15         3.79  2.99         0.42
Mrpl11     159  2.12   0.31   14         5.95  2.65         0.05
Bad        159  2.28   0.29   16         5.15  2.93         0.13
Slc35b1    156  3.17   0.21   16         5.56  3.07         0.17
Ttc1       160  3.29   0.32   28         4.39  6.61         0.26
Strap      164  3.36   0.12   12         5.86  2.27         0.35
Prpsap1    163  3.49   0.27   29         3.88  5.35         0.23
Ddr1       163  3.58   0.28   36         4.05  5.81         0.37
Sae1       160  3.71   0.31   31         5.11  6.14         0.44
Trp53      161  3.78   0.11   23         5.99  3.72         0.51
Glud1      159  4.20   0.14   26         7.56  4.49         0.32
Ext1       161  4.23   0.19   23         2.03  3.91         0.28
Aes        163  4.58   0.05   13         7.33  1.96         0.23
Mgat1      158  4.61   0.19   31         2.46  5.15         0.34
Mfsd1      165  5.42   0.12   24         3.92  4.08         0.42
Ak2        165  5.52   0.12   32         5.53  5.82         0.69
Psmb7      162  6.74   0.09   39        10.38  6.08         0.41
Rpl41      157  7.10   0.06   24        12.35  3.67        -0.18
Dync1h1    164  7.69   0.19   31         5.08  6.65         0.52
Fkbp9      162  8.55   0.09   26         6.20  4.79         0.65

S_ALL = cells.to_numpy() / cells.mean()
dy = obs[obs.gene == "Dync1h1"]
fig, axes = plt.subplots(1, 4, figsize=(15, 3.6))
ax = axes[0]
ax.hist(dy.y, bins=np.arange(-0.5, dy.y.max() + 1.5), color=BLUE)
ax.set(xlabel="UMIs (C57 allele)", ylabel="cells", title="Dync1h1, 165 G1 cells")
ax = axes[1]
ax.scatter(dy.s, dy.y + rng.uniform(-0.25, 0.25, len(dy)), s=8, color=BLUE, alpha=0.6)
bins = np.quantile(dy.s, np.linspace(0, 1, 7))
mids = [dy.y[(dy.s >= lo) & (dy.s <= hi)].mean() for lo, hi in zip(bins[:-1], bins[1:])]
ax.plot(0.5 * (bins[1:] + bins[:-1]), mids, "D-", color=ORANGE, label="mean per sextile")
ax.set(xscale="log", xlabel="cell factor s (allelic UMIs / mean)", ylabel="UMIs", title="More UMIs, more Dync1h1")
ax.set_xticks([0.25, 0.5, 1, 2], ["0.25", "0.5", "1", "2"])
ax.xaxis.set_minor_formatter(plt.NullFormatter())
ax.legend(fontsize=8)
ax = axes[2]
cv2 = S_ALL.var() / S_ALL.mean() ** 2
m_line = np.logspace(-0.3, 1, 50)
ax.plot(summary["mean"], summary["Fano"], "o", color=BLUE)
ax.plot(m_line, 1 + cv2 * m_line, color=ORANGE, label="Poisson x cell factor only")
ax.axhline(1, color=INK, ls=":", lw=1, label="Poisson")
ax.set(xscale="log", yscale="log", xlabel="mean UMIs", ylabel="Fano factor", title="24 genes: overdispersed")
ax.legend(fontsize=8)
ax = axes[3]
ax.hist(summary["allele_corr"], bins=12, color=AQUA)
ax.axvline(0, color=INK, ls=":")
ax.set(xlabel="correlation of C57 and CAST counts in a cell", ylabel="genes", title="Alleles co-vary");
print(f"correlation of Dync1h1 with the cell factor: {np.corrcoef(dy.s, dy.y)[0, 1]:.2f}; "
      f"median allele correlation {summary['allele_corr'].median():.2f}")

correlation of Dync1h1 with the cell factor: 0.70; median allele correlation 0.30

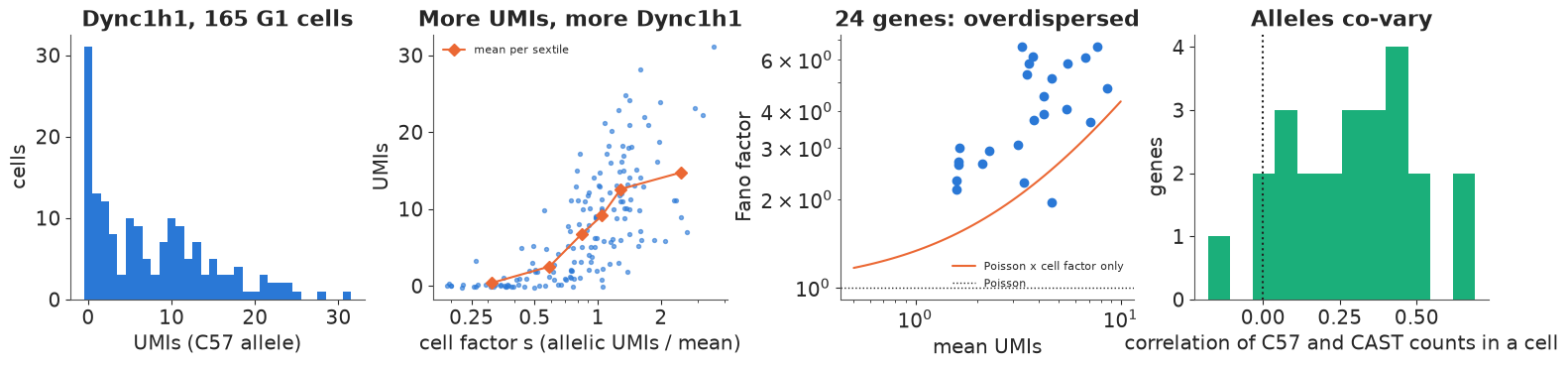

Every gene is overdispersed (Fano factors of about 2 to 7), as bursting predicts - but the second and fourth panels are a warning. Cells differ in how many molecules were captured and sequenced: the total number of allele-assigned UMIs has a coefficient of variation of 0.58 across G1 cells (the extremes differ almost 20-fold), from differences in cell size and in capture efficiency. Dync1h1 counts rise steeply with that total (correlation 0.70), and the two alleles of a gene, which should burst independently, are positively correlated in 22 of the 24 genes (median 0.30). Something shared by both alleles of a cell - an extrinsic factor, in the language of Elowitz et al.'s (2002) two-reporter experiment - adds variance. The orange line shows how much overdispersion the cell factor alone would create for a Poisson gene: a part of, but not all of, the observed Fano factors. A telegraph model fitted without it will call all of that variance "bursting".

Capture efficiency is binomial thinning, and thinning is invisible. If each molecule is captured with probability $\varepsilon$, the observed count is $\text{Binomial}(n, \varepsilon)$. Thinning a Poisson($k_\text{syn}p$) gives Poisson($\varepsilon k_\text{syn}p$), so a thinned telegraph is a telegraph with synthesis rate $\varepsilon k_\text{syn}$ - exactly, not approximately:

eps, par = 0.3, (0.5, 10.0, 105.0)
p_true = tele_pmf_np(*par, 400)
thin = stats.binom.pmf(np.arange(401)[:, None], np.arange(401)[None, :], eps)   # [observed, true]
print(f"max |thinned telegraph - telegraph with eps * ksyn| = "
      f"{np.abs(thin @ p_true - tele_pmf_np(par[0], par[1], eps * par[2], 400)).max():.1e}")

max |thinned telegraph - telegraph with eps * ksyn| = 2.8e-17

Two consequences. (1) The absolute capture efficiency and the synthesis rate are not identifiable separately from counts: only $\varepsilon k_\text{syn}$ is, so every burst size in this notebook is in detected molecules, a lower bound on the true burst size (it takes spike-in standards or smFISH calibration to convert). (2) Relative capture differences between cells are identifiable if we have a proxy for them: we give cell $c$ the synthesis rate $k_\text{syn}s_c$, with $s_c$ its allele-assigned UMIs divided by the average cell. This lumps capture efficiency with cell size (bigger cells hold more of most mRNAs), which assumes size acts on the burst size rather than the burst frequency - an assumption, flagged for the exercises.

Each cell now has its own pmf. Solving a system per cell and gene is wasteful, so we solve on a grid of 12 values of $\log s$ and interpolate the log-pmf with 4-point (cubic) Lagrange weights, which are fixed numbers once the grid is chosen. We check the interpolation error on the fitted gene below.

N_FIT, N_LEVELS = 90, 12
LOG_S = np.linspace(np.log(S_ALL.min()) - 0.01, np.log(S_ALL.max()) + 0.01, N_LEVELS)


def lagrange_weights(s):
    """Cubic Lagrange weights of log s on the LOG_S grid: base index (node i-1..i+2) and (n, 4) weights."""
    x = (np.log(s) - LOG_S[0]) / (LOG_S[1] - LOG_S[0])
    i = np.clip(np.floor(x).astype(int), 1, N_LEVELS - 3)
    t = x - i
    w = np.stack([-t * (t - 1) * (t - 2) / 6, (t + 1) * (t - 1) * (t - 2) / 2,
                  -(t + 1) * t * (t - 2) / 2, (t + 1) * t * (t - 1) / 6], axis=1)
    return i, w

#5 · One gene, three likelihoods

We start with Dync1h1 (cytoplasmic dynein heavy chain), the most highly expressed of the 24 genes. Four models of its 165 counts, all with rates in units of its mRNA degradation rate:

• Poisson with mean $\mu s_c$ (constitutive expression plus capture);
• NB with shape $k_\text{on}$ and mean $k_\text{on}Bs_c$ (the bursting limit);
• telegraph with $(k_\text{on}, k_\text{off}, k_\text{syn}s_c)$, the likelihood of sections 2-4;
• telegraph without the cell factor ($s_c = 1$), to see what ignoring it does.

The telegraph is parameterised by what the NB limit says a snapshot should identify: burst frequency $k_\text{on}$ and burst size $B = k_\text{syn}/k_\text{off}$, plus the burst end rate $k_\text{off}$. Priors: $\log k_\text{on} \sim N(0, 1.5)$, $\log B \sim N(\log 4, 1.5)$ and $\log k_\text{off} \sim N(\log 10, 2)$ - bursts lasting from about 1/500 of an mRNA lifetime (a minute or two, for a 5-hour half-life) to several lifetimes. Each likelihood is a pm.Potential with the per-cell log-likelihood kept as a Deterministic for PSIS-LOO (as in E53).

def gene_model(y, s, kind, koff_prior=(np.log(10), 2.0)):
    i0, w = lagrange_weights(s)
    with pm.Model() as model:
        if kind == "Poisson":
            log_mu = pm.Normal("log_mu", 1.0, 1.5)
            ll = pm.logp(pm.Poisson.dist(pt.exp(log_mu) * s), y)
        else:
            log_kon = pm.Normal("log_kon", 0.0, 1.5)
            log_B = pm.Normal("log_B", np.log(4), 1.5)
            if kind == "NB":
                ll = pm.logp(pm.NegativeBinomial.dist(mu=pt.exp(log_kon + log_B) * s,
                                                      alpha=pt.exp(log_kon)), y)
            else:
                log_koff = pm.Normal("log_koff", *koff_prior)
                pm.Deterministic("log_ksyn", log_B + log_koff)
                kon, koff, ksyn = pt.exp(log_kon), pt.exp(log_koff), pt.exp(log_B + log_koff)
                if kind == "telegraph, no cell factor":
                    ll = tele_logpmf(kon, koff, ksyn, N_FIT)[y]
                else:
                    lp = tele_logpmf(kon * np.ones(N_LEVELS), koff * np.ones(N_LEVELS),
                                     ksyn * np.exp(LOG_S), N_FIT)          # (levels, N + 1)
                    ll = sum(w[:, j] * lp[i0 - 1 + j, y] for j in range(4))
        ll = pm.Deterministic("ll", ll)
        pm.Potential("likelihood", ll.sum())
    return model


def fit_gene(model, label, **kw):
    t0 = time.time()
    idata = pm.sample(model=model, random_seed=RANDOM_SEED, progressbar=False, **kw)
    idata["log_likelihood"] = idata.posterior["ll"].to_dataset(name="y")
    idata["posterior"] = idata.posterior.to_dataset().drop_vars("ll")
    loo = az.loo(idata, var_name="y", pointwise=True)
    loo.log_weights = None
    del idata["log_likelihood"]
    print(f"{label:28s} {time.time() - t0:4.0f} s | divergences {int(idata.sample_stats['diverging'].sum()):3d}"
          f" | max r_hat {np.nanmax(az.rhat(idata).to_dataset().to_dataarray().to_numpy()):.3f} | min ess_bulk "
          f"{np.nanmin(az.ess(idata).to_dataset().to_dataarray().to_numpy()):5.0f} | elpd_loo {loo.elpd:7.1f} | "
          f"Pareto k > 0.7: {int((loo.pareto_k > 0.7).sum())}")
    return idata, loo


y_d, s_d = dy.y.to_numpy(), dy.s.to_numpy()
fits, loos = {}, {}
for kind in ["Poisson", "NB", "telegraph", "telegraph, no cell factor"]:
    fits[kind], loos[kind] = fit_gene(gene_model(y_d, s_d, kind), kind, target_accept=0.95)
print(az.compare(loos, round_to=1)[["rank", "elpd", "elpd_diff", "dse", "p"]])

Poisson                         2 s | divergences   0 | max r_hat 1.002 | min ess_bulk  1595 | elpd_loo  -554.2 | Pareto k > 0.7: 0

NB                              1 s | divergences   0 | max r_hat 1.008 | min ess_bulk   434 | elpd_loo  -458.3 | Pareto k > 0.7: 0

telegraph                       6 s | divergences   0 | max r_hat 1.015 | min ess_bulk   414 | elpd_loo  -454.3 | Pareto k > 0.7: 0

telegraph, no cell factor       2 s | divergences   0 | max r_hat 1.005 | min ess_bulk   489 | elpd_loo  -500.5 | Pareto k > 0.7: 0
                           rank   elpd  elpd_diff   dse    p
telegraph                     0 -454.3        0.0   0.0  2.7
NB                            1 -458.3       -4.0   1.8  1.9
telegraph, no cell factor     2 -500.5      -46.3   5.5  3.1
Poisson                       3 -554.2     -100.0  17.5  3.3

def post(idata, var):
    return idata.posterior[var].to_numpy().ravel()


rows = {}
for kind in ["NB", "telegraph", "telegraph, no cell factor"]:
    rows[kind] = {v: f"{np.median(post(fits[kind], v)):.2f} [{np.quantile(post(fits[kind], v), 0.055):.2f}, "
                     f"{np.quantile(post(fits[kind], v), 0.945):.2f}]"
                  for v in ["log_kon", "log_B", "log_koff"] if v in fits[kind].posterior}
print("posterior median [89% interval], natural-log scale")
print(pd.DataFrame(rows).T.fillna("-").to_string())

# interpolation check at the posterior median of the telegraph fit
med = {v: np.exp(np.median(post(fits["telegraph"], v))) for v in ["log_kon", "log_B", "log_koff"]}
kon_m, B_m, koff_m = med["log_kon"], med["log_B"], med["log_koff"]
ll_exact = np.array([np.log(tele_pmf_np(kon_m, koff_m, B_m * koff_m * si, N_FIT)[yi]) for si, yi in zip(s_d, y_d)])
i0, w = lagrange_weights(s_d)
lp_lv = np.log(np.array([tele_pmf_np(kon_m, koff_m, B_m * koff_m * np.exp(l), N_FIT) for l in LOG_S]))
ll_interp = sum(w[:, j] * lp_lv[i0 - 1 + j, y_d] for j in range(4))
print(f"interpolation error of the total log-likelihood: {ll_interp.sum() - ll_exact.sum():+.3f}; "
      f"largest per cell {np.abs(ll_interp - ll_exact).max():.4f}; "
      f"mass beyond N = {N_FIT} for the largest cell factor: "
      f"{tele_pmf_np(kon_m, koff_m, B_m * koff_m * S_ALL.max(), 400)[N_FIT + 1:].sum():.1e}")

posterior median [89% interval], natural-log scale
                                        log_kon              log_B            log_koff
NB                            0.75 [0.45, 1.06]  1.20 [0.89, 1.51]                   -
telegraph                    0.14 [-0.26, 0.65]  2.30 [1.44, 2.84]  0.60 [-0.18, 2.62]
telegraph, no cell factor  -0.60 [-0.86, -0.36]  3.03 [2.66, 3.37]  0.10 [-0.37, 0.72]
interpolation error of the total log-likelihood: -0.035; largest per cell 0.0068; mass beyond N = 90 for the largest cell factor: 4.3e-06

All four fits are clean (no divergences, r_hat at most 1.015, bulk ESS above 400). What the comparison says:

• Poisson is out by 100 units of elpd: Dync1h1 is not expressed constitutively.
• Leaving out the cell factor costs 46 units (eight standard errors) - far more than any choice between bursting models - and it changes the answer: burst frequency drops by a factor of two ($e^{-0.60}$ vs $e^{0.14}$) and burst size doubles, because the spread from cell size and capture is booked as bursting.
• The telegraph edges out the NB by 4.0 units of elpd, about two standard errors: weak evidence that Dync1h1's snapshot is not quite NB-shaped. The telegraph gets it by moving towards long bursts ($k_\text{off}$ median 1.8 per lifetime: a burst lasting about half an mRNA lifetime), with fewer, bigger bursts than the NB's reading ($k_\text{on}$ 1.15 vs 2.1, $B$ 10 vs 3.3).

The cubic interpolation over the cell factor changes the total log-likelihood by 0.04 and the truncation at $N = 90$ loses $4 \times 10^{-6}$ of the mass even for the largest cell, both negligible. Now the geometry of the telegraph posterior.

fig, axes = plt.subplots(1, 3, figsize=(14, 4.2))
tel, tel0 = fits["telegraph"].posterior, fits["telegraph, no cell factor"].posterior
pairs = [("log_koff", "log_ksyn", "the raw rates: a ridge"),
         ("log_koff", "log_B", "burst size vs burst end rate"),
         ("log_koff", "log_kon", "burst frequency vs burst end rate")]
for ax, (xv, yv, title) in zip(axes, pairs):
    ax.scatter(tel[xv].to_numpy().ravel(), tel[yv].to_numpy().ravel(), s=3, alpha=0.25, color=BLUE,
               label="with cell factor")
    ax.scatter(tel0[xv].to_numpy().ravel(), tel0[yv].to_numpy().ravel(), s=3, alpha=0.25, color=ORANGE,
               label="without")
    nb = fits["NB"].posterior
    if yv in nb:
        ax.axhspan(*np.quantile(nb[yv].to_numpy(), [0.055, 0.945]), color=GREY, alpha=0.25, lw=0,
                   label="NB 89% interval")
    ax.set(xlabel="log koff (per mRNA lifetime)", ylabel=yv.replace("_", " "), title=title)
axes[0].legend(fontsize=8, markerscale=4);

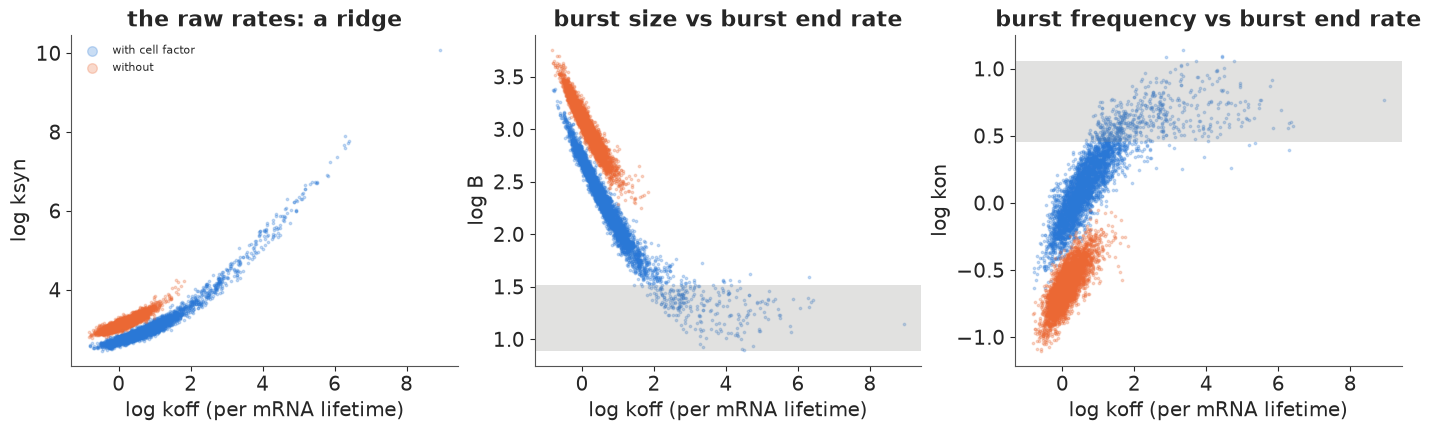

Left: in the raw rates the posterior is a curved ridge - $k_\text{off}$ and $k_\text{syn}$ rise together. Middle and right: in burst coordinates it has two arms. For small $k_\text{off}$ (long bursts), burst size and frequency trade off steeply against $k_\text{off}$; for large $k_\text{off}$ the telegraph is the NB, burst size and frequency settle on the NB values (grey bands) and the data say nothing more, so the posterior trails off along the prior. Most of the mass is on the long-burst arm, but the NB arm is not excluded: the 89% interval of $k_\text{off}$ runs from 0.8 to 14 per lifetime. The cell factor matters here too. Without it (orange) the posterior sits entirely on the long-burst arm with a tight $k_\text{off}$ (0.7-2.1): part of that "evidence" for slow switching was cell-to-cell variation in capture and size, and the remaining preference may still be extrinsic noise that one cell factor does not capture. A snapshot cannot tell us which.

If the data only weakly identify $k_\text{off}$, the prior should be able to move it:

sens = {}
for label, prior in [("default N(log 10, 2)", (np.log(10), 2.0)), ("short bursts N(log 100, 0.5)", (np.log(100), 0.5)),
                     ("long bursts N(log 1, 0.5)", (np.log(1), 0.5))]:
    idata, loo = fit_gene(gene_model(y_d, s_d, "telegraph", koff_prior=prior), label, target_accept=0.95)
    sens[label] = {v: np.median(post(idata, v)) for v in ["log_kon", "log_B", "log_koff"]} | {"elpd_loo": loo.elpd}
    del idata
sens = pd.DataFrame(sens).T
print(sens.assign(kon=np.exp(sens.log_kon), B=np.exp(sens.log_B), koff=np.exp(sens.log_koff))[
    ["kon", "B", "koff", "elpd_loo"]].round(2).to_string())

default N(log 10, 2)            6 s | divergences   0 | max r_hat 1.015 | min ess_bulk   414 | elpd_loo  -454.3 | Pareto k > 0.7: 0

short bursts N(log 100, 0.5)    4 s | divergences   0 | max r_hat 1.003 | min ess_bulk  1044 | elpd_loo  -457.9 | Pareto k > 0.7: 0

long bursts N(log 1, 0.5)       6 s | divergences   0 | max r_hat 1.008 | min ess_bulk   518 | elpd_loo  -453.4 | Pareto k > 0.7: 0
                               kon      B   koff  elpd_loo
default N(log 10, 2)          1.15   9.96   1.82   -454.26
short bursts N(log 100, 0.5)  2.11   3.43  97.03   -457.87
long bursts N(log 1, 0.5)     0.97  12.69   1.27   -453.37

It can, in both directions. A prior insisting on short bursts ($k_\text{off}$ near 100) gets its way: the fit becomes the NB (burst frequency 2.1, size 3.4) and the LOO score drops by 3.6, to the NB's value. A prior insisting on bursts as long as an mRNA lifetime is also accepted, with slightly better LOO than the default. Burst size swings from 3.4 to 12.7 detected molecules across the three priors, because size and $k_\text{off}$ are tied along the ridge; burst frequency moves by a factor of two. So for Dync1h1 the snapshot identifies the product - the mean

• very well, burst frequency and size only up to the unresolved burst duration, and the duration itself hardly at all.

#6 · What would pin down the burst duration? Three simulated experiments

The burst duration $1/k_\text{off}$ is biologically interesting (how long a promoter stays open, which chromatin and transcription factor residence times control), so what data would measure it? We simulate 160 cells of a gene at the scale of Dync1h1 - burst frequency 1.5 and burst size 5 per mRNA lifetime, true $k_\text{off} = 3$ (bursts last a third of a lifetime, about 2.4 hours for Dync1h1's 5-hour half-life) - under three designs:

1. Snapshot: counts at steady state, as above.
2. Snapshot + transcription site: the same cells, plus whether each cell shows an active transcription site (intron or nascent-RNA smFISH shows a bright spot at the gene while it is transcribing). The likelihood is the joint $P(g, n)$, which section 2 gave us for free: $P(\text{ON}, n) = (n+1)P(n+1)/k_\text{syn}$. (Real transcription-site detection is not perfect; we assume it is.)
3. Induction time course: the gene is silent with no mRNA until $t = 0$, when a signal turns it on; 40 cells are fixed at each of 1/8, 1/4, 1/2 and 1 lifetime (0.9 to 7.3 hours for Dync1h1). The likelihood is the FSP time course $e^{Qt}p(0)$: one pt.linalg.expm of $Q\,\Delta t$ and repeated products. This model is compiled with the JAX backend (the expm gradient is about twice as fast there).

Measured molecules only (no capture, no cell factor), same priors as section 5.

KON_T, KOFF_T, B_T = 1.5, 3.0, 5.0
KSYN_T = B_T * KOFF_T
sim_rng = np.random.default_rng(RANDOM_SEED + 6)
snap_n, snap_g = (a[0] for a in ssa(KON_T, KOFF_T, KSYN_T, [20.0], 160, sim_rng))
TIMES = np.array([0.125, 0.25, 0.5, 1.0])
tc_n = np.stack([ssa(KON_T, KOFF_T, KSYN_T, [t], 40, sim_rng)[0][0] for t in TIMES])
print(f"snapshot: mean {snap_n.mean():.1f}, Fano {snap_n.var() / snap_n.mean():.1f}, active sites "
      f"{snap_g.mean():.2f} (theory {KON_T / (KON_T + KOFF_T):.2f})")
print("time course, mean per time point:", tc_n.mean(axis=1).round(2), "| max", tc_n.max())

N_SIM = 45


def design_model(design):
    with pm.Model() as model:
        log_kon = pm.Normal("log_kon", 0.0, 1.5)
        log_B = pm.Normal("log_B", np.log(4), 1.5)
        log_koff = pm.Normal("log_koff", np.log(10), 2.0)
        kon, koff, ksyn = pt.exp(log_kon), pt.exp(log_koff), pt.exp(log_B + log_koff)
        if design == "time course":
            E = pt.linalg.expm(fsp_generator(kon, koff, ksyn, N_SIM, xp=pt) * 0.125)
            p, ps = pt.as_tensor(np.eye(2 * (N_SIM + 1))[0]), []
            for steps in [1, 1, 2, 4]:                      # to t = 1/8, 1/4, 1/2, 1
                for _ in range(steps):
                    p = E @ p
                ps.append(p)
            P = pt.stack(ps)
            ll = pt.log(pt.maximum(P[:, :N_SIM + 1] + P[:, N_SIM + 1:], 1e-300))[np.arange(4)[:, None], tc_n]
        else:
            lp = tele_logpmf(kon, koff, ksyn, N_SIM)
            if design == "snapshot":
                ll = lp[snap_n]
            else:                                           # joint (gene state, count)
                nn_ = np.arange(N_SIM)
                log_on = pt.log(nn_ + 1.0) + lp[1:] - pt.log(ksyn)          # log P(ON, n), n < N
                log_off = lp[:-1] + pt.log1mexp(pt.minimum(log_on - lp[:-1], -1e-12))
                ll = pt.where(snap_g == 1, log_on[snap_n], log_off[snap_n])
        pm.Potential("likelihood", ll.sum())
    return model


designs = {}
for design in ["snapshot", "snapshot + transcription site", "time course"]:
    t0 = time.time()
    kw = {"compile_kwargs": {"backend": "jax", "gradient_backend": "jax"}} if design == "time course" else {}
    idata = pm.sample(model=design_model(design), random_seed=RANDOM_SEED, progressbar=False,
                      target_accept=0.9, **kw)
    designs[design] = idata
    q = np.quantile(post(idata, "log_koff"), [0.055, 0.5, 0.945])
    print(f"{design:30s} {time.time() - t0:3.0f} s | divergences {int(idata.sample_stats['diverging'].sum())} | "
          f"max r_hat {float(az.rhat(idata).to_dataset().to_dataarray().max()):.3f} | "
          f"koff median {np.exp(q[1]):.1f}, 89% [{np.exp(q[0]):.1f}, {np.exp(q[2]):.1f}] (truth {KOFF_T})")

snapshot: mean 5.0, Fano 2.6, active sites 0.31 (theory 0.33)
time course, mean per time point: [0.12 0.57 0.95 2.02] | max 9

snapshot                         1 s | divergences 0 | max r_hat 1.011 | koff median 7.2, 89% [1.5, 127.1] (truth 3.0)

snapshot + transcription site    1 s | divergences 0 | max r_hat 1.005 | koff median 4.7, 89% [3.1, 7.3] (truth 3.0)

time course                     33 s | divergences 0 | max r_hat 1.012 | koff median 6.1, 89% [2.1, 42.2] (truth 3.0)

fig, axes = plt.subplots(1, 4, figsize=(15, 3.8), width_ratios=[1.3, 1, 1, 1])
ax = axes[0]
xg = np.linspace(-3, 9, 300)
ax.plot(xg, stats.norm.pdf(xg, np.log(10), 2), color=GREY, ls="--", label="prior")
for (design, idata), c in zip(designs.items(), [BLUE, AQUA, PURPLE]):
    ax.hist(post(idata, "log_koff"), bins=60, density=True, histtype="step", lw=2, color=c, label=design)
ax.axvline(np.log(KOFF_T), color=INK, ls=":", label="truth")
ax.set(xlabel="log koff", ylabel="density", title="Burst end rate, three designs")
ax.legend(fontsize=7)
for ax, (design, idata), c in zip(axes[1:], designs.items(), [BLUE, AQUA, PURPLE]):
    ax.scatter(post(idata, "log_koff"), post(idata, "log_B"), s=2, alpha=0.2, color=c)
    ax.plot(np.log(KOFF_T), np.log(B_T), "x", color=INK, ms=10, mew=2)
    ax.set(xlim=(-1, 8), ylim=(0, 3.5), xlabel="log koff", ylabel="log burst size", title=design);

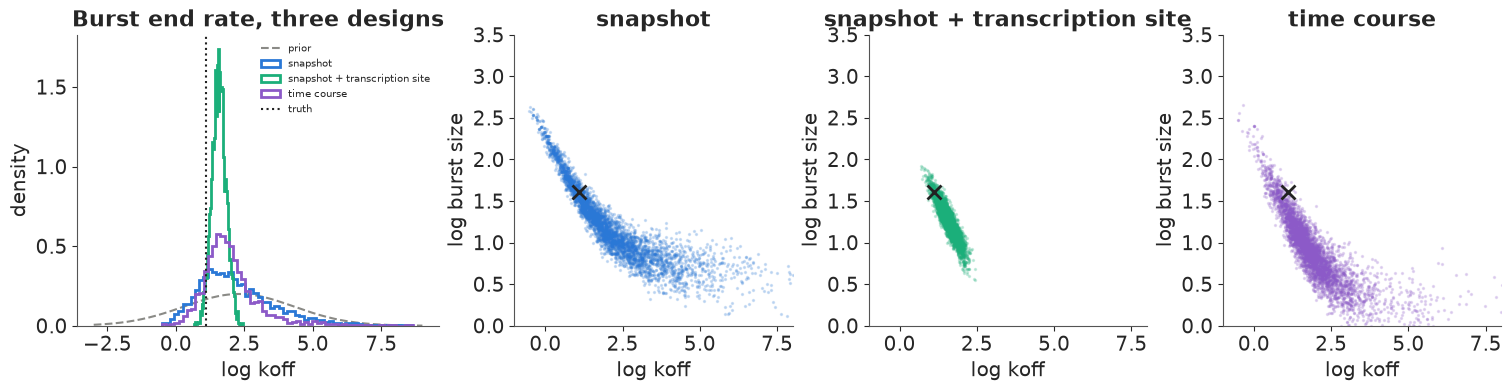

The snapshot alone repeats section 5 in a cleaner setting: $k_\text{off}$ is bounded below (about 1.5) and runs up into the prior (89% interval up to 127), and burst size slides along with it (second panel). The transcription-site readout changes this completely (green): knowing which cells are transcribing right now measures the fraction of time ON, $k_\text{on}/(k_\text{on}+ k_\text{off})$, and with the counts fixing the rest that pins $k_\text{off}$ to within a factor of about 2.4 (3.1-7.3). The true value, 3.0, sits just below that 89% interval - one simulated data set, and the 160 cells happened to show a slightly low share of active sites (0.31 vs 0.33). The induction time course (purple) helps less: it cuts the upper end of the interval from 127 to 42 but leaves the long NB arm in place. Early time points see the first bursts while they happen, but with a mean of 0.1-0.6 molecules per cell at the first two times, 40 cells each carry little information; more cells at early times, or live-cell imaging of single transcription sites, would do better. The lesson for experiment design: burst duration needs data that see the promoter state or the dynamics; more snapshot cells will not do it.

#7 · Twenty-four genes: a hierarchical model of burst frequency and size

Larsson et al.'s main question was how burst frequency and burst size vary across genes (and what in the DNA sets them). We fit all 24 genes at once, with the cell factor, and let the genes share a population distribution:

$$(\log k_{\text{on},g}, \log B_g) \sim \text{MvNormal}(\mu, \Sigma), \qquad \log k_{\text{off},g} \sim N(\mu_\text{off}, \sigma_\text{off}),$$

with an LKJ(2) prior on the correlation, HalfNormal(1) scales, $\mu \sim N((0, \log 4), 1)$ and $\mu_\text{off} \sim N(\log 10, 1.5)$, non-centred. That is 24 genes x 12 cell-factor levels = 288 tridiagonal solves per gradient. PyTensor's solve(assume_a="tridiagonal") takes a dense matrix, so its gradient is dense too - $O(N^2)$ per system. jax.lax.linalg.tridiagonal_solve works on the three diagonals and has an $O(N)$ gradient, so we wrap it with pytensor.wrap_jax and compile the model with the JAX backend.

def tele_logpmf_jax(kon, koff, ksyn):
    """JAX: telegraph log-pmf on 0..N_FIT, batched over the leading dims, via the three diagonals."""
    a, b, k = kon[..., None], (kon + koff)[..., None], ksyn[..., None]
    m = jnp.arange(1, N_FIT + 1.0)
    one = jnp.ones_like(a + b + k)
    d = jnp.concatenate([one, -(m - 1 + b + k)], -1)
    dl = jnp.concatenate([0 * one, k * (m - 1 + a) / m], -1)
    du = jnp.broadcast_to(jnp.concatenate([jnp.zeros(1), m[:-1] + 1, jnp.zeros(1)]), d.shape)
    x = tridiagonal_solve(dl, d, du, jnp.zeros(d.shape + (1,)).at[..., 0, 0].set(1.0))[..., 0]
    return jnp.log(x) - jnp.log(x.sum(-1, keepdims=True))


tele_op = pytensor.wrap_jax(tele_logpmf_jax)
G, L = len(GENES), N_LEVELS
par_test = np.full((G, L), 1.0), np.full((G, L), 4.0), np.full((G, L), 20.0) * np.exp(LOG_S)
f_pt = pytensor.function([], tele_logpmf(*[pt.as_tensor(v) for v in par_test], N_FIT))
print(f"max |JAX op - PyTensor| = {np.abs(tele_op(*[pt.as_tensor(v) for v in par_test]).eval() - f_pt()).max():.1e}")

# gradient timing: PyTensor dense-gradient tridiagonal vs the JAX op
_x = pt.dmatrix("x")
for label, fn in [("PyTensor solve(assume_a='tridiagonal')", lambda a, b, c: tele_logpmf(a, b, c, N_FIT)),
                  ("JAX tridiagonal_solve (wrap_jax)", lambda a, b, c: tele_op(
                      pt.specify_shape(a, (G, L)), pt.specify_shape(b, (G, L)), pt.specify_shape(c, (G, L))))]:
    out = fn(pt.exp(_x), 4.0 * pt.ones_like(_x), 20.0 * pt.exp(_x + LOG_S))[..., :20].sum()
    mode = "JAX" if label.startswith("JAX") else "NUMBA"
    f = pytensor.function([_x], [out, pt.grad(out, _x)], mode=mode)
    x0 = np.zeros((G, L))
    [np.asarray(o) for o in f(x0)]
    t0 = time.perf_counter()
    for _ in range(30):
        [np.asarray(o) for o in f(x0)]
    print(f"{label:40s} {(time.perf_counter() - t0) / 30 * 1e3:.2f} ms per log-pmf + gradient ({G * L} systems)")

max |JAX op - PyTensor| = 2.8e-14

PyTensor solve(assume_a='tridiagonal')   2.35 ms per log-pmf + gradient (288 systems)
JAX tridiagonal_solve (wrap_jax)         0.70 ms per log-pmf + gradient (288 systems)

gi = pd.Index(GENES).get_indexer(obs.gene)
y_all, s_all = obs.y.to_numpy(), obs.s.to_numpy()
i0_all, w_all = lagrange_weights(s_all)
ONES = np.ones((G, L))


def hierarchical_model(kind):
    with pm.Model(coords={"gene": GENES, "par": ["log_kon", "log_B"], "cell_gene": np.arange(len(y_all))}) as model:
        mu = pm.Normal("mu", np.array([0.0, np.log(4)]), 1.0, dims="par")
        packed = pm.LKJCholeskyCov("chol", n=2, eta=2.0, sd_dist=pm.HalfNormal.dist(1.0),
                                   compute_corr=False)
        chol = pm.math.expand_packed_triangular(2, packed, lower=True)
        sd = pm.Deterministic("sd", pt.sqrt(pt.diag(chol @ chol.T)), dims="par")
        pm.Deterministic("rho", (chol @ chol.T)[0, 1] / (sd[0] * sd[1]))
        z = pm.Normal("z", 0.0, 1.0, dims=("gene", "par"))
        theta = pm.Deterministic("theta", mu + z @ chol.T, dims=("gene", "par"))
        kon, B = pt.exp(theta[:, 0]), pt.exp(theta[:, 1])
        if kind == "NB":
            ll = pm.logp(pm.NegativeBinomial.dist(mu=(kon * B)[gi] * s_all, alpha=kon[gi]), y_all)
        else:
            mu_off = pm.Normal("mu_off", np.log(10), 1.5)
            sd_off = pm.HalfNormal("sd_off", 1.0)
            z_off = pm.Normal("z_off", 0.0, 1.0, dims="gene")
            log_koff = pm.Deterministic("log_koff", mu_off + sd_off * z_off, dims="gene")
            koff = pt.exp(log_koff)
            lp = tele_op(pt.specify_shape(kon[:, None] * ONES, (G, L)), pt.specify_shape(koff[:, None] * ONES, (G, L)),
                         pt.specify_shape((B * koff)[:, None] * np.exp(LOG_S), (G, L)))
            ll = sum(w_all[:, j] * lp[gi, i0_all - 1 + j, y_all] for j in range(4))
        ll = pm.Deterministic("ll", ll, dims="cell_gene")
        pm.Potential("likelihood", ll.sum())
    return model


print(f"{len(y_all):,} cell-gene counts, {G} genes")
JAX_KW = {"compile_kwargs": {"backend": "jax", "gradient_backend": "jax"}}
hier, hier_loo = {}, {}
for kind in ["NB", "telegraph"]:
    hier[kind], hier_loo[kind] = fit_gene(hierarchical_model(kind), f"hierarchical {kind}", **JAX_KW)
print(az.compare(hier_loo, round_to=1)[["rank", "elpd", "elpd_diff", "dse", "p"]])
print(az.summary(hier["telegraph"], var_names=["mu", "sd", "rho", "mu_off", "sd_off"], round_to=3))
